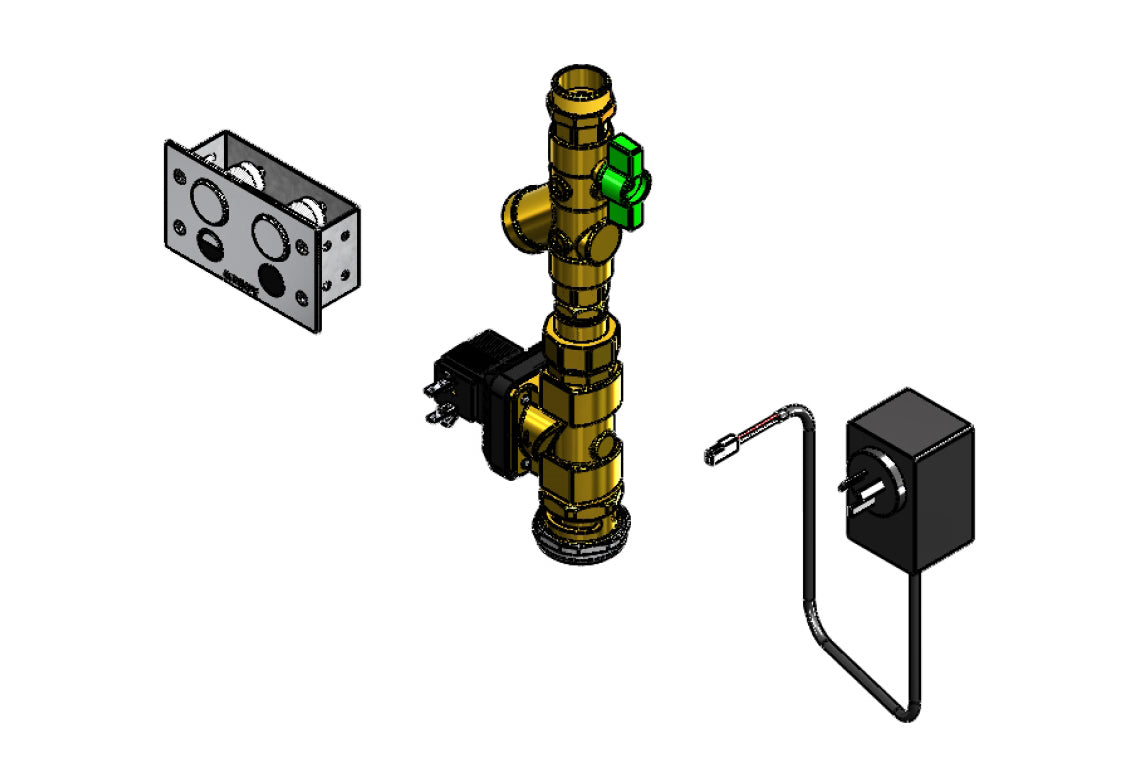

Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access

Product Information

Enware’s WC flushing systems provide a neat and reliable flushing solution using piezoelectric technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers either a 3/6L or 3/4.5L flush.
Best suited for duct style installation (Flush unit and activation plate MUST be separated).
Semi concealed installation with a stainless steel panel and security screws. Shut off valve, filter and airbreak included. Suitable for AS1428.1 applications.

  • Piezo touch button control
  • Mains power 24V
  • Compact face plate
  • Vandal resistant torx screws
  • WMTS-020 compliant
  • 1-year warranty

Inlet & Outlet

Connection Inlet - 1" BSP (25mm)

Pressure

Dual Flush Water Supply Working Pressure 300kPa
Single Flush Water Supply Working Pressure 250kPI

Flush

Flush Pipe 700mm (+/- 100mm) of 1 1/2" (40mm) flush pipe is required below the air break.

Flow Rate

Kv Factor 8.3m3/h

Power Source

Mains Powered 24V AC Transformer

Supply Line

Minimum Water Supply Line Size 1" (25mm) copper pipe
Product Code Description PRIMARY FLOW RATE AVG FLUSH FLOW RATE MIN FLUSH FLOW RATE FINISH VALVE
EMF410M-4 Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access – Mains Powered – 4 Star WELS rating 4.5L/minute 3.1 3 Brushed Stainless Electronic Solenoid Add to spec
