Type 16C7 Laboratory Stop Tap 200mm Swivel and Fixed Outlet Anti Vandal Aerator/ Tube Nozzle - School Pattern Handle Jumper Valve
Type 16C7 Laboratory Stop Tap 200mm Swivel and Fixed Outlet Anti Vandal Aerator/ Tube Nozzle - School Pattern Handle Jumper Valve
Product Code: LF109S
Couldn't load pickup availability
Product description

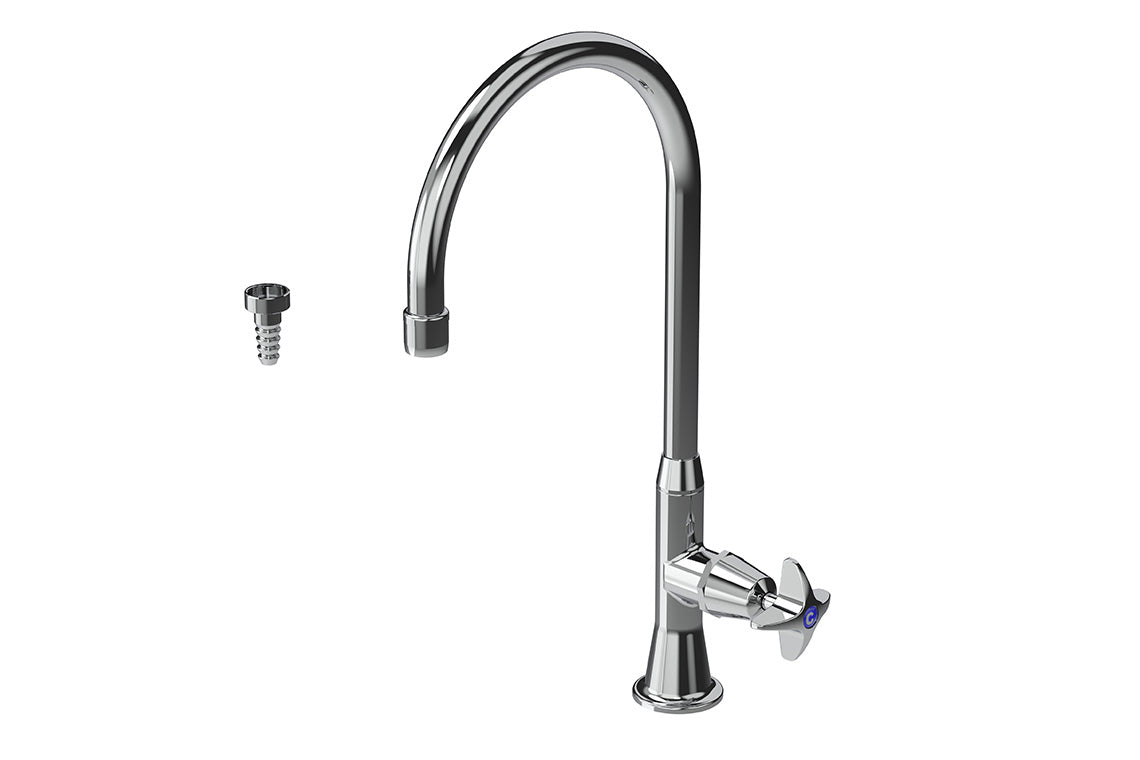

A single hole Vandal resistant laboratory tap with 200mm swivel spout and locking mechanism for fixed spout. Supplied with 6 Star Aerator and 5 Star Tube Nozzle. Can be installed Left or Right Hand orientation. This product is also available with Vandal Proof lever action handle - LF109S-65.
Key Selling Points
- Bench mounted
- Jumper Valve
- 200mm Spout can be Fixed or Swivel
- Left or Right Handed
- Anti-Vandal Aerator (WELS 6 Star)
- Tube Nozzle (WELS 5 Star)
- Anti-rotation pins
- Vandal-resistant school pattern handle
- High quality construction with durable chrome plating
- Supplied with Hot/ Cold/ Warm indicators
- Lead-free brass
- Replaces LF109ST, LF109SLH, LF109STLH
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,WELS-6 Star-3.5Lpm,Lead Free
- First Additional WELS (Stars)
- 6
- First Additional WELS Flow Rate (L/min)
- 3.5
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP (15mm)
- Finish
- Chrome
- Valve Type
- Jumper Valve
BIM Files
Brochures

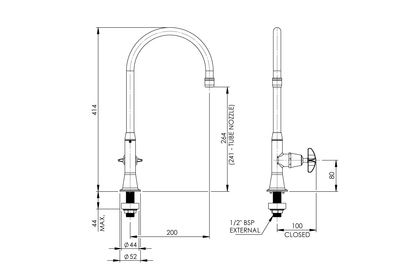

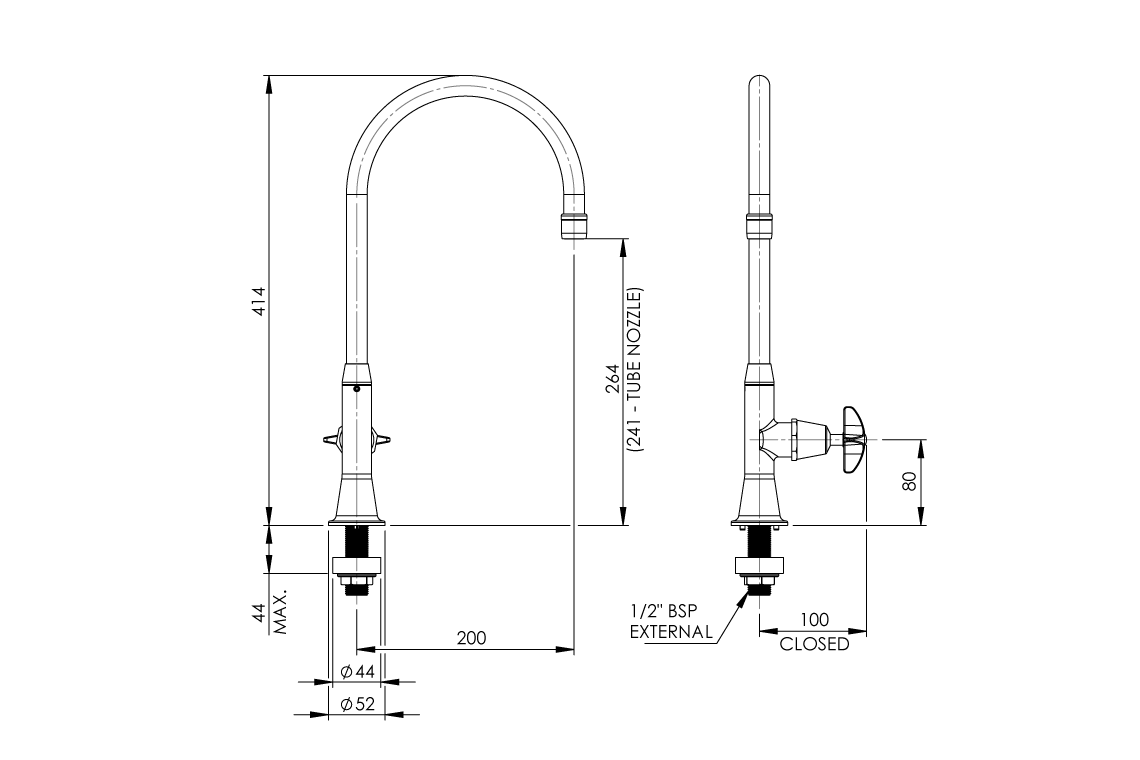

Dimensional Drawings
