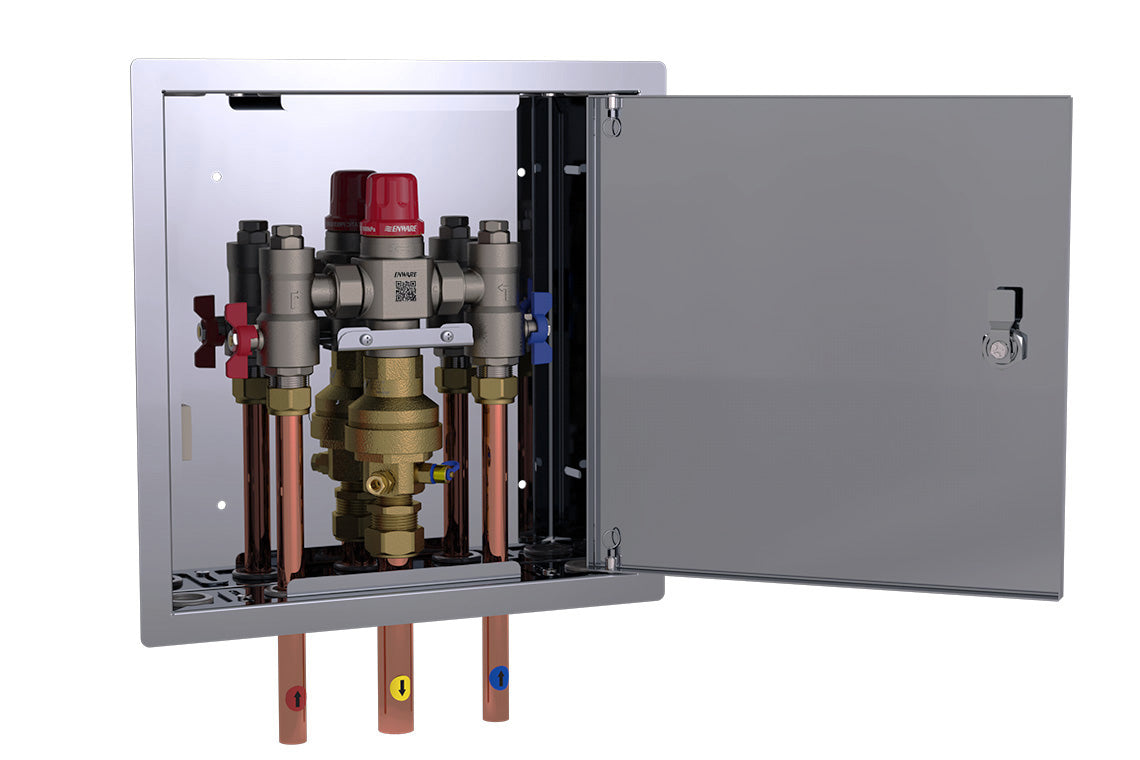

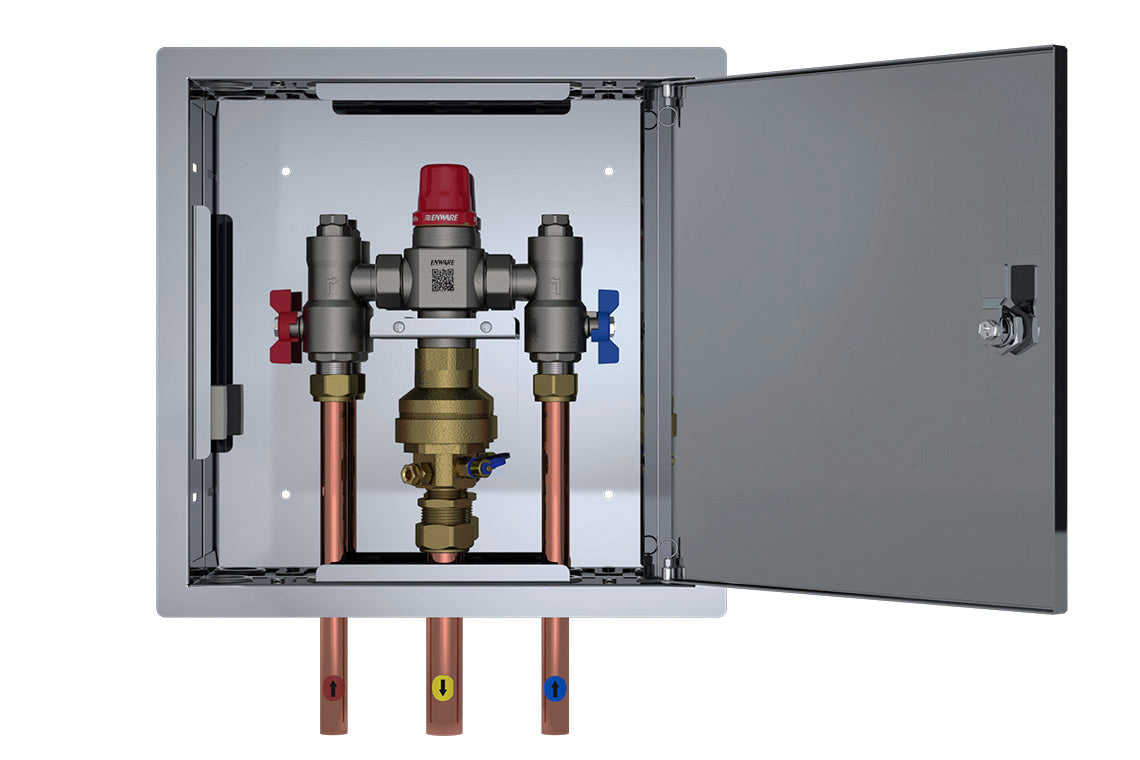

Aquablend 2500 Megamix Smartflow TMV in Stainless Steel Hinged Lid Cabinet 20mm Inlet/25mm Outlet Tails
Aquablend 2500 Megamix Smartflow TMV in Stainless Steel Hinged Lid Cabinet 20mm Inlet/25mm Outlet Tails
Product Code: ATMS727SFH-350
Couldn't load pickup availability
Product description
Enware’s Aquablend 2500 Megamix Thermostatic Mixing Valve is the solution for bathroom and washroom areas requiring high flow for multiple fixtures that may be in use simultaneously. Compact enough to fit in a 75mm wall cavity, the Aquablend 2500 Megamix is ideal for large amenity areas, end of ride facilities, wash and changerooms, high-capacity bath filling (hospital birthing baths, spa's) and large apartments and houses with multiple bathrooms. With precise temperature control to provide comfort and safety to prevent scalding, the Aquablend 2500 Megamix is a high performance, reliable and low cost-of-life solution for high flow mixed water delivery.
Key Selling Points
- High mixed water flow delivery for multiple outlets
- Thermal Flush temperature overide for safe and simple disinfection with Aquablend Lift-Lever function
- Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
- Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
- Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
- Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design
- Standards licensed to AS4032.1 - Thermostatic Mixing Valves

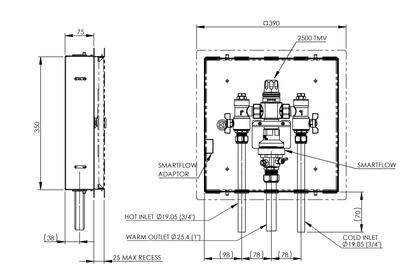

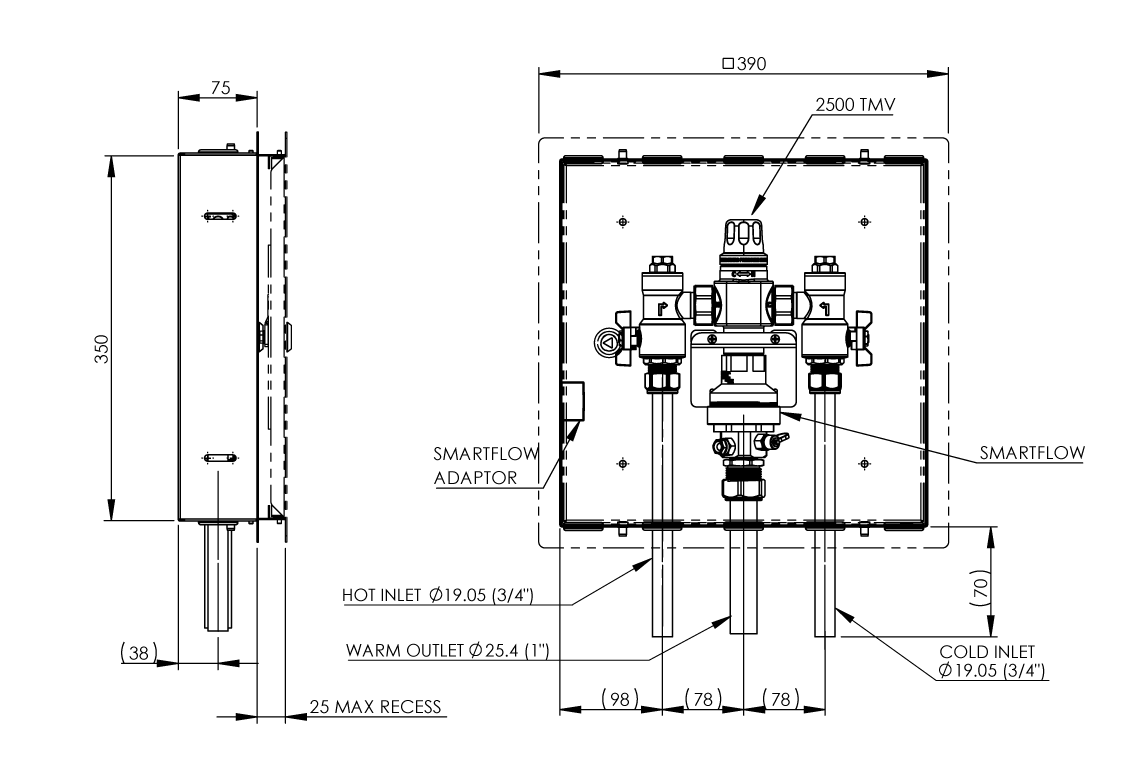

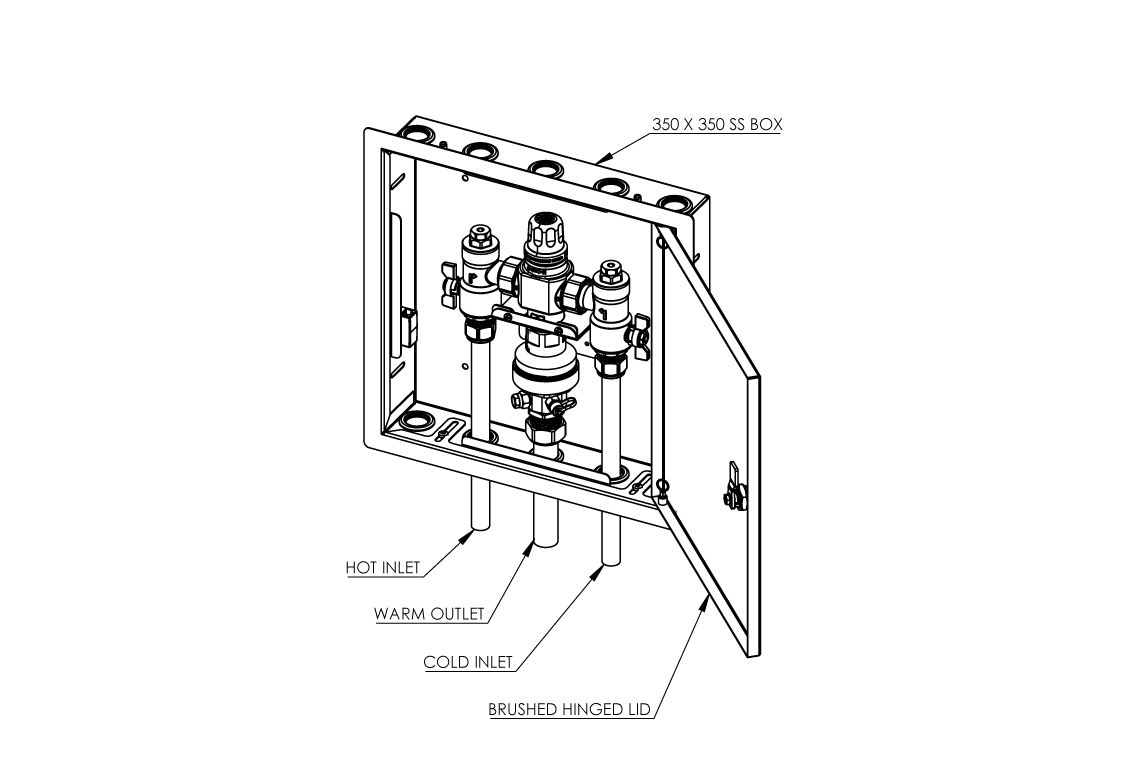

- Pre-Plumbed and tested in stainless steel, hinged lid, cabinet - 350mm x 350mm x 75mm
- 20mm Copper Inlet tails and 25mm Copper Outlet tail
- Smartflow enabled with temperature probe for Smartflow Warm Water System Monitoring
- Certifications
- WMKA25301_AS4032.1_LF,Lead Free,Smart Flow Enabled
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Minimum Thermostatic Temperature (Deg C)
- 35
- Maximum Thermostatic Temperature (Deg C)
- 50
- Minimum Temperature Differential (Deg C)
- 10
- Inlet Pressure Ratio
- H - PL = H¹ C - PL = C¹ H¹ : C¹ = Max 10:1 C¹ : H¹ = Max 10:1
- Maximum Static Pressure (kPa)
- 1600
- Minimum Flow Rate for Stable Outlet Temperature (L/min)
- 4

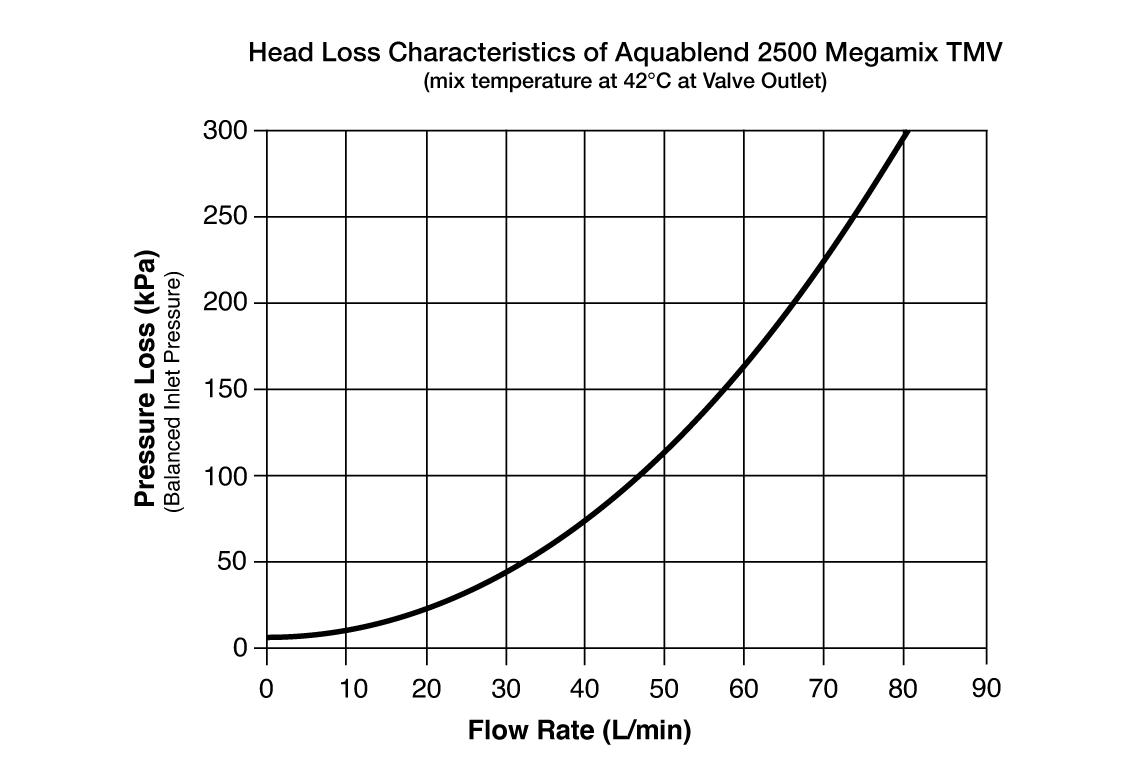

- Maximum Flow Rate (L/min@300kPa pressure loss)
- 80
- Inlet Connection
- 20mm OD Copper
- Outlet Connection
- 25mm OD Copper
- Finish
- Stainless Steel
- Valve Type
- TMV
