Aquablend 2500 Megamix Smartflow TMV with CW bypass in Stainless Steel Hinged Lid Cabinet 20mm Inlet/Bypass/25mm Outlet Tails
Aquablend 2500 Megamix Smartflow TMV with CW bypass in Stainless Steel Hinged Lid Cabinet 20mm Inlet/Bypass/25mm Outlet Tails
Product Code: ATMS729SFH-350
Couldn't load pickup availability
Product description
Enware’s Aquablend® 2500 Megamix Thermostatic Mixing Valve is the solution for bathroom and washroom areas requiring high flow for multiple fixtures that may be in use simultaneously. Compact enough to fit in a 75mm wall cavity, the Aquablend® 2500 Megamix is ideal for large amenity areas, end of ride facilities, wash and changerooms, high capacity bath filling ( hospital birthing baths, spa's) and large apartments and houses with multiple bathrooms. With precise temperature control to provide comfort and safety prevent scalding, the Aquablend 2500 Megamix is a high performance, reliable and low cost-of -life solution for high flow mixed water delivery.
Key Selling Points
- High mixed water flow delivery for multiple outlets
- Thermal Flush temperature overide for safe and simple disinfection with Aquablend Lift-Lever function
- Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
- Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
- Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
- Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design
- Standards licensed to AS4032.1 - Thermostatic Mixing Valves

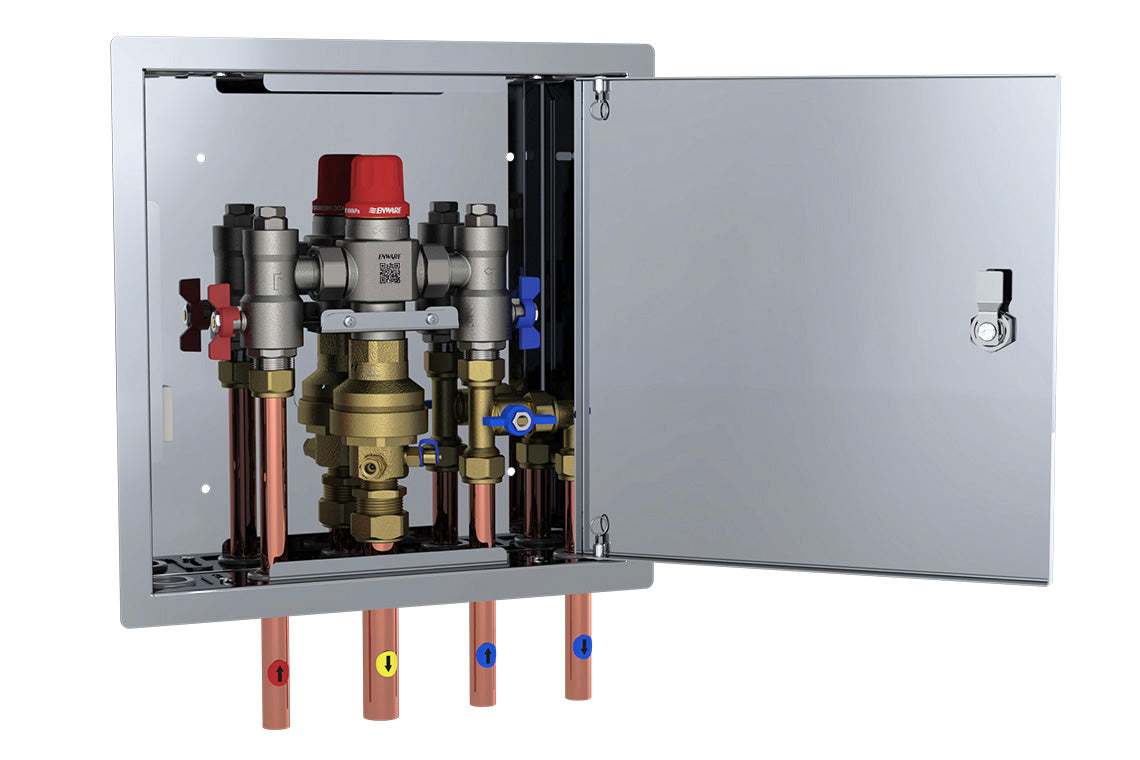

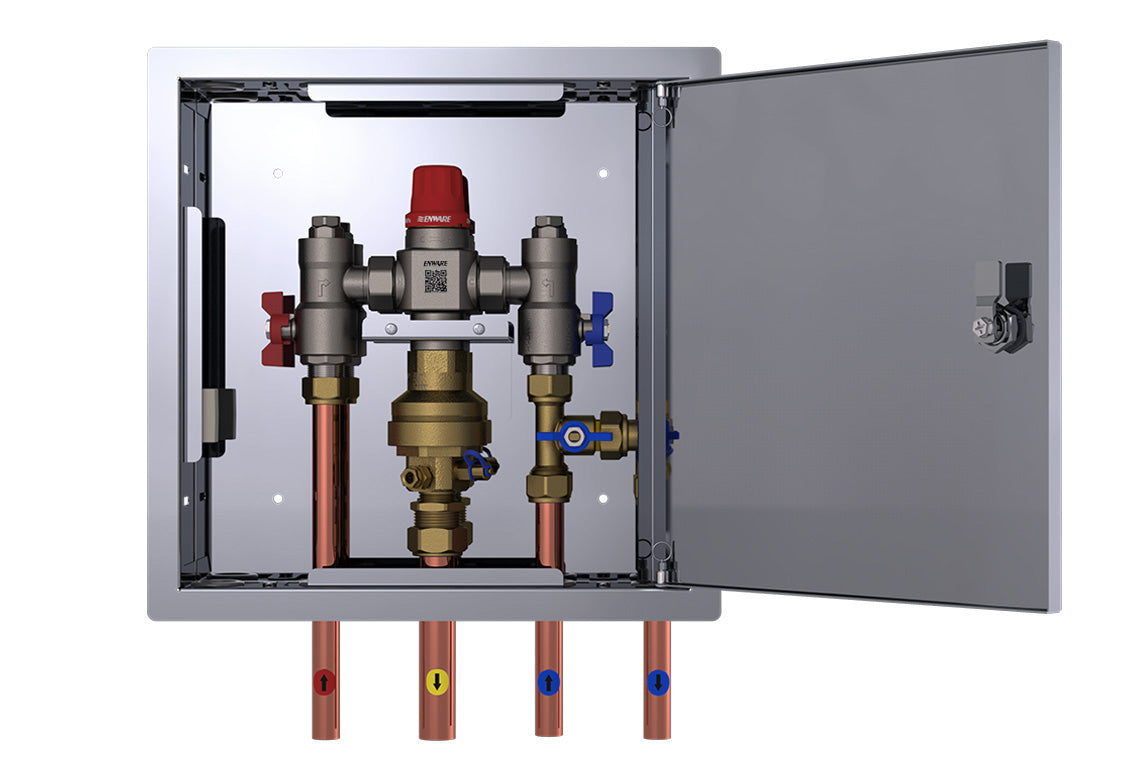

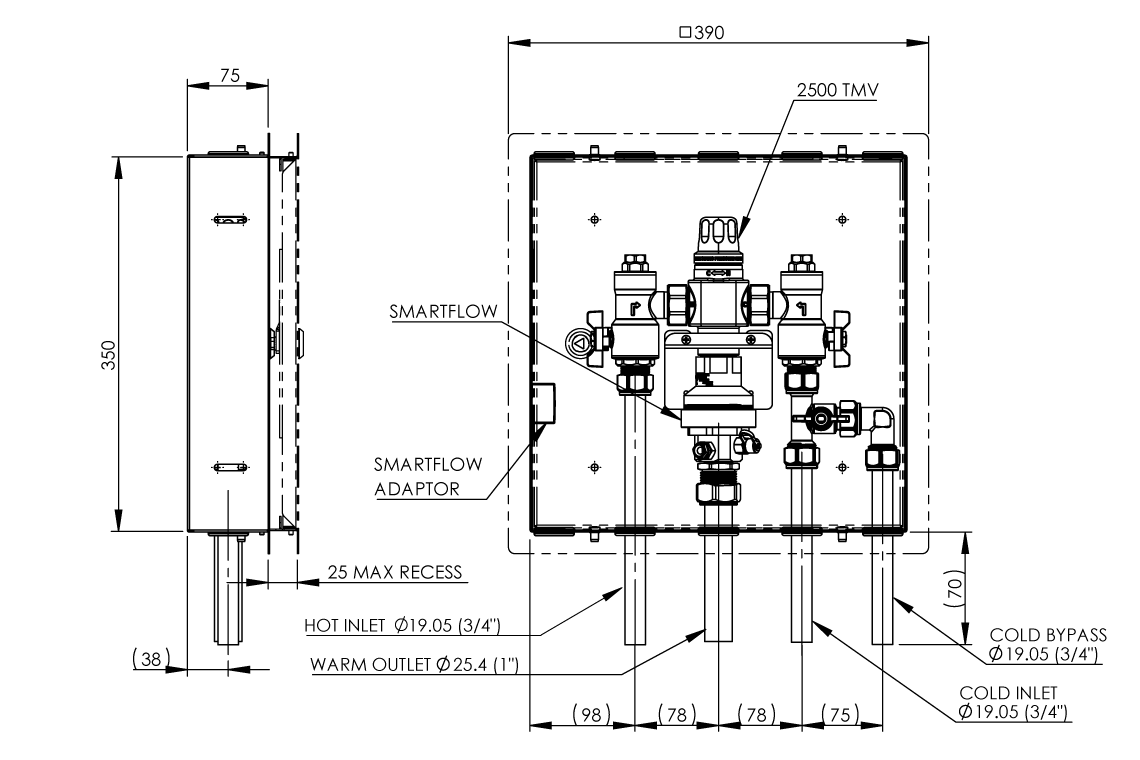

- Pre-Plumbed and tested in stainless steel, hinged lid, cabinet- 350mm x 350mm x 75mm

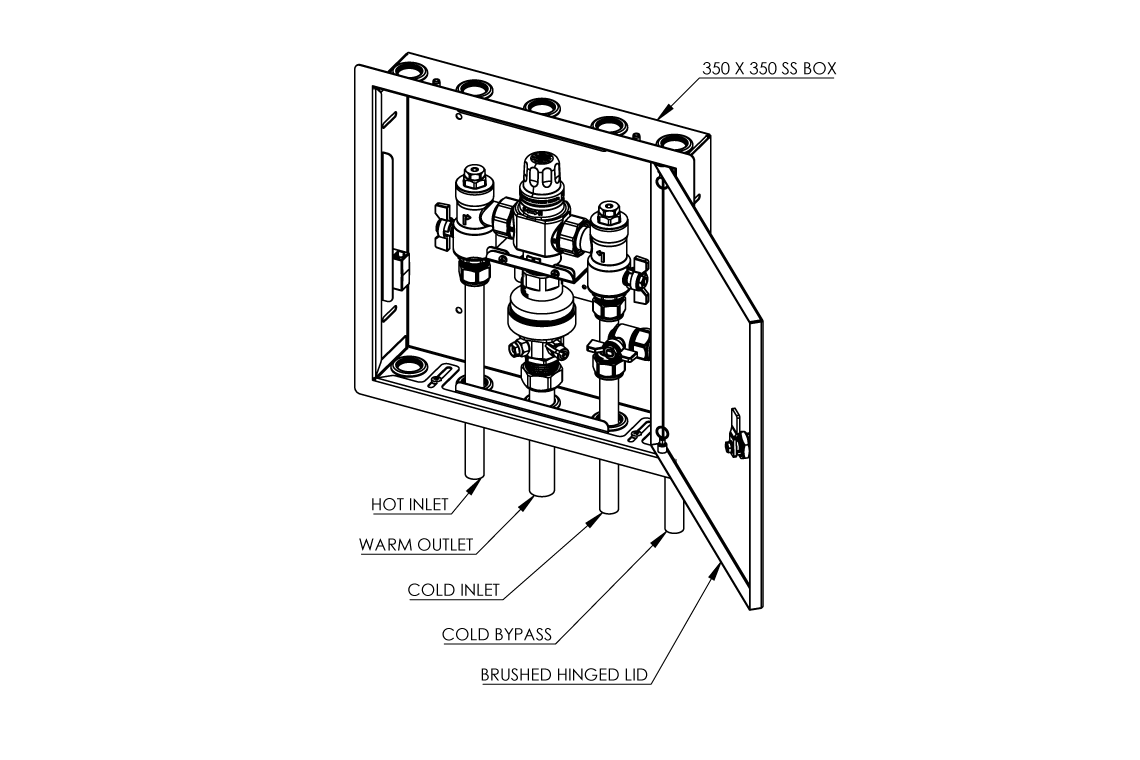

- 20mm Copper Inlet tails and Cold Water Bypass and 25mm Copper Outlet tail
- Smartflow enabled with temperature probe for Smartflow Warm Water System Monitoring
- Certifications
- WMKA25301_AS4032.1_LF,Lead Free,Smart Flow Enabled
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Minimum Thermostatic Temperature (Deg C)
- 35
- Maximum Thermostatic Temperature (Deg C)
- 50
- Minimum Temperature Differential (Deg C)
- 10
- Inlet Pressure Ratio
- H - PL = H¹ C - PL = C¹ H¹ : C¹ = Max 10:1 C¹ : H¹ = Max 10:1
- Maximum Static Pressure (kPa)
- 1600
- Minimum Flow Rate for Stable Outlet Temperature (L/min)
- 4

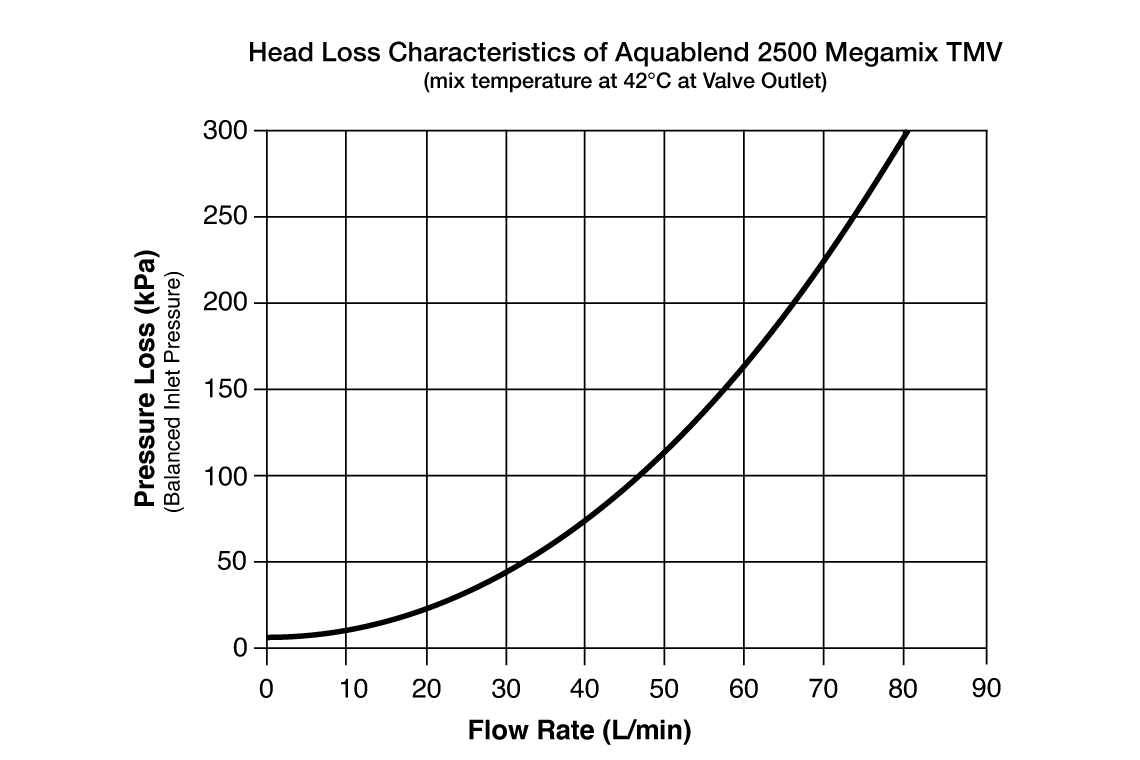

- Maximum Flow Rate (L/min@300kPa pressure loss)
- 80
- Inlet Connection
- 20mm OD Copper
- Outlet Connection
- 25mm OD Copper
- Finish
- Stainless Steel
- Valve Type
- TMV
