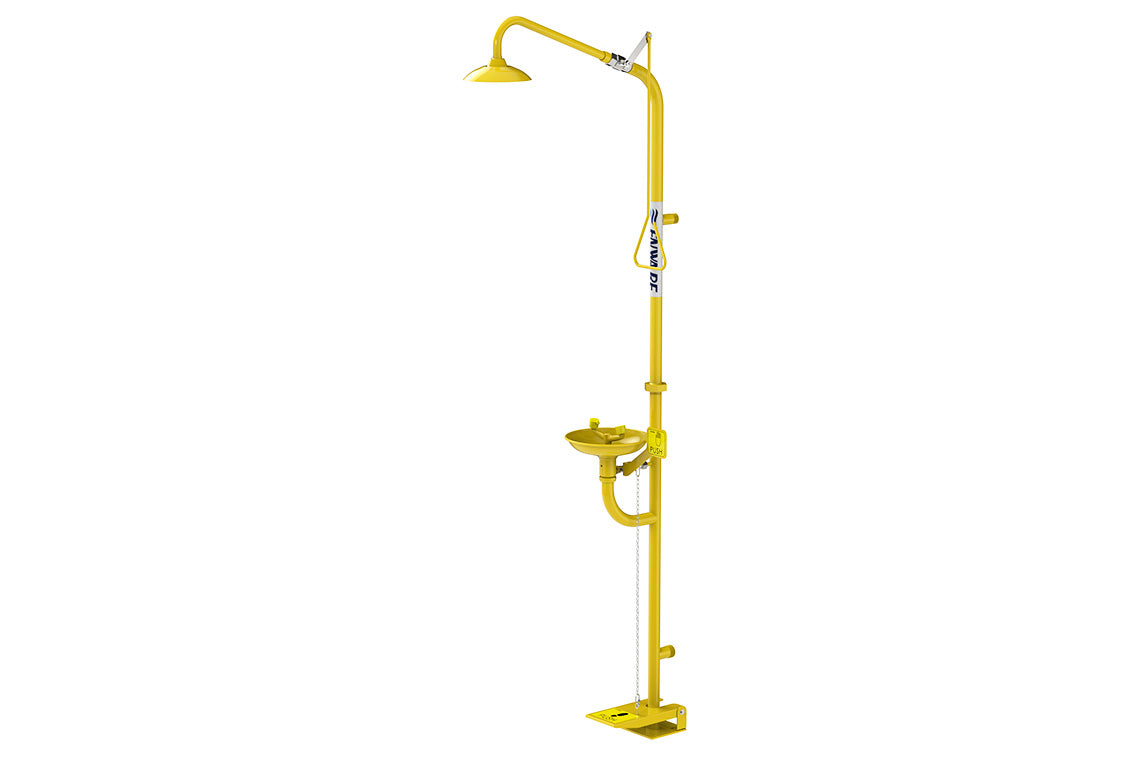

Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash

Product Information

Enware’s emergency safety shower to assist in the rapid flushing of contaminants from the body with a deluge of flushing fluid and eye wash units help to flush contaminants and irritants from eyes and facial area.

Designed and manufactured in Australia. Independently tested for compliance to ANSI Z358.1 and AS4775.

  • Freestanding for stand-alone operation
  • Stainless steel pipe work & stay-open ball valve
  • Stainless steel 200mm (8”) shower head assembly
  • Stainless steel handle with high visibility yellow powder coating
  • Hand push and foot activated eye wash with integral auto-open dust covers
  • Self-draining design reduces Legionella risk, particularly in tepid water applications
  • Eye wash features “Vertech™ Technology” where dedicated eyewash streams deliver optimum coverage
  • Zero velocity apex point provides comfort and control for effective cleansing of eyes
  • Solid stainless, low angle foot pedal for easy activation of eye wash
  • High visibility yellow powder coated push handle and foot pedal
  • Balanced simultaneous operation

Inlet & Outlet

Inlet Connection 25 mm (1" BSP)
Waste Water Outlet Size 38 mm (1 ½”) OD

Water Supply

Water Supply Line Size Must be hydraulically sized to meet requirements.

Flow Rate

Minimum Performance Requirements – Min Working Pressure 210 kPa Caution should be taken when pressure exceeds 550 kPa (80 psi)kPa
Minimum Performance Requirements – Min Flow Requirements Shower: 76 lpm (20 US gpm), Eyewash: 17 lpm (4.5 US gpm)

Mounting

Mounting Base Plate Size: 150 x 150 mm (5 9/10” x 5 9/10”) with 4 Bolt Holes 11 mm (7/16”)

Shipping

Shipping Weight: approx. 12.7kg, Dimensions: 1160 x 300 x 250 mm
Product Code Description FINISH VALVE
ECE090 Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash – Brushed Stainless Finish Brushed Stainless Ball Valve Add to spec
ECE090GR Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash – Powder Coated Finish – GREEN Powder Coating Ball Valve Add to spec
ECE090OR Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash – Powder Coated Finish – ORANGE Powder Coating Ball Valve Add to spec
ECE090WH Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash – Powder Coated Finish – WHITE Powder Coating Ball Valve Add to spec
ECE090YE Emergency Stainless Steel Combination Shower Hand/Foot Operated Eye Wash – Powder Coated Finish – YELLOW Powder Coating Ball Valve Add to spec
