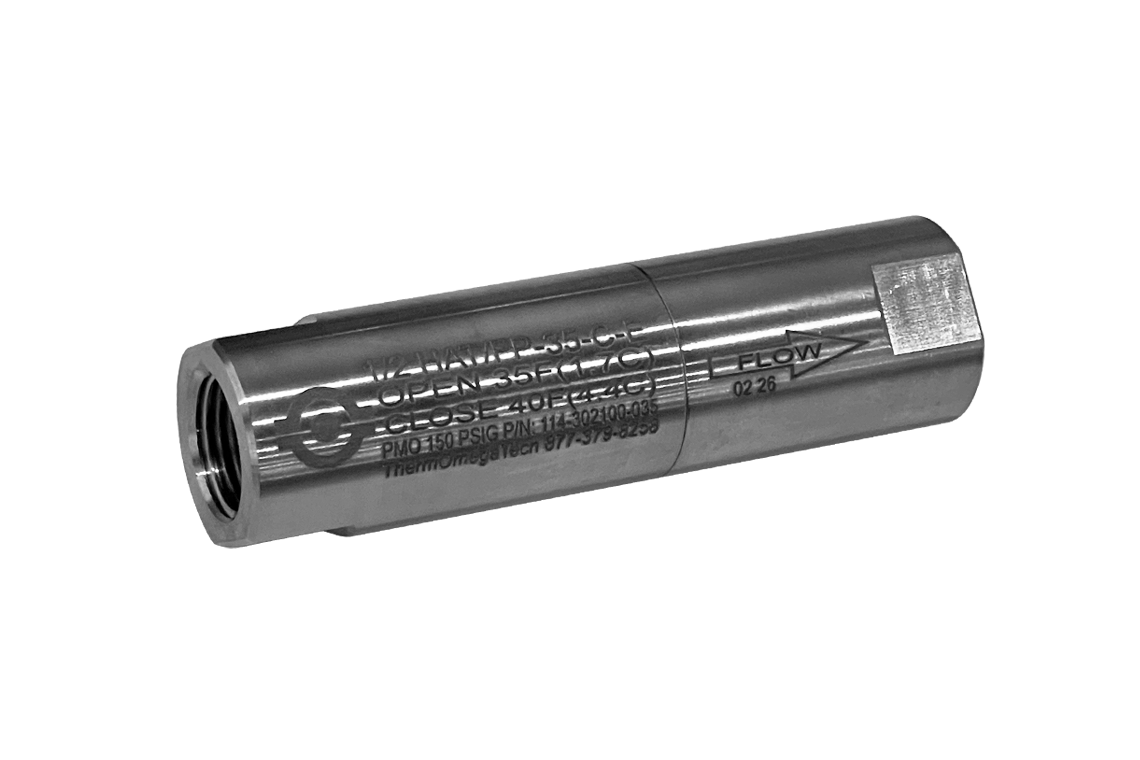

Anti-Freeze Valve - 1/2 Inch

Product description

Anti-freeze valve is a reliable and automatic freeze protection valve designed to protect water supply lines from freezing. This thermostatic valve controls flow based on temperature variations to prevent frozen or bursting pipes which can lead to downtime and hefty repair expenses while minimizing water waste.

Installed at the lowest point or dead leg branch, Anti-freeze valve utilizes thermostatic wax actuator technology to monitor ambient or water temperatures automatically and will bleed off the cold water in the lines before freezing can occur.

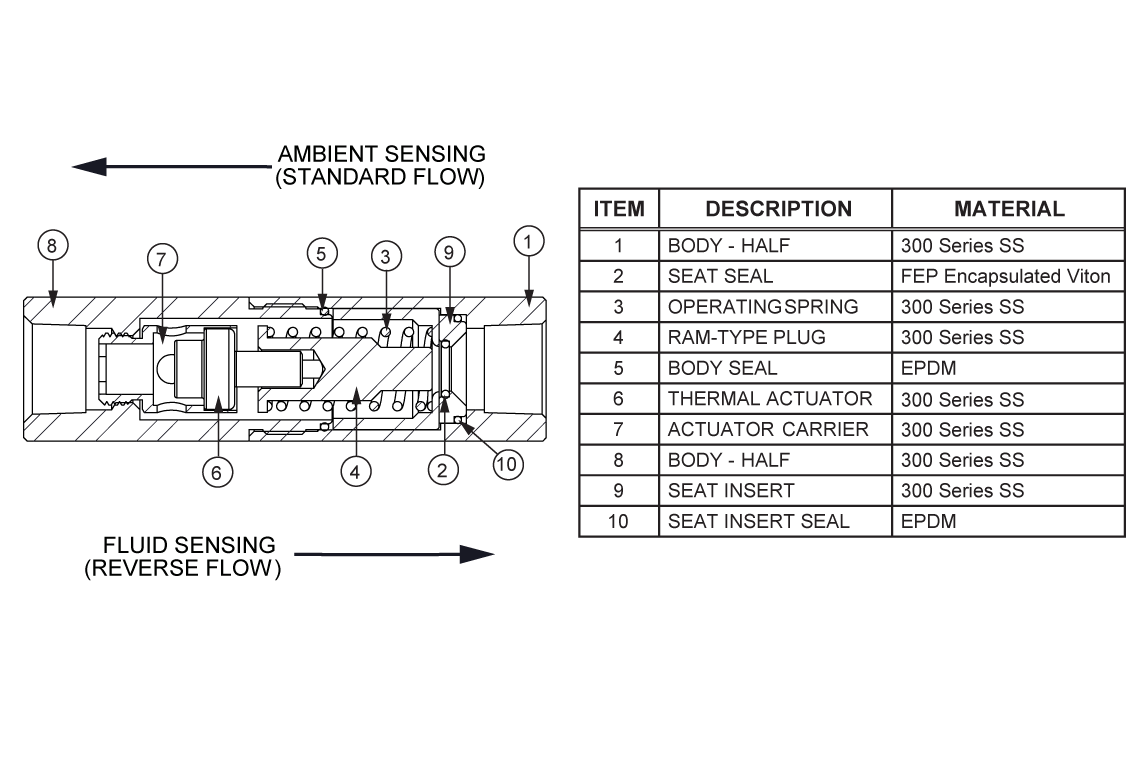

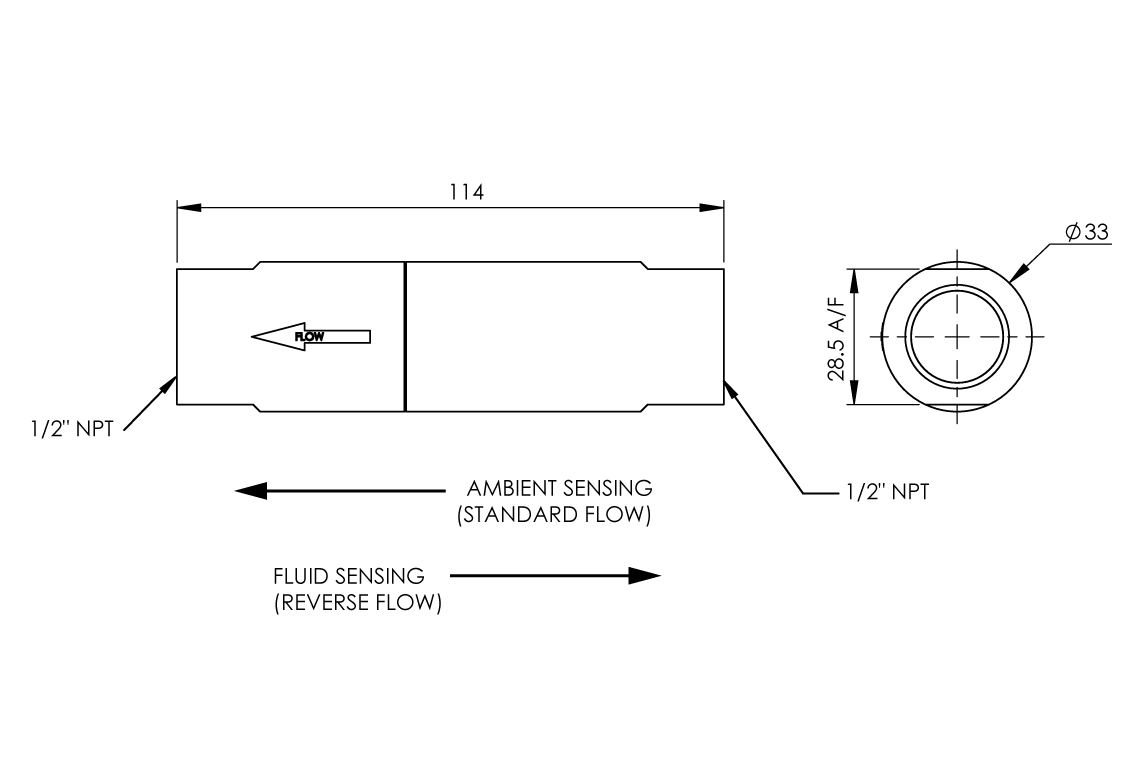

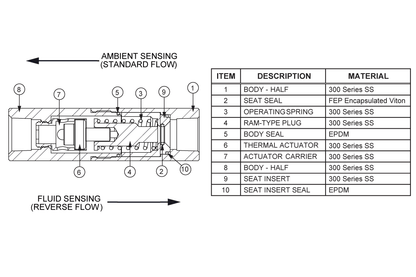

Depending on the application needs, the Anti-freeze valve can be installed in either the standard or reverse flow orientation. In standard flow orientation, the wax actuator will sense the ambient temperature to initiate flow and then respond to water temperature once flow is established. In reverse flow orientation, the wax actuator will sense the water temperature at the point of installation to initiate flow and continue to respond to water temperature once flow is established.
