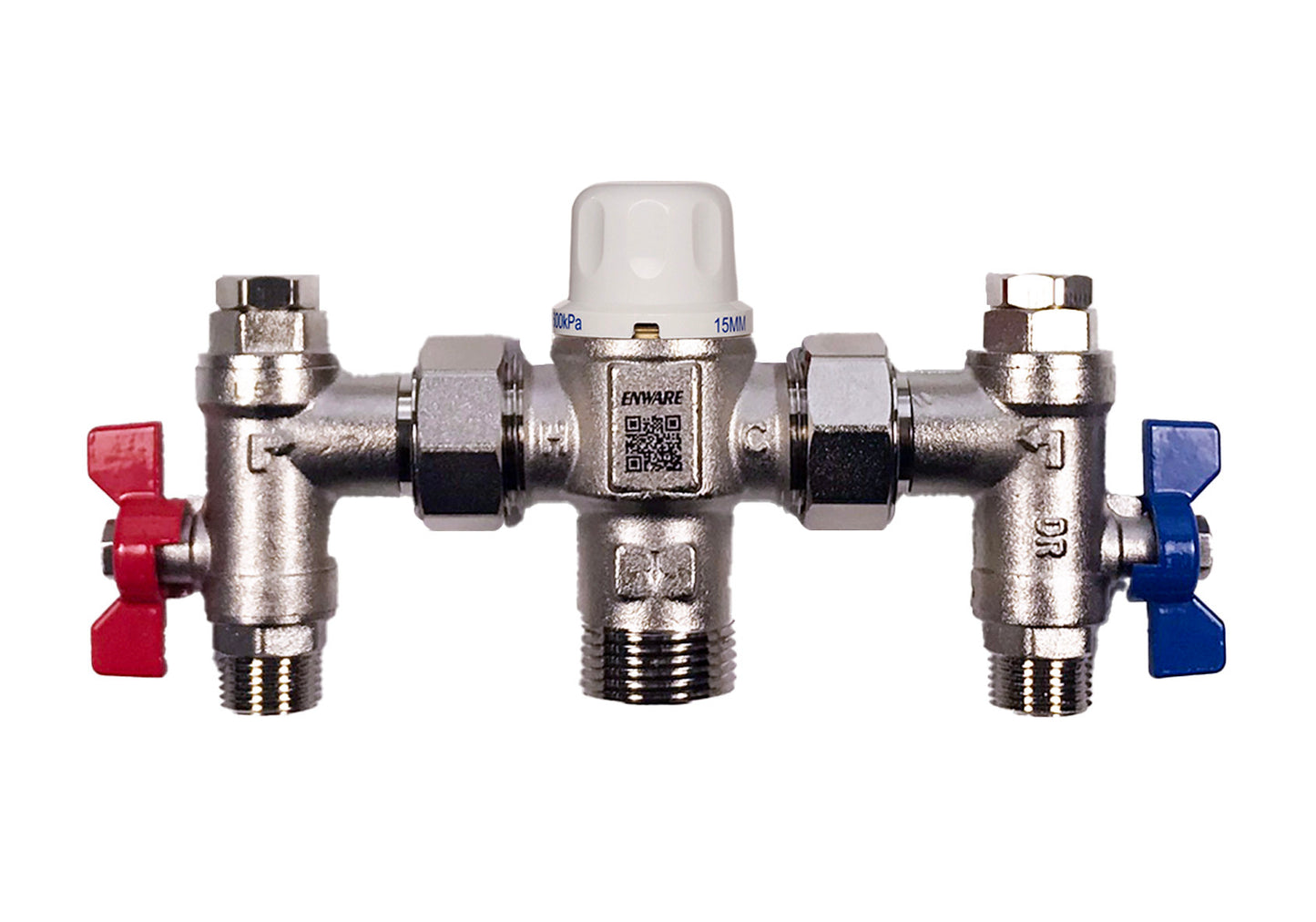

Aquablend: 1000 Lead Free Thermostatic Mixing Valve
Aquablend: 1000 Lead Free Thermostatic Mixing Valve
Product Code: ATM710
Couldn't load pickup availability
Product description
Enware Aquablend thermostatic technology provides superior control to ensure scald protection and temperature control under the most challenging conditions of hydraulic pressure and temperature variation and at ambient start up. The proven performance, reliability and low whole of life cost makes Aquablend the popular choice with specifiers, engineers, plumbers and property owners. Lead Free brass construction with durable and easy to service components and high available flow rates, the Aquablend 1000 is ideal for commercial and high density multi-point applications.
Key Selling Points
- Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
- Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
- Delivers excellent flow, operating at a minimum pressure of 20kPa
- Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
- Available pre-plumbed in a Stainless Steel cabinet with hinged lockable lid
- Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design
- Standards licensed to AS4032.1 - Thermostatic Mixing Valves
- Certifications
- WMKA25301_AS4032.1_LF,Smart Flow Enabled,Lead Free
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Minimum Thermostatic Temperature (Deg C)
- 38
- Maximum Thermostatic Temperature (Deg C)
- 50
- Maximum Flow Rate (L/min@200kPa pressure loss)
- 39
- Minimum Flow Rate for Stable Outlet Temperature (L/min)
- 4
- Minimum Flow Rate (L/min)
- 2
- Maximum Flow Rate (L/min)
- 45
- Inlet Connection
- 1/2" MI with compression nuts or 3/4" MI
- Outlet Connection
- 1" with 1"x1/2" and/or 1"x 3/4" BSP adaptors
BIM Files
Brochures

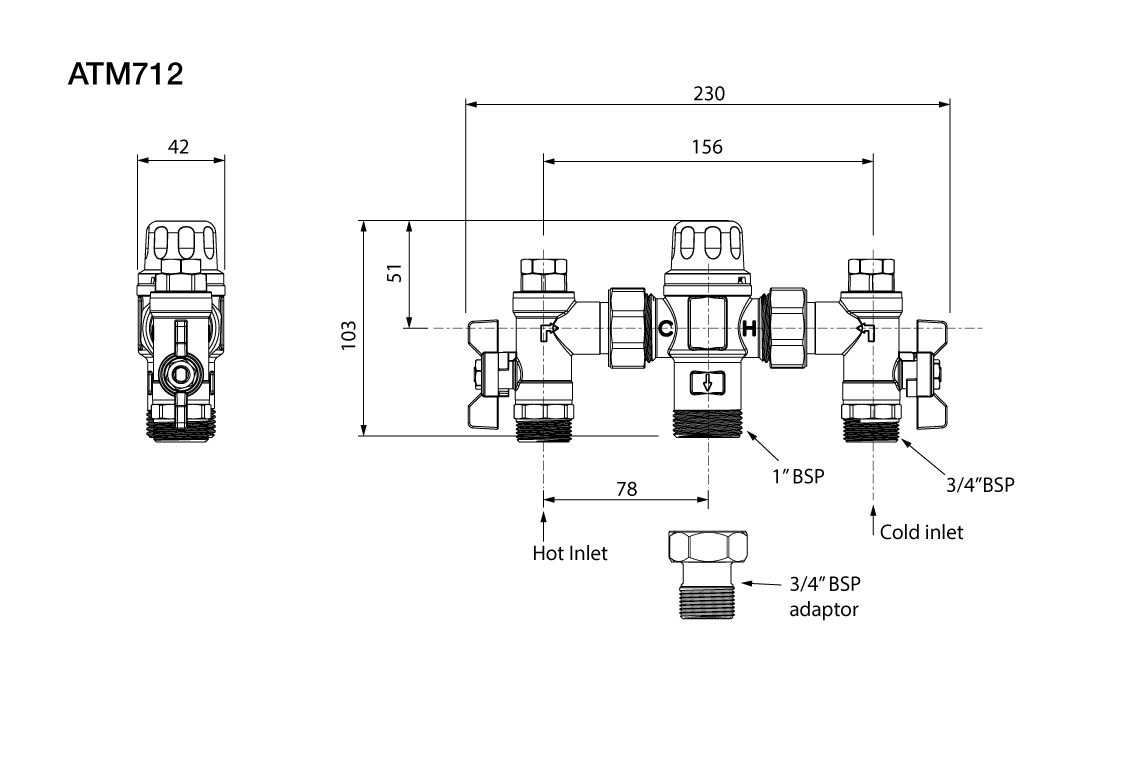

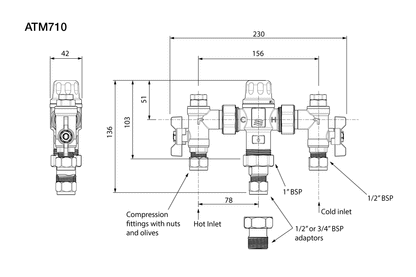

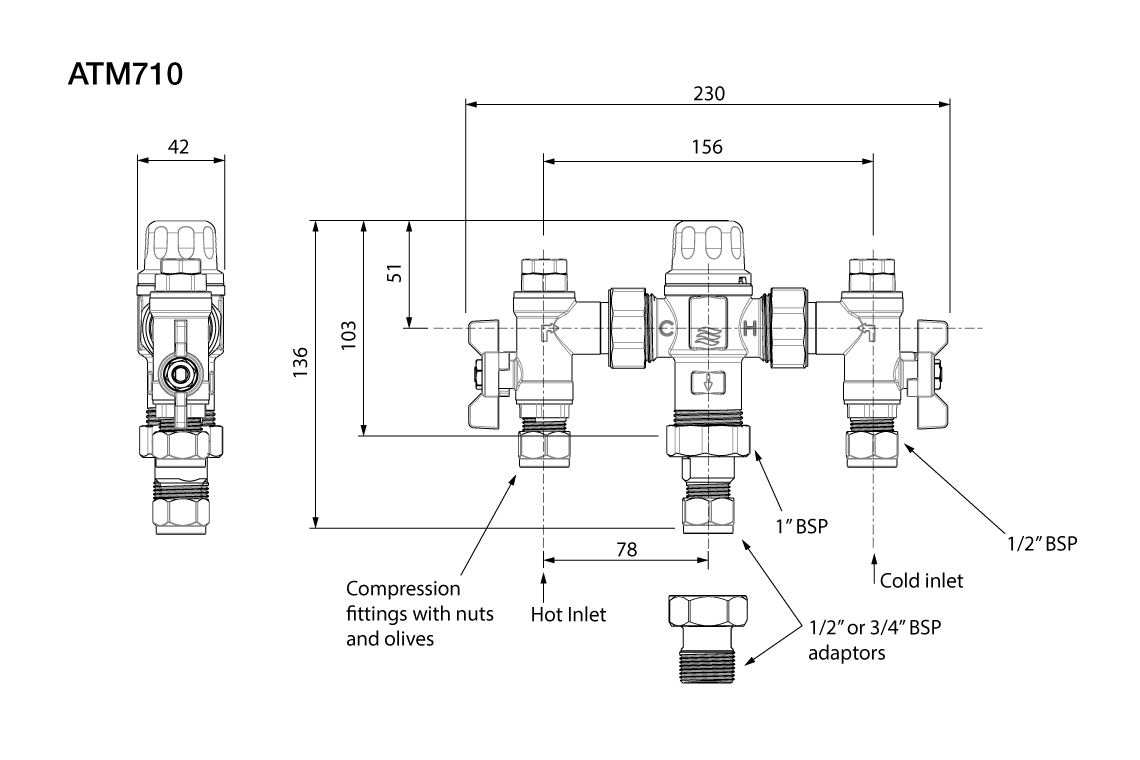

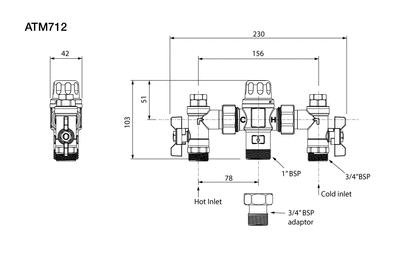

Dimensional Drawings
Product Information
