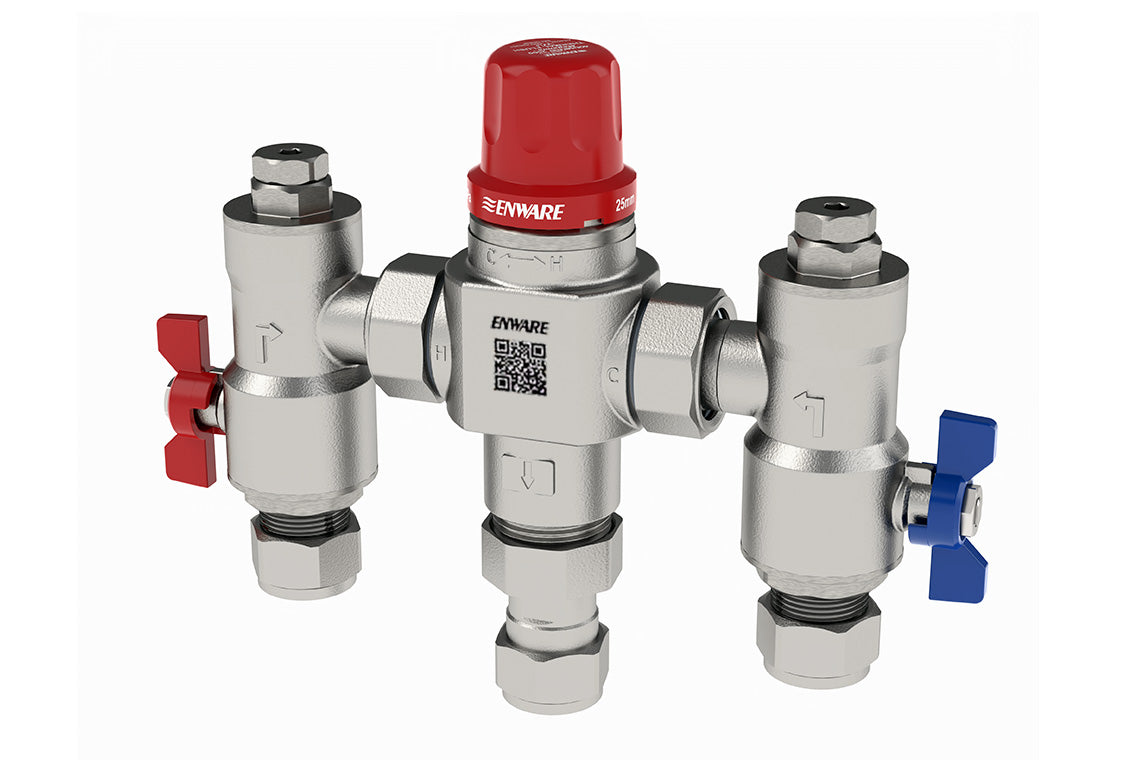

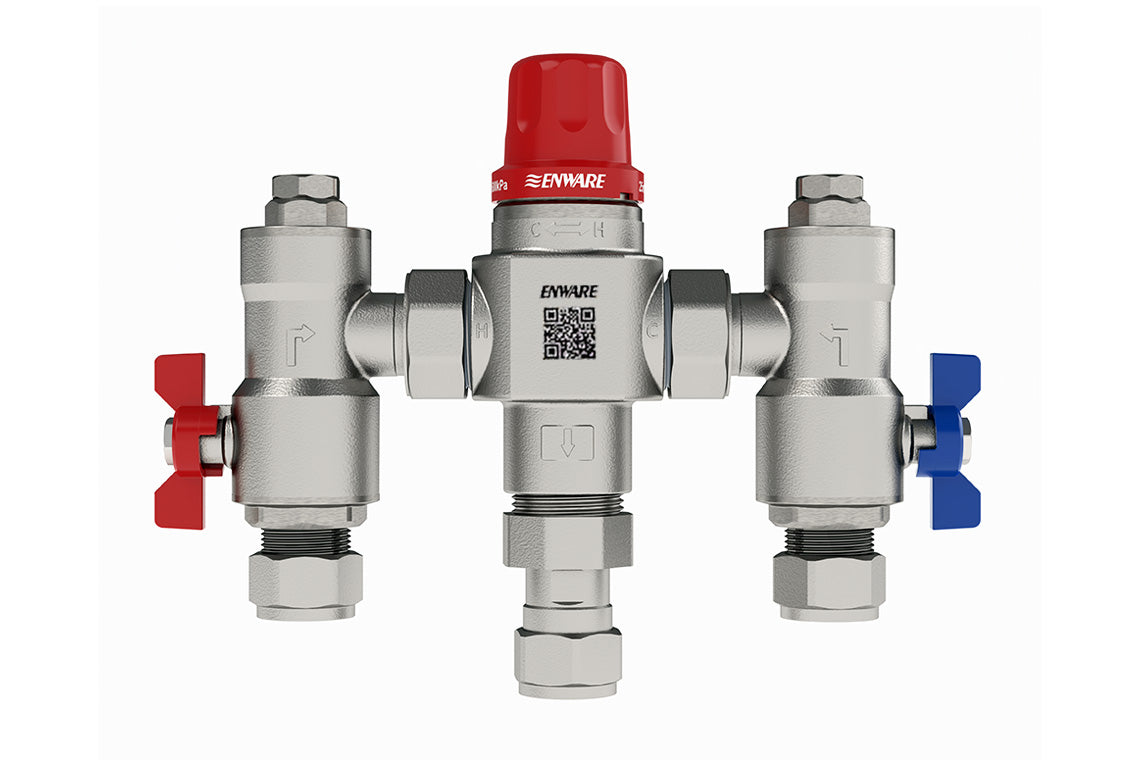

Aquablend 2500 Megamix TMV 20mm MI Inlet 25mm MI Outlet

Aquablend 2500 Megamix TMV 20mm MI Inlet 25mm MI Outlet

Product Code: ATM725L

Product description

Enware's Aquablend® 2500 Megamix Thermostatic Mixing Valve is the solution for bathroom and washroom areas requiring high flow for multiple fixtures that may be in use simultaneously. Compact enough to fit in a 75mm wall cavity, the Aquablend® 2500 Megamix is ideal for large amenity areas, end of ride facilities, wash and changerooms, high capacity bath filling (hospital birthing baths, spa's) and large apartments and houses with multiple bathrooms. With precise temperature control providing comfort and safety to prevent scalding, the Aquablend 2500 Megamix is a high performance, reliable and low cost-of -life solution for high flow mixed water delivery.

Key Selling Points

  • High mixed water flow delivery for multiple outlets
  • Thermal Flush temperature override for safe and simple disinfection with Aquablend Lift-Lever function
  • Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
  • Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
  • Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
  • Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design
  • Standards licensed to AS4032.1 - Thermostatic Mixing Valves
  • Available with Smart Flow® TMV Monitoring and Control System
  • Available Pre-Plumbed and tested in stainless steel, hinged lid, lockable cabinets

Certifications
WMKA25301_AS4032.1_LF,Lead Free
Minimum Cold Temperature Supply (Deg C)
5
Maximum Cold Temperature Supply (Deg C)
30
Minimum Hot Temperature Supply (Deg C)
55
Maximum Hot Temperature Supply (Deg C)
90
Minimum Thermostatic Temperature (Deg C)
35
Maximum Thermostatic Temperature (Deg C)
50
Minimum Temperature Differential (Deg C)
10
Inlet Pressure Ratio
H - PL = H¹, C - PL = C¹, H¹ : C¹ = Max 10:1, C¹ : H¹ = Max 10:1
Maximum Static Pressure (kPa)
1600
Minimum Flow Rate for Stable Outlet Temperature (L/min)
4

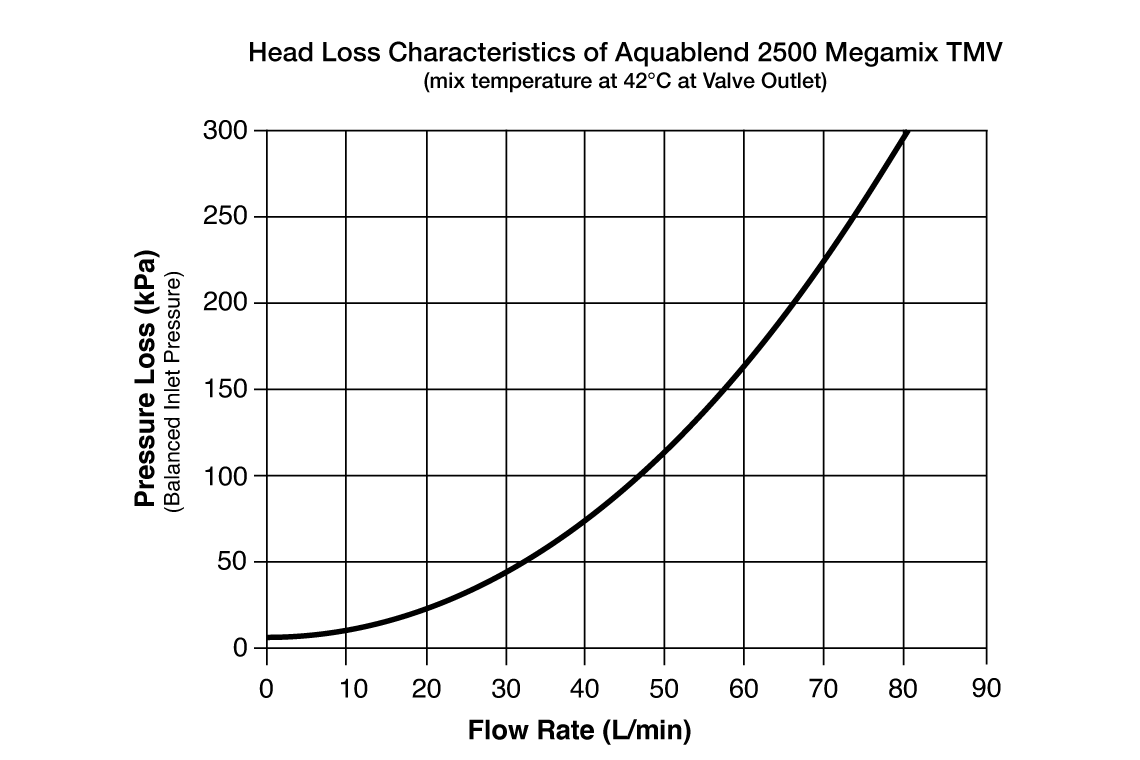

Maximum Flow Rate (L/min@300kPa pressure loss)
80

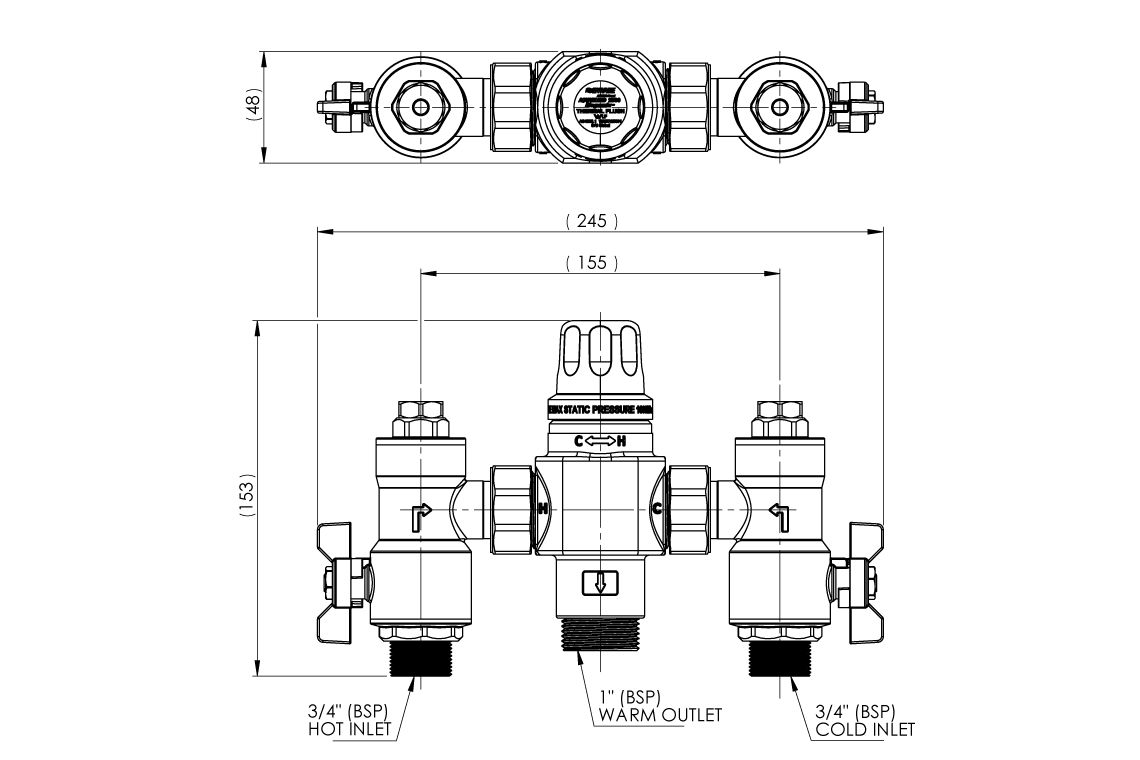

Inlet Connection
3/4" BSP MI
Outlet Connection

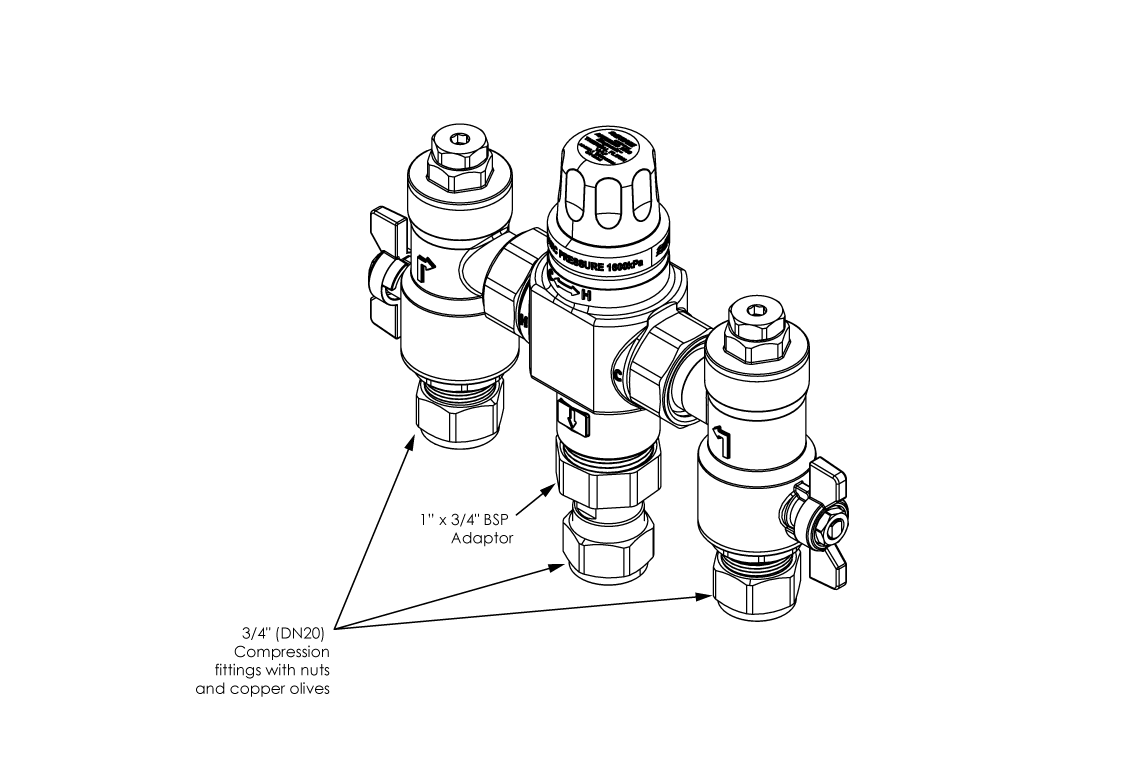

1" BSP MI with 1"x 3/4" BSP adaptor
Valve Type
TMV
