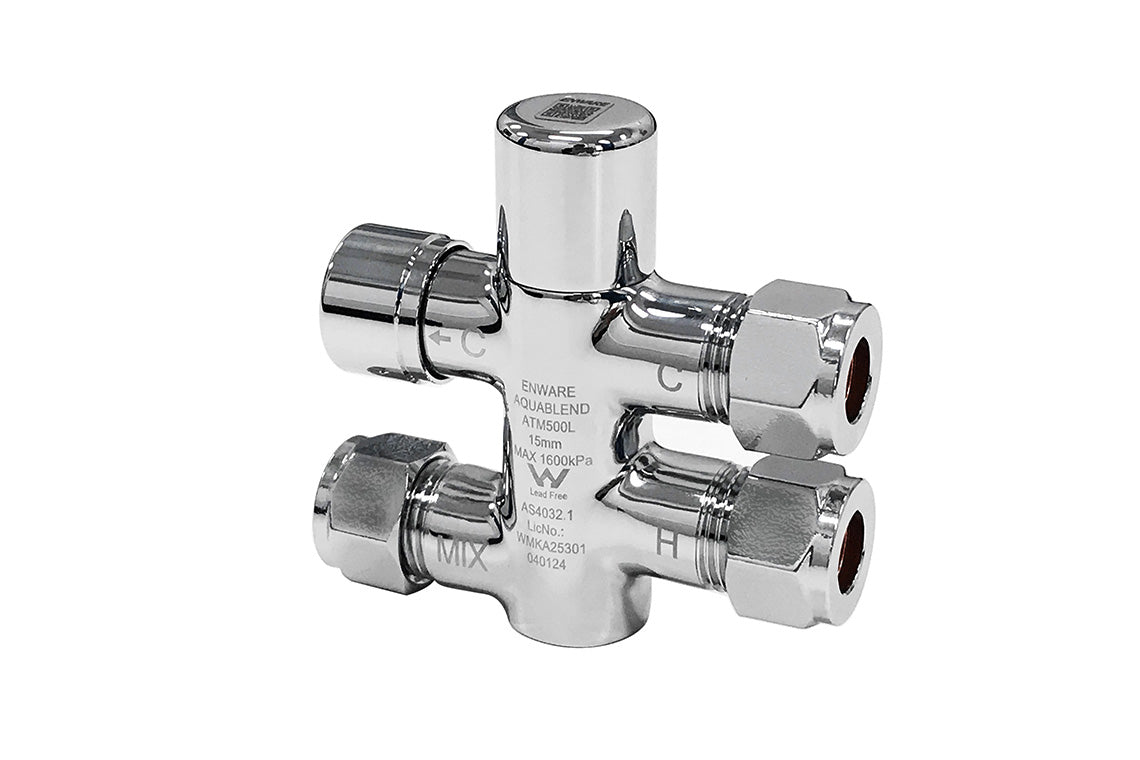

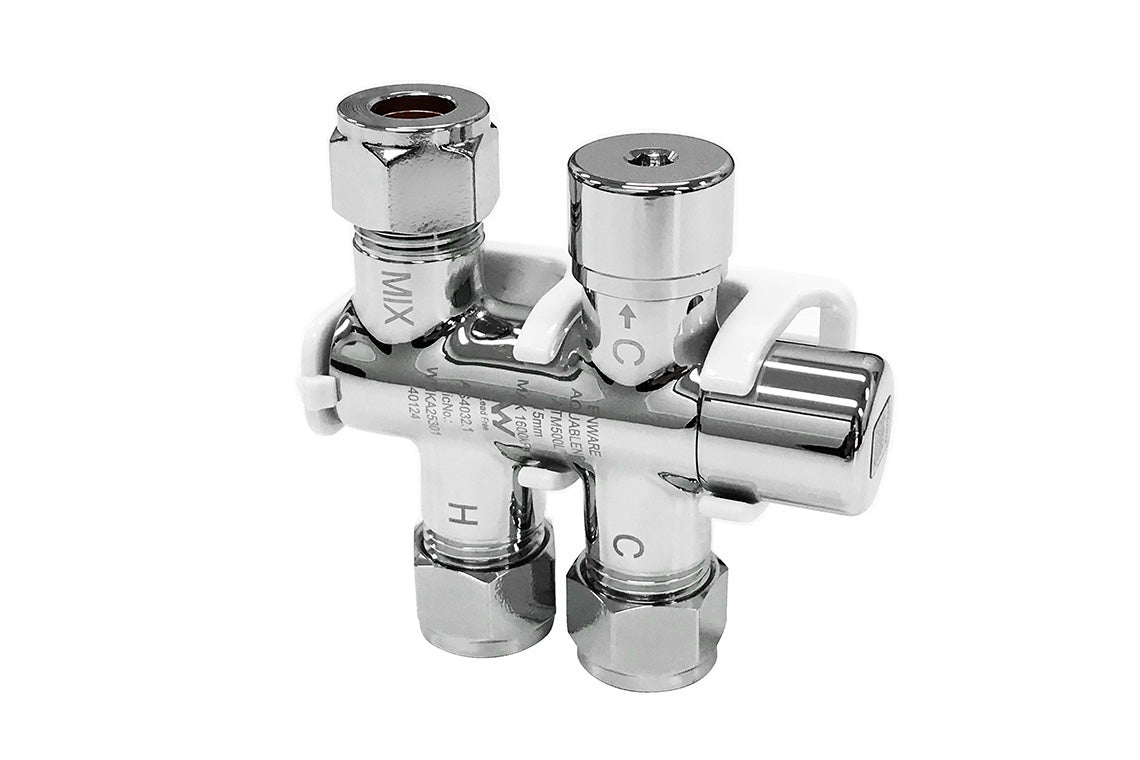

Aquablend: 500 Mini Thermostatic Mixing Valve

Aquablend: 500 Mini Thermostatic Mixing Valve

Product Code: ATM500L

Product description

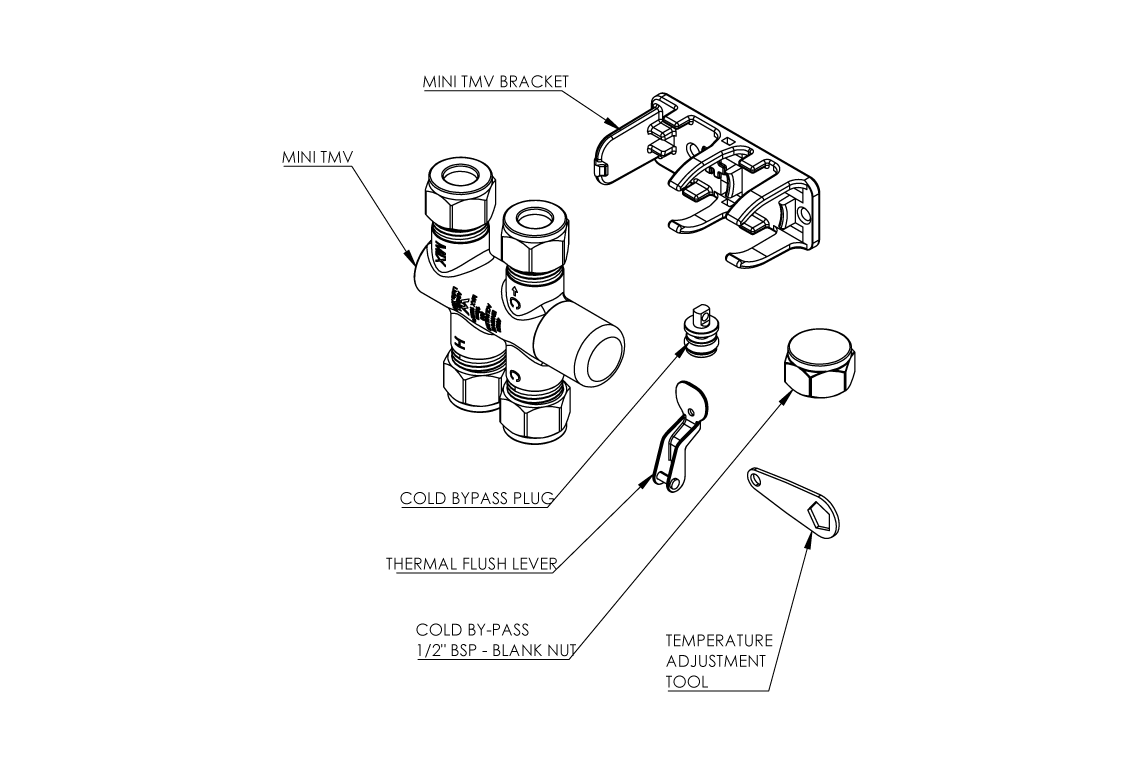

The enhanced Aquablend 500 Mini TMV is the latest in Enware's range of original products made better. The enhanced Aquablend Mini is ideal for single point applications, and now incorporates an integrated cold water bypass. This means when connecting below a mixer tap, no additional tee-piece is needed after the control valve, saving time and money for the installer. The lift-lever thermal flush function is built in to ensure simple and fast thermal disinfection across the full temperature range which is especially important in health applications. Supplied complete with an improved wall mounting bracket, plug and cap for when the bypass is not in use and comprehensive install instructions. The New Aquablend Mini is manufactured from Lead Free brass.

Key Selling Points

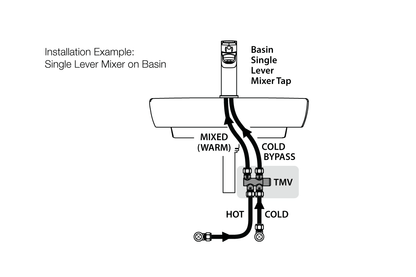

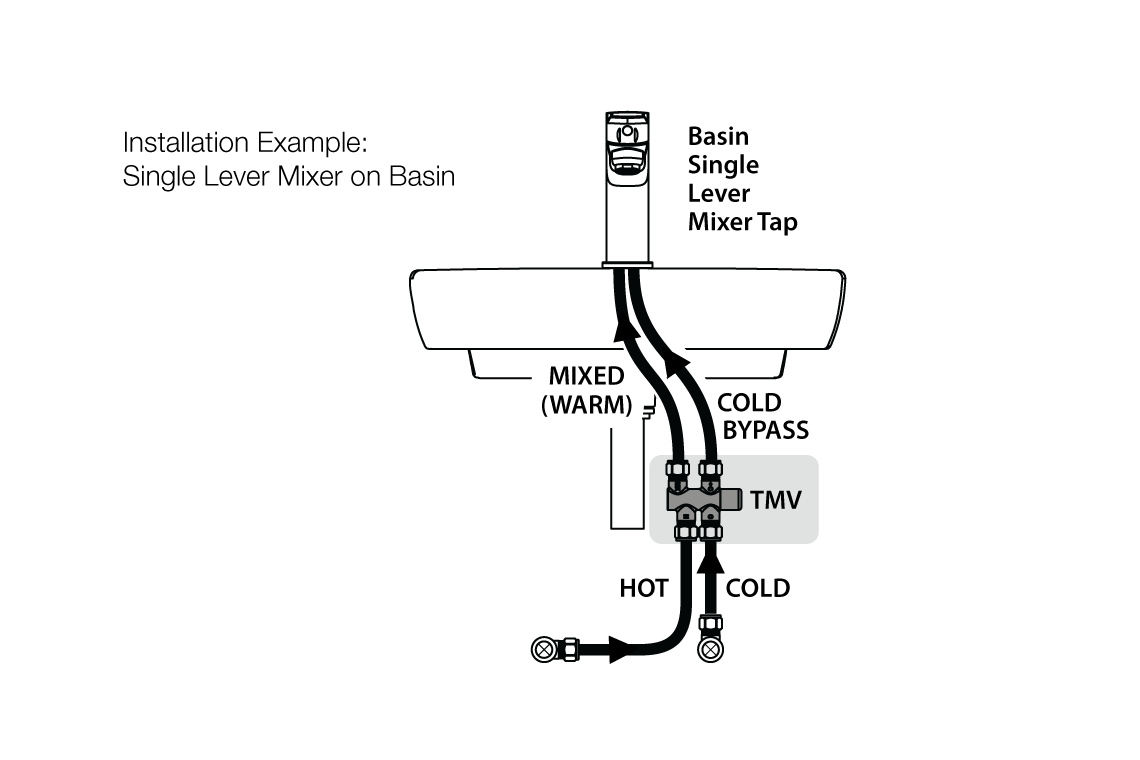

  • Integrated Cold Water bypass
  • Aquablend Thermal Flush lift lever function incorporated within the headworks
  • Suitable for Hot Water Temperature from 50 °C (min 7 °C differential to outlet set temp.)
  • Ultra Compact with bright chrome plated finish.
  • Includes integral non-return valves and strainers
  • Includes wall mounting bracket
  • 1/2” BSP MI inlet/ outlet connections with compression nuts and olives
  • Lead Free brass
  • Comprehensive install/ commissioning manual

Certifications
WMKA25301_AS4032.1_LF,Lead Free
Minimum Cold Temperature Supply (Deg C)
5
Maximum Cold Temperature Supply (Deg C)
30
Minimum Hot Temperature Supply (Deg C)
50
Maximum Hot Temperature Supply (Deg C)
90
Minimum Thermostatic Temperature (Deg C)
35
Maximum Thermostatic Temperature (Deg C)
45
Minimum Temperature Differential (Deg C)
7
Maximum Static Pressure (kPa)
1600
Minimum Flow Rate (L/min)
2

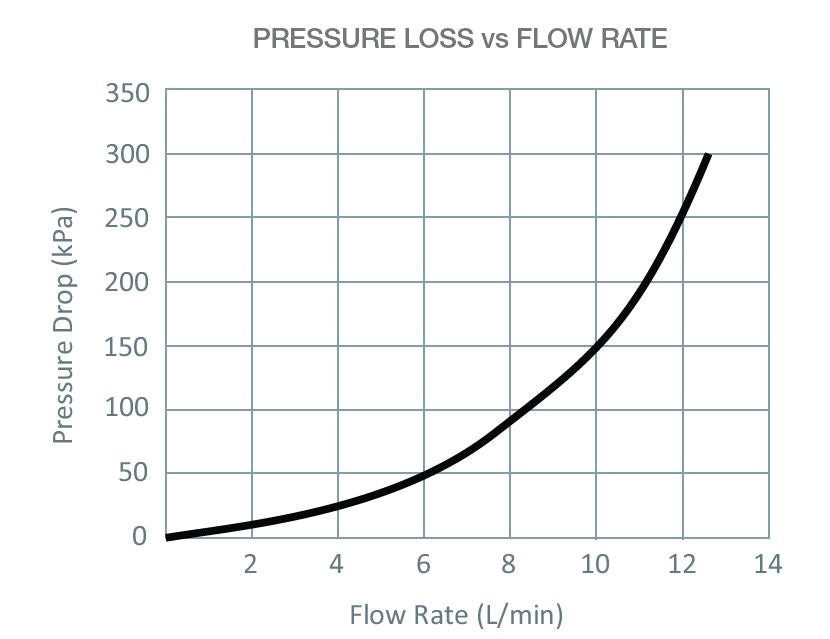

Maximum Flow Rate (L/min@300kPa pressure loss)
12
Inlet Connection
1/2" compression nuts
Outlet Connection
1/2" compression nuts
Finish
Chrome Plated

BIM Files

Brochures

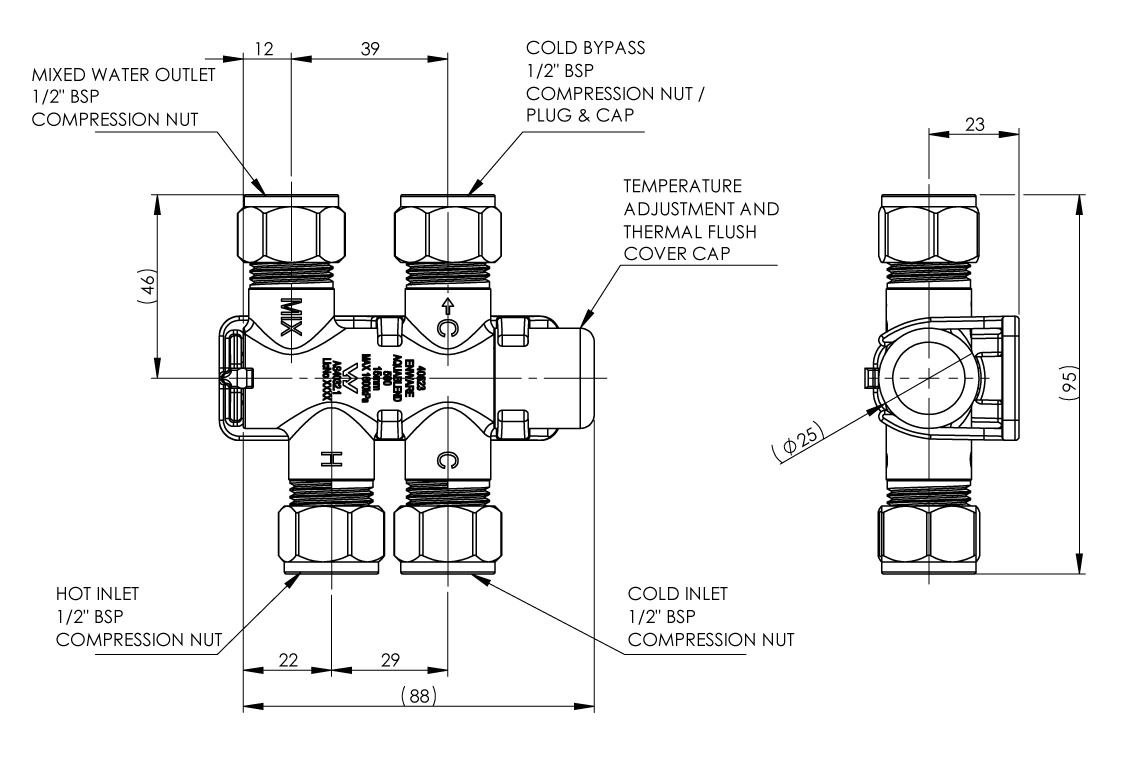

Dimensional Drawings
