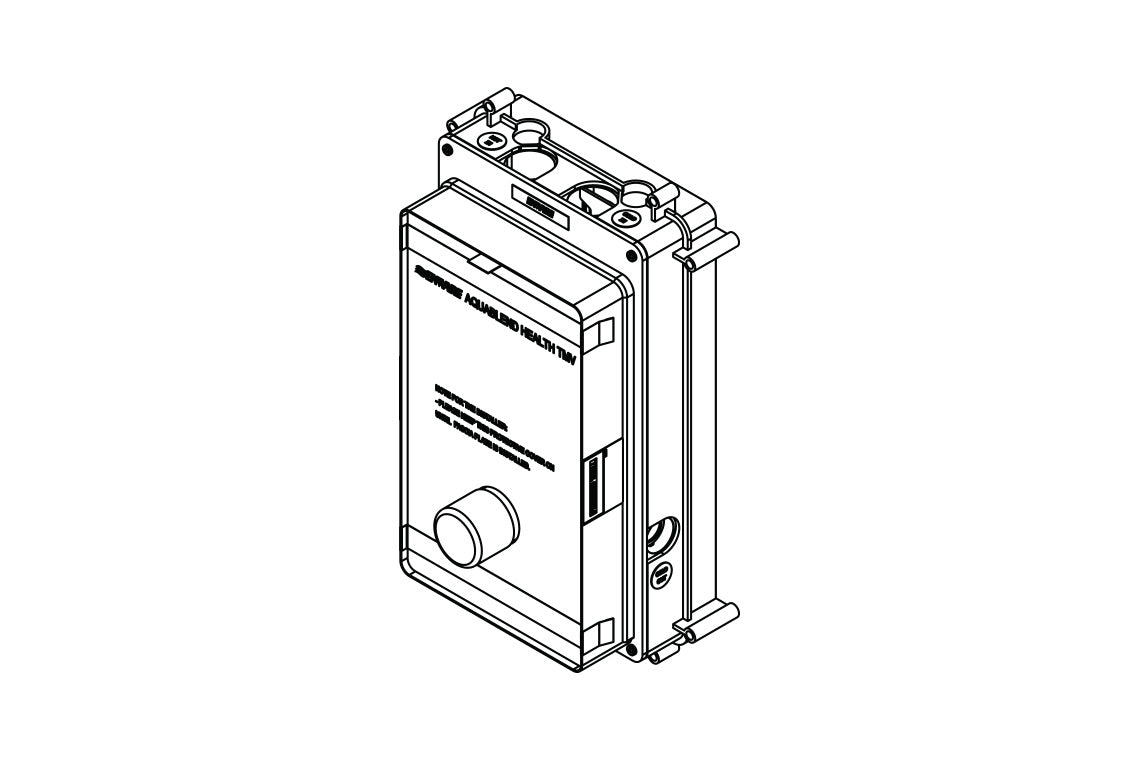

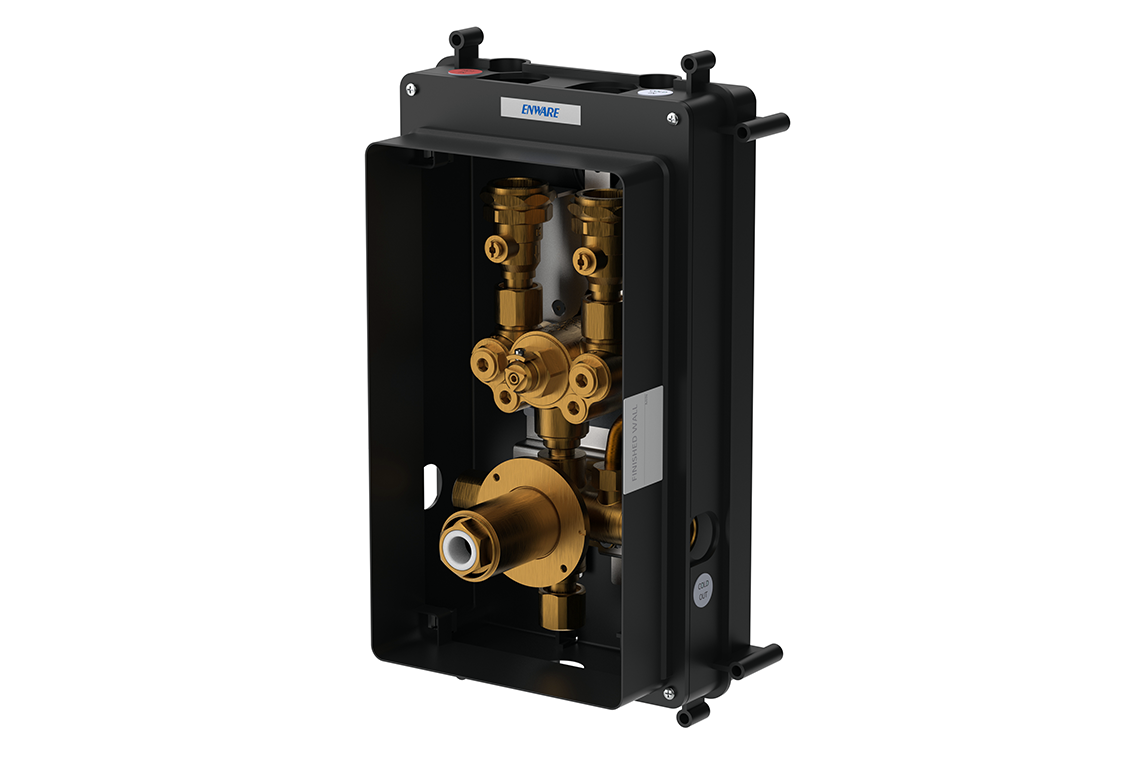

Aquablend: Health Point-of-Use TMV - Four Way Mixer - Back of Wall Component
Aquablend: Health Point-of-Use TMV - Four Way Mixer - Back of Wall Component
Product Code: ATMHE608-BOW
Couldn't load pickup availability
Product description
The New Aquablend Health TMV delivers an all new approach to hygiene, safety and convenience for Health Care and Aged Care Ensuites. The Aquablend Health TMV is a point of use (POU) thermostatic mixing valve coupled with a unique 4 way mixer allowing the user to easily and safely mix water for showering at the desired temperature from Cold through to Full Warm. Simultaneously, pre-mixed warm and/or cold water can be delivered to adjacent fixtures. The benefit of this design is by increasing the flow through the Thermostatic Mixer, it comes up to full operating temperature and maximum flow more regularly, thereby helping to reduce the risk of legionella and other waterborne bacteria developing.
Key Selling Points
- Back of Wall component for Aquablend Health Point-of-Use TMV
- Point-of-Use TMV coupled with a unique 4 way mixer - supplies mixed and/or cold water to additional fixtures - ideal for Ensuites
- Sequential Ceramic Disc Mixing Cartridge ensures ultimate control with cold start up and stop
- Low lead content brass for peace of mind and bacteria control
- Compact wall box allows easy access for servicing
- Suitable for Smartflow connection (requires connection kit)
- Requires Front-of-Wall component
- Certifications
- WMKA1593,WMKA1583,Health Approved - NSW,Smart Flow Enabled
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Minimum Thermostatic Temperature (Deg C)
- 35
- Maximum Thermostatic Temperature (Deg C)
- 48
- Minimum Temperature Differential (Deg C)
- 10
- Maximum Static Pressure (kPa)
- 1000
- Minimum Flow Rate (L/min)
- 4
- Maximum Flow Rate (L/min@300kPa pressure loss)
- 23
- Inlet Connection
- 3/4" BSP
- Outlet Connection
- 1/2" BSP
