Aquablend: Health Point-of-Use TMV - Four Way Mixer - Leva Sequential - 80mm Lever Handle
Aquablend: Health Point-of-Use TMV - Four Way Mixer - Leva Sequential - 80mm Lever Handle
Product Code: ATMHE608-LEV80SQ
Couldn't load pickup availability
Product description

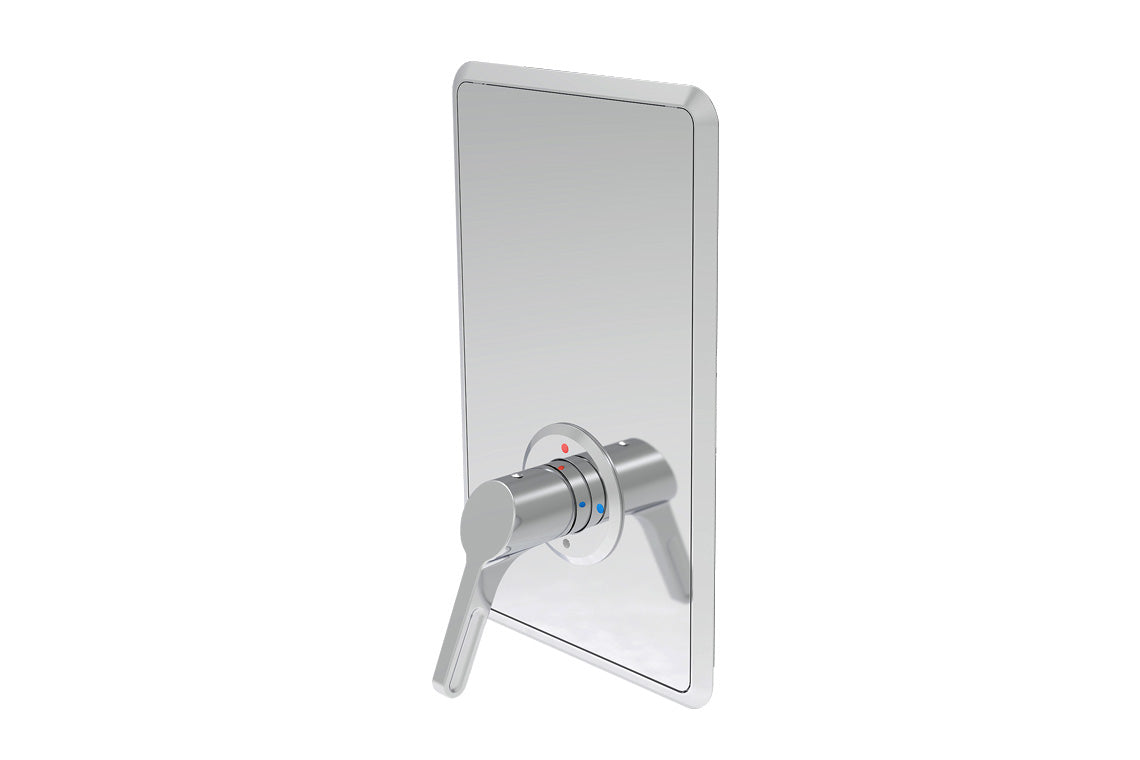

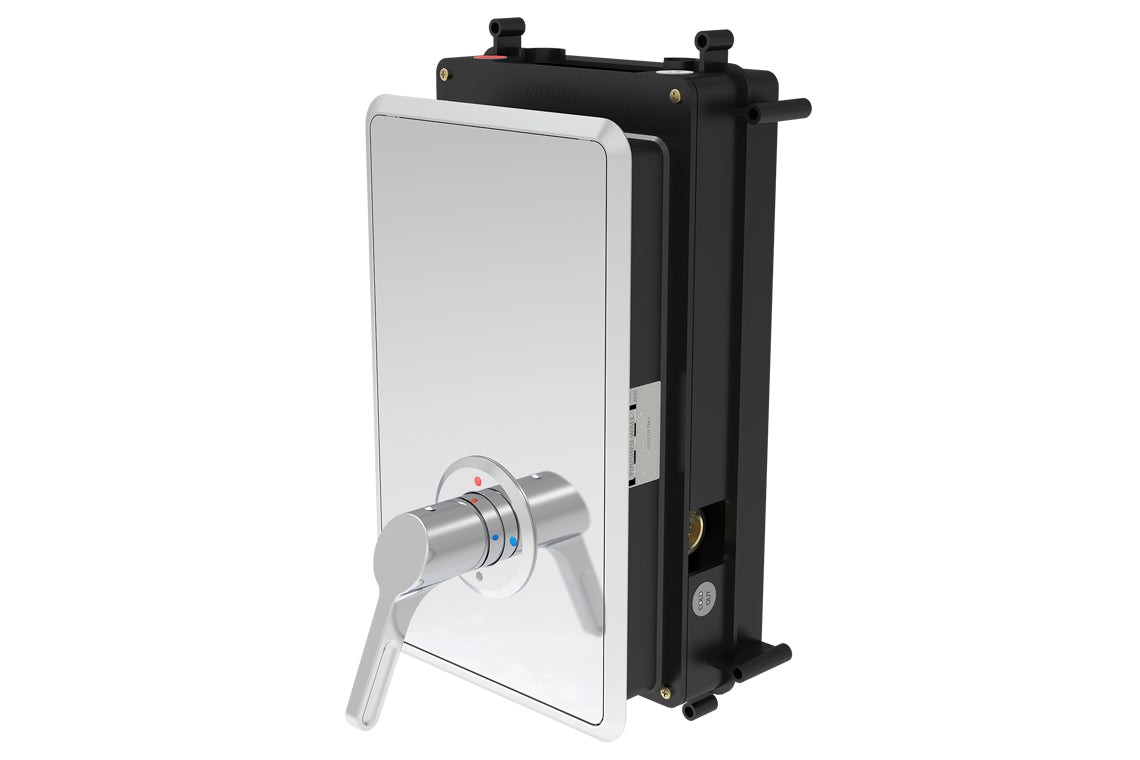

The New Aquablend Health TMV delivers an all new approach to hygiene, safety and convenience for Health Care and Aged Care Ensuites. The Aquablend Health TMV is a point of use (POU) thermostatic mixing valve coupled with a unique 4 way mixer allowing the user to easily and safely mix water for showering at the desired temperature from Cold through to Full Warm. Simultaneously, pre-mixed warm and/or cold water can be delivered to adjacent fixtures. The benefit of this design is by increasing the flow through the Thermostatic Mixer, it comes up to full operating temperature and maximum flow more regularly, thereby helping to reduce the risk of legionella and other waterborne bacteria developing.
Key Selling Points
- Point-of Use TMV coupled with a unique 4 way mixer - Supplies mixed and/or cold water to additional fixtures - ideal for Ensuites
- Low lead content brass for peace of mind and bacteria control.
- Sequential Ceramic Disc Mixing Cartridge ensures ultimate control with cold start up and stop
- Attractive, chrome wall plate and Wellbeing lever handle with high colour contrast and ease of use
- Compact wall box allows easy access for servicing
- Matches with the Enware Wellbeing range
- Suitable for Smartflow connection (requires connection kit)
- Certifications
- AS/NZS 4032.1 Lic1593,WMKA1583 - LF,Smart Flow Enabled,Health Approved - NSW,Lead Free
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Minimum Thermostatic Temperature (Deg C)
- 35
- Maximum Thermostatic Temperature (Deg C)
- 48
- Minimum Temperature Differential (Deg C)
- 10
- Maximum Static Pressure (kPa)
- 1000
- Minimum Flow Rate (L/min)
- 4

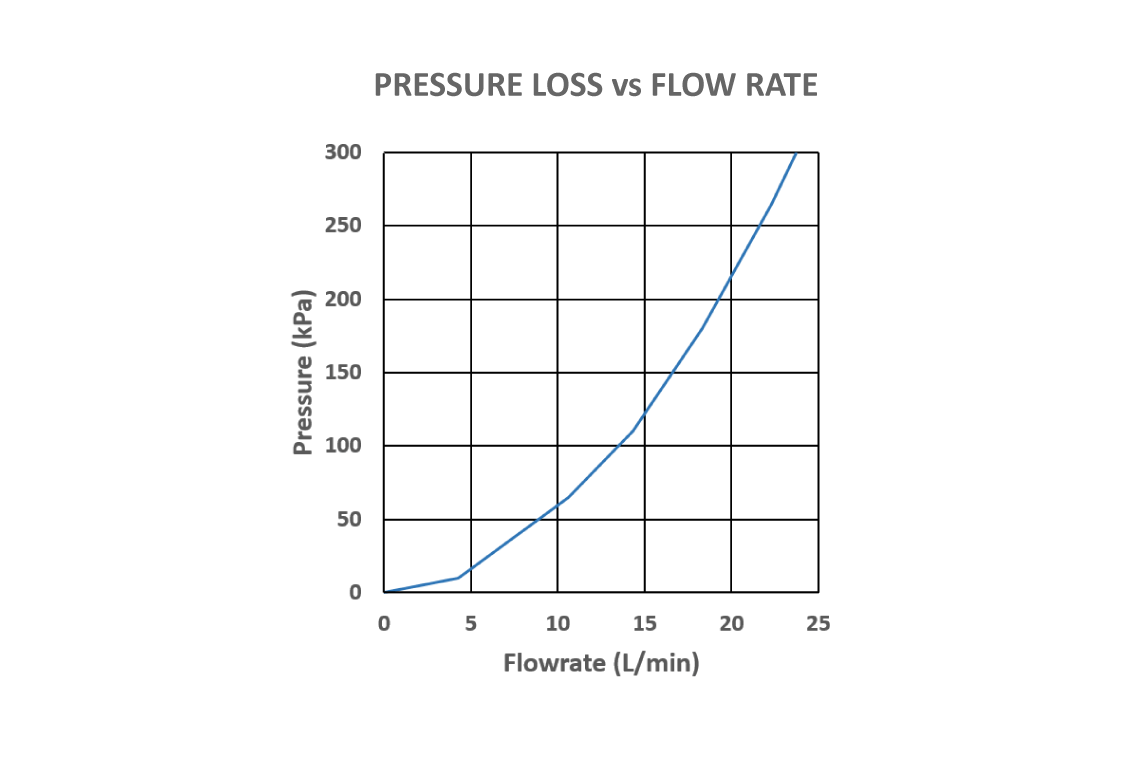

- Maximum Flow Rate (L/min@300kPa pressure loss)
- 23
- Finish
- Chrome
- Valve Type
- TMV
BIM Files
Brochures

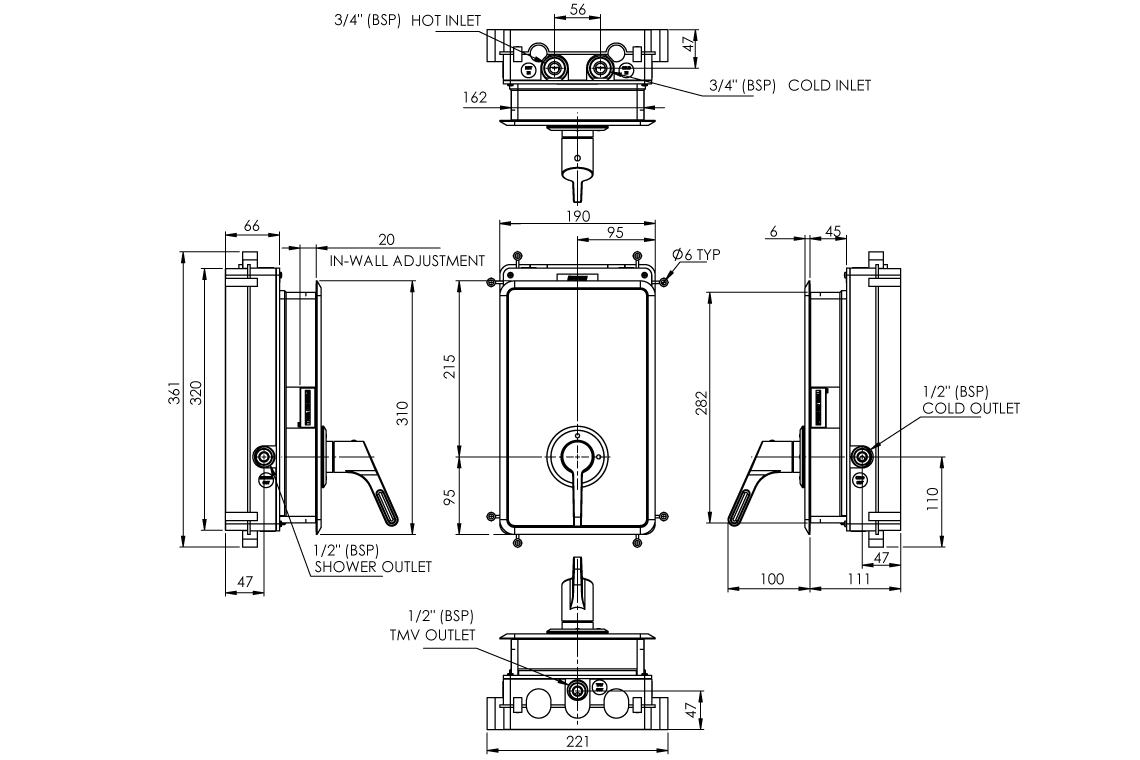

Dimensional Drawings
