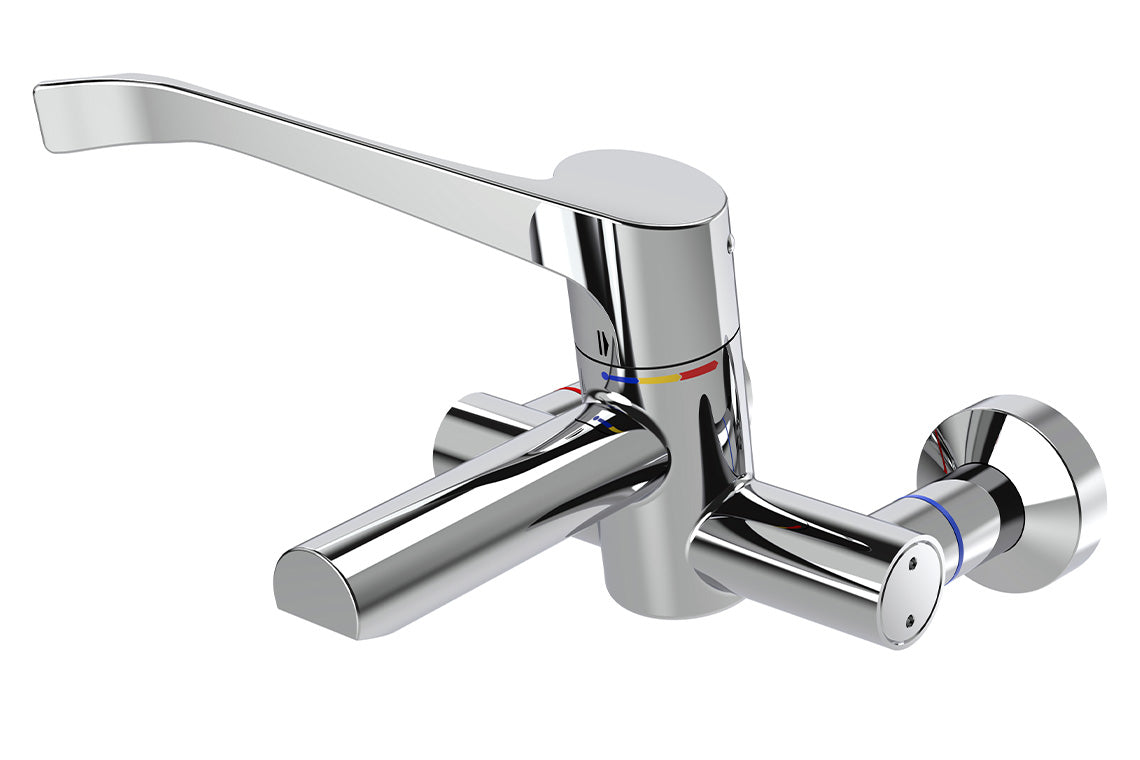

Aquablend SQX Lead Free Thermostatic Surgeon Mixer with 200mm Lever Handle 4/6lpm Laminar Flow
Aquablend SQX Lead Free Thermostatic Surgeon Mixer with 200mm Lever Handle 4/6lpm Laminar Flow
Product Code: ATM611L-200
Couldn't load pickup availability
Product description
The new Lead Free Aquablend SQX continues to deliver the world's highest standard of performance and quality. Certified to AS 4032.4 providing Australia's market leading compliant solution to meet the demands of AS/NZS 3500 for heated water temperature control. Thermostatic mixing at the point of use can provide reduced risk of legionella and other water-borne bacteria, improving water system health. Designed for easy installation and efficient maintenance, lowering whole-of-life cost. The SQX range also has outstanding user benefits, providing ergonomic comfort and control, scald protection and both water and energy efficiencies beyond those of traditional tapware.
Key Selling Points
- Point-of-use Thermostatic Clinical Surgeon Mixer with sequential operation optimises energy efficient flow and temperature control
- Pressure compensating 6lpm or 4lpm flow controls and a flow straightener device reduce splashing and airborne water droplets that may carry bacteria
- The new tubular removeable spout has unique self-draining function and reduced internal surface area to mitigate legionella growth
- Spout can be removed for disinfection if required
- User friendly, ergonomically designed 200mm lever handle suitable for wrist and elbow activation
- Cool to touch and non-conductive mixer body
- Smooth body and handle design aids cleaning and disinfection for clinical areas
- Serviceable in-situ with all maintenance parts including isolation valves accessible at the tap connection point
- Integral isolating ball valves allow for pre- fitting and flushing prior to final fit off
- Lead Free
- WELS Notes
- Exempt from WELS as a Thermostatic Mixing Valve. Supplied with 4lpm and 6lpm Laminar aerator inserts
- Certifications
- WMKA25301_AS4032.4_LF,Health Approved - NSW,Lead Free
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 25
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 85
- Maximum Thermostatic Temperature (Deg C)
- 46
- Inlet Connection
- 1/2” BSP
- Finish
- Chrome
BIM Files
Brochures

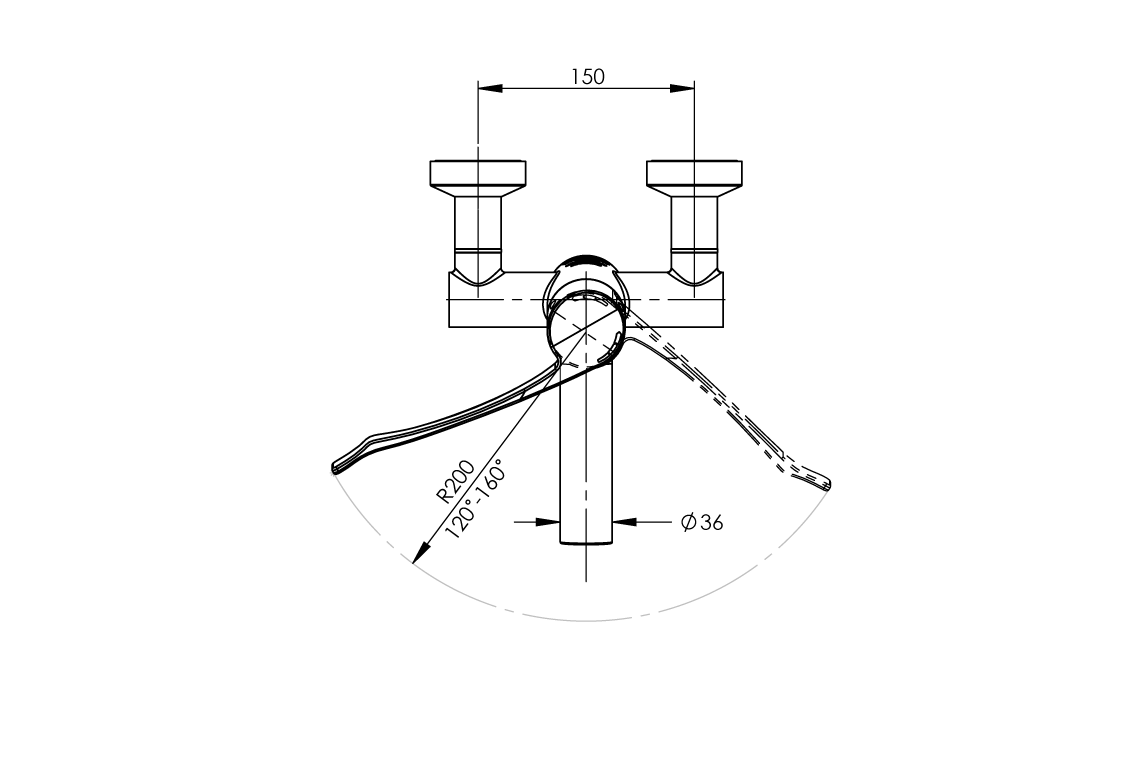

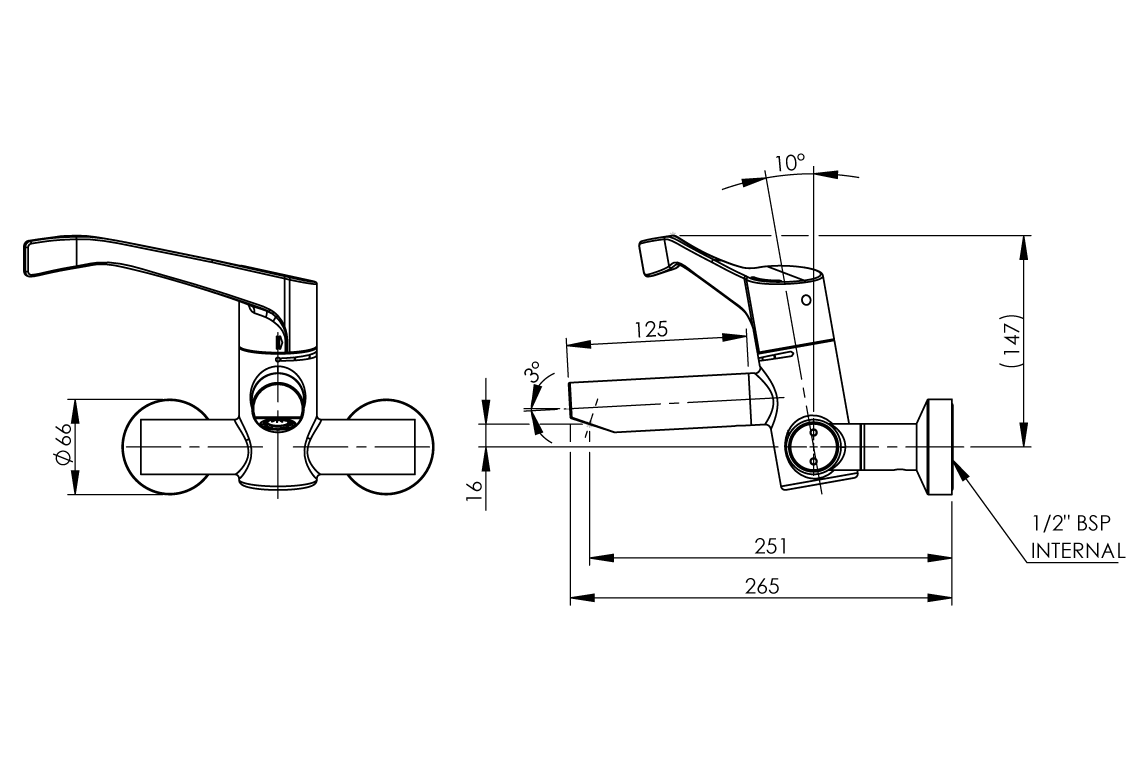

Dimensional Drawings
Product Information
