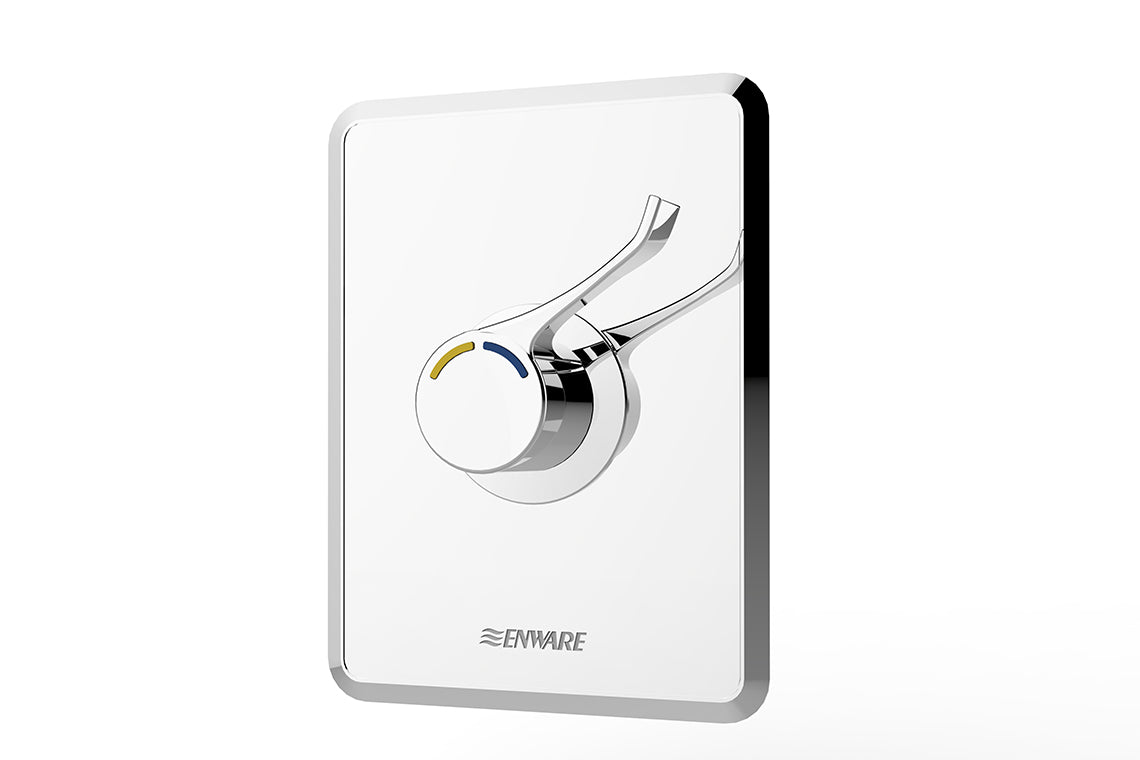

Aquablend: SQX - Shower Mixer - 100mm Lever Handle
Aquablend: SQX - Shower Mixer - 100mm Lever Handle
Product Code: ATM6082L
Couldn't load pickup availability
Product description
Aquablend SQX is a high performance mixing valve. Combining thermostatic mixing valve and sequential mixing technology, this is the first Watermark Certified point-of-use thermostatic mixer in Australia. The range delivers the most advanced choice for safe warm water delivery in high risk applications such as hospitals and aged care facilities. Offering anti-scald protection as well as reduced risk of Legionella. NSW Health-approved for use in healthcare in NSW, suitable for all health and general applications.
Key Selling Points
- Provides personal ?Ž•Point-of-Use' temperature control
- Compliant to AS4032.4
- Sequential operation for energy efficient flow and temperature control
- Thermal flush function to control Legionella and bacterial growth
- Serviceable in-situ with integral isolating ball valves and strainers

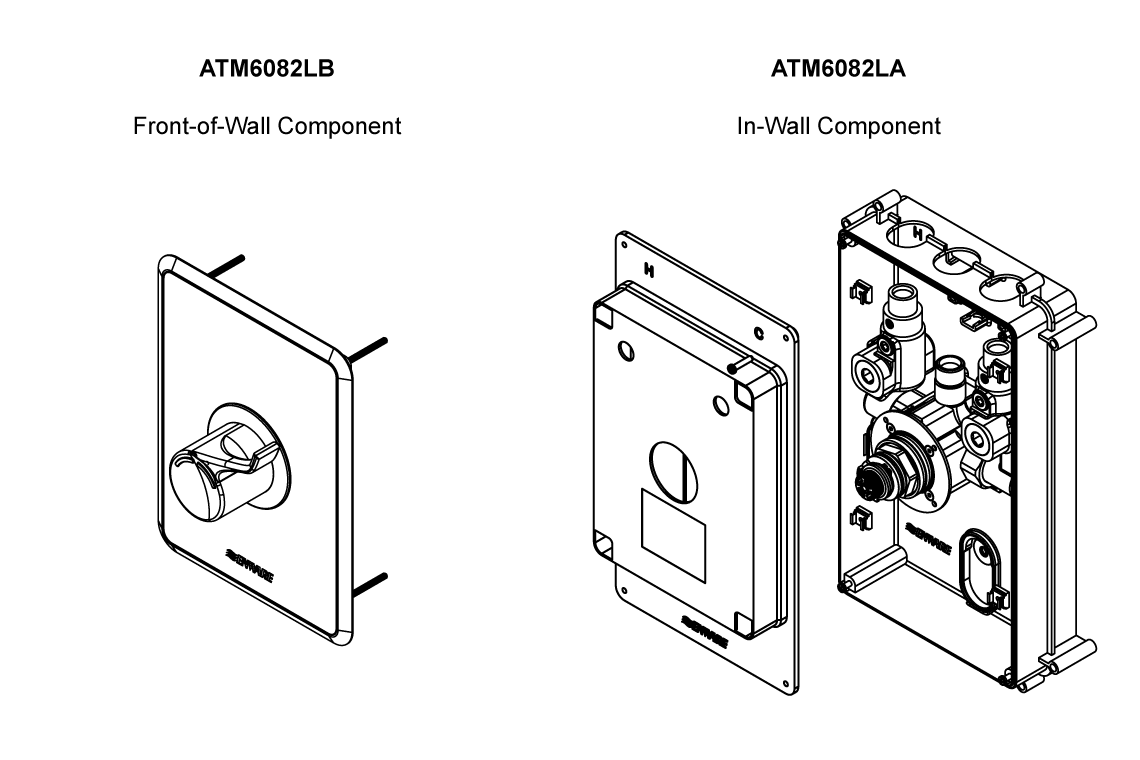

- In-wall mounting box for easy Installation and maintenance
- Flush mounted chrome plated brass wall plate, and surround with wall seal
- Colour indication on handle for easy identification
- Australian designed and manufactured
- Easy to clean design
- User friendly, ergonomically designed mid length (100mm) handle
- Certifications
- WMKA25301,Health Approved - NSW
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 25
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 85

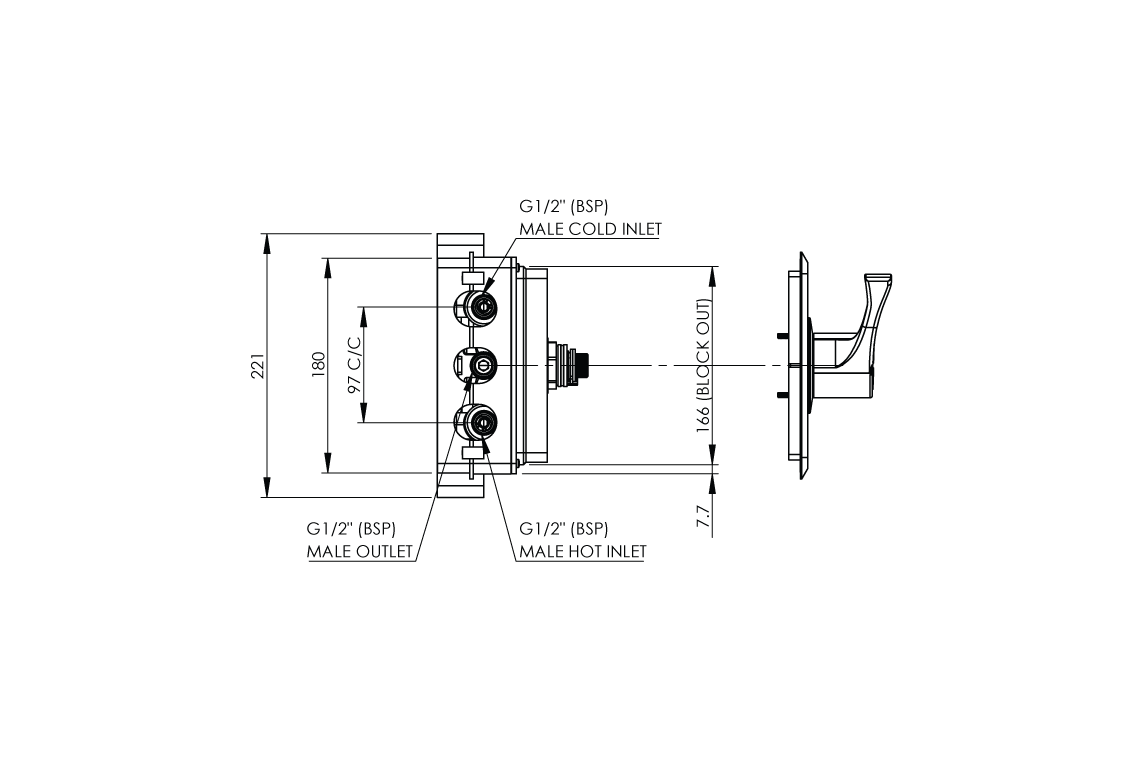

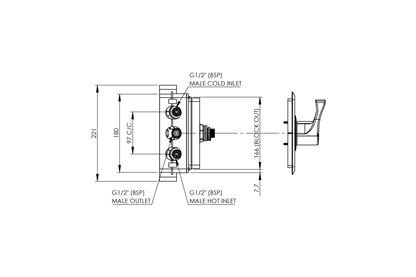

- Inlet Connection
- 1/2" BSP
- Outlet Connection
- 1/2" BSP
- Finish
- Chrome
- Valve Type
- TMV
BIM Files
Brochures

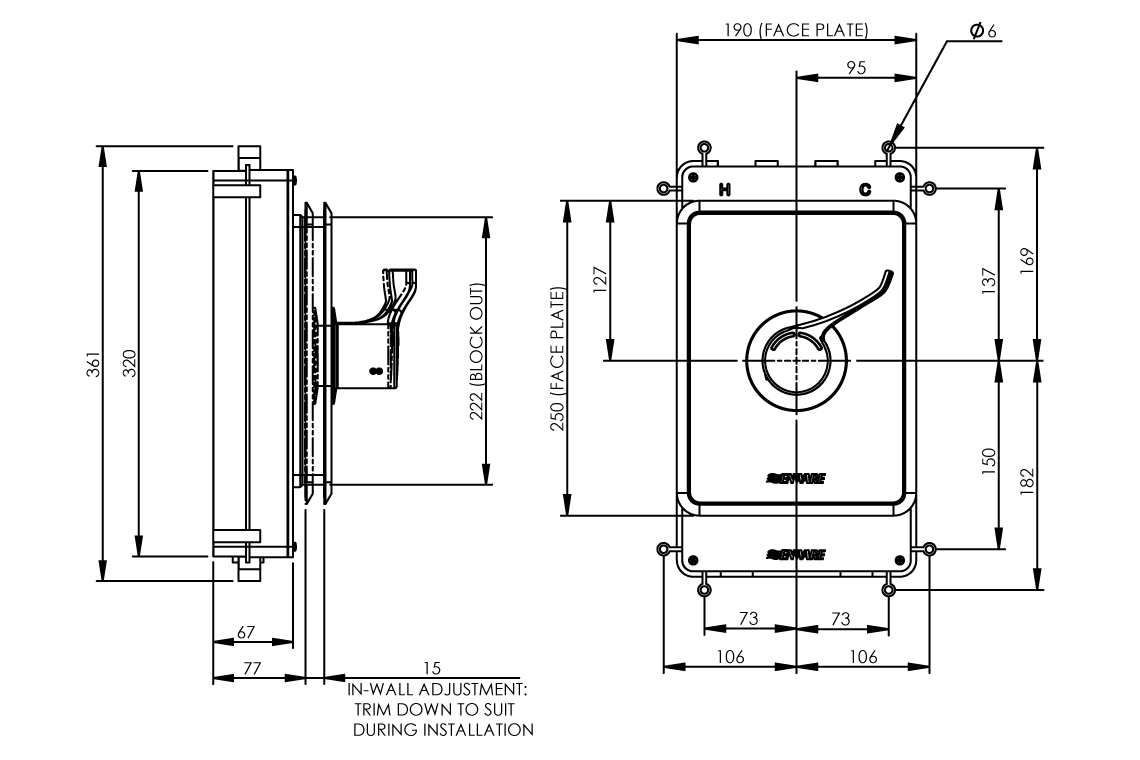

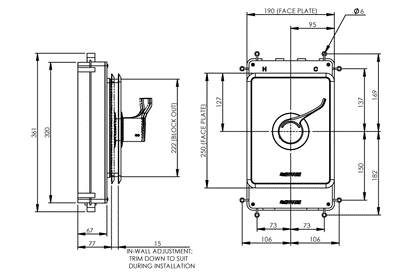

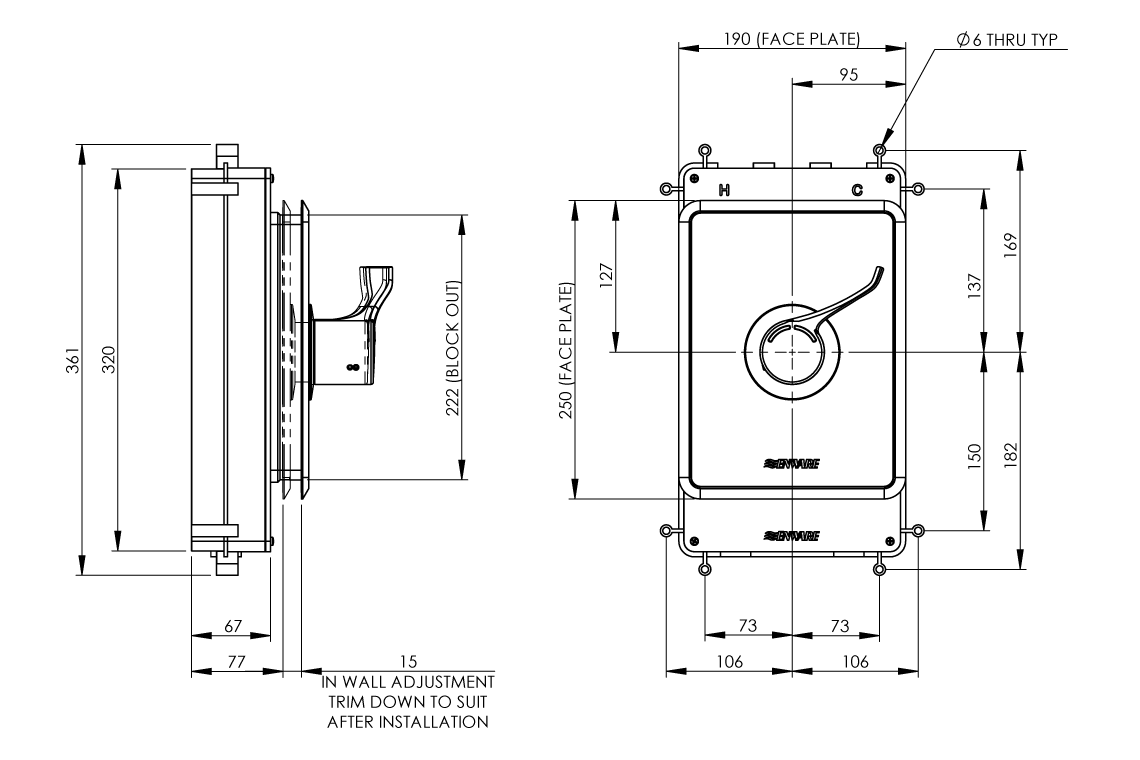

Dimensional Drawings
Product Information
