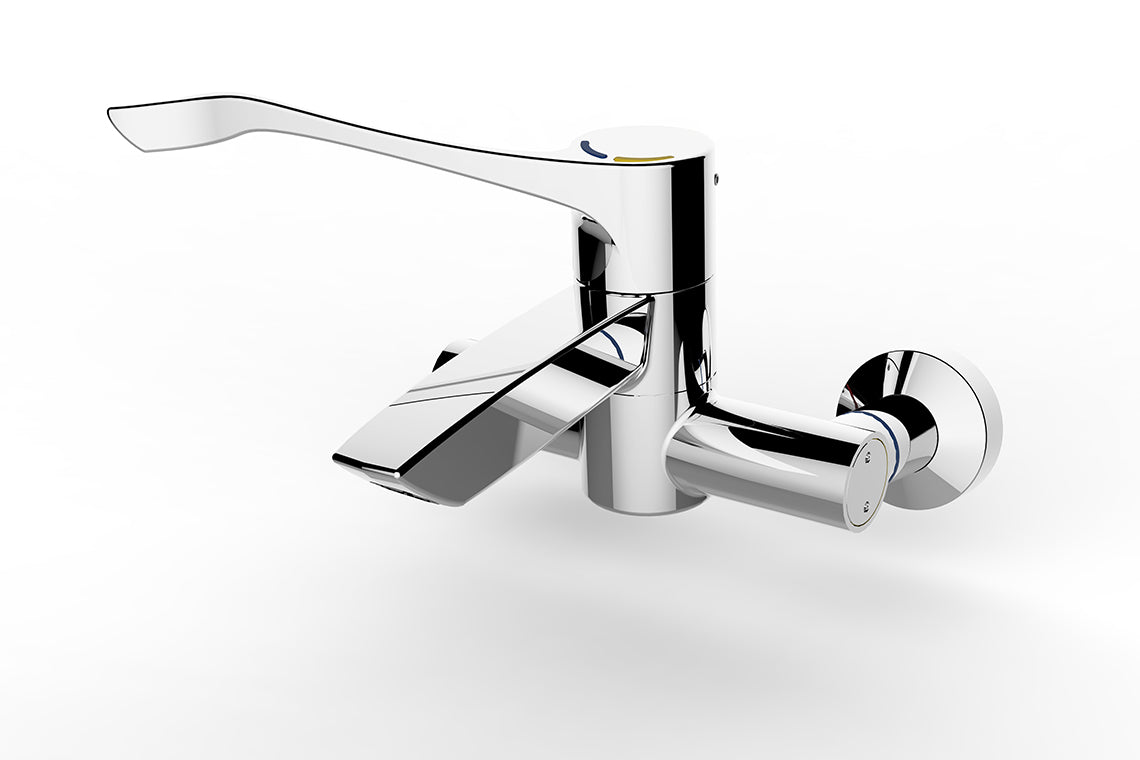

Aquablend: SQX - Surgeon Mixer
Aquablend: SQX - Surgeon Mixer
Product Code: ATM611-6
Couldn't load pickup availability
Product description
Aquablend SQX delivers the world's highest standard of performance and quality, Certified to AS/NZS 4032.4- 2005 providing Australia's market leading compliant solution to meet the demands of AS/NZS 3500 for heated water temperature control. Thermostatic mixing at the point of use can provide reduced risk of legionella and other water-borne bacteria, improving water system health. Designed for easy installation and efficient maintenance the range also has outstanding user benefits, providing comfort and control, scald protection and both water and energy efficiencies beyond those of traditional tapware. Designed ergonomically for people with disabilities and for surgical and clinical handwashing the SQX range is ideal for any Hospital, Care or Commercial installation.
Key Selling Points
- Compliant to AS4032.4 and NSW Health Approved
- Point of use Thermostatic with sequential operation for energy efficient flow and temperature control
- Fixed / swivel spout
- Pressure compensating laminar flow supplied as standard reduces airborne water droplets that may carry bacteria
- Longer lever, designed for elbow control in health applications or for easier use in accessible applications
- Cool to touch and non-conductive mixer body
- Colour indication on handle for easy identification
- Easy to clean design
- Serviceable in-situ
- Certifications
- WMKA25301,Health Approved - NSW
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 25
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 85
- Maximum Thermostatic Temperature (Deg C)
- 46
- Inlet Connection
- 1/2” BSP
BIM Files
Brochures

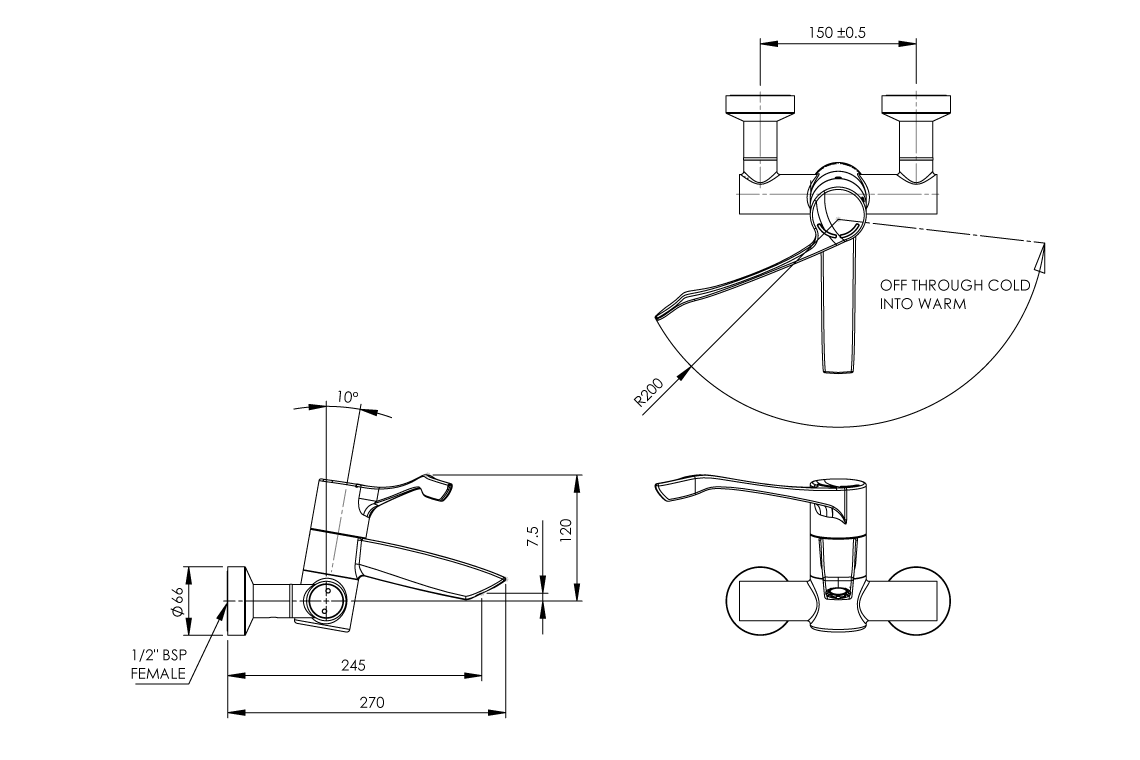

Dimensional Drawings
Product Information
