Bariatric WC Pan and Toilet Seat - White
Bariatric WC Pan and Toilet Seat - White
Product Code: WB-WCBARW
Couldn't load pickup availability
Product description

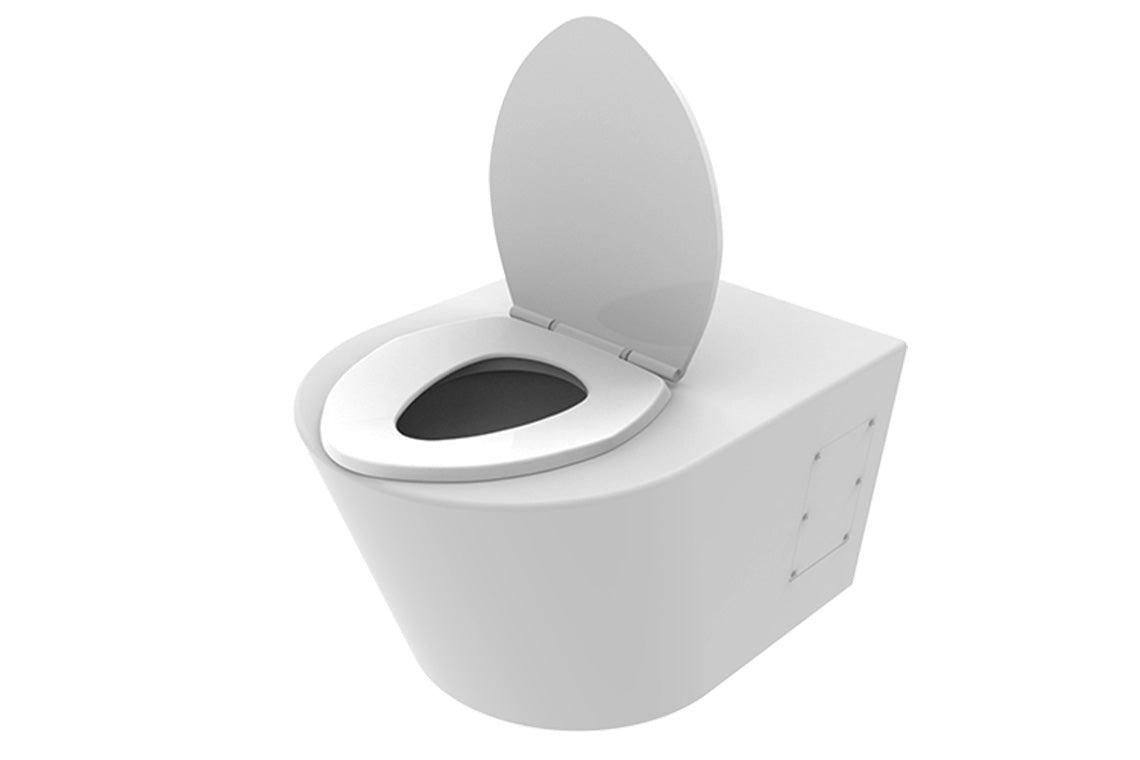

The Bariatric Pan is a specially designed floor standing toilet and is fitted with a seat that is dedicated for bariatric users. The Bariatric toilet pan with seat is secure to a person's weight up to 350 kg and is ideal for use in public amenities, care facilities, health and correctional institutions where conventional pans might be insufficient. A standout point to Bariatric pan is that it has been independently tested to withstand a structural load of up to 400 kgs. The toilet is constructed using durable and strong 304 grade stainless steel which is powdered coated in a clean gloss white to suit most decors. The dimensions of the pan allow a bariatric commode chair can be placed over it without obstruction, if a commode chair is required. Single flap seat included. Supplied in P trap with an option for S trap conversion. Coved option available.
Key Selling Points
- Bariatric wall-faced pan designed to assist bariatric users
- Independently tested to withstand a 400 kg structural load
- Supports user weight up to 350 kg
- 304-grade stainless steel construction with white powder-coated finish
- Concealed fixings for secure installation
- Safety radius front edge for user comfort
- Supplied with bariatric-suited toilet seat with lid
- 100mm P-trap outlet, compatible with standard pan collars
- S-trap conversion (set out 80-250mm from finished wall)
- Wide pan footprint for enhanced stability
- Compatible with a range of in-wall cisterns
- Standard WELS (Stars)
- 4
- WELS Category
- Lavatory
- Certifications
- WM 22054,WELS-4 Star-3.4L-WC Flush-0243
- WELS Half Flush Volume (L)
- 3
- WELS Average Flush Volume (L)
- 3.4
- Inlet Connection
- 57mm ID (50mm OD Flush Pipe with KEE SEAL)
- Outlet Connection
- 100mm OD
- Finish
- White Powder Coating
BIM Files
Brochures

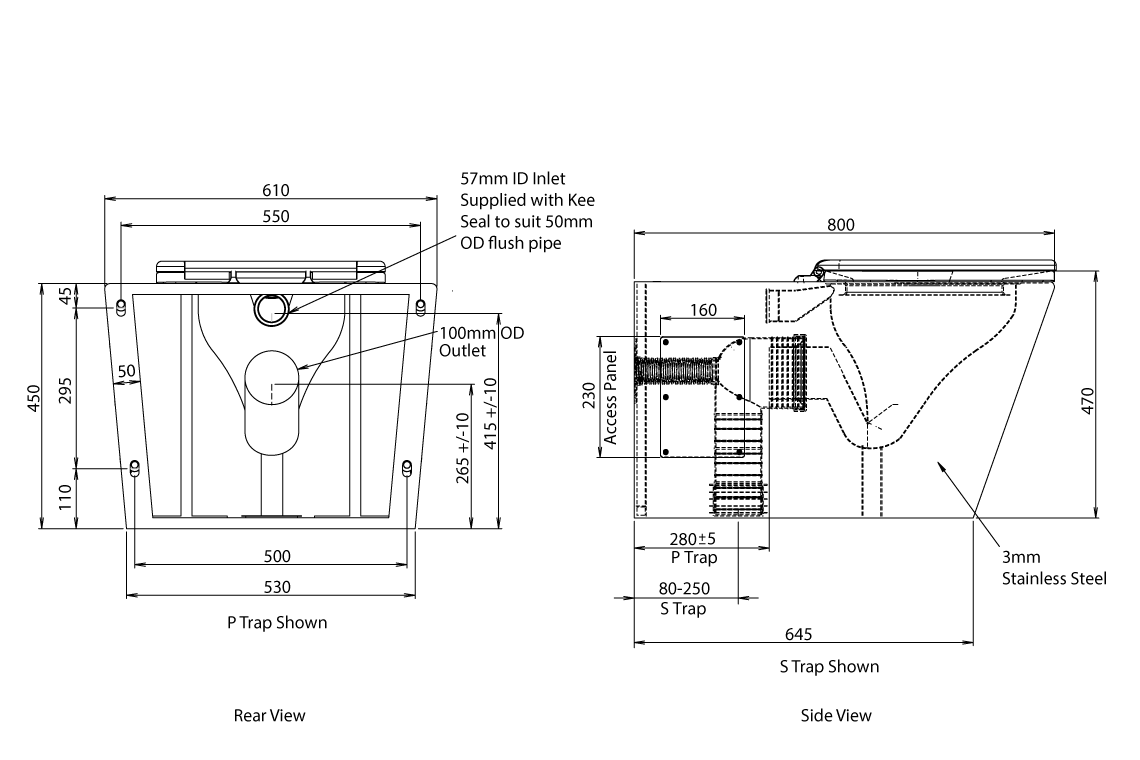

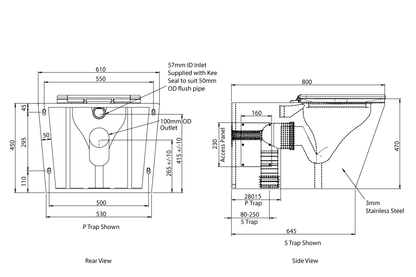

Dimensional Drawings
