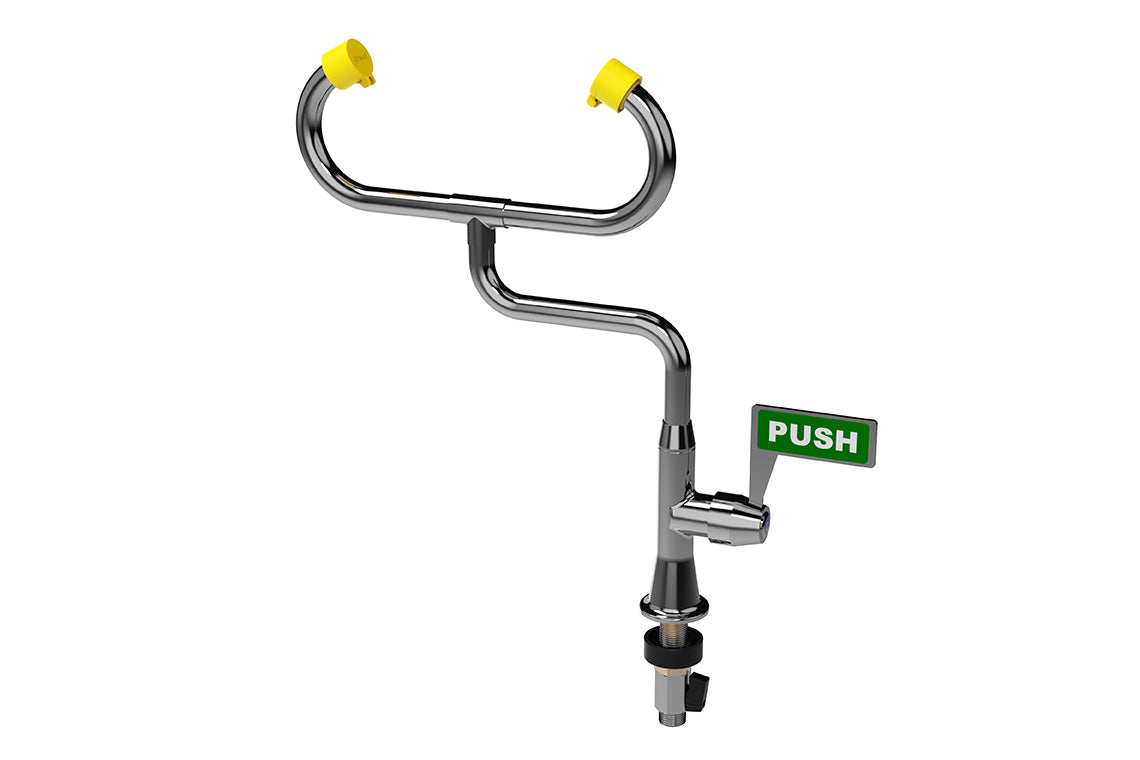

Bench Mounted Swivel Eye Wash Hand Operated
Bench Mounted Swivel Eye Wash Hand Operated
Product Code: EL570
Couldn't load pickup availability
Product description

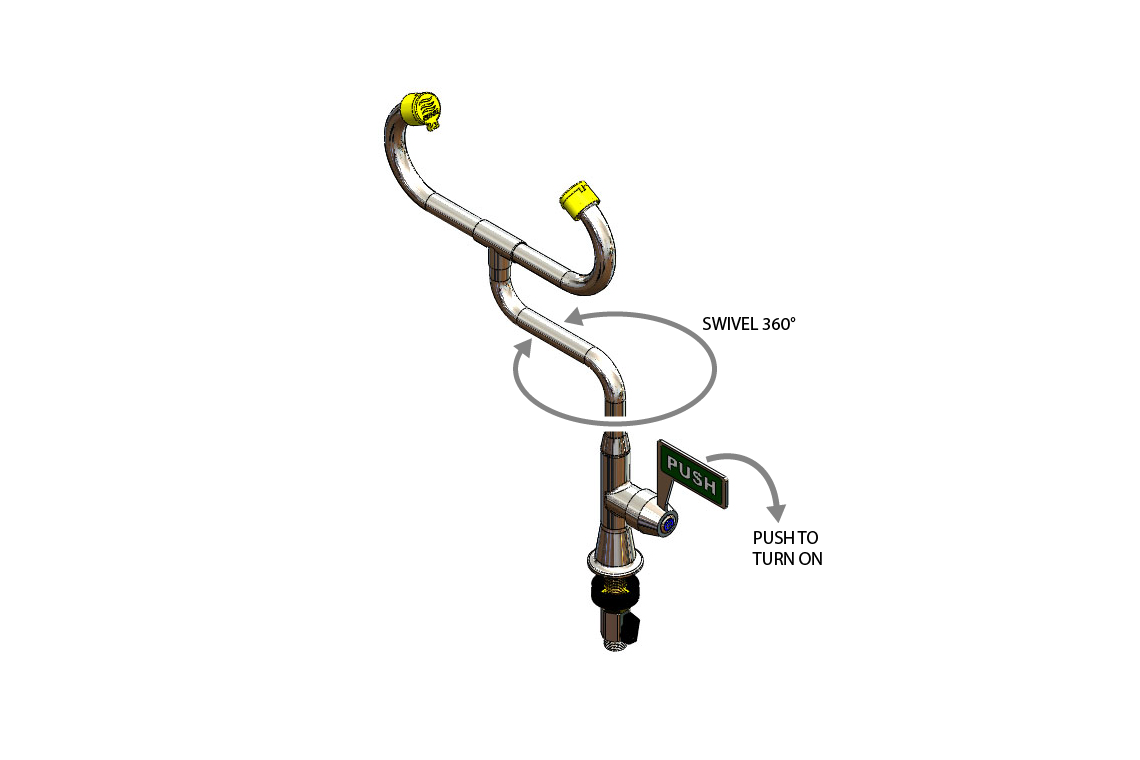

Bench mounted swivel eyewash with hand activated stay open valve. When required, the emergency eye wash swivels over the sink, set at appropriate height and is conveniently out of the way during normal sink use.
Key Selling Points
- Aerated outlets
- Ceramic disc stay open valve
- Chrome plated DZR brass body
- Minimum Recommended Pressure (kPa)
- 80
- Maximum Recommended Pressure (kPa)
- 500
- Minimum Pressure to achieve ANSI Z358.1 and AS4775 compliance (kPa)
- 210
- Minimum Flow Rate (L/min)
- 17
- Inlet Connection
- 1/2" BSP male (DN15)
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Weight (kg)
- 3
- Finish
- Chrome
- Valve Type
- 1/4 Turn Ceramic Disc
BIM Files
Brochures

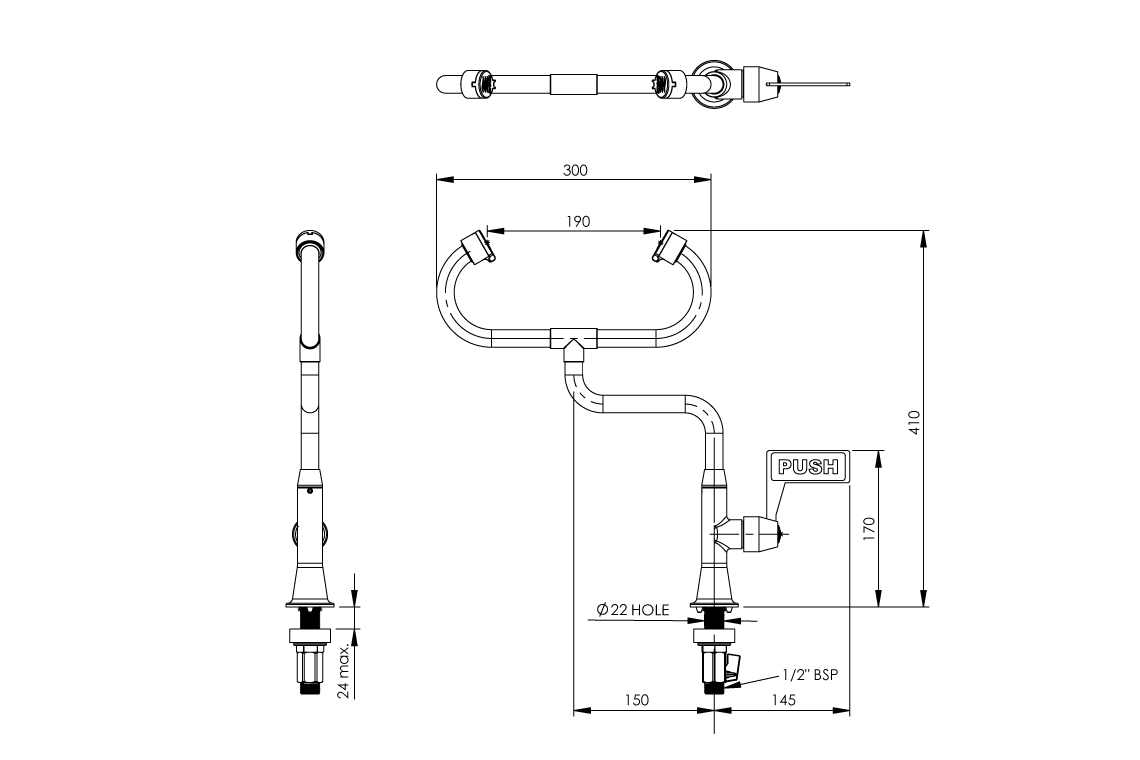

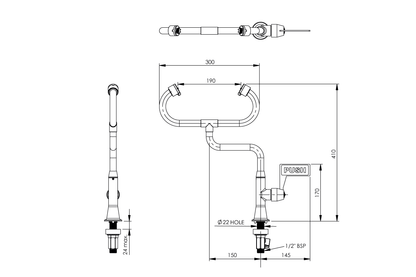

Dimensional Drawings
