Type 100 Wall Mounted Fountain - 15mm - Button Action
Type 100 Wall Mounted Fountain - 15mm - Button Action
Product Code: BUB219B
Couldn't load pickup availability
Product description
A wall mounted self closing fountain for dispensing drinking water generally used above a basin or in multiples in line above a drinking trough. The fixed metal mouth guard prevents unnecessary user contact with the water outlet. An adjustable flow control allows the height of the drinking water stream to be set according to the site conditions. The two fixing screw holes in the wall flange allows the fountain to be secured in place.
Key Selling Points
- Vandal resistant design
- Self-closing mechanism
- DR Brass construction
- Integral adjustable flow regulator
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 2.5
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-6 Star-2.5Lpm,Lead Free
- Minimum Recommended Temperature (Deg C)
- 5
- Maximum Recommended Temperature (Deg C)
- 30
- Maximum Working Temperature (Deg C)
- 50
- Maximum Static Pressure (kPa)
- 1200
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Bubbler Flow Rate (L/min)
- 2.5
- Inlet Connection
- 1/2” BSP (15mm)
- Finish
- Chrome
- Valve Type
- Spring Action
BIM Files
Brochures

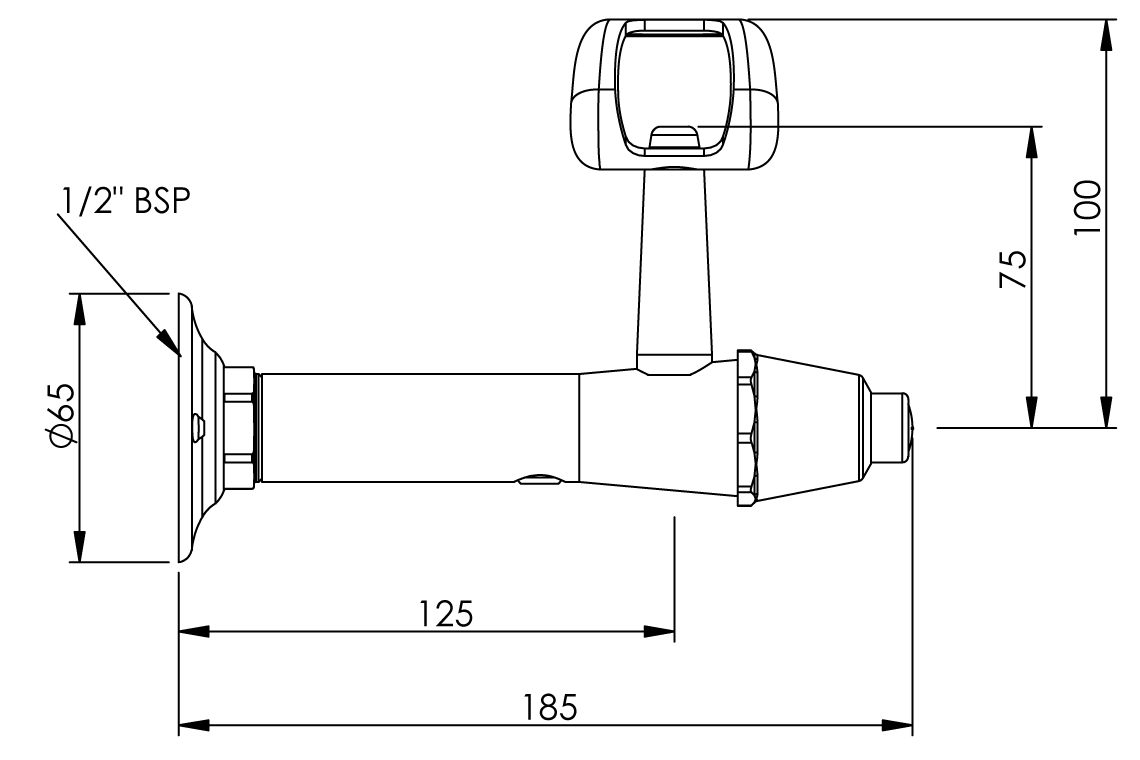

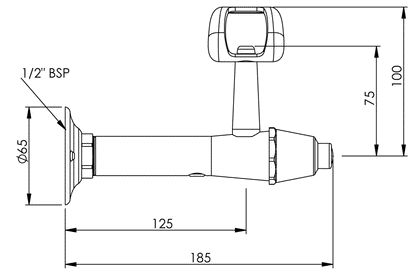

Dimensional Drawings
