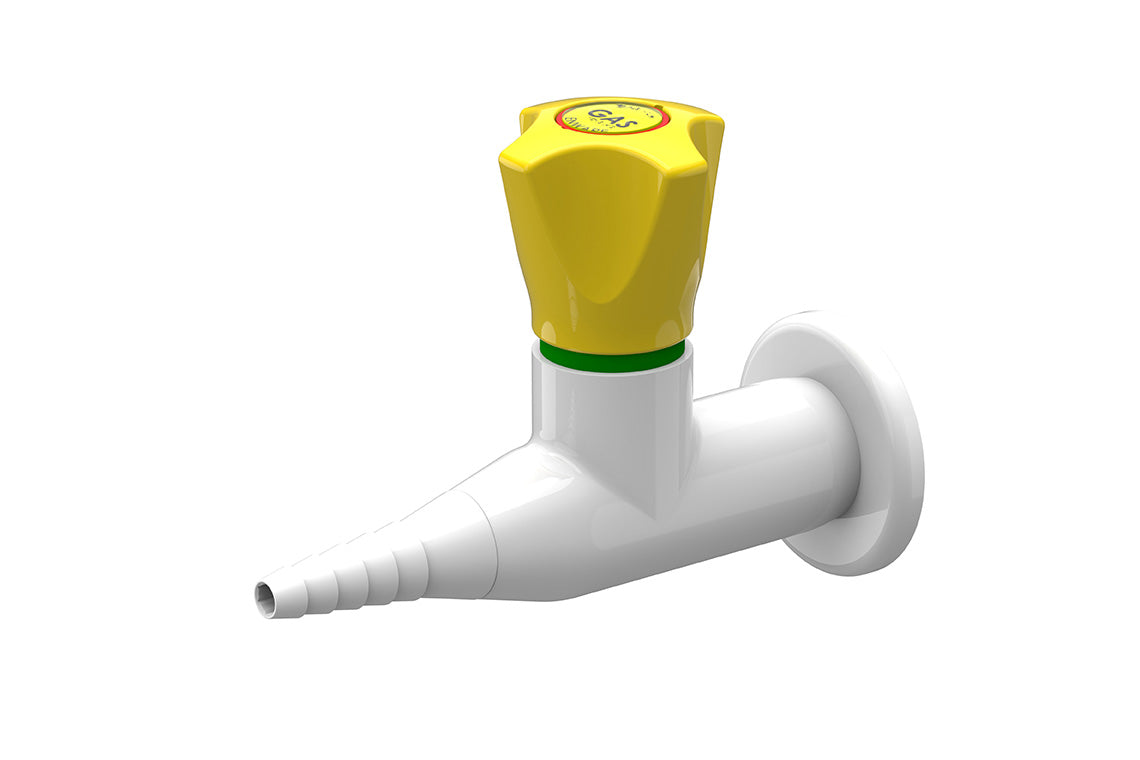

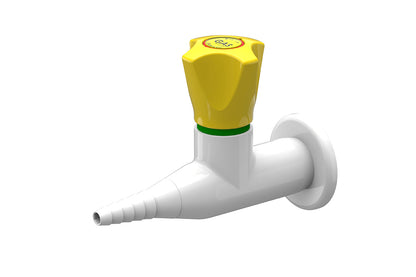

ComLab 1 Way Straight Valve - Push Turn - Natural Gas/LPG
ComLab 1 Way Straight Valve - Push Turn - Natural Gas/LPG
Product Code: LCN142WBGAS
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded metal handles are ergonomically designed for precise feel and fingertip control. Service identification indicators are supplied for compatible dry service types.
Key Selling Points
- AGA approved
- Suited for burning gases up to technical gas level 2.0
- Push-turn handle to turn gas on, prevents accidental activation
- Green Safety Ring indicates when valve is off
- Durable white epoxy powder coat finish with coloured metal handle
- 1/2" BSP FI inlet with loose 1/2” BSP male inlet tail with 1/4” BSP female thread connection
- Tube nozzle outlet. 3/8" BSP FI when removed
- Yellow handle and indicator button identification to DIN EN13792

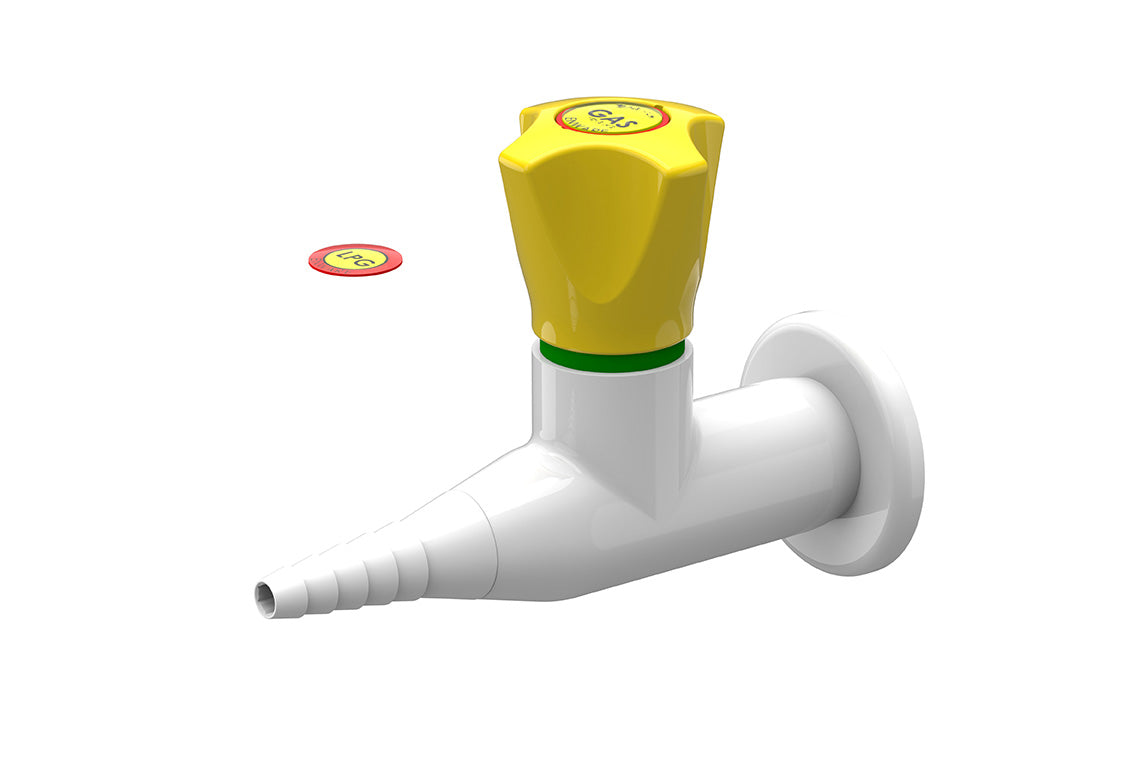

- Indicator buttons for compatible media included
- Compatible media: Natural Gas, LPG
- Certifications
- AGA CERT 6751
- Inlet Connection
- 1/2" BSP Female, 1/2” BSP Male, 1/4” BSP Female
- Outlet Connection
- Tube Nozzle, 3/8” BSP Female (without nozzle)
- Connection Notes
- Unregulated outlet designed for supply to Bunsen Burners and similar equipment
- Finish
- Powder Coating
- Valve Type
- Push-To-Turn Ceramic Disc
- Mounting Type
- Straight Wall Mounted

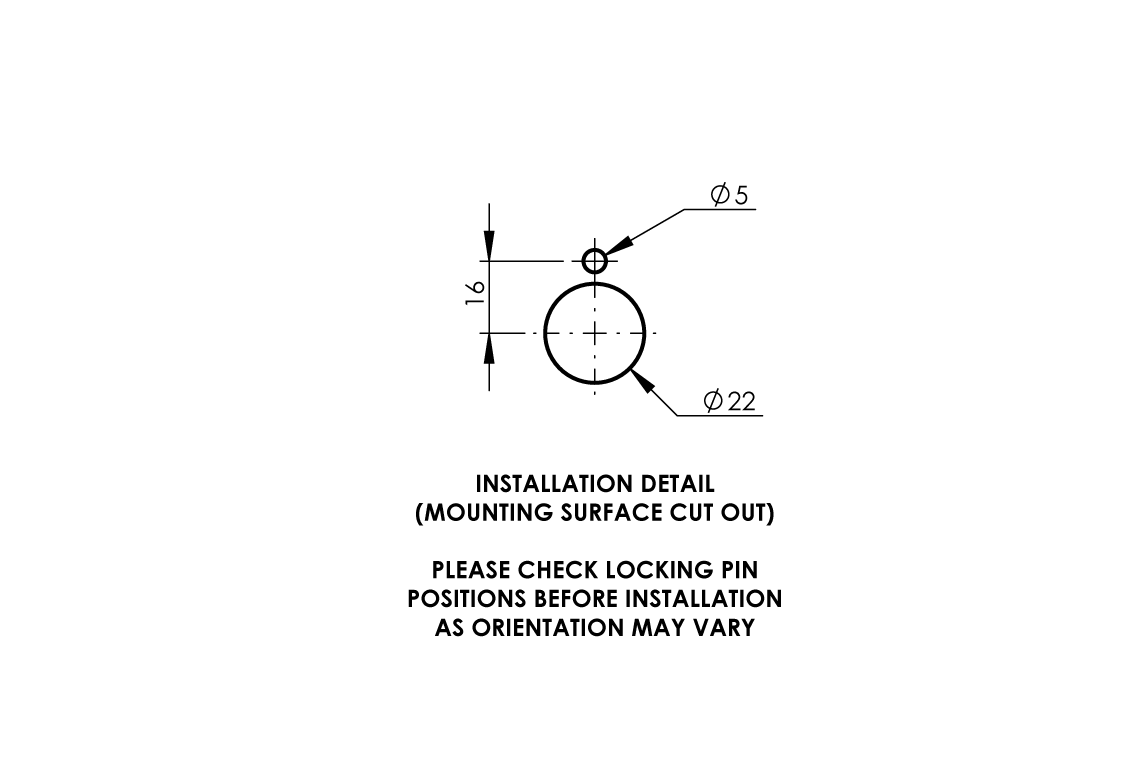

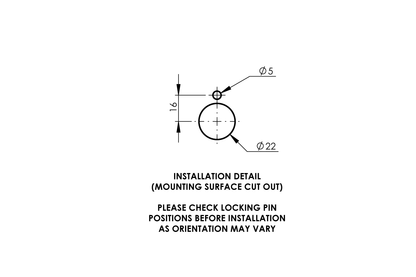

- Mounting Notes
- Suitable for wall mounting
BIM Files
Brochures

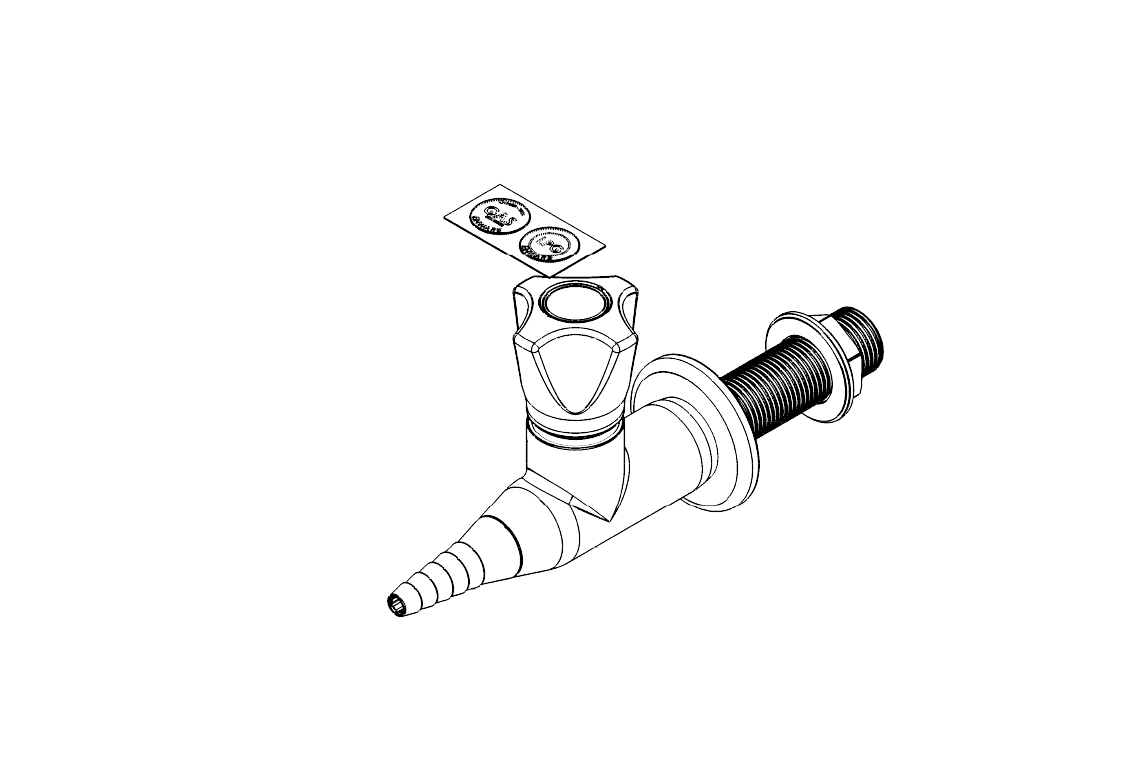

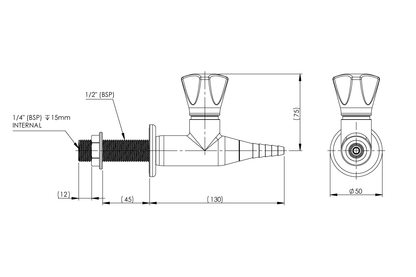

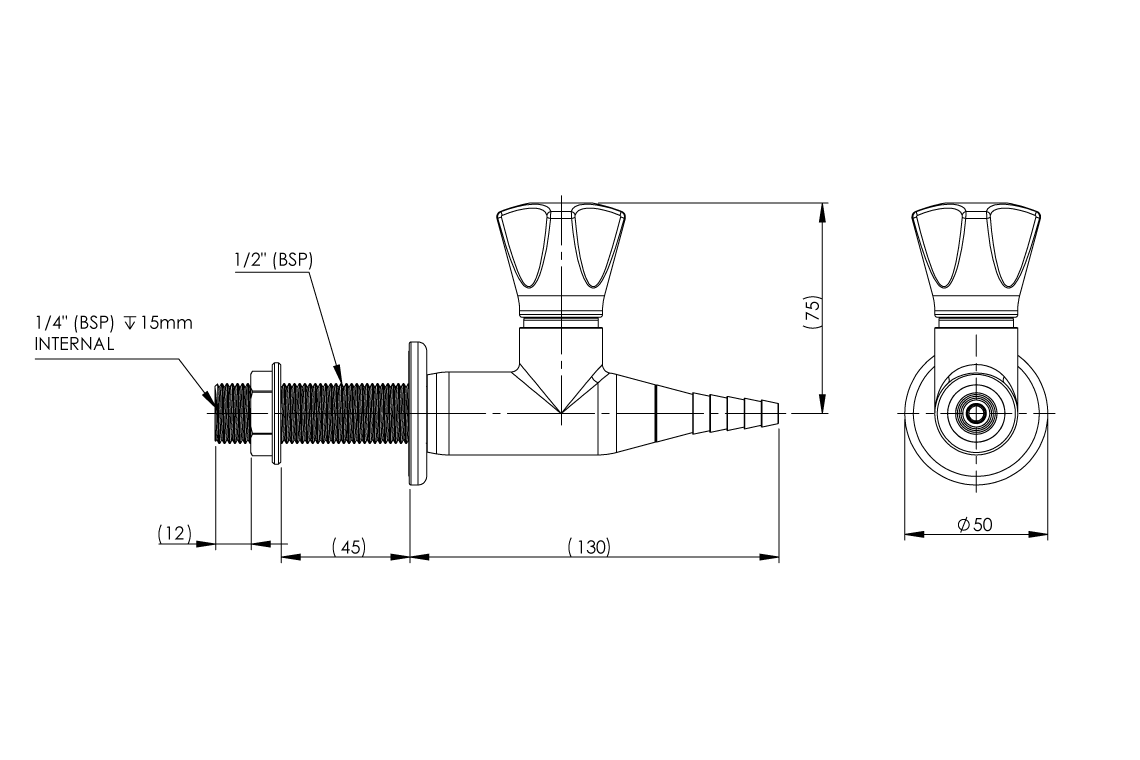

Dimensional Drawings
Product Information
