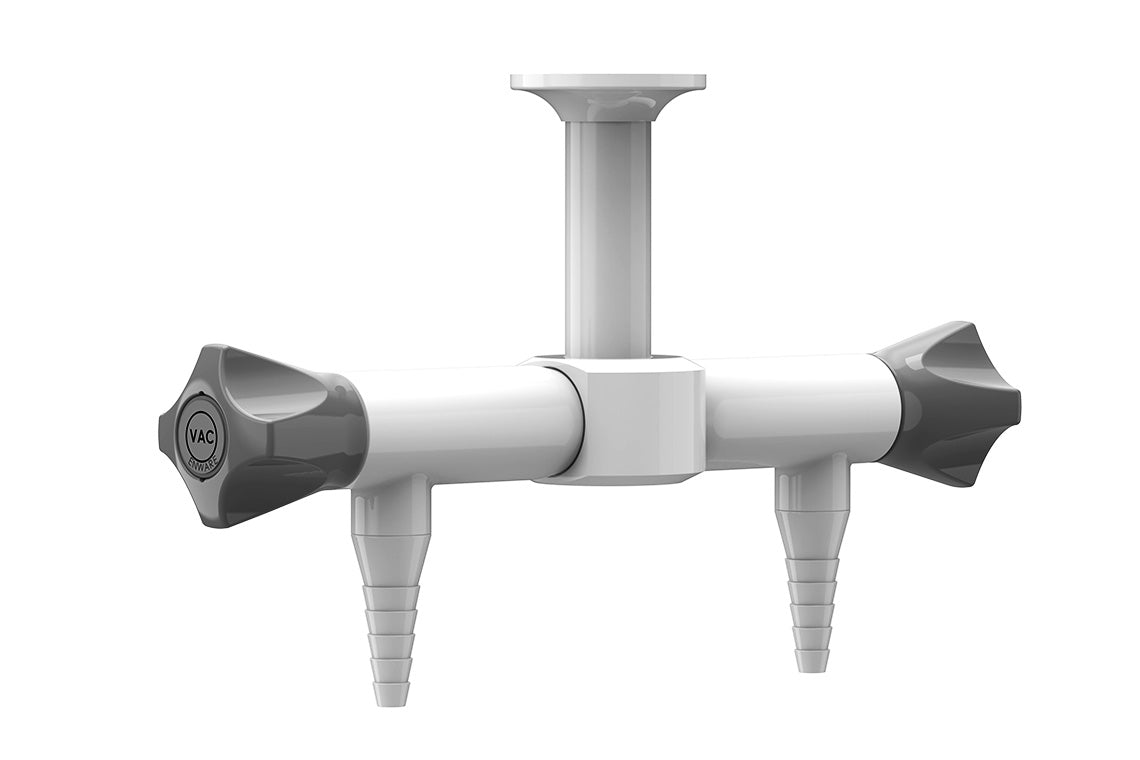

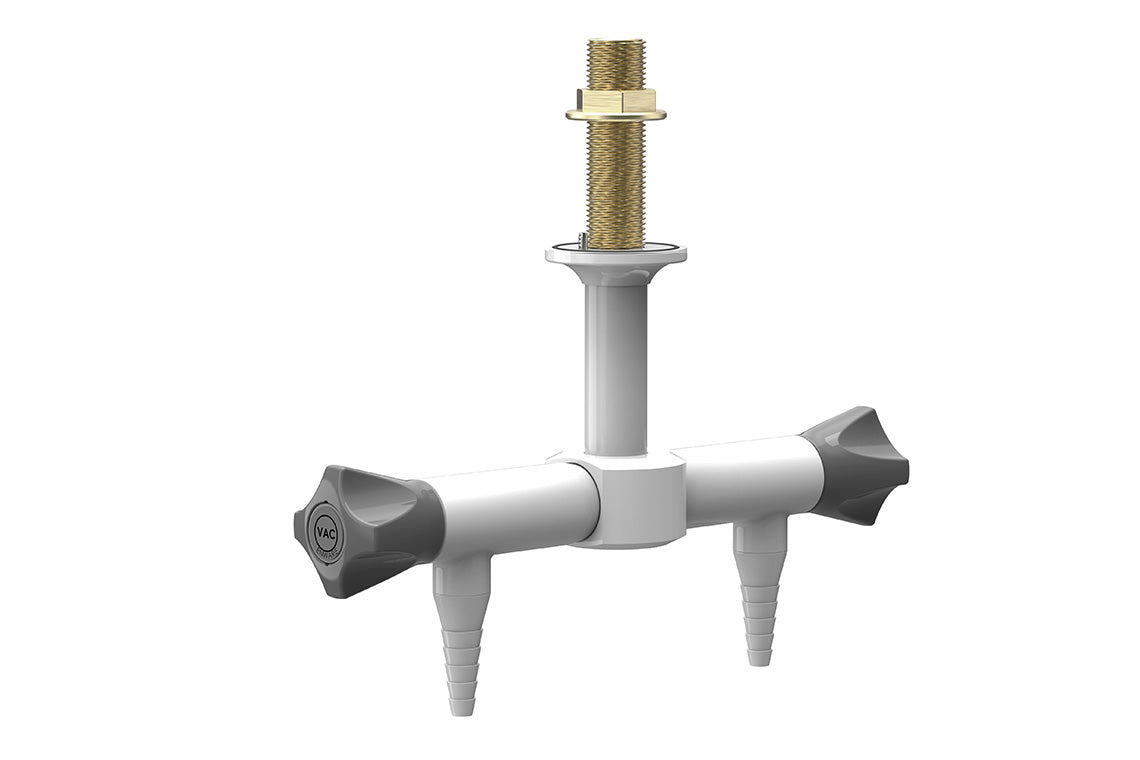

ComLab 2 Way Pendant Needle Valve - Vacuum
ComLab 2 Way Pendant Needle Valve - Vacuum
Product Code: LCN119NVAC
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded metal handles are ergonomically designed for precise feel and fingertip control. Service identification indicators are supplied for compatible dry service types.
Key Selling Points
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 1/2” BSP male inlet tail with 1/4” BSP female thread connection
- Tube nozzle outlet. 3/8" BSP FI when removed
- Grey handle and indicator button identification to DIN EN13792
- Compatible media: Vacuum
- Inlet Connection
- 1/2” BSP Male, 1/4” BSP Female
- Outlet Connection
- Tube Nozzle, 3/8” BSP Female (without nozzle)
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- 2-Way Pendant
- Mounting Notes

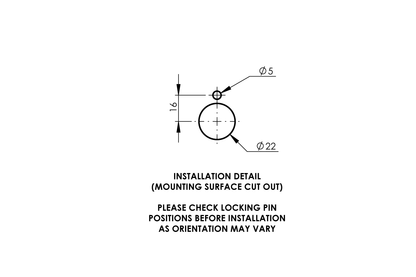

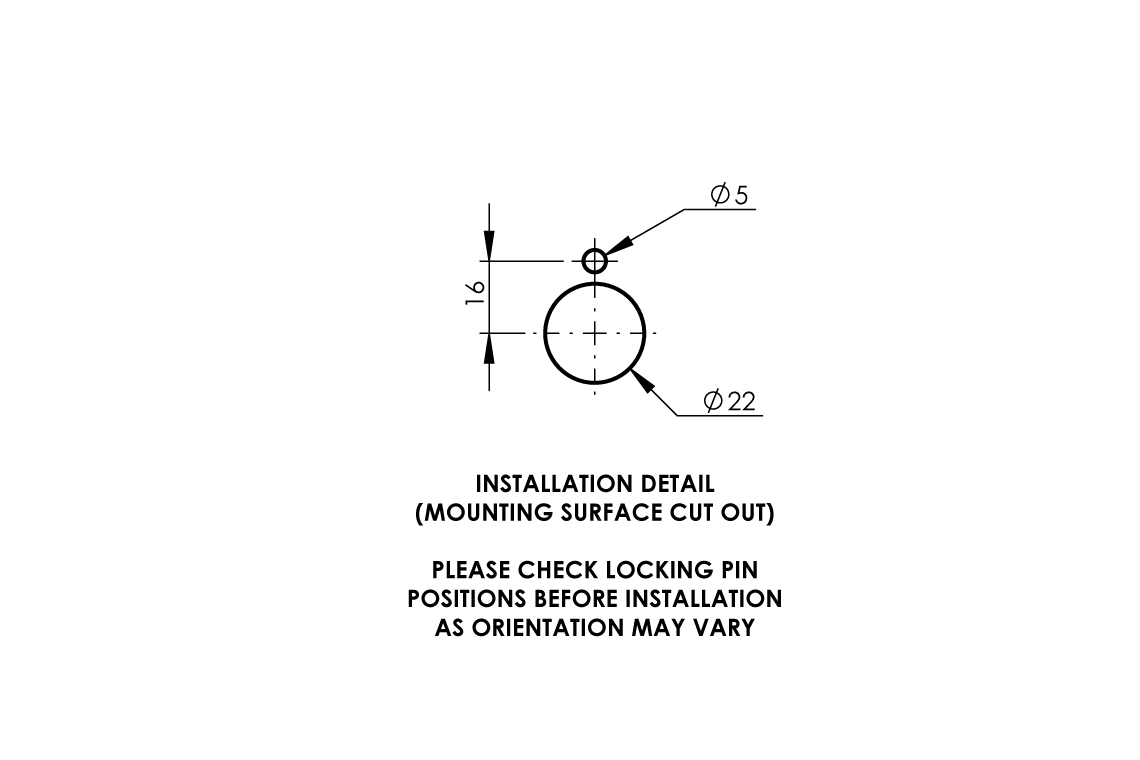

- Suits Reagent Shelf mounting (hanging pendant)
BIM Files
Brochures

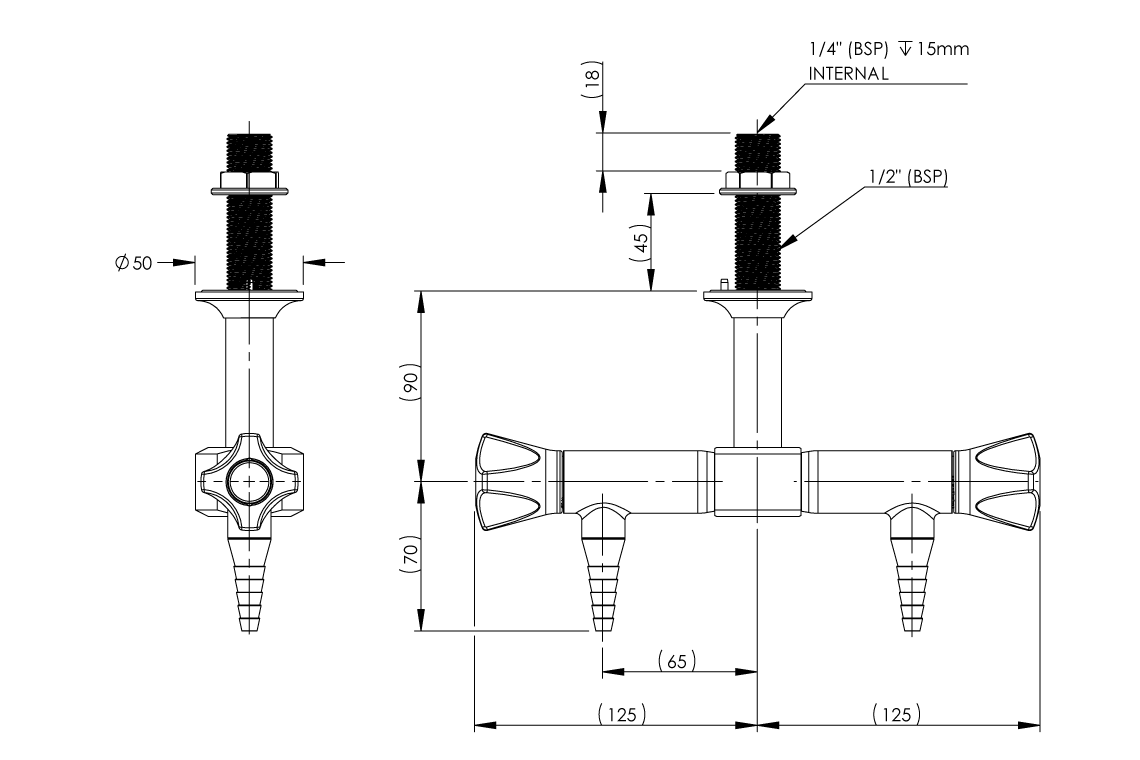

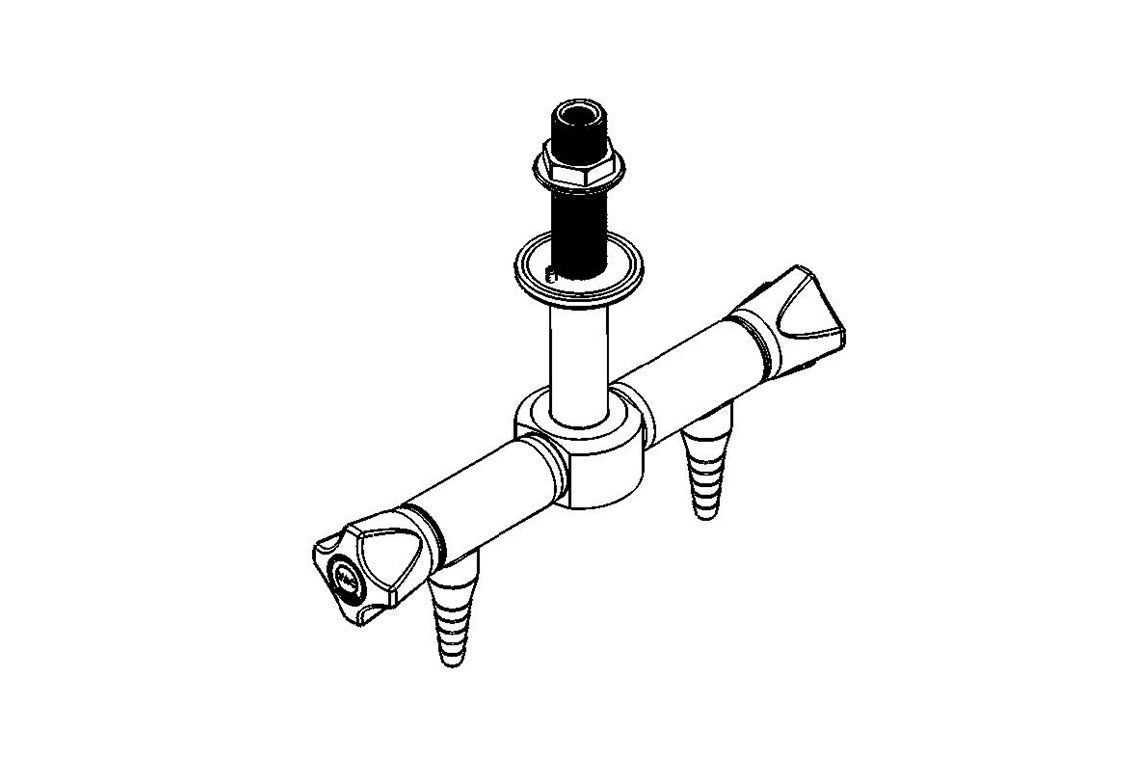

Dimensional Drawings
Product Information
