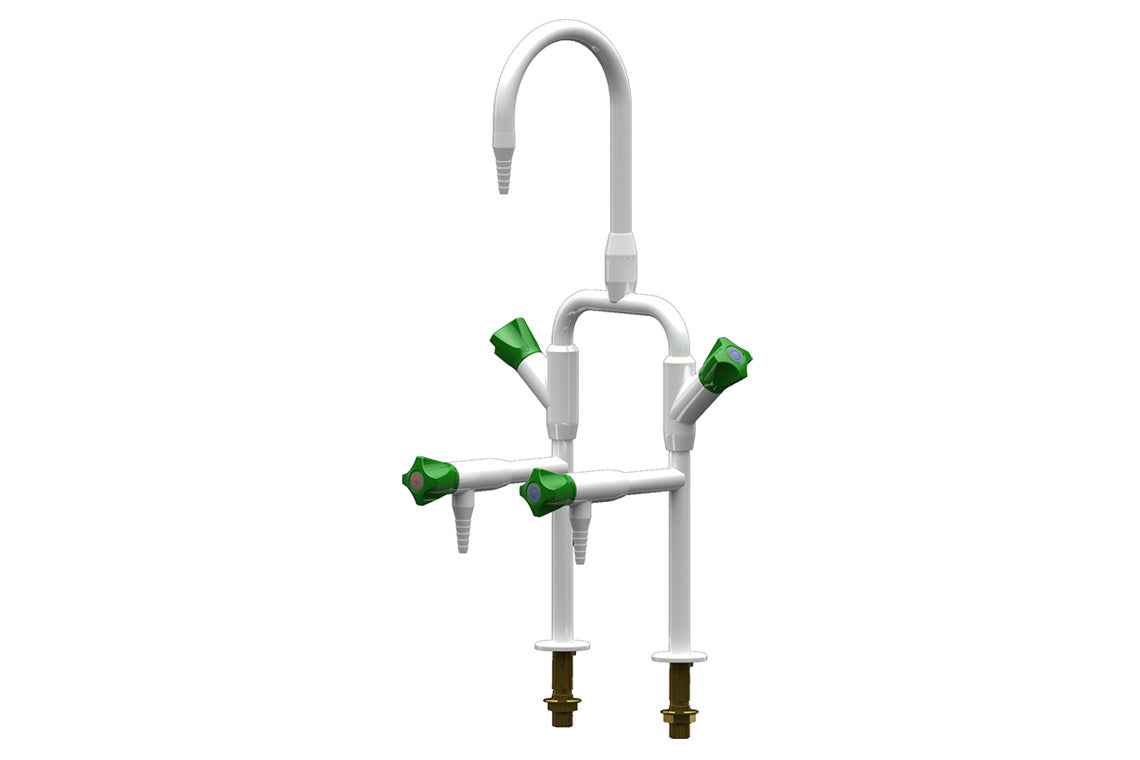

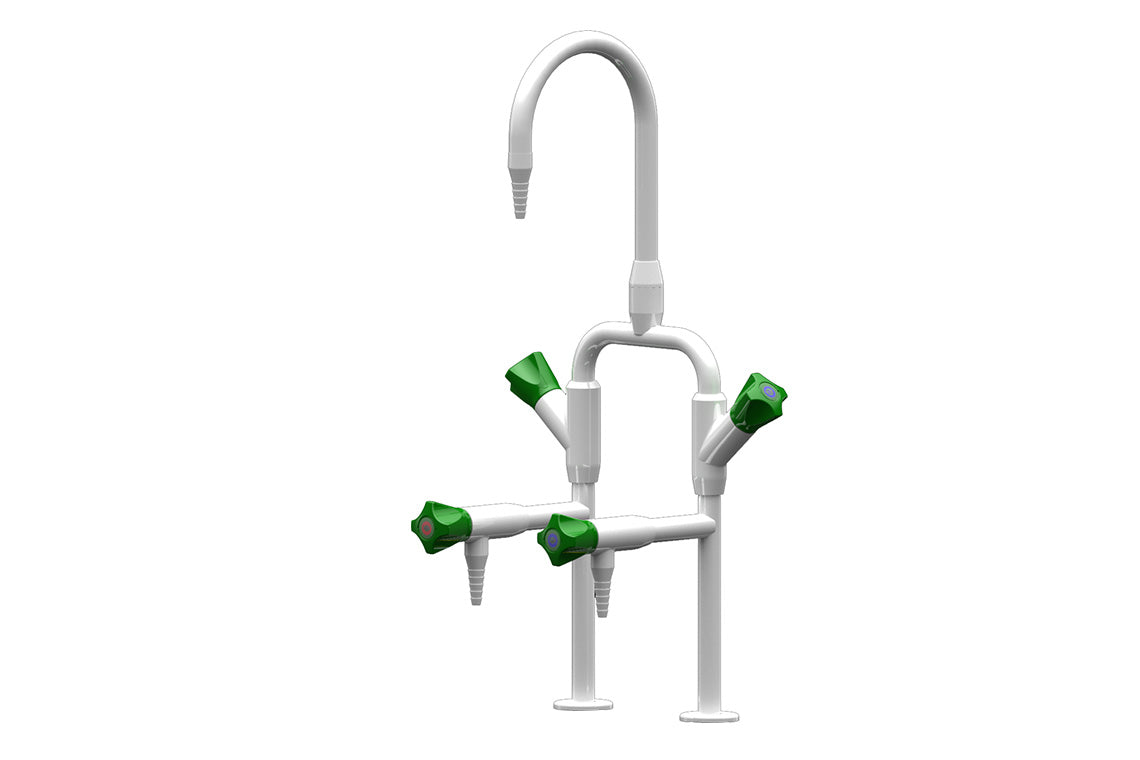

ComLab 3-Way Bench Mounted Laboratory Mixing Set with 2 Bib Outlets and 1 Swivel/Fixed Gooseneck Outlet - Ceramic Disc - Water
ComLab 3-Way Bench Mounted Laboratory Mixing Set with 2 Bib Outlets and 1 Swivel/Fixed Gooseneck Outlet - Ceramic Disc - Water
Product Code: LCN108
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons.
Key Selling Points
- 3/4-turn ceramic disc headworks provides precise flow control
- Durable white epoxy powder coat finish with coloured metal handles
- 2 x Fixed bib outlets (hot and cold)
- Swivel high-rise gooseneck spout with integral fixing option

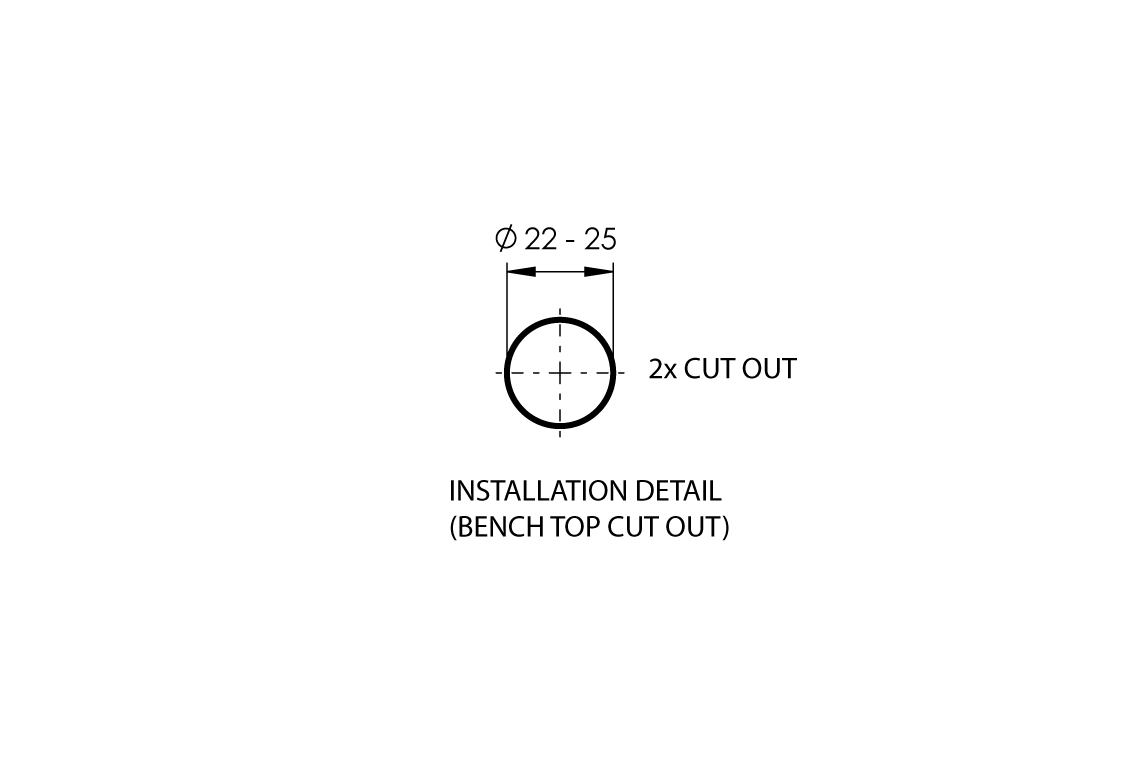

- 1/2” BSP male inlet tails with backnuts for bench mounting
- Tube nozzle outlet with flow control and dual check valve. 3/8" BSP FI when removed
- Aerator option
- Green handle and indicator button identification to DIN EN13792
- Indicator buttons for compatible media included
- Compatible media: Cold Water, Hot Water, Chilled Water
- Lead free brass
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,Lead Free
- Maximum Working Temperature (Deg C)
- 90
- Maximum Static Pressure (kPa)
- 1000
- Maximum Recommended Pressure (kPa)
- 700
- Primary Flow Rate (L/min)
- 6
- Inlet Connection
- 1/2" BSP Male
- Outlet Connection
- Tube Nozzle, 3/8" BSP Female (without nozzle)
- Finish
- Powder Coating
- Valve Type
- Ceramic Disc
BIM Files
Brochures

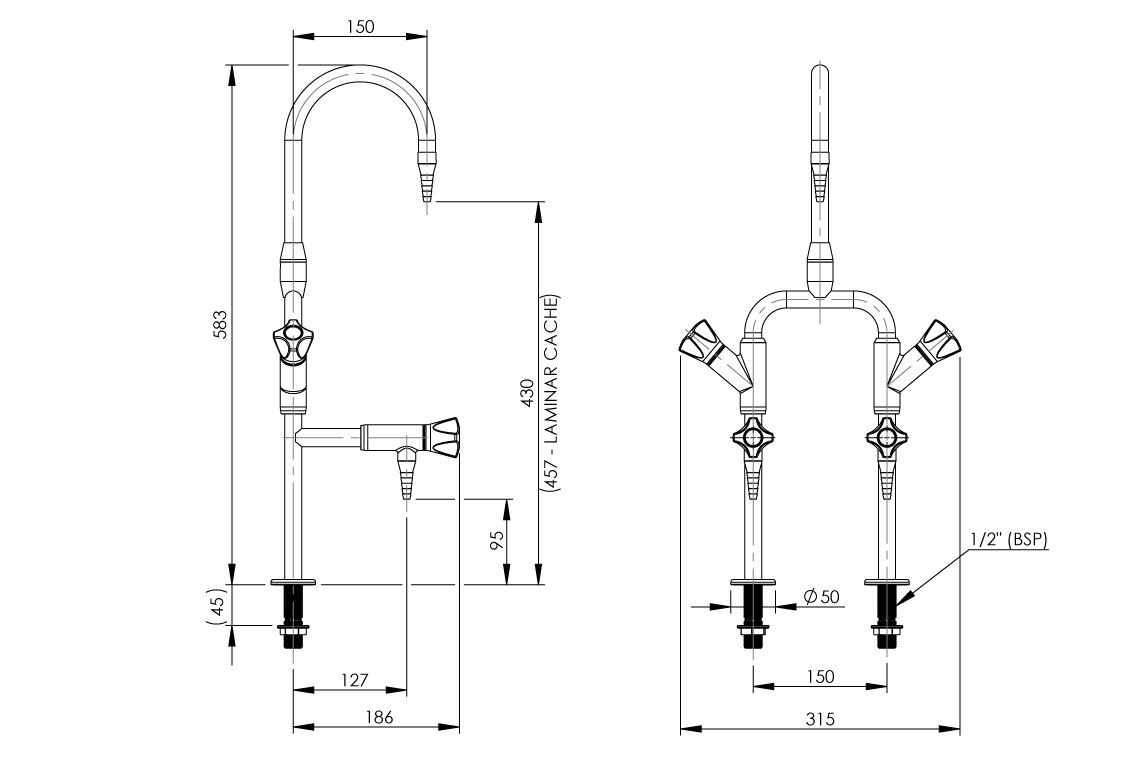

Dimensional Drawings
