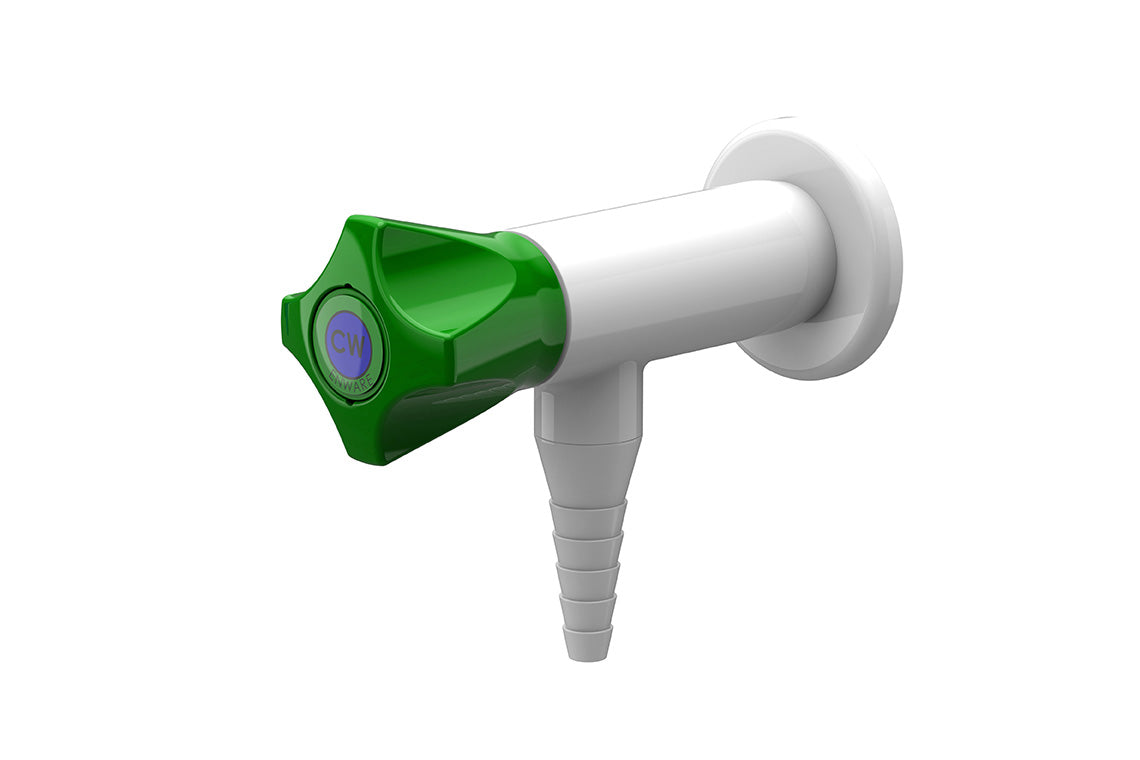

ComLab 90 Degree 1 Way Valve - Ceramic Disc - Water
ComLab 90 Degree 1 Way Valve - Ceramic Disc - Water
Product Code: LCN140WATER
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons.
Key Selling Points
- Ceramic disc (3/4 turn) headworks
- Durable white epoxy powder coat finish with coloured metal handle
- 1/2" BSP FI inlet with loose 1/2” BSP male inlet tail
- Tube nozzle outlet with Flow Control and Check Valve. 3/8" BSP FI when removed
- Green handle and indicator button identification to DIN EN13792

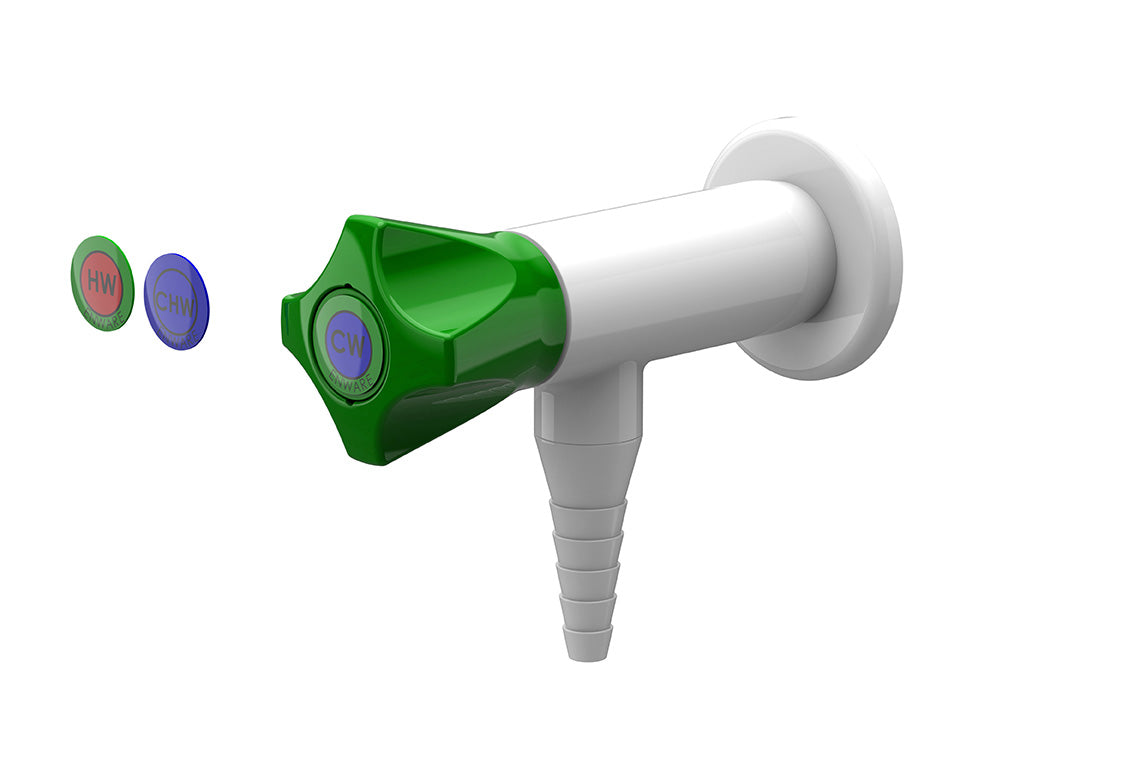

- Indicator buttons for compatible media included
- Compatible media: Cold Water, Hot Water, Chilled Water
- Lead Free Brass
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,Lead Free
- Maximum Working Temperature (Deg C)
- 90
- Maximum Static Pressure (kPa)
- 1000
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/2" BSP
- Outlet Connection
- Tube Nozzle, 3/8” BSP Female (without nozzle)
- Finish
- Powder Coating
- Valve Type
- Ceramic Disc
- Mounting Type
- Right Angle Wall Mounted
- Mounting Notes
- Suitable for wall and bench mounting
BIM Files
Brochures

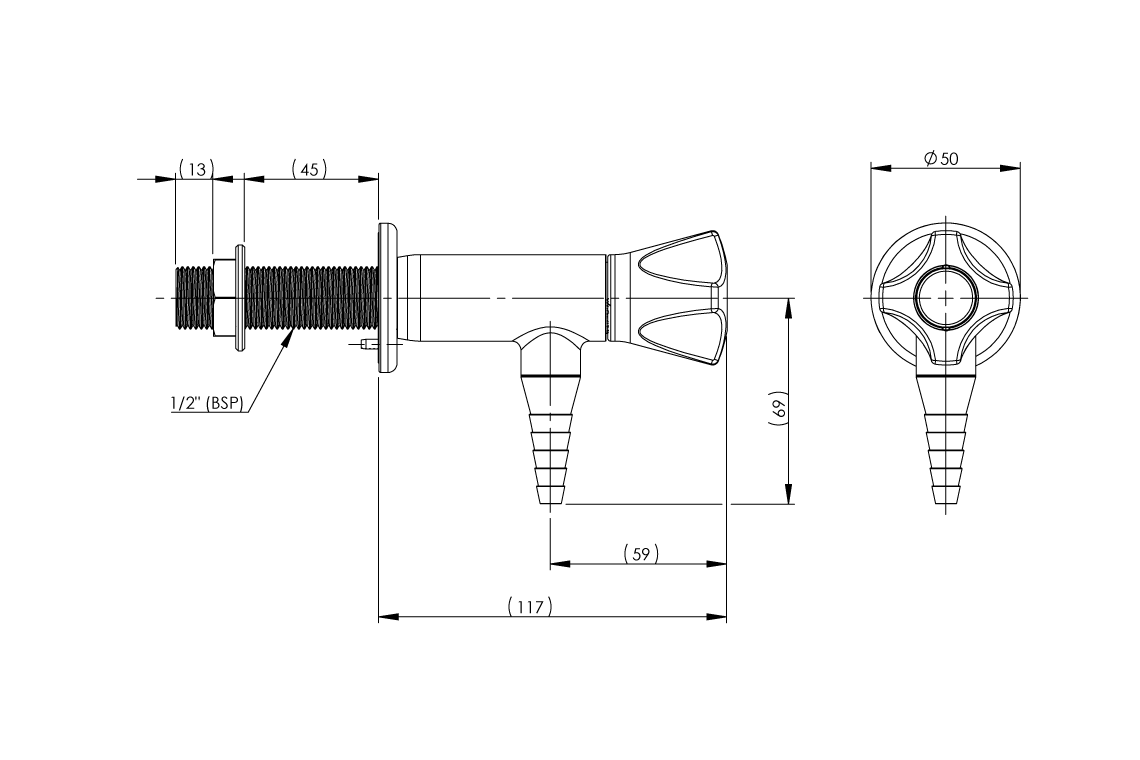

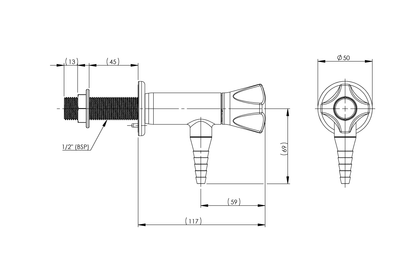

Dimensional Drawings
Product Information
