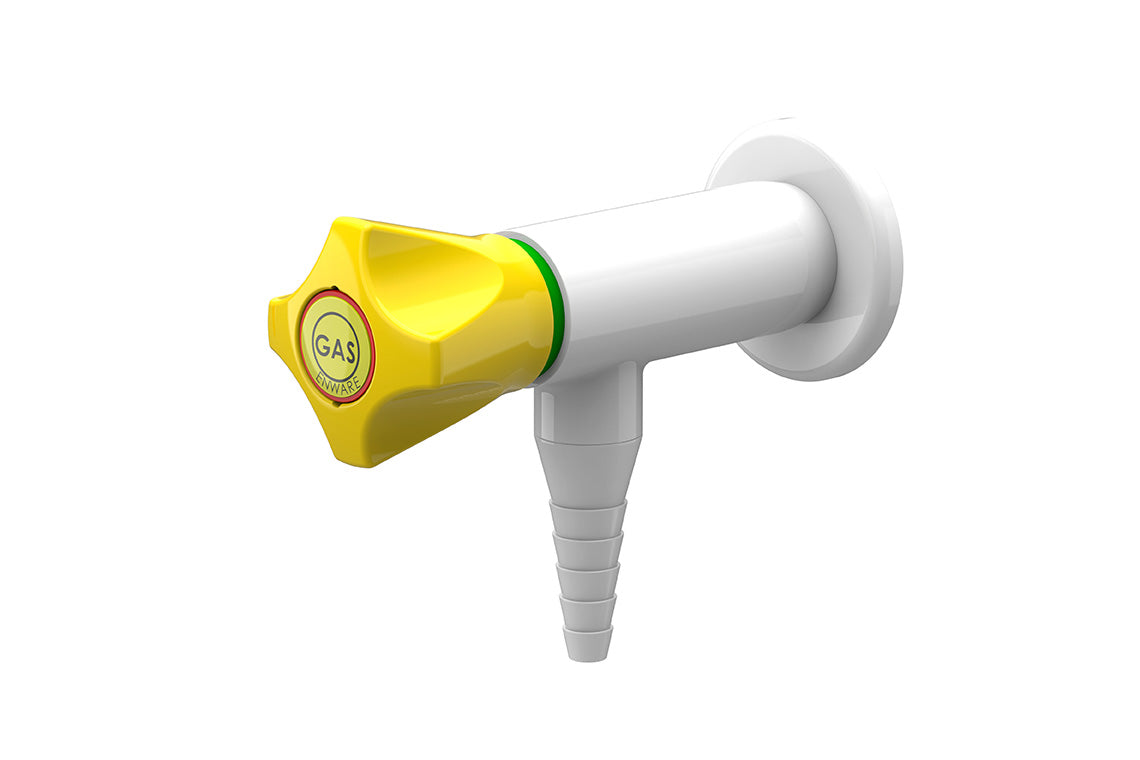

ComLab 90 Degree 1 Way Valve - Push Turn - Natural Gas/LPG
ComLab 90 Degree 1 Way Valve - Push Turn - Natural Gas/LPG
Product Code: LCN140WBGAS
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded metal handles are ergonomically designed for precise feel and fingertip control. Service identification indicator is supplied for compatible gas service types.
Key Selling Points
- AGA approved
- Suited for burning gases up to technical gas level 2.0
- Push-Turn handle to turn gas on, prevents accidental activation
- Green Safety Ring indicates when valve is off
- Durable white epoxy powder coat finish with coloured metal handle

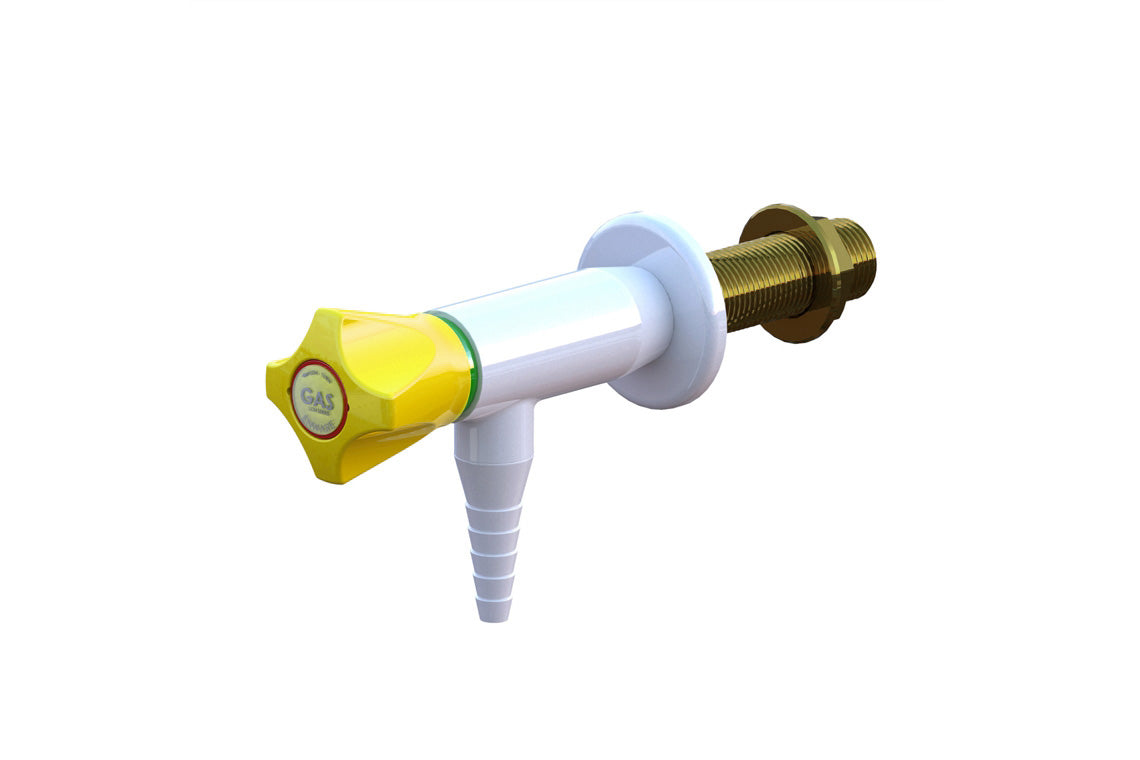

- 1/2" BSP FI inlet with loose 1/2” BSP male inlet tail with 1/4” BSP female thread connection
- Tube nozzle outlet. 3/8" BSP FI when removed
- Yellow handle and indicator button identification to DIN EN13792

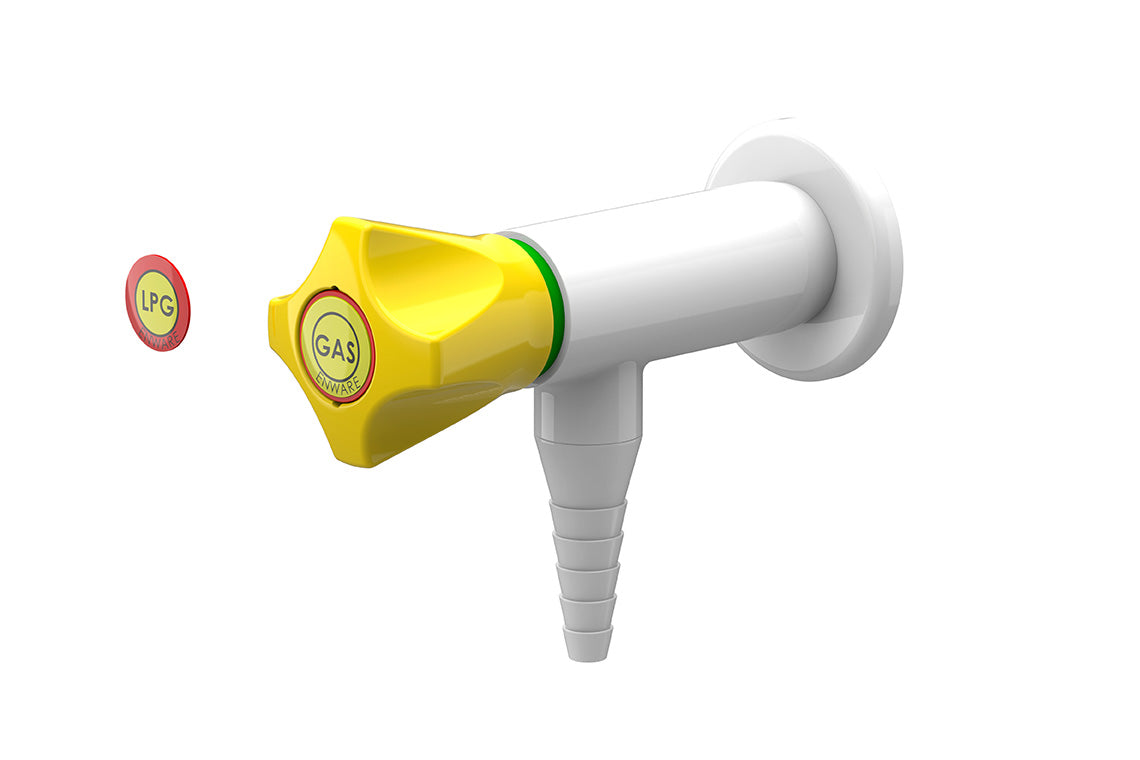

- Indicator buttons for compatible media included
- Compatible media: Natural Gas, LPG
- Certifications
- AGA CERT 6751
- Maximum Recommended Pressure (kPa)
- 7
- Inlet Connection
- 1/2" BSP Female, 1/2” BSP Male, 1/4” BSP Female
- Outlet Connection
- Tube Nozzle, 3/8” BSP Female (without nozzle)
- Connection Notes
- Unregulated outlet designed for supply to Bunsen Burners and similar equipment
- Finish
- Powder Coating
- Valve Type
- Push-To-Turn Ceramic Disc
- Mounting Type
- Right Angle Wall Mounted

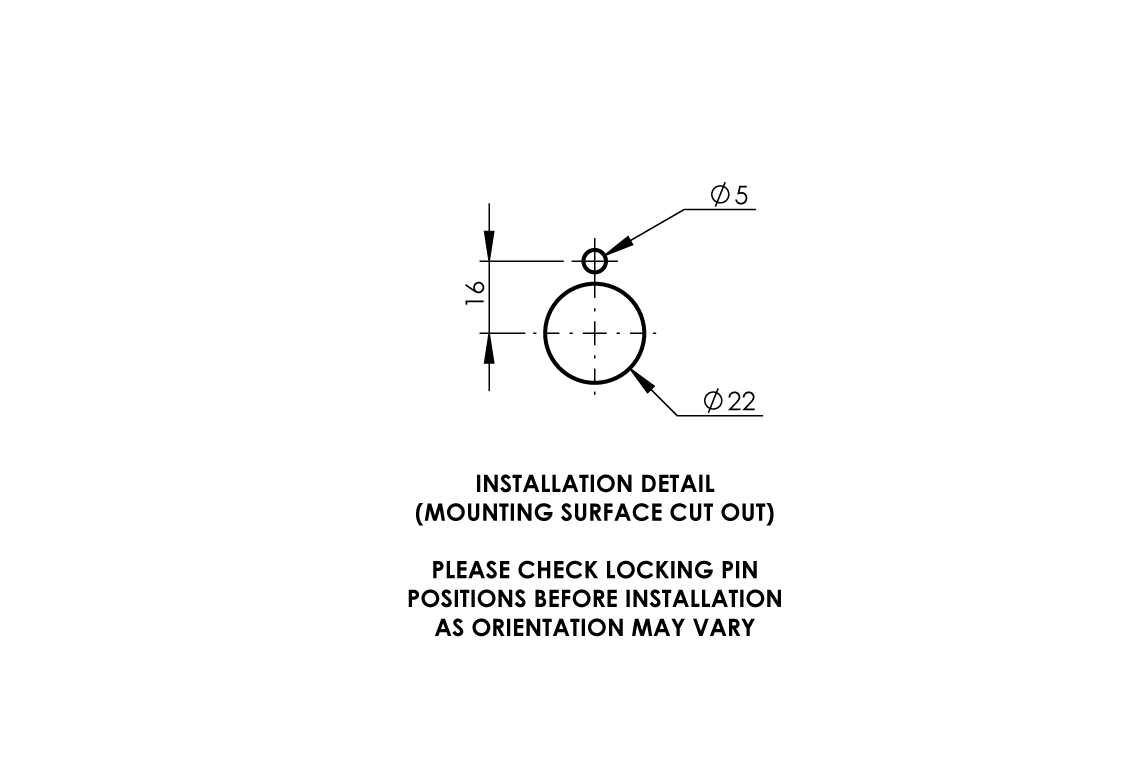

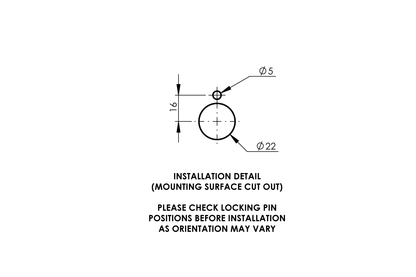

- Mounting Notes
- Suitable for wall and bench mounting
BIM Files
Brochures

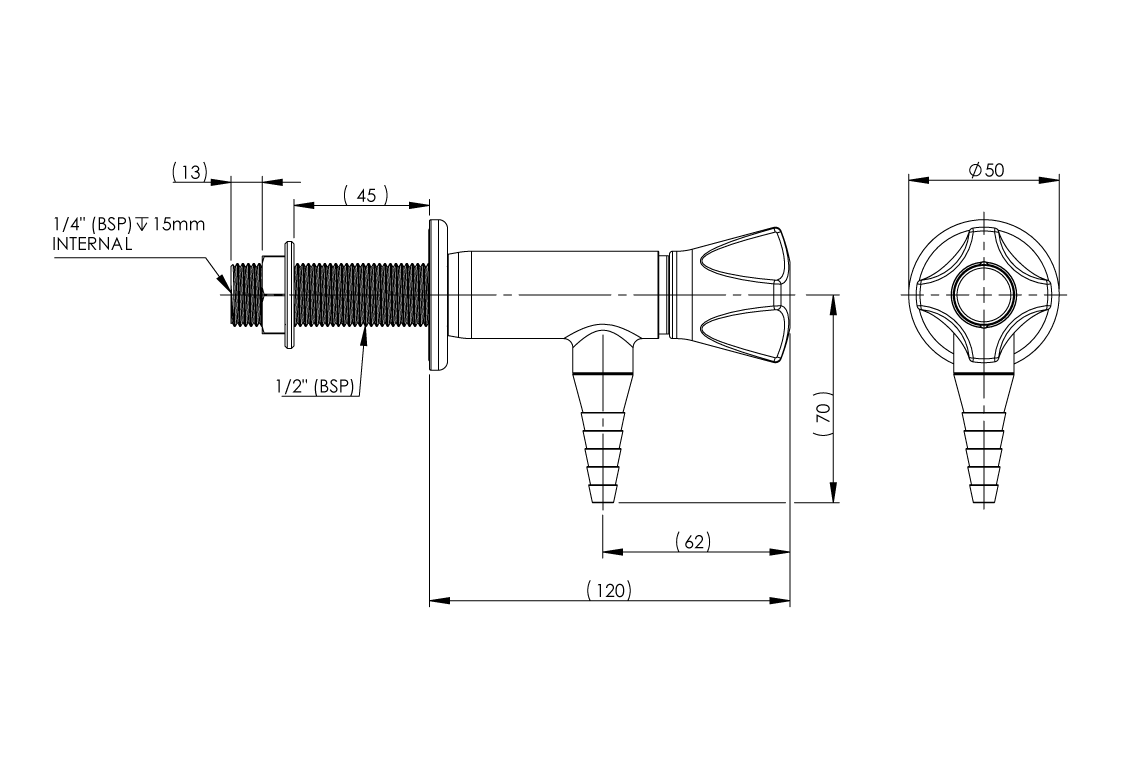

Dimensional Drawings
