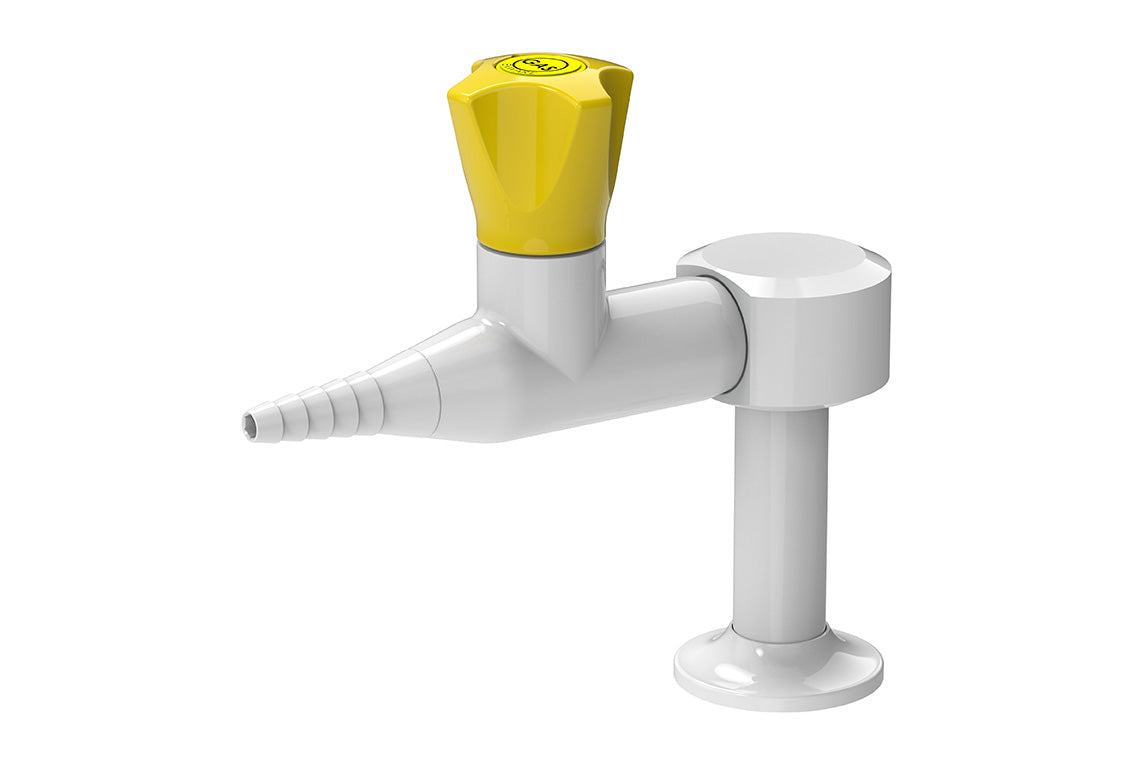

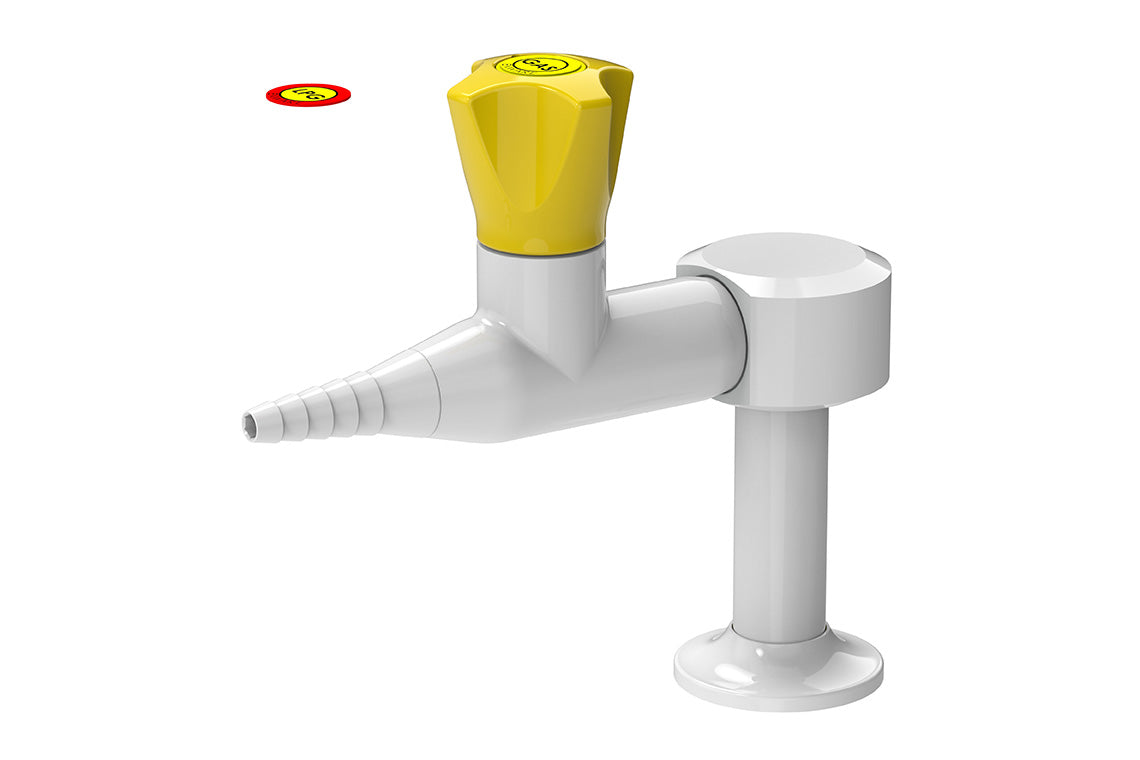

ComLab Bench Mounted 1 Way Straight Needle Valve - Natural Gas/LPG
ComLab Bench Mounted 1 Way Straight Needle Valve - Natural Gas/LPG
Product Code: LCN145NGAS
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded metal handles are ergonomically designed for precise feel and fingertip control. Service identification indicators are supplied for compatible dry service types.
Key Selling Points
- AGA approved
- Suited for burning gases up to technical gas level 2.0
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 1/2” BSP male inlet tail with 1/4” BSP female thread connection
- Tube nozzle outlet. 3/8" BSP FI when removed
- Yellow handle and indicator button identification to DIN EN13792
- Indicator buttons for compatible media included
- Compatible media: Natural Gas, LPG
- Certifications
- AGA CERT 6751
- Inlet Connection
- 1/2” BSP Male, 1/4” BSP Female
- Outlet Connection
- Tube Nozzle, 3/8” BSP Female (without nozzle)
- Connection Notes
- Unregulated natural gas outlet
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- One Way Bench Mounted
BIM Files
Brochures

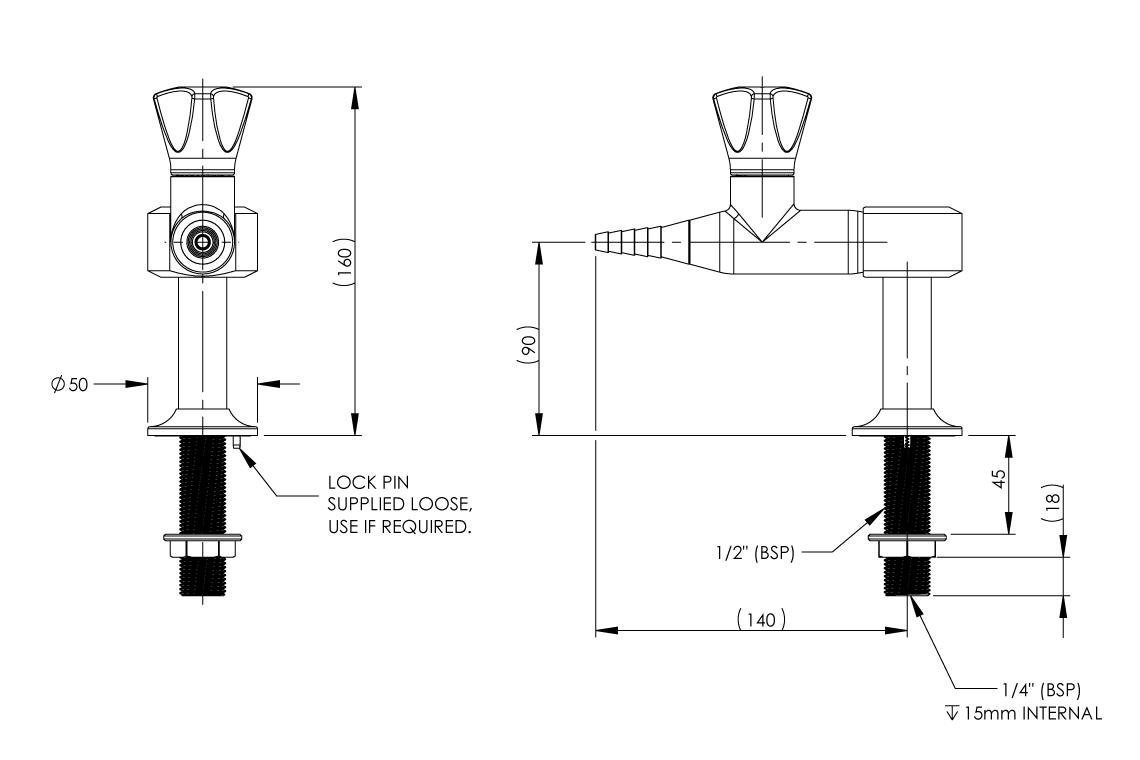

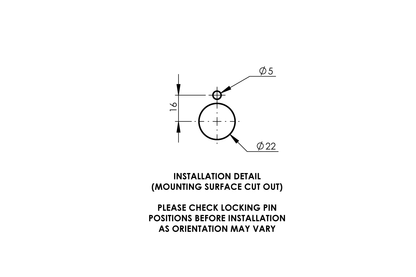

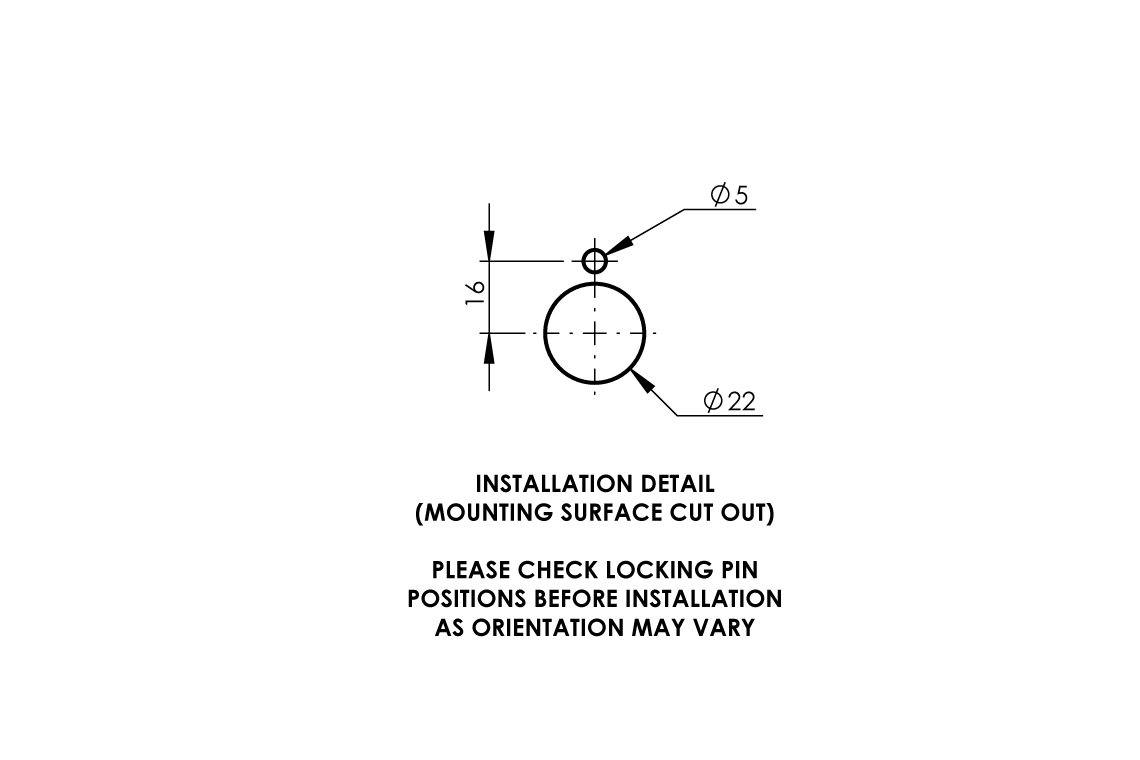

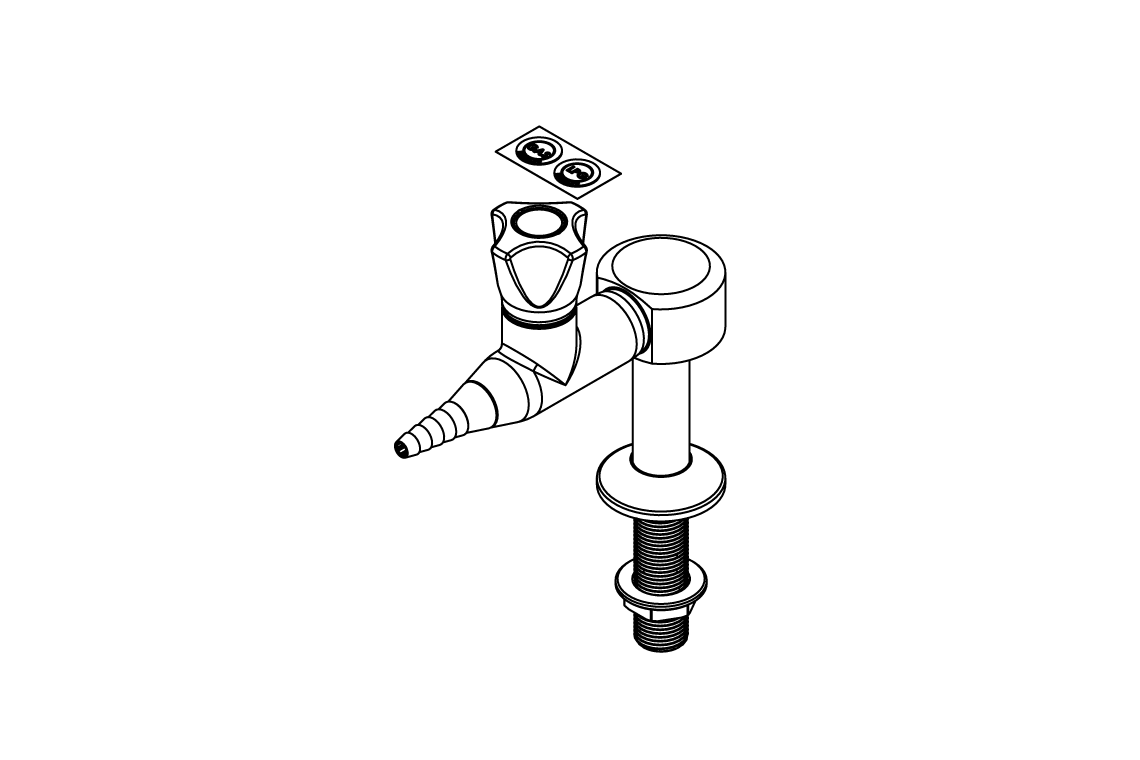

Dimensional Drawings
Product Information
