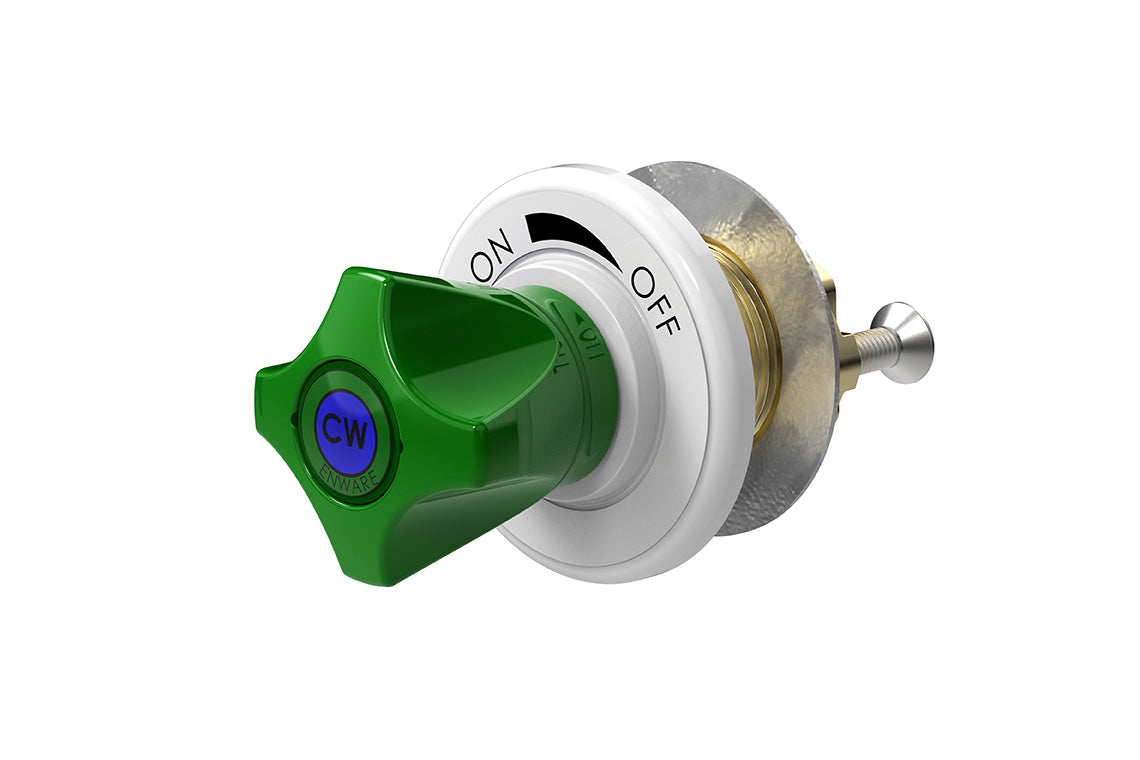

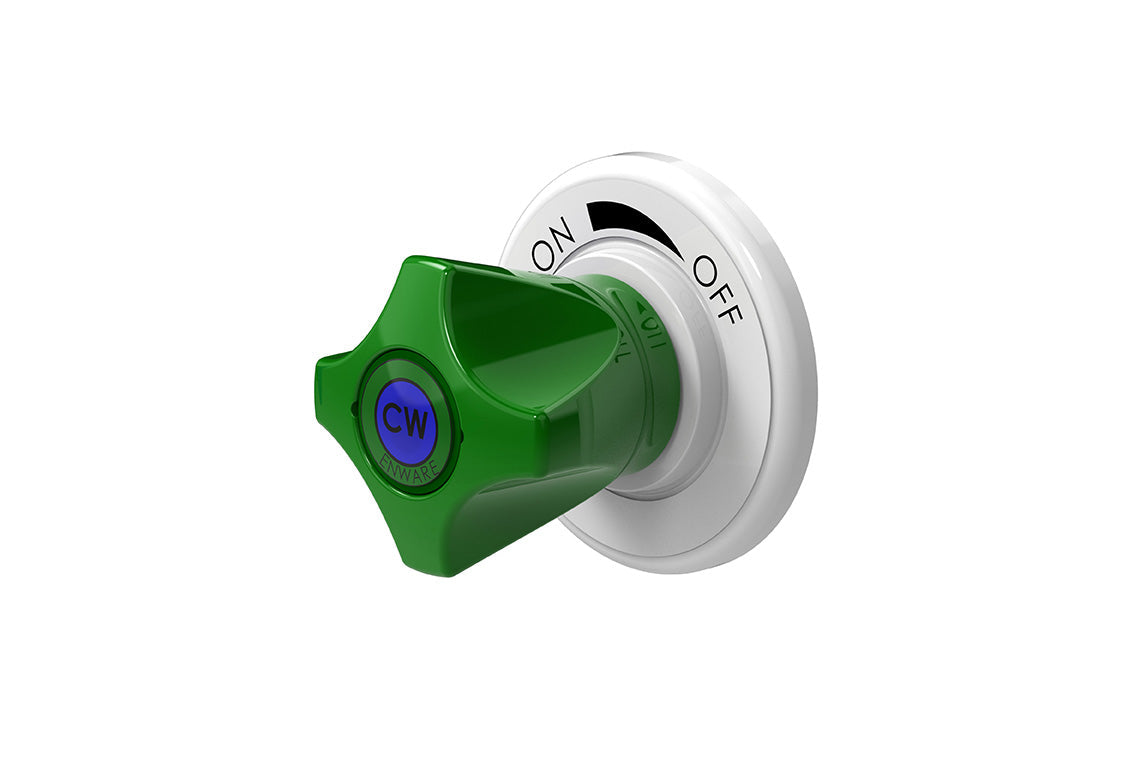

ComLab Front Panel Valve 1/8" Inlet/Outlet for Quick Connect Fittings - Ceramic Disc - Water
ComLab Front Panel Valve 1/8" Inlet/Outlet for Quick Connect Fittings - Ceramic Disc - Water
Product Code: LCN150RWATER
Couldn't load pickup availability
Product description
Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- Ceramic disc (3/4 turn) headworks
- Durable white epoxy powder coat finish with coloured metal handle
- 1/8" BSP FI Inlet/Outlet for use with Quick Connect or Compression Fittings
- Green handle and indicator button identification to DIN EN13792

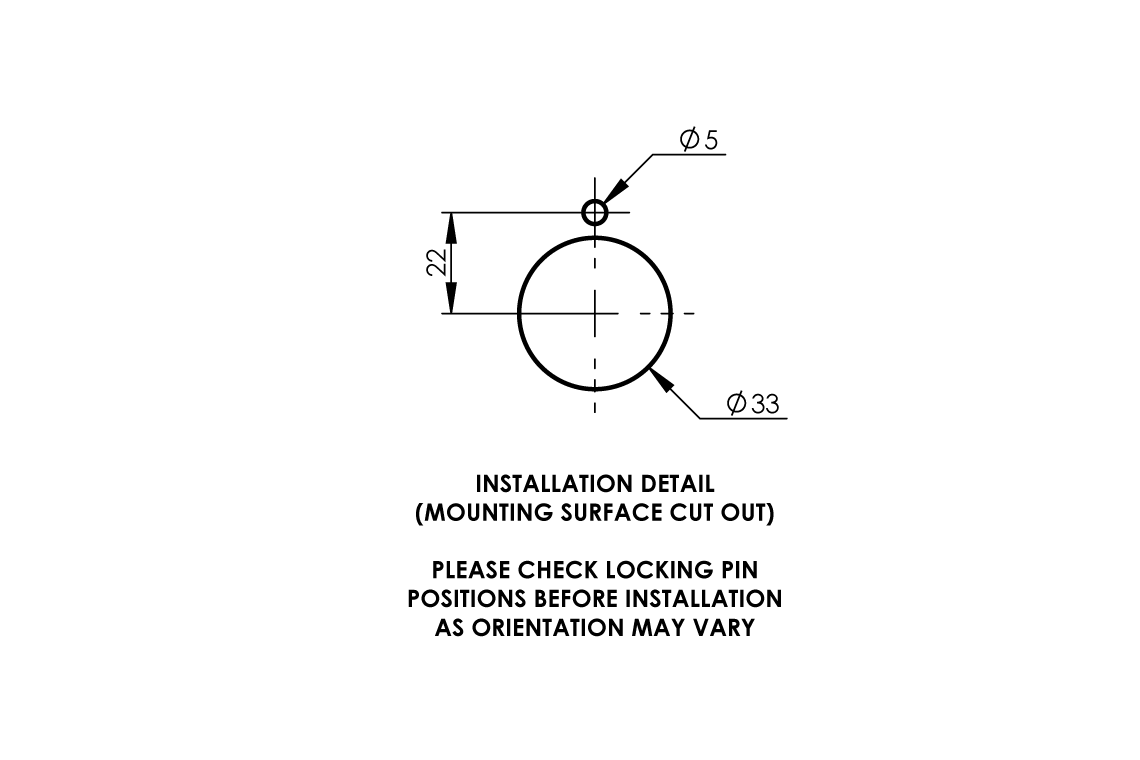

- Can be fixed from the front with screws (not supplied) or from the rear with backnut

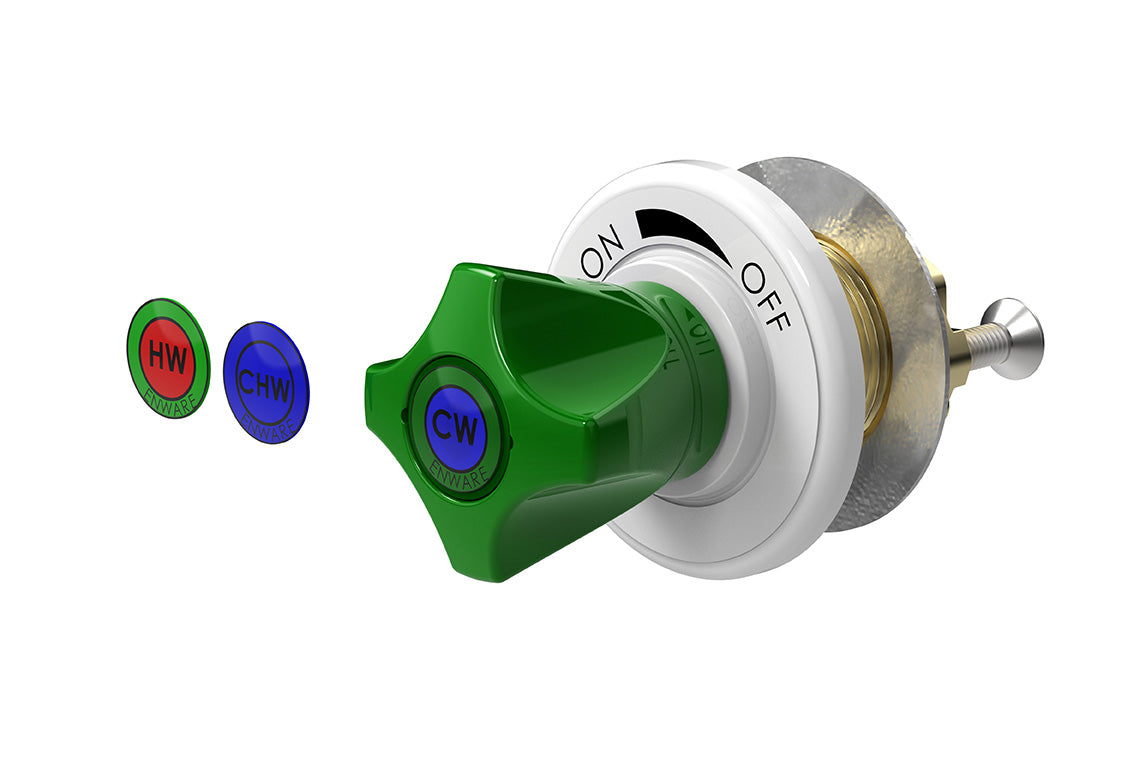

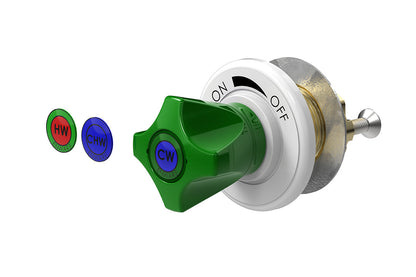

- Indicator buttons for compatible media included
- Compatible media: Cold Water, Hot Water, Chilled Water
- Lead free brass
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Working Temperature (Deg C)
- 90
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/8” BSPT
- Outlet Connection
- 1/8” BSPT
- Connection Notes
- Requires quick connect fittings LCN173 or Compression Fittings
- Finish
- Powder Coating
- Valve Type
- Ceramic Disc
- Mounting Type
- Front Panel Valve
BIM Files
Brochures

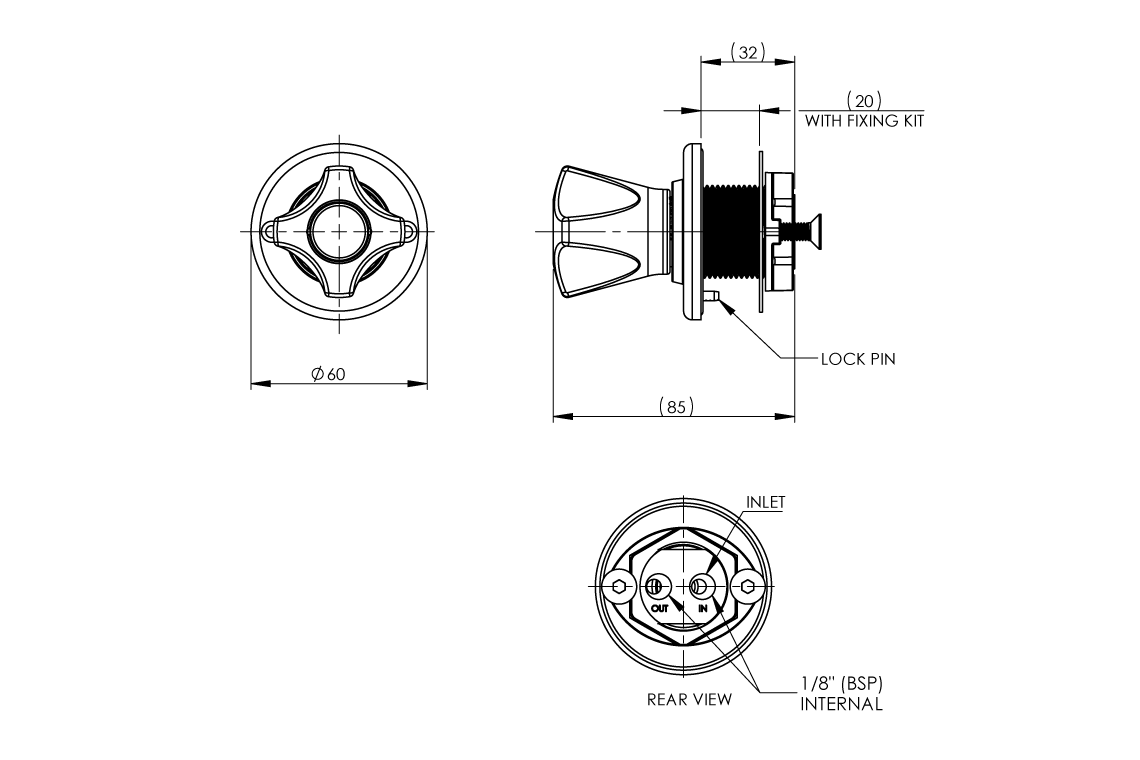

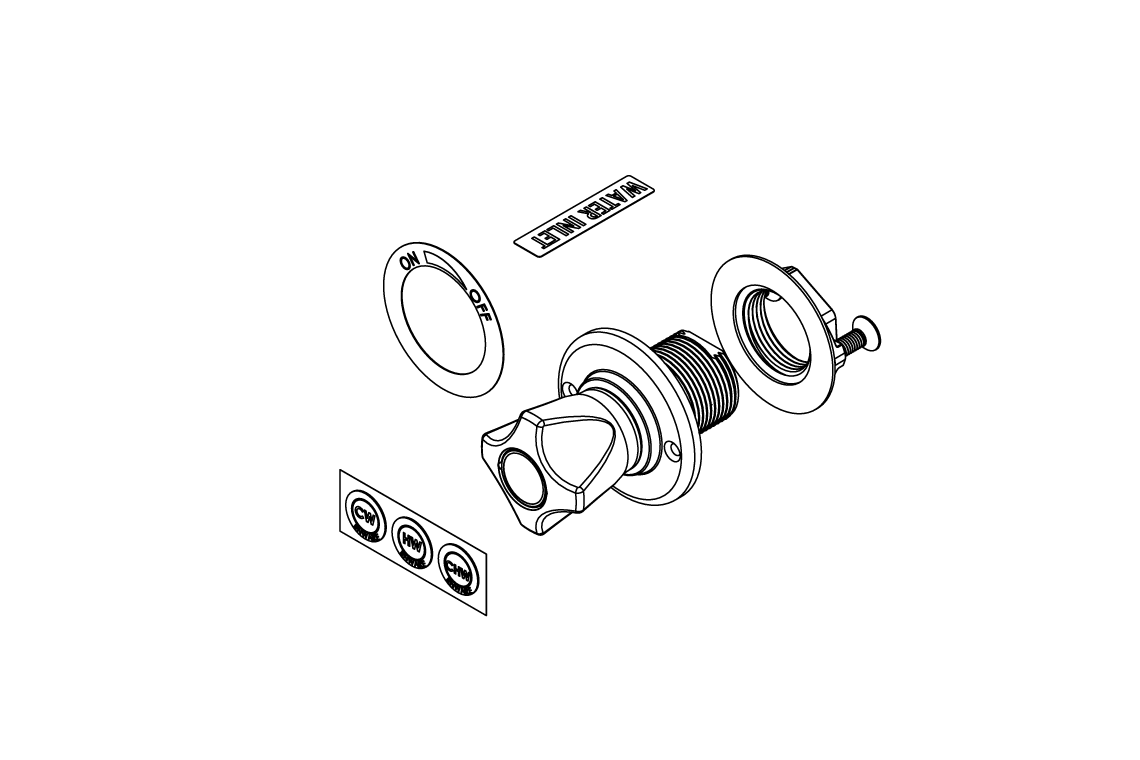

Dimensional Drawings
Product Information
