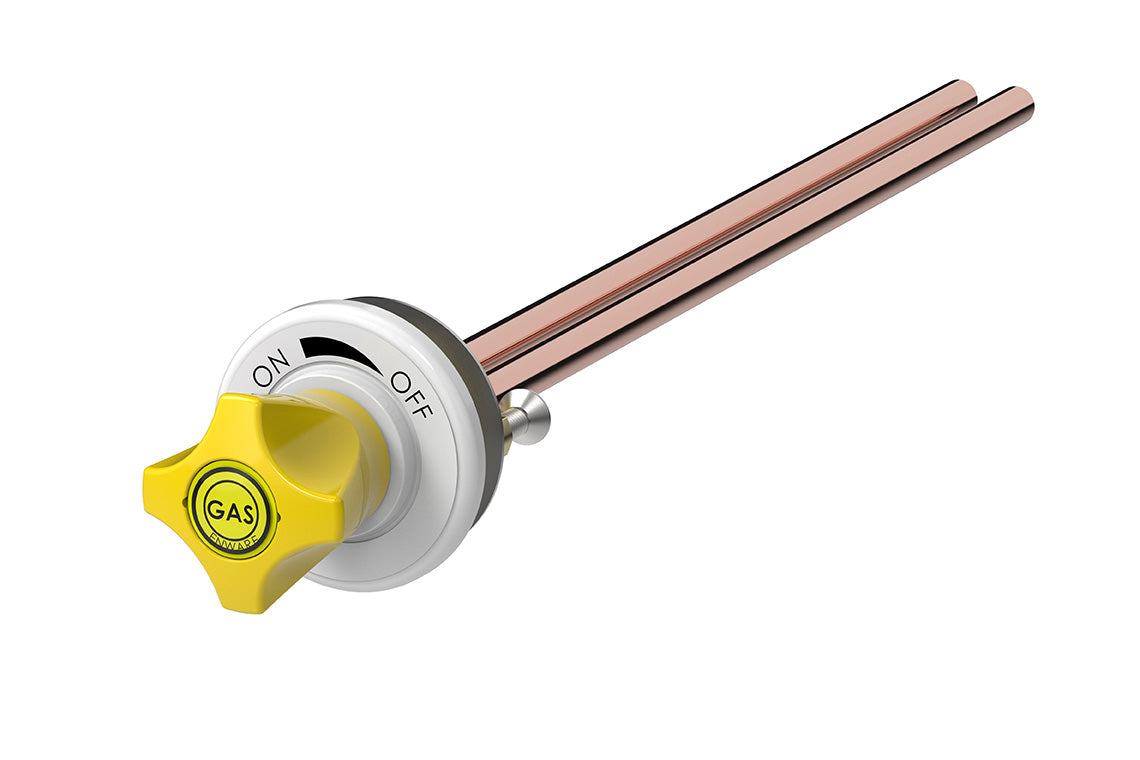

ComLab Front Panel Valve 3/8" x 300mm Copper Inlet/Outlet - Natural Gas/LPG
ComLab Front Panel Valve 3/8" x 300mm Copper Inlet/Outlet - Natural Gas/LPG
Product Code: LCN150NMGAS
Couldn't load pickup availability
Product description

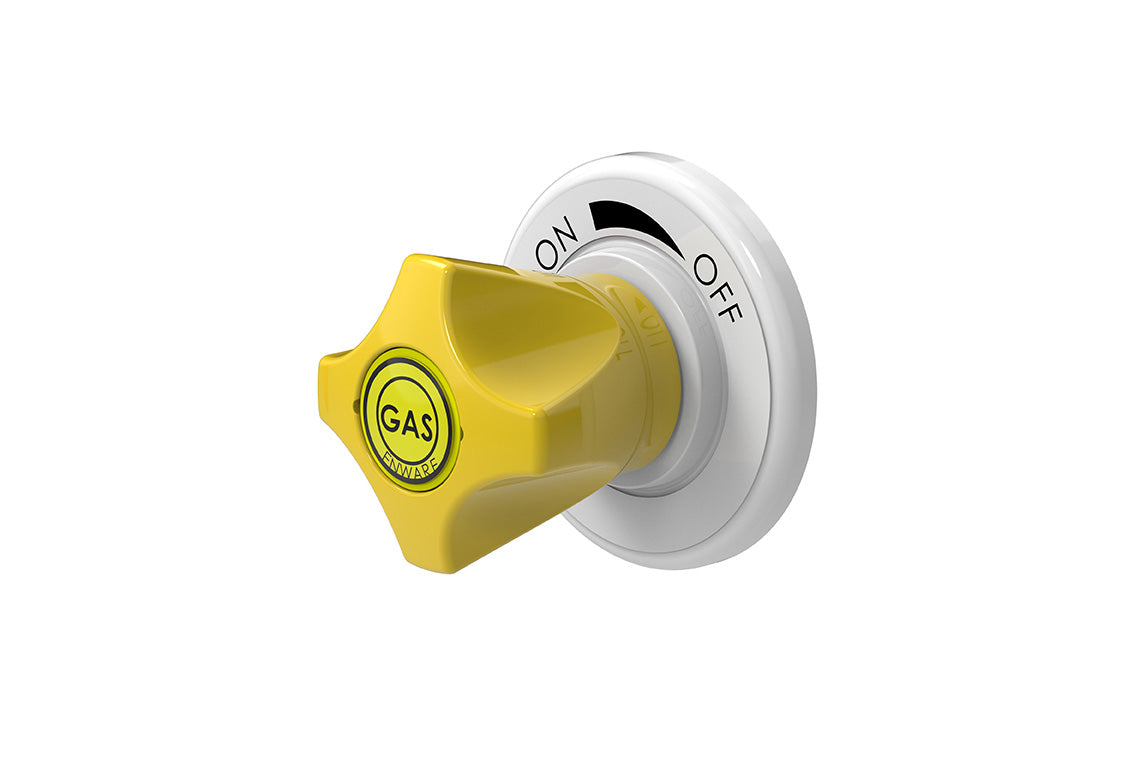

Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- AGA approved
- Suited for burning gases up to technical gas level 2.0
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 3/8” copper inlet/ outlet tail
- Can be fixed from the front with screws (not supplied) or from the rear with backnut
- Yellow handle and indicator button identification to DIN EN13792

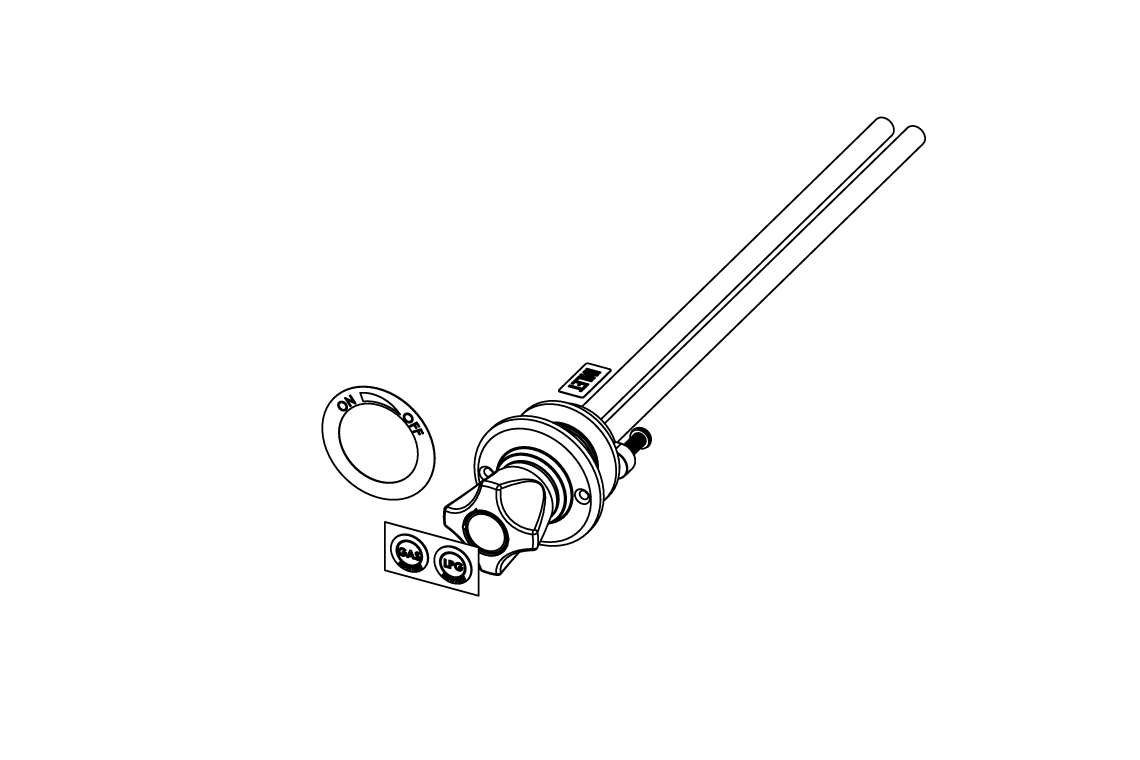

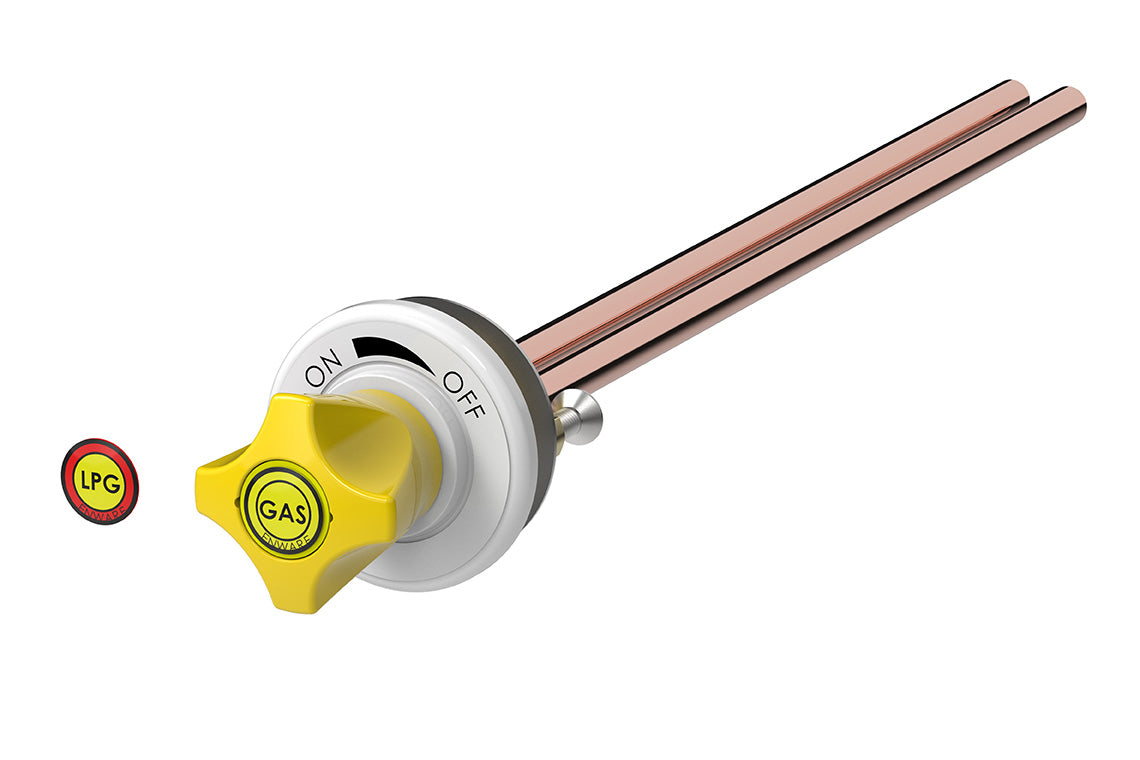

- Indicator buttons for compatible media included
- Compatible media: Natural Gas, LPG
- Certifications
- AGA CERT 4757
- Minimum Working Temperature (Deg C)
- 0
- Maximum Working Temperature (Deg C)
- 0
- Maximum Recommended Pressure (kPa)
- 7
- Inlet Connection
- 3/8" OD Copper Tube
- Outlet Connection
- 3/8" OD Copper Tube
- Connection Notes
- Must be connected using approved fittings
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- Front Panel Valve

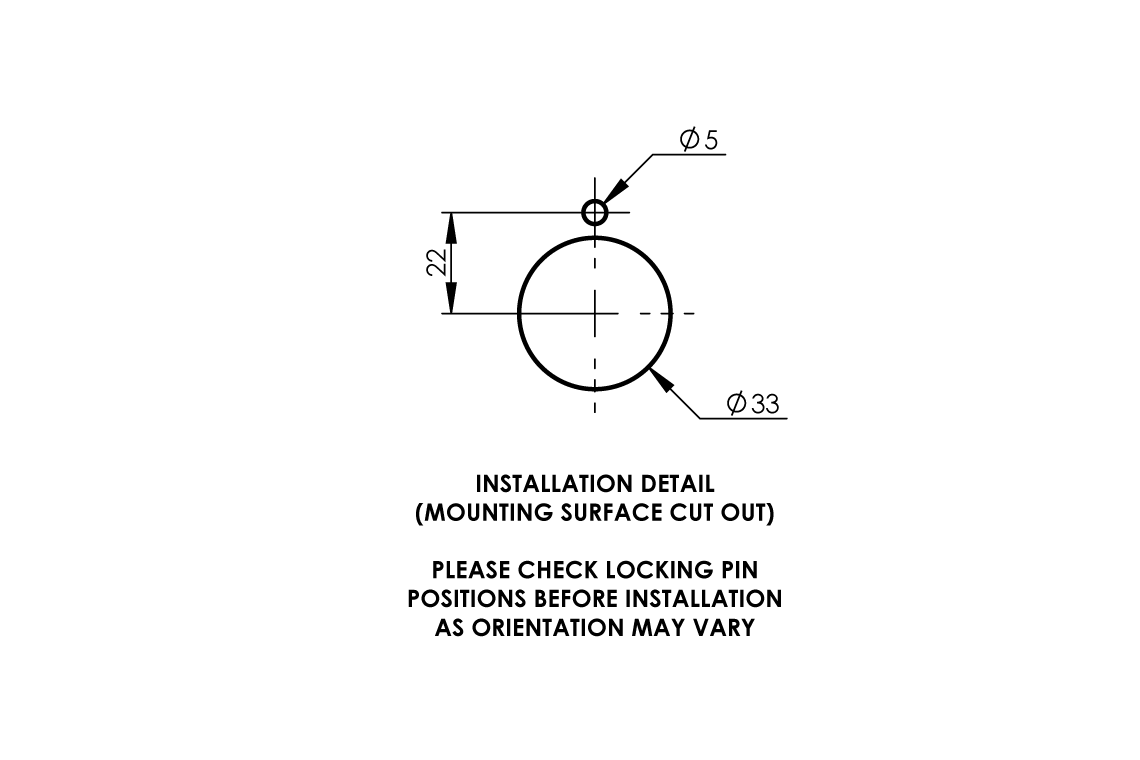

- Mounting Notes
- Can be mounted from front with screws or secured from back with back nut
BIM Files
Brochures

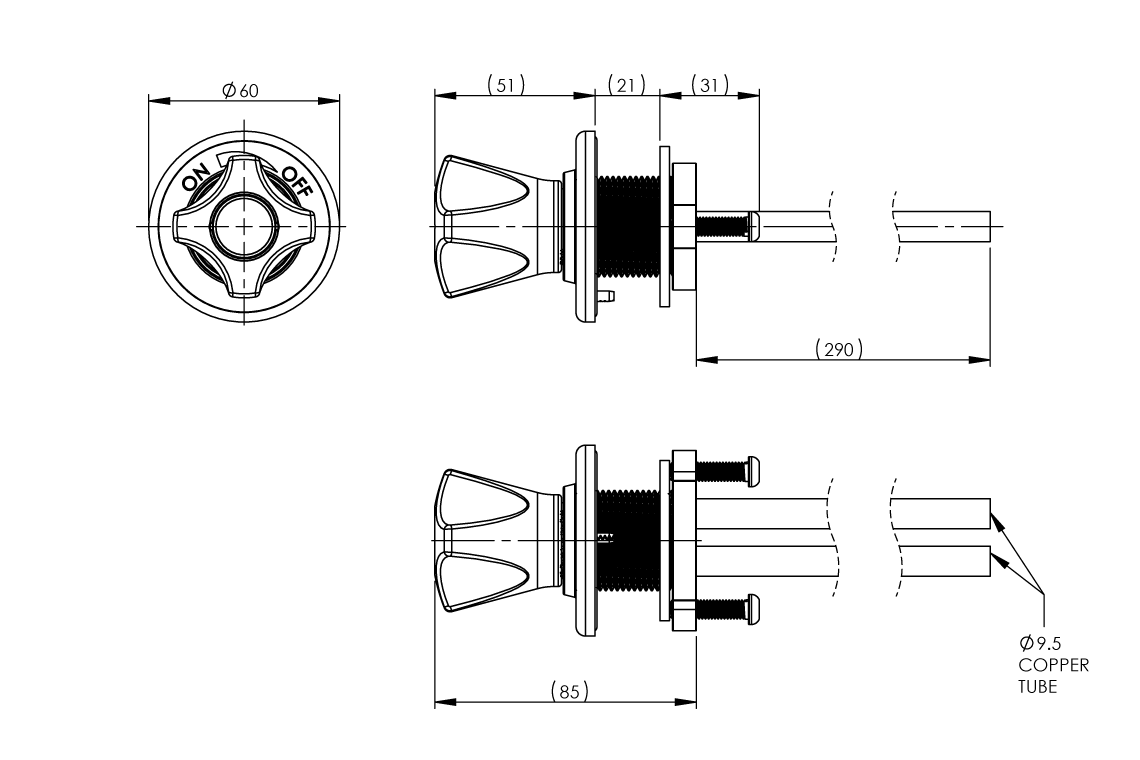

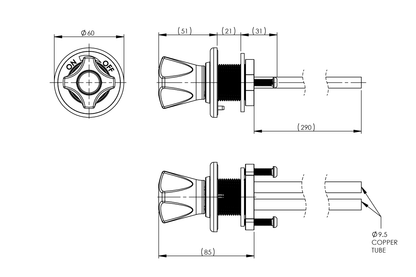

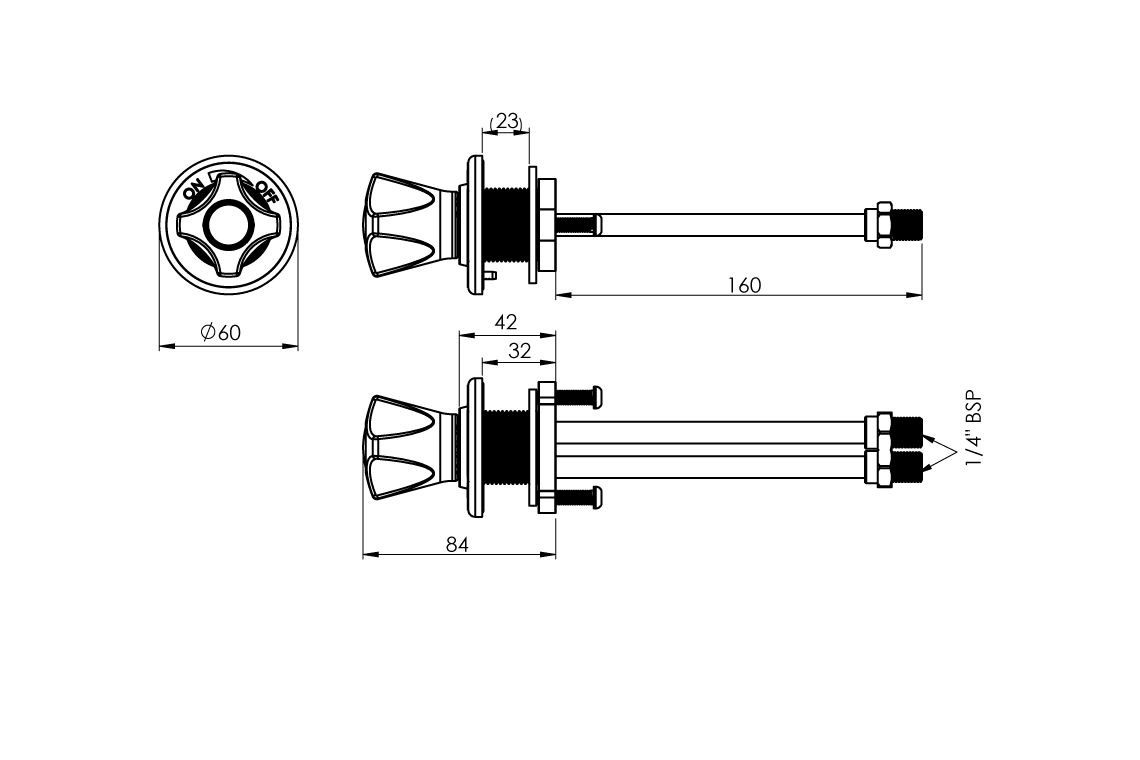

Dimensional Drawings
