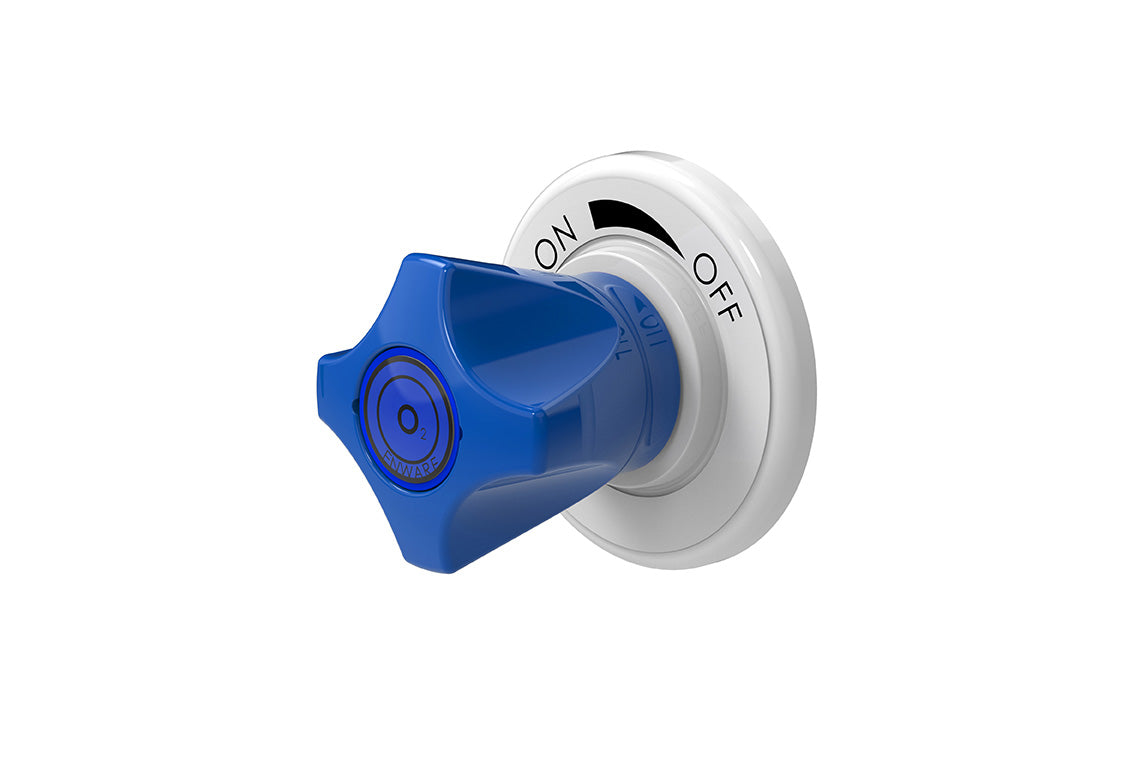

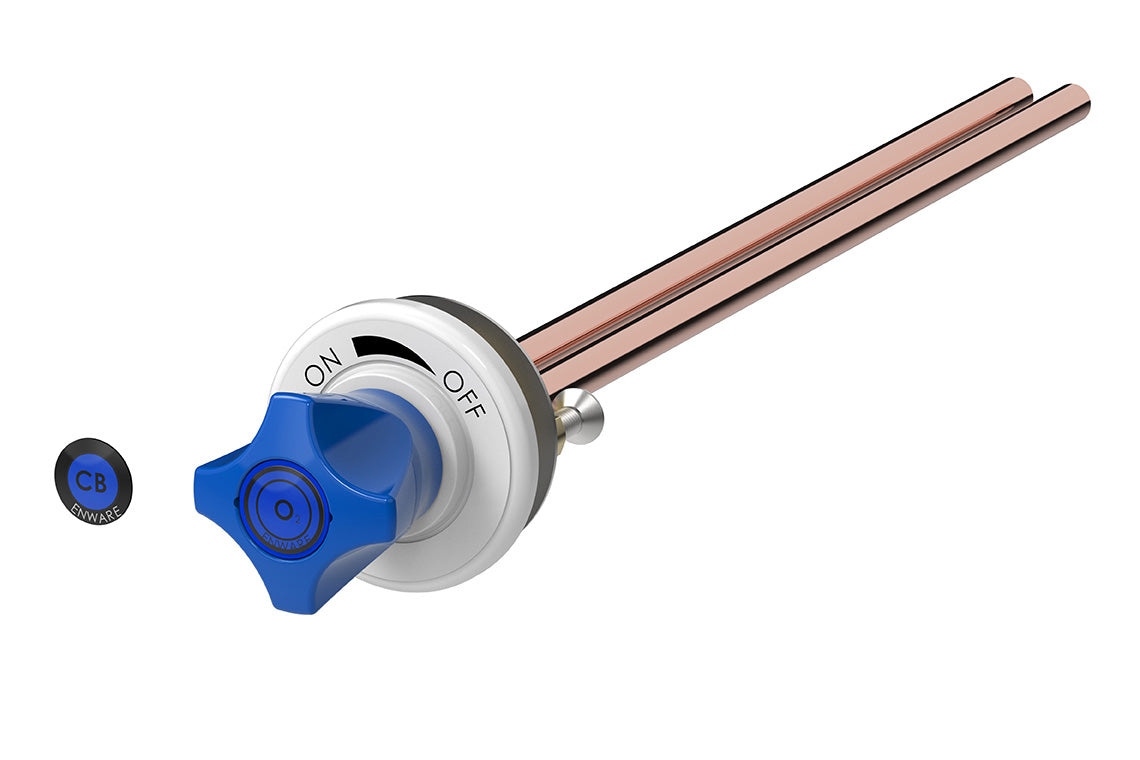

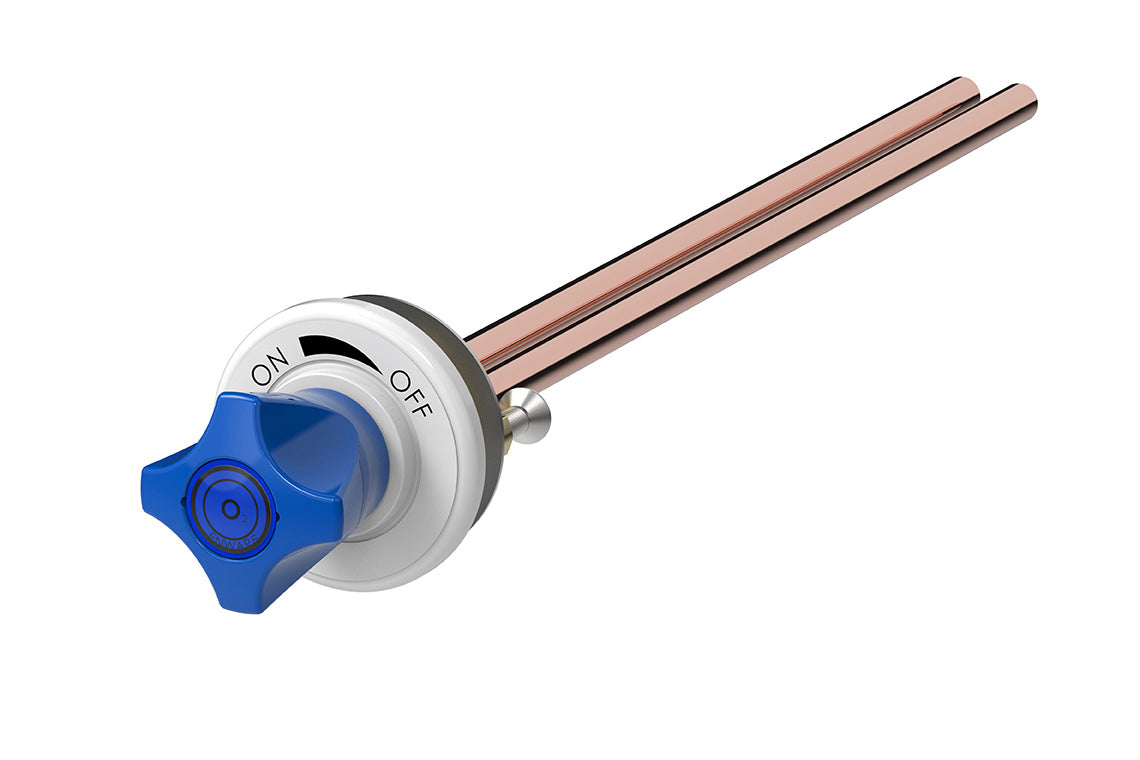

ComLab Front Panel Valve 3/8" x 300mm Copper Inlet/Outlet- Oxygen
ComLab Front Panel Valve 3/8" x 300mm Copper Inlet/Outlet- Oxygen
Product Code: LCN150NRCOXY
Couldn't load pickup availability
Product description
Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- Suited for dry media up to technical gas level 4.0 and higher upon request.
- Chemically and ultrasonically cleaned
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 3/8” copper inlet/outlet tail

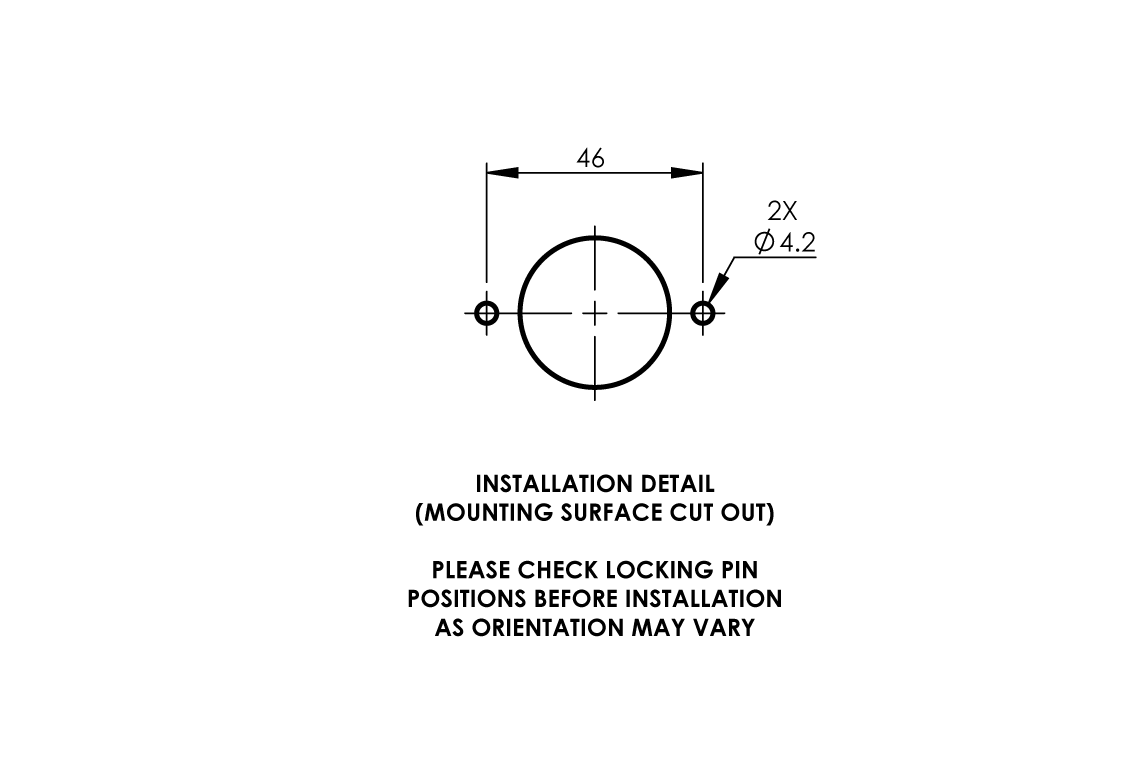

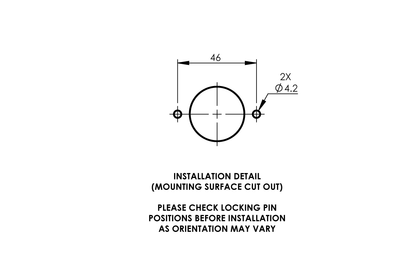

- Can be fixed from the front with screws (not supplied) or from the rear with backnut
- Blue handle and indicator button identification to DIN EN13792
- Indicator buttons for compatible media included
- Compatible media: Oxygen, Carbogen
- Minimum Working Temperature (Deg C)
- 0
- Maximum Working Temperature (Deg C)
- 0
- Inlet Connection
- 3/8" OD Copper Tube
- Outlet Connection
- 3/8" OD Copper Tube
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- Front Panel Valve
- Mounting Notes
- Can be mounted from front with screws or secured from back with back nut
BIM Files
Brochures

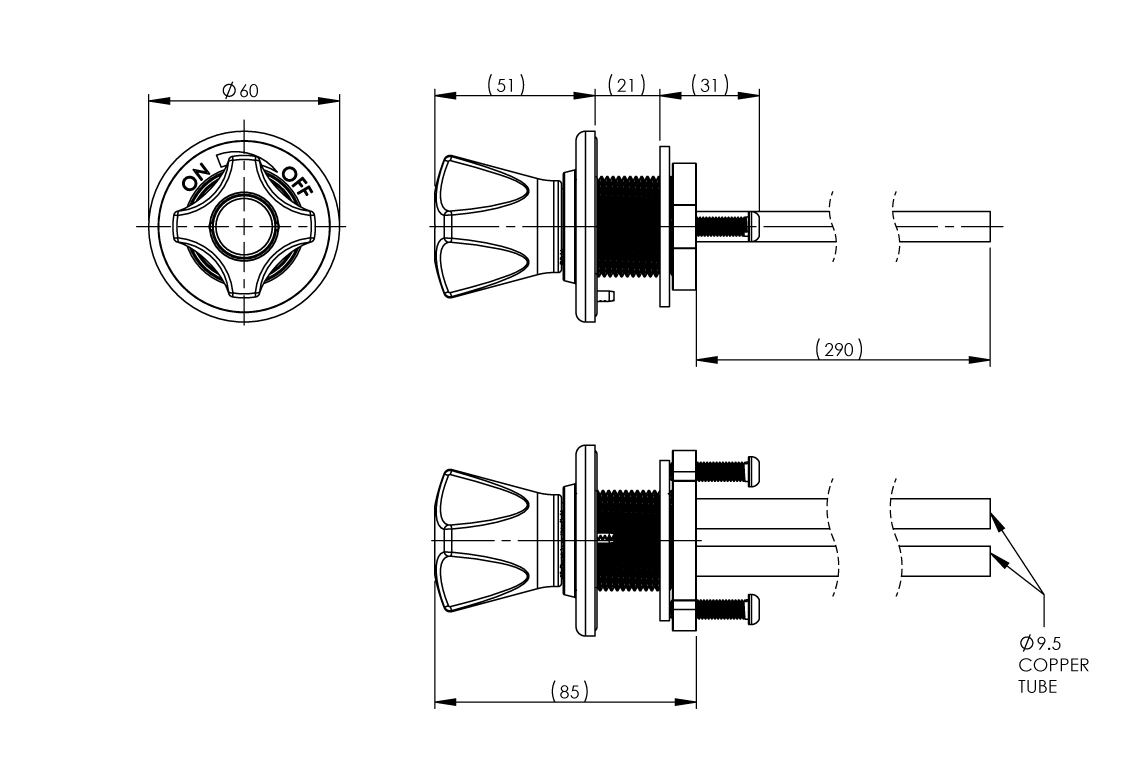

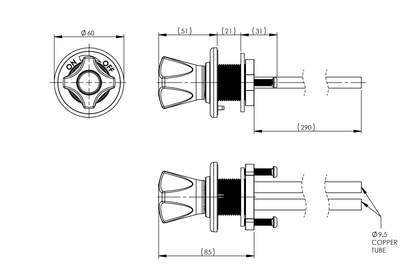

Dimensional Drawings
Product Information
