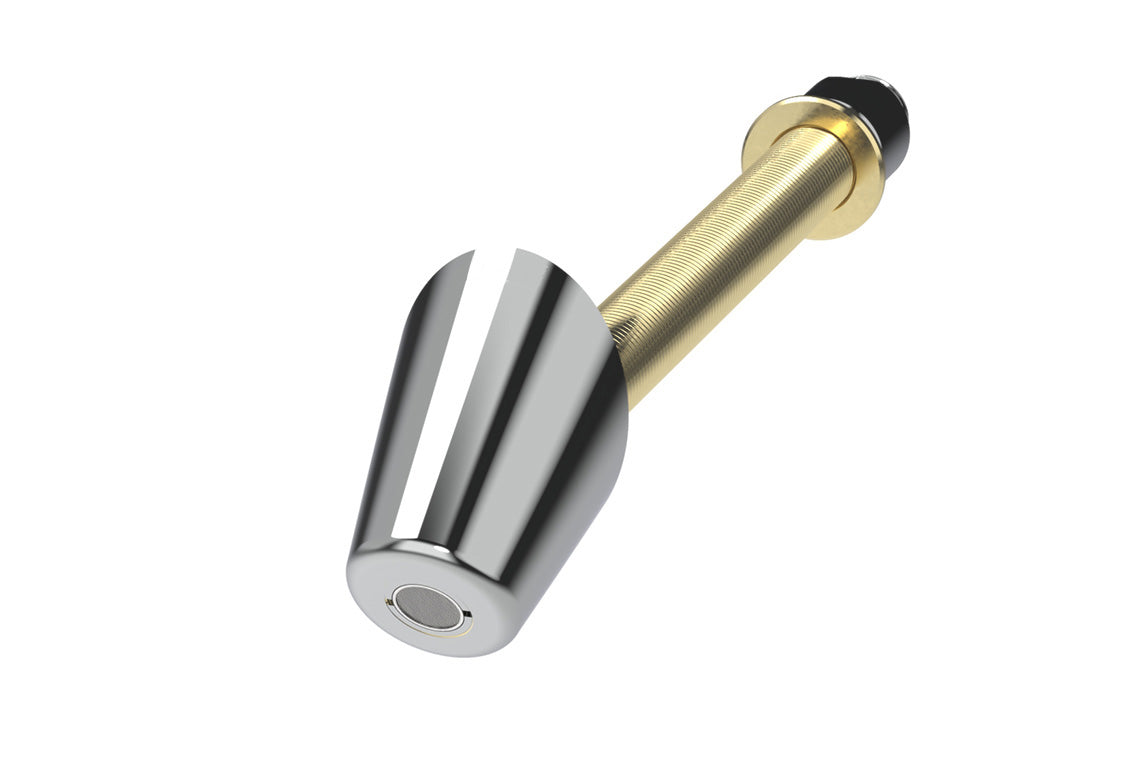

Custodian Basin Outlet - Extended Duct Mount
Custodian Basin Outlet - Extended Duct Mount
Product Code: CNBSN-SD
Couldn't load pickup availability
Product description
Providing Safety and Security With Enhanced Comfort and Care The Custodian Basin Outlet is designed to provide the user superior comfort. The design is both Anti-Ligature and high security.
Key Selling Points
- Designed to exceed anti-ligature requirements of TS001-2013
- Extended tail for duct mounting
- Anti-rotation pin
- Lead-free brass
- Standard WELS (Stars)
- 3
- Standard WELS Flow Rate (L/min)
- 8
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-3 Star-8Lpm,WELS-5 Star-5Lpm,Lead Free
- First Additional WELS (Stars)
- 5
- First Additional WELS Flow Rate (L/min)
- 5
- Maximum Water Temperature (Deg C)
- 70
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP (15mm) MI
- Finish
- Chrome
BIM Files
Brochures

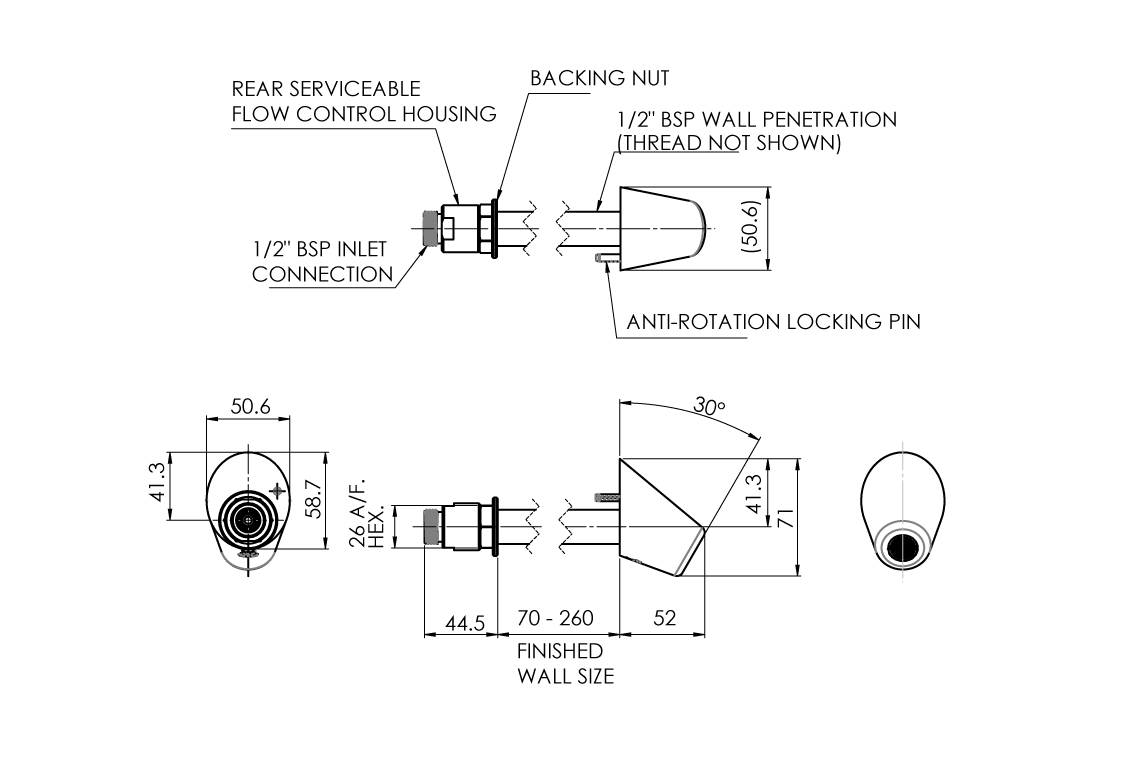

Dimensional Drawings
Product Information
