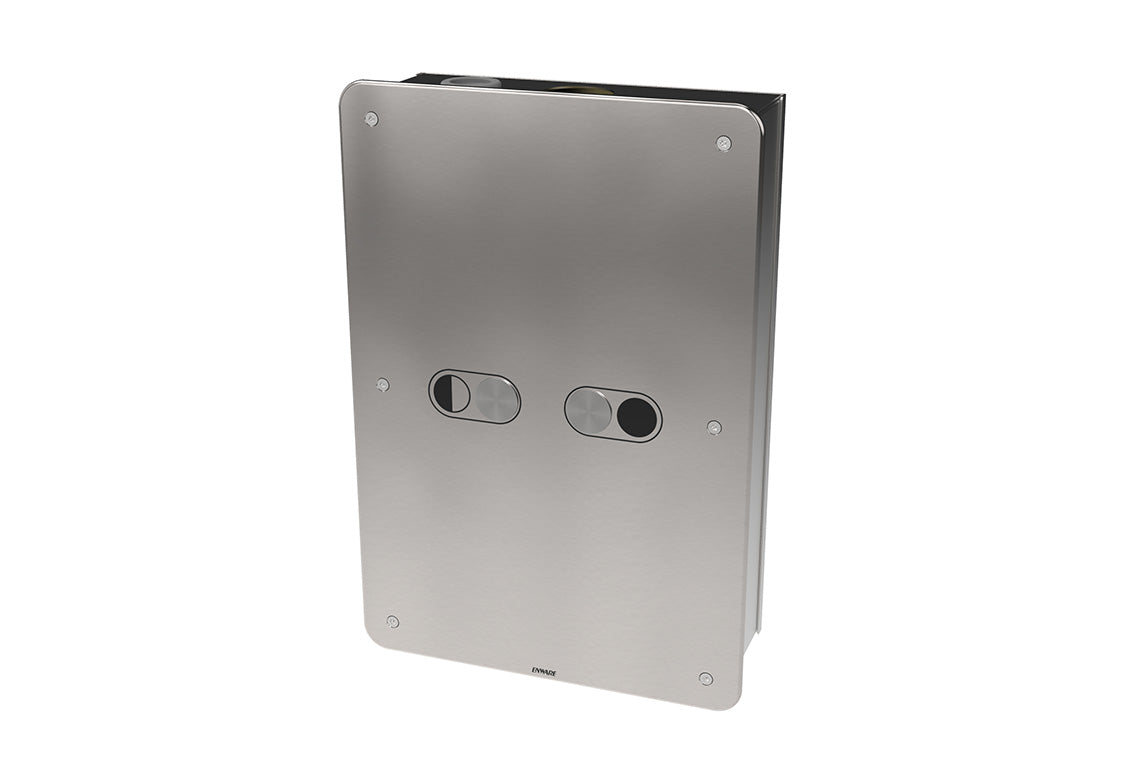

Custodian: Touch-Activated Dual Flush WC Flushing System - Front Access Cabinet

Custodian: Touch-Activated Dual Flush WC Flushing System - Front Access Cabinet

Product Code: CN413S

Product description

Enware Custodian WC Dual Flush Cabinet for Smartflow WMS. Piezo operated SS 12V Solenoid includes airbreak, isolation, in-line filter and 25mm inlet connection. With flush fitting security SS face plate for in wall installation in recessed cabinet. Note: Must be used in conjunction with Custodian Smartboard Product Codes CN413S Dual Flush WC Flushing System - Front Access Cabinet - WELS 4 Star Rated

Key Selling Points

  • Suitable for detention applications
  • Suitable for AS1428.1 applications
  • Piezo Touch activated
  • Security Torx Screws
  • WELS: 4 Star Rating

Watermark: AS1172.2 WM040116

Maximum Recommended Pressure (kPa)
300
Inlet Connection
1" BSP
Outlet Connection
1 1/2" BSP
Water Supply Line Size
1" [25mm] copper pipe
Flush Pipe
1 1/2" (40mm) flush pipe is required below the air break. (Note: use a maximum of 1x90º bend in flush pipe. If an offset is required 2 x 45º bends must be used. Maximum of 1 offset per flush pipe. Air break must be installed in a vertical position at 70
Pan Load Rating
4.5
Kv Factor (m3/h)
8.3
Mains Powered
12V DC supplied from Smartboard

BIM Files

    Brochures

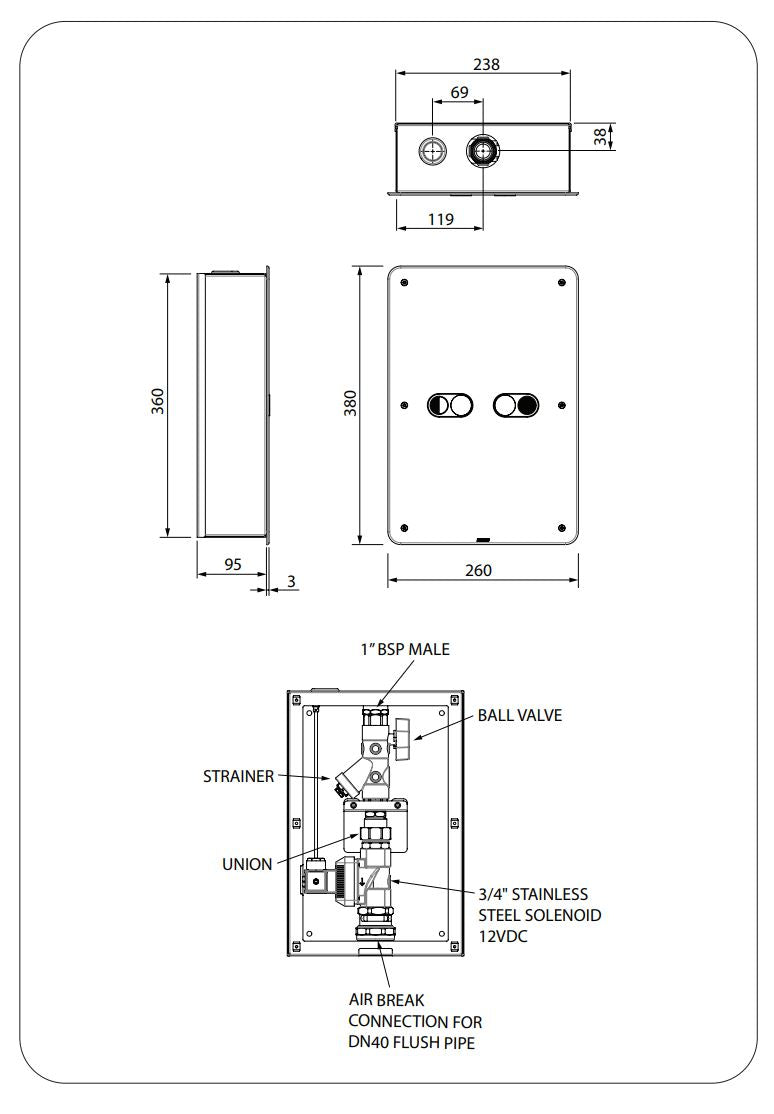

      Dimensional Drawings

      Product Information
