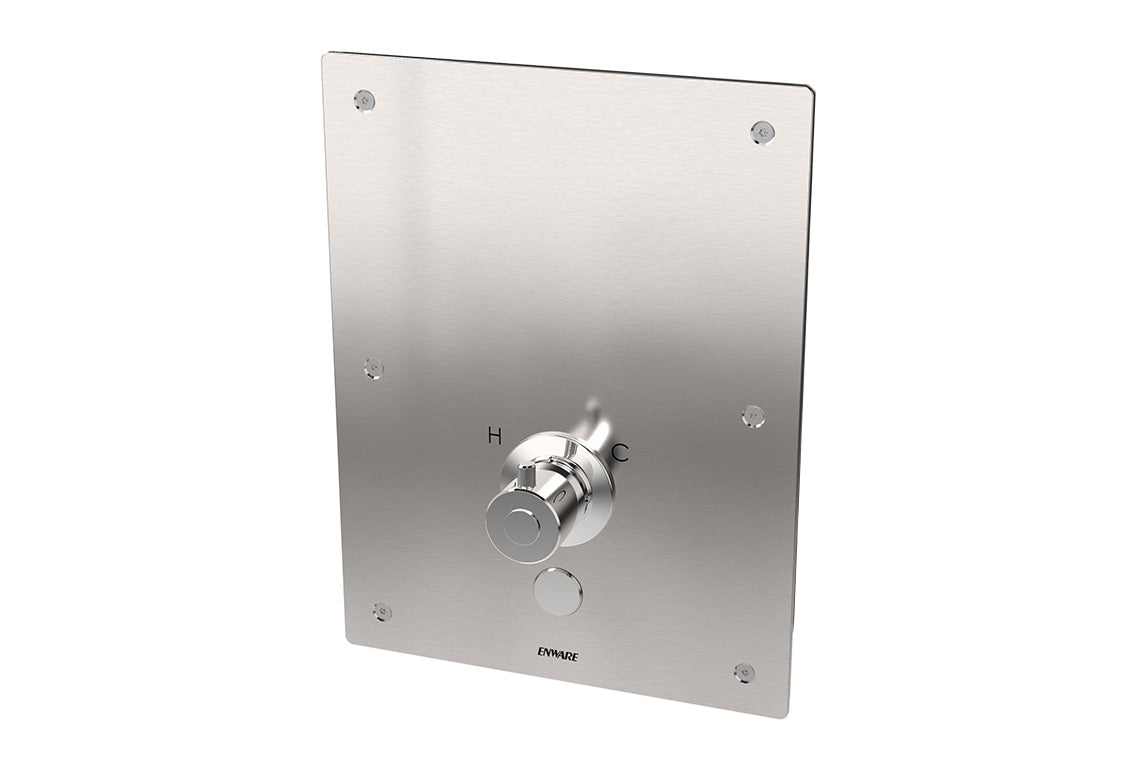

Electronic Time-Flow Shower Mixer
Electronic Time-Flow Shower Mixer
Product Code: EMD815
Couldn't load pickup availability
Product description
This robust, low maintenance, vandal resistant shower mixer is ideal for use in public amenity facilities. The sequential mixer cartridge provides simple interface that allows the user to adjust the temperature while the shower is in use. The latest piezo technology provides the facility managers with a high level of control over water usage as the run time is programmable and can be adjusted easily when required.
Key Selling Points
- Touch activated electronic piezo switch with no moving parts
- Temperature adjustment with lever handle mixer
- Fully programmable piezo button and adjustable in situ
- Supplied with 3mm stainless steel facia plate and in wall mounting bracket & secure screws
- 1/2? stainless steel solenoid valve
- 24V DC power pack with 4.5m cable requires 240V GPO
- Operating run time can be adjusted on site, from 3 seconds up to 10 minutes with optional time out between uses. Default setting is 4 minutes run time, with early stop function, and lock-out time of 30 seconds once stopped.
- Certifications
- WMKA1583
- Maximum Inlet Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Flow Notes
- Adjustable -On Time: min 3 sec - max 10 minutes -Off Time (Lockout) optional: min 0 sec - max 10 minutes -Early Stop function optional -24 hr automatic flush function optional
- Inlet Connection
- 1/2" BSP
- Finish
- Brushed
- Facia Plate Material Grade
- Stainless Steel
- Power Supply (AC/DC)
- AC
- Power Supply (V)
- 24
- Operating Voltage (V)
- 24
- Operating Voltage (AC/DC)
- DC
- IP Rating
- IP68
BIM Files
Brochures

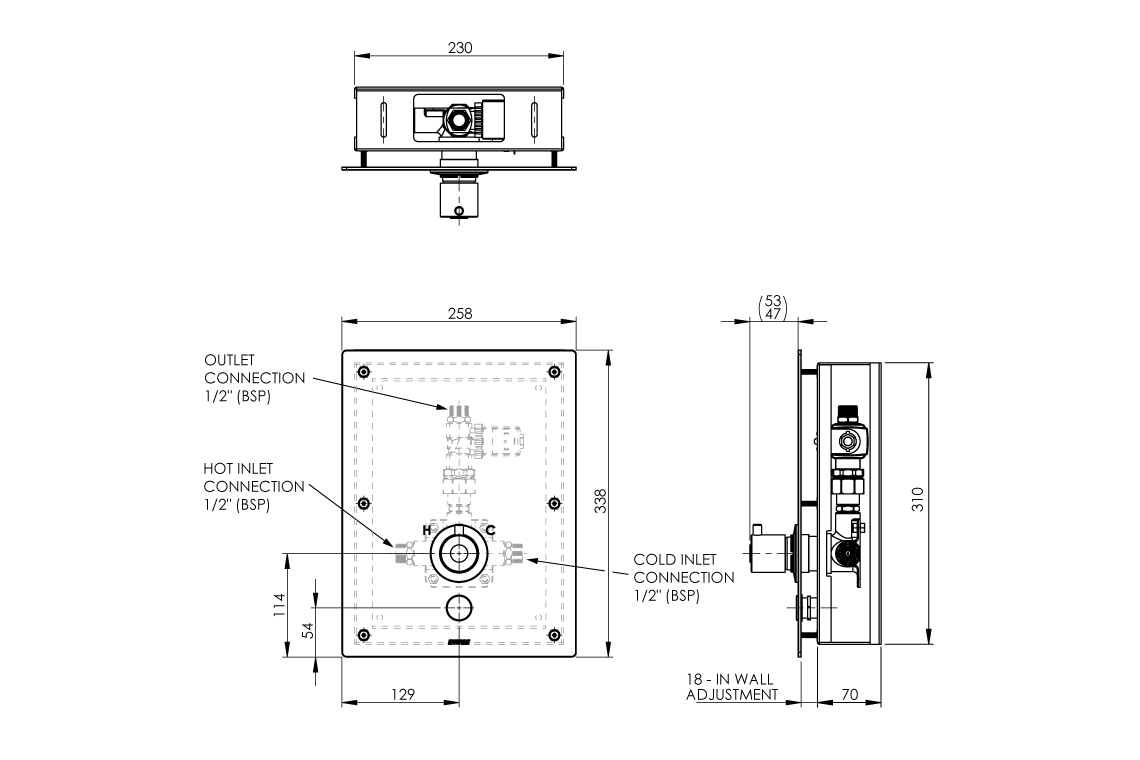

Dimensional Drawings
Product Information
