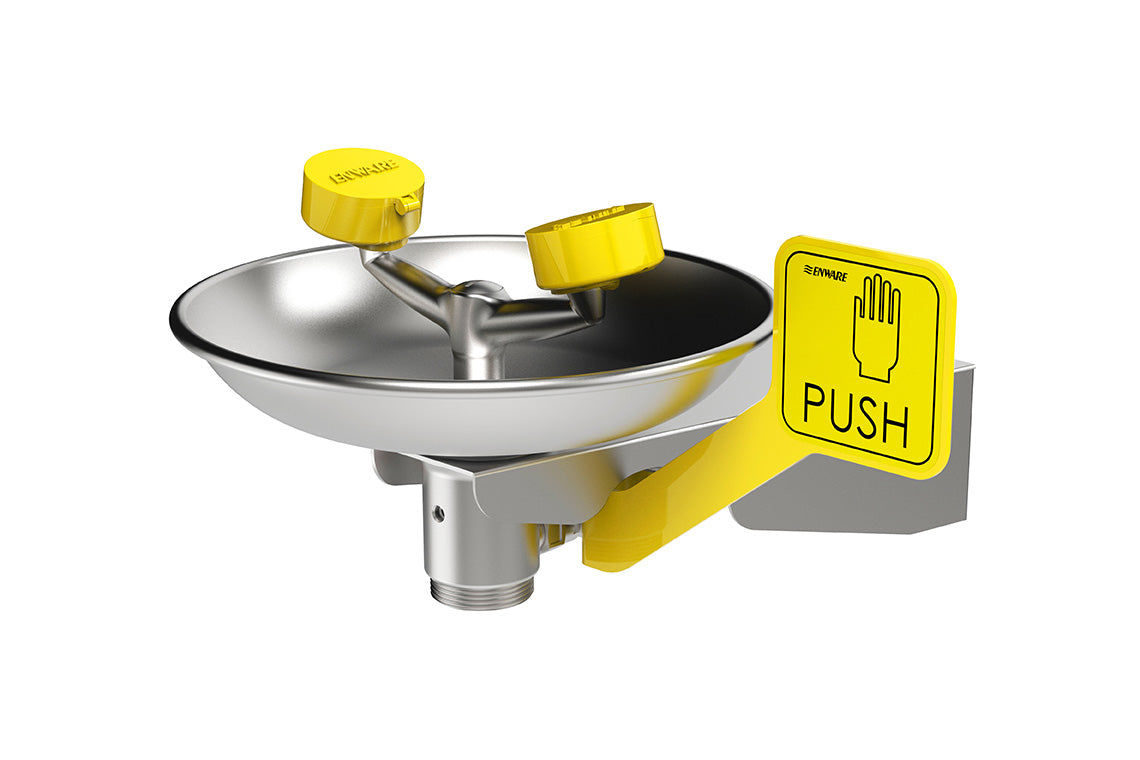

Emergency Eye/Face Wash Hand Operated - Wall Mounted
Emergency Eye/Face Wash Hand Operated - Wall Mounted
Product Code: EFE300
Couldn't load pickup availability
Product description
Enware's emergency eye/face wash units help to flush contaminants and irritants from eyes and facial area. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Independently tested to comply with ANSI Z 358.1 and AS 4775
- 316 Stainless steel bowl, stay-open ball valve and hand actuator
- Push activated eyewash with soft aerated flow and integral auto-open dust covers
- Integral flow volume control
- Eye/face wash features Vertech Technology where dedicated eyewash and independently angled face wash streams deliver optimum coverage
- Zero velocity apex point provides more comfort and control for effective cleansing of eyes
- High visibility yellow coated push handle
- Certifications
- AS4775,ANSI Z358.1
- Minimum Performance Requirements Working Pressure (kPa)
- 210
- Pressure Notes
- Caution should be taken when pressure exceeds 550 kPa
- Minimum Flow Rate (L/min)
- 26
- Inlet Connection
- 1/2” BSP male (DN 15mm) with compression nut
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Waste Water Outlet Connection
- G 1-1/2” BSP
- Width (mm)
- 358
- Height (mm)
- 191
- Depth (mm)
- 395
- Weight (kg)
- 5
- Finish
- Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Wall
BIM Files
Brochures

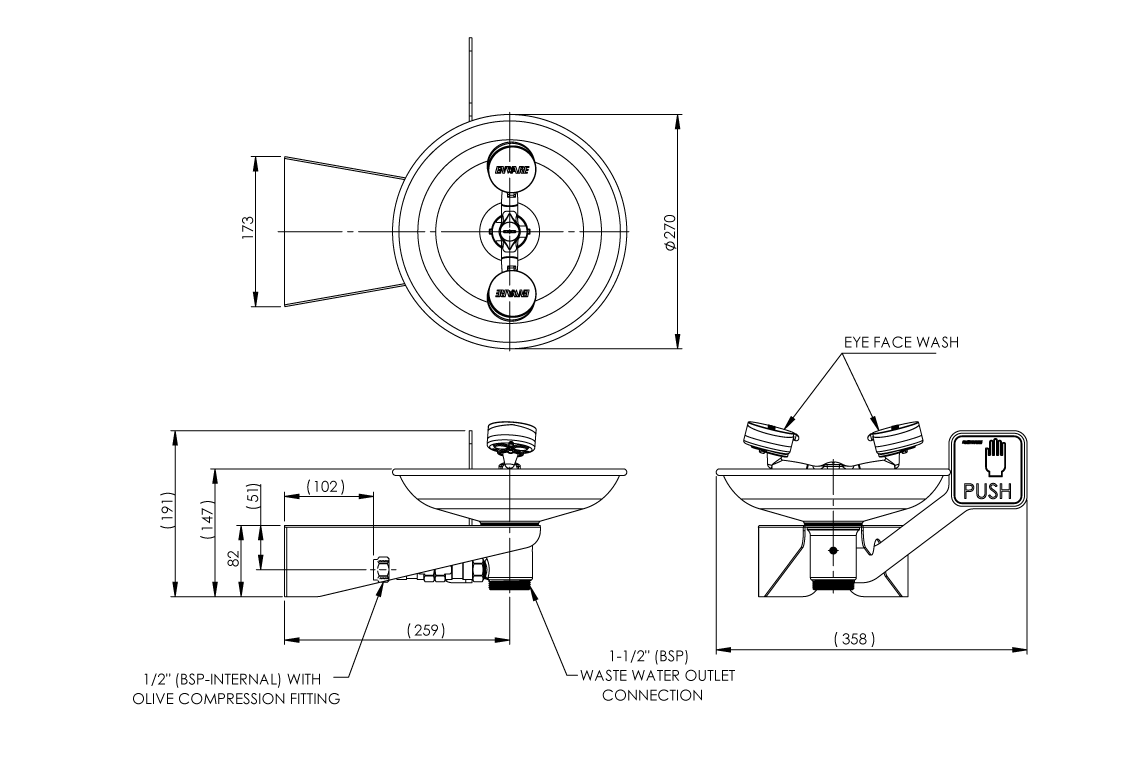

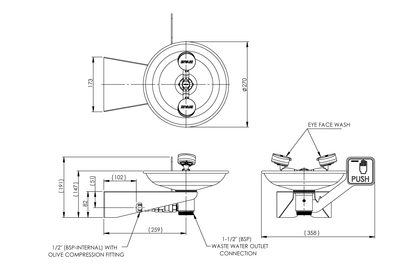

Dimensional Drawings
Product Information
