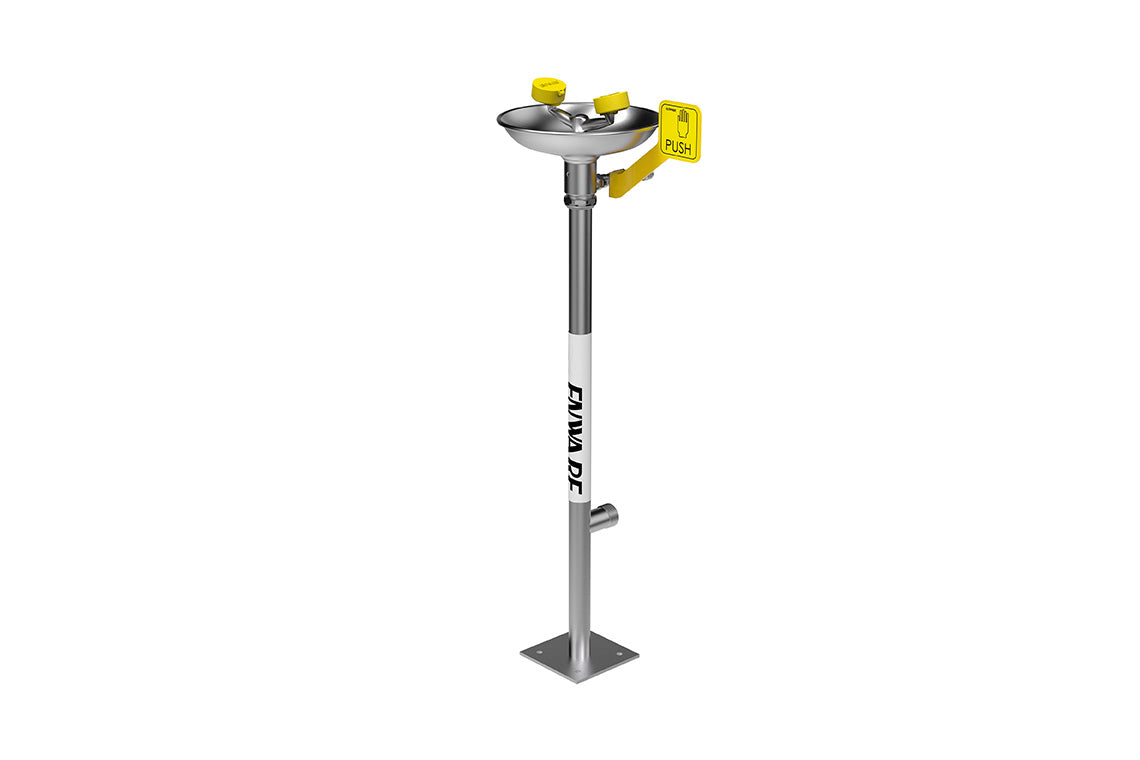

Emergency Eye/Face Wash Pedestal Mounted - Hand Operated
Emergency Eye/Face Wash Pedestal Mounted - Hand Operated
Product Code: EFE360
Couldn't load pickup availability
Product description
Enware's emergency eye/face wash units help to flush contaminants and irritants from eyes and facial area. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Independently tested to comply with ANSI Z 358.1 and AS 4775
- 316 Stainless steel bowl, stay-open ball valve and hand actuator
- Freestanding for stand-alone operation
- Hand push activated eye/face wash with integral auto-open dust covers
- Eye/face wash features Vertech Technology where dedicated eye wash and independently angled face wash streams deliver optimum coverage
- Zero velocity apex point provides more comfort and control for effective flushing of eyes with soft aerated flow
- High visibility yellow powder coated push handle
- Integral volume adjustment control
- Powder coated options available for extra chemical resistance
- Certifications
- AS4775,ANSI Z358.1
- Minimum Performance Requirements Working Pressure (kPa)
- 210
- Pressure Notes
- Caution should be taken when pressure exceeds 550 kPa (80 psi)
- Minimum Flow Rate (L/min)
- 26
- Inlet Connection
- 15mm (1/2" BSP)
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Waste Water Outlet Connection
- G 1-1/2” BSP
- Width (mm)
- 300
- Height (mm)
- 1160
- Depth (mm)
- 250
- Weight (kg)
- 9
- Finish
- Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Floor
BIM Files
Brochures

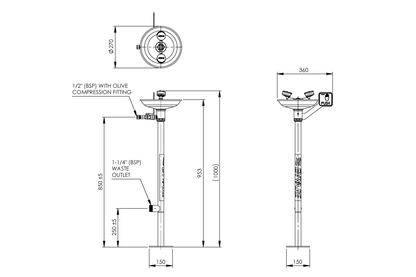

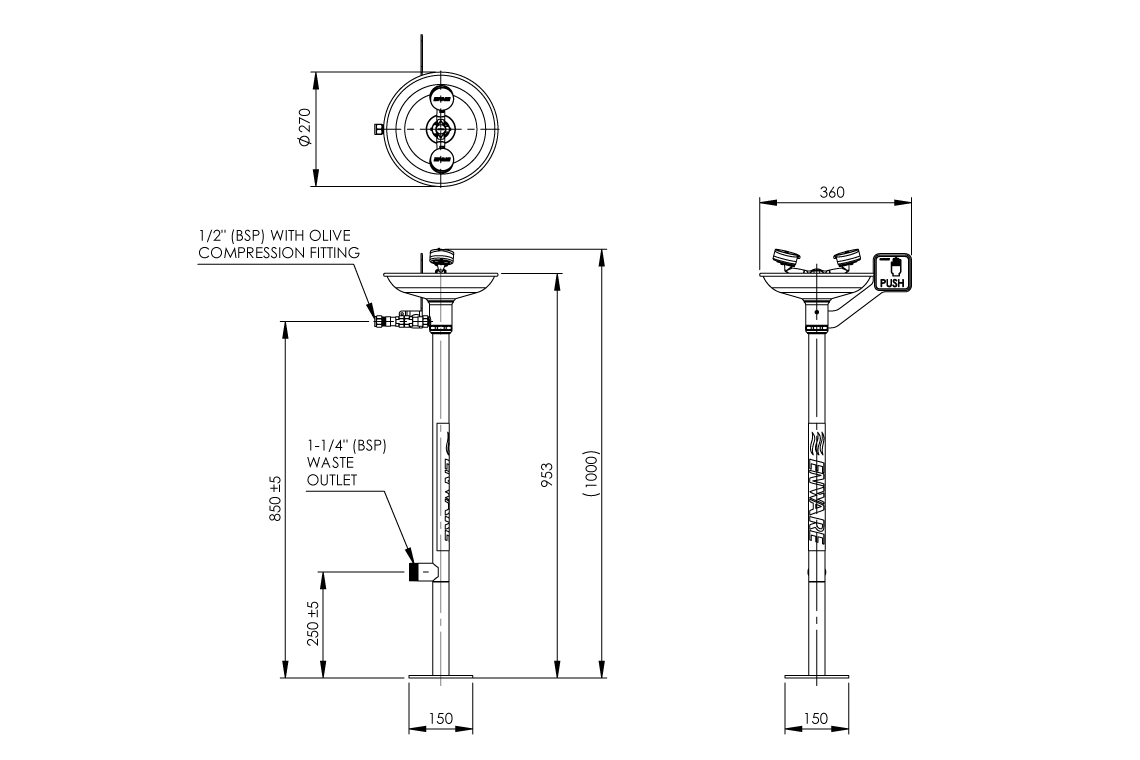

Dimensional Drawings
Product Information
