Emergency Eye Wash Pedestal Mounted - Hand/Foot Operated

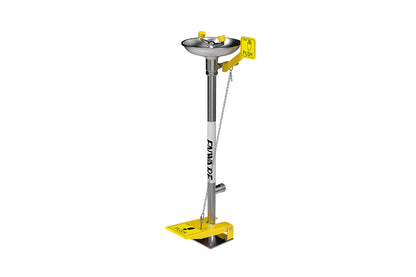

Emergency Eye Wash Pedestal Mounted - Hand/Foot Operated
Product Code: EEE210
Couldn't load pickup availability
Product description
Enware's emergency eyewash units flush hazardous contaminants and irritants from eyes and surrounding facial area. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Independently tested for compliance to ANSI Z358.1 and AS4775
- Freestanding for stand-alone operation
- 316 Stainless steel bowl, stay-open ball valve and hand actuator
- Hand push and foot activated eye wash with soft aerated flow and integral auto-open dust covers
- Eye wash features Vertech Technology where dedicated eye wash streams deliver optimum coverage
- Zero velocity apex point provides more comfort and control for effective cleansing of eyes
- Solid stainless, low angle foot pedal for easy activation of eye wash
- High visibility yellow powder coated push handle and foot pedal
- Integral flow volume control
- Powder coated options available for extra chemical resistance
- Certifications
- AS4775,ANSI Z358.1
- Minimum Performance Requirements Working Pressure (kPa)
- 210
- Pressure Notes
- Caution when pressure exceeds 550 kPa
- Minimum Eyewash Flow Rate (L/min)
- 17
- Inlet Connection
- 15mm (1/2" BSP)
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Waste Water Outlet Connection
- G 1-1/2” BSP
- Width (mm)
- 360
- Height (mm)
- 100
- Depth (mm)
- 350
- Finish
- Stainless Steel Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Floor
BIM Files
Brochures

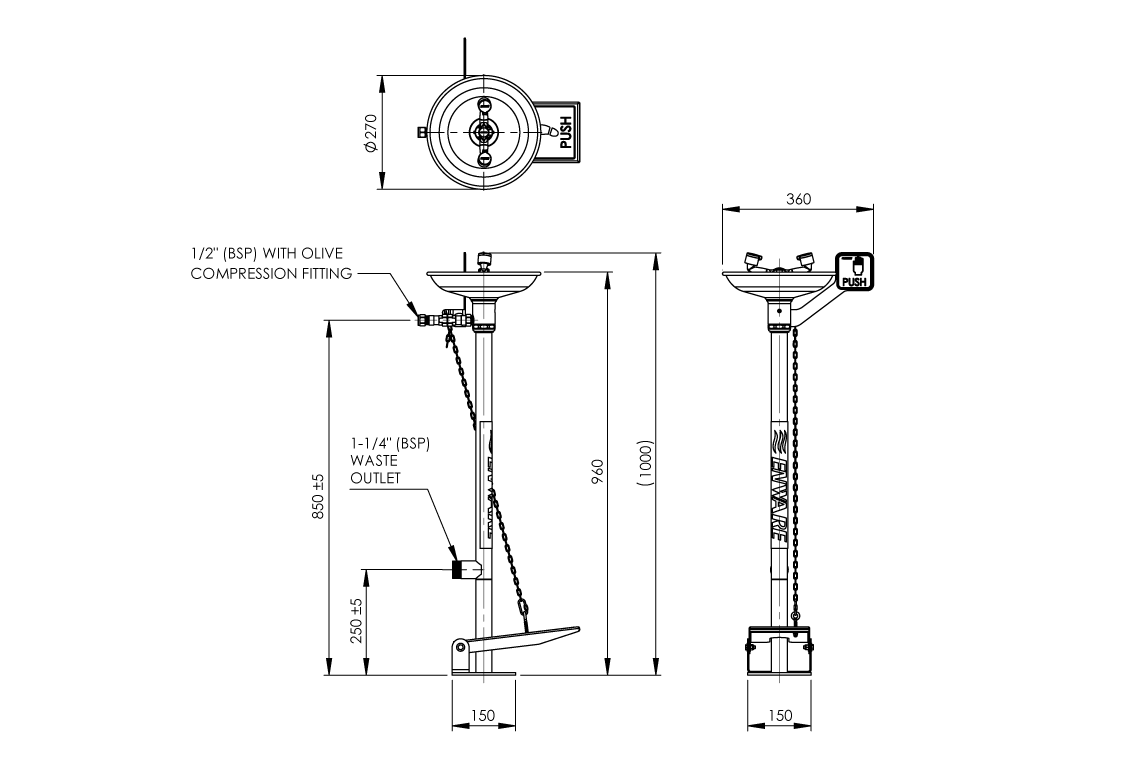

Dimensional Drawings
