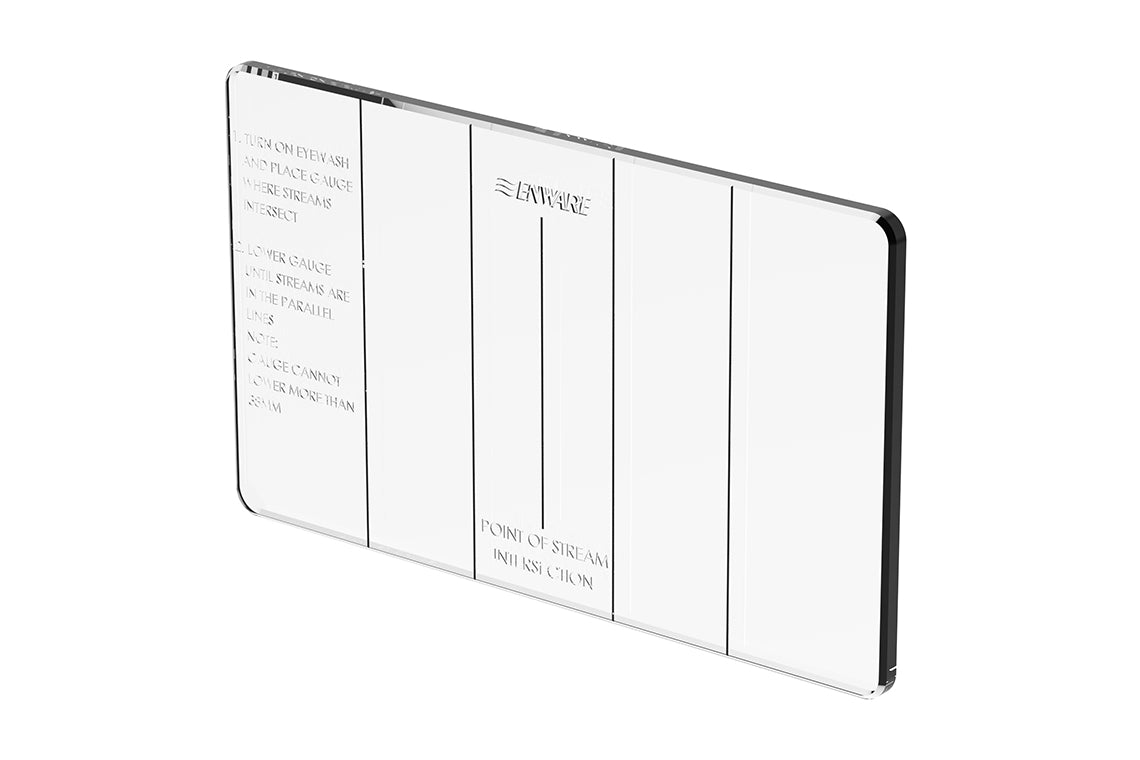

Emergency Eyewash Tester
Emergency Eyewash Tester
Product Code: EST101
Couldn't load pickup availability
Product description
Eyewash Test Gauge An eyewash test gauge is an essential tool designed to ensure that eyewash stations comply with the AS4775 (ANSI Z358.1 in the USA) standards. These standards specify the performance and installation requirements for emergency eyewash and shower equipment, ensuring they provide adequate flushing fluid to the eyes and body in the event of exposure to hazardous materials. The primary purpose of an eyewash test gauge is to test the spray pattern of eyewash stations. This verification process ensures that the eyewash station delivers a consistent and effective flow of flushing fluid, meeting the required specifications for safety and compliance. An eyewash test gauge is a vital tool for maintaining the safety and effectiveness of emergency eyewash stations. By ensuring compliance with AS4775 (ANSI Z358.1 in the USA) standards, it helps protect individuals from the harmful effects of hazardous material exposure.
Key Selling Points
- Test gauge checks for correct eye wash fluid stream pattern for eye wash
- Support annual testing requirements
- Material: Clear Acrylic

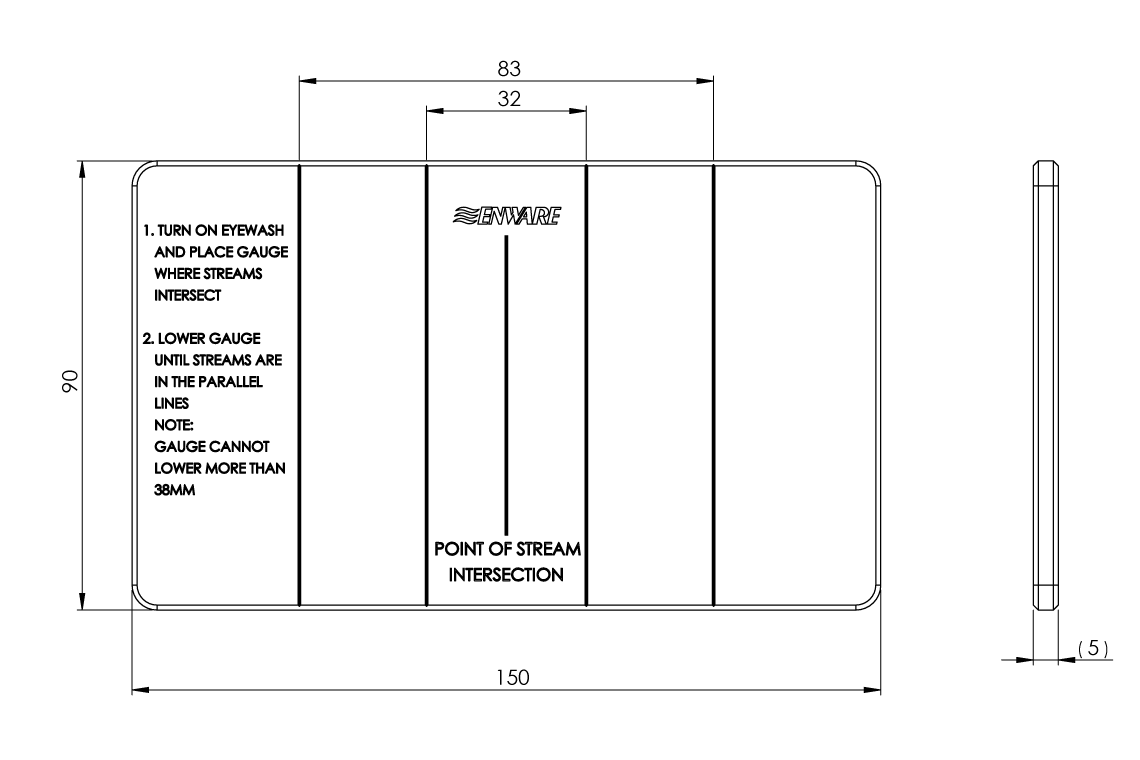

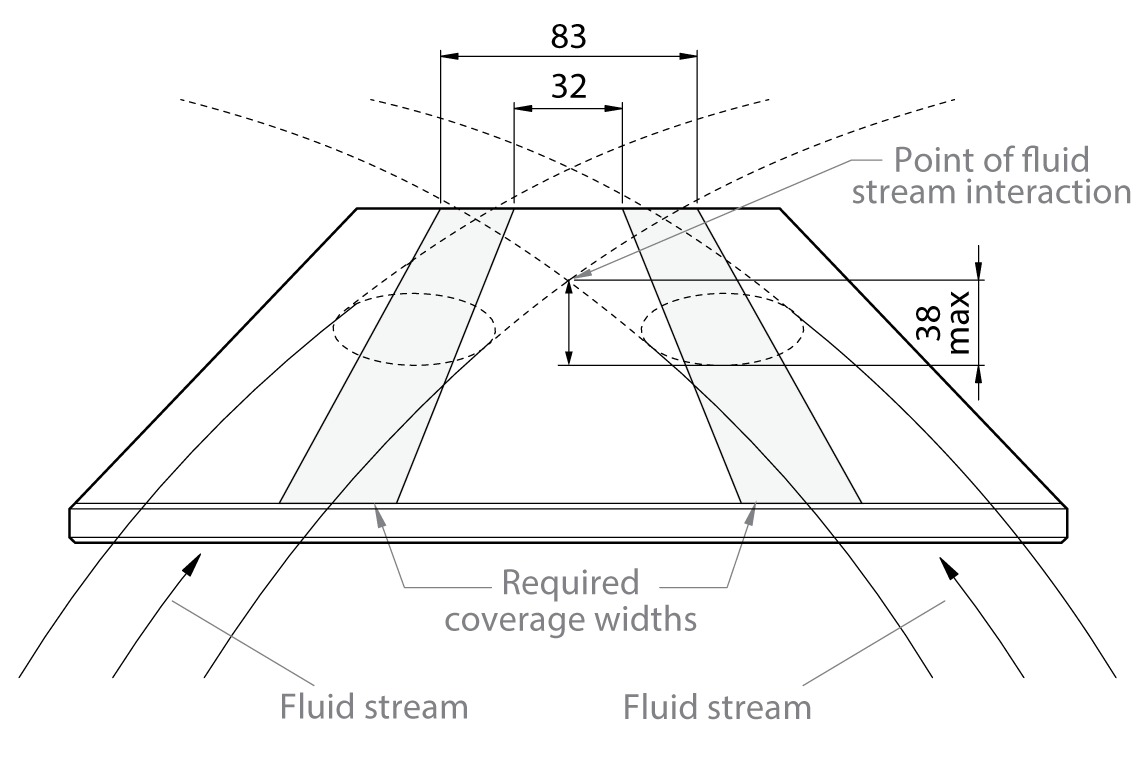

The eyewash unit shall provide flushing fluid to both eyes simultaneously. A test gauge for
making determination of a suitable eyewash pattern shall be a minimum 102 mm in length
with two sets of parallel lines equidistant from the centre (see Figure 7.1 ). The interior set

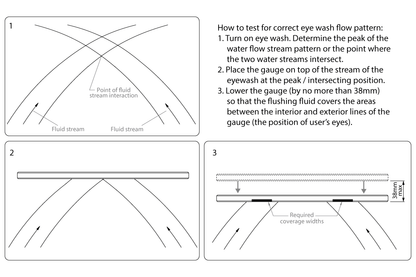

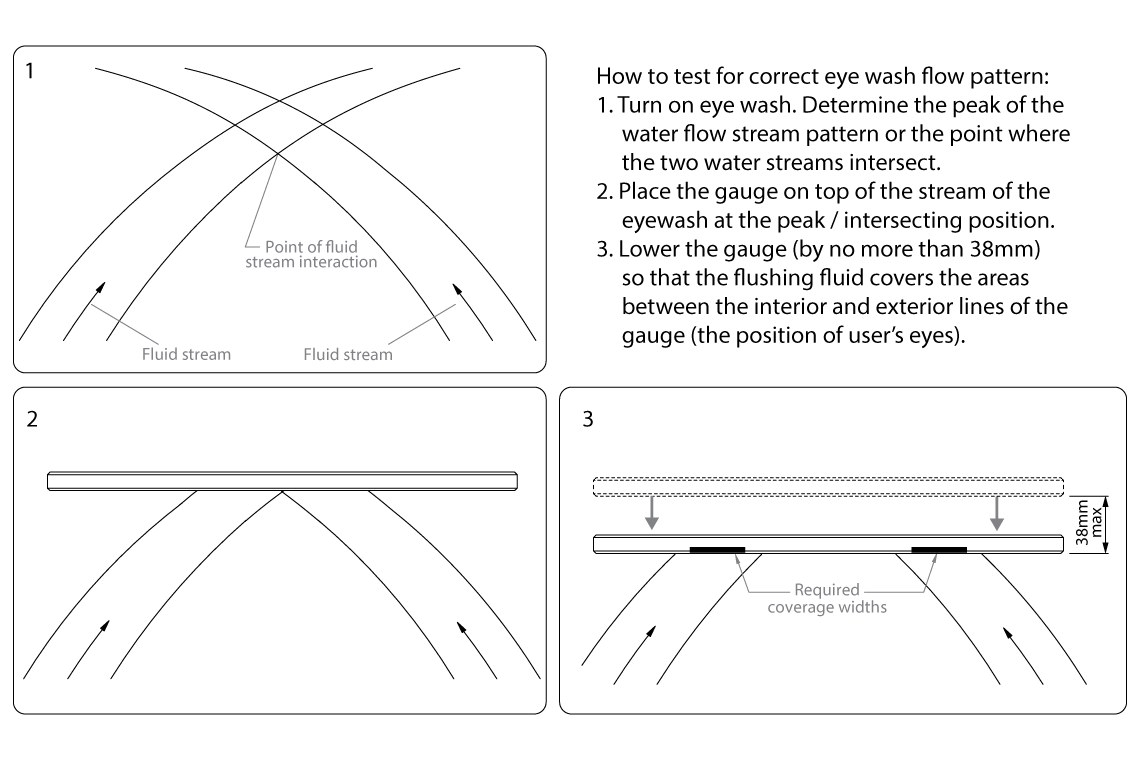

of lines shall be 32 mmm apart and the exterior lines shall be 83 mm apart. Place the gauge

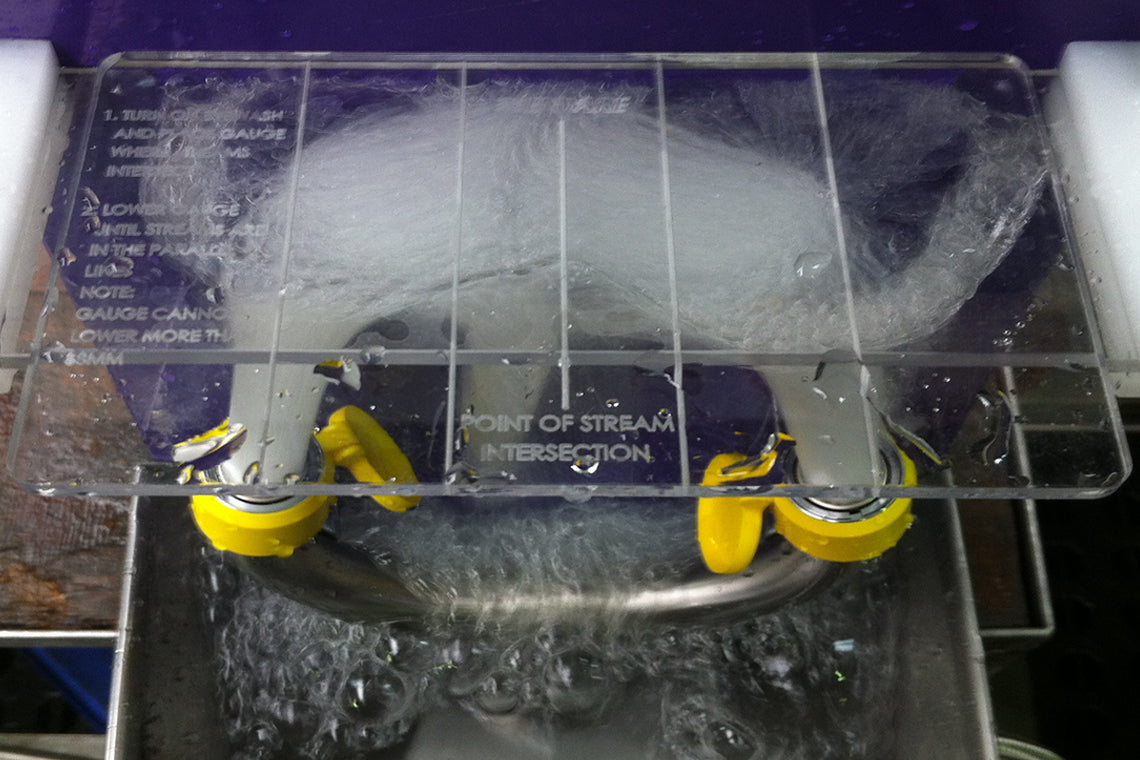

on top of the stream of the eyewash. The flushing fluid should cover the areas between the
interior and exterior lines when the gauge is lowered not more than 38 mm below the fluid's
peak.
