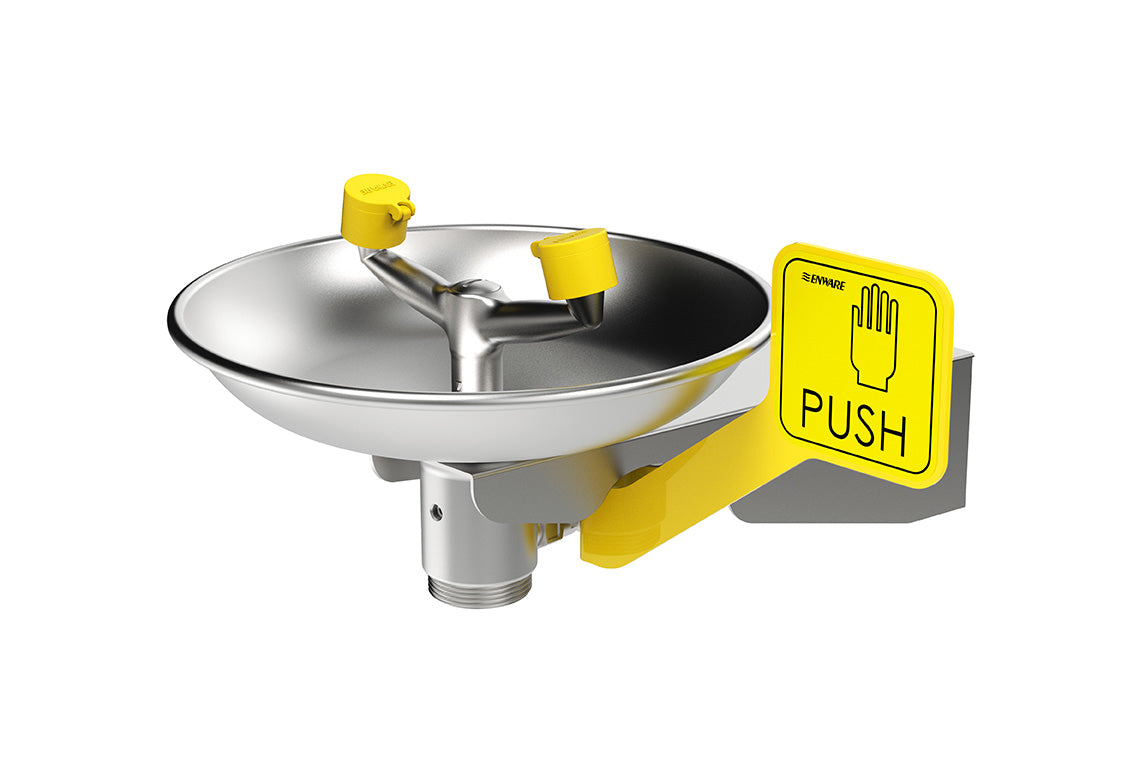

Emergency Eyewash Wall Mounted Hand Operated

Emergency Eyewash Wall Mounted Hand Operated

Product Code: EEE120

Product description

Enware's emergency eyewash units flush hazardous contaminants and irritants from eyes and surrounding facial area. Stainless steel construction provides superior durability and reliability.

Key Selling Points

  • Independently tested to comply with ANSI Z 358.1 and AS 4775
  • 316 Stainless steel bowl, stay-open ball valve and hand actuator
  • Push activated eye wash with soft aerated flow and integral auto-open dust covers
  • Integral flow volume control
  • Eye wash features Vertech Technology where dedicated eyewash streams deliver optimum coverage
  • Zero velocity apex point provides more comfort and control for effective cleansing of eyes
  • High visibility yellow powder coated push handle

Certifications
AS4775,ANSI Z358.1
Minimum Performance Requirements Working Pressure (kPa)
210
Pressure Notes
Caution when pressure exceeds 550 kPa
Minimum Eyewash Flow Rate (L/min)
17
Inlet Connection
15 mm (1/2” BSP) with compression nut
Water Supply Line Size
Must be hydraulically sized to meet requirements.
Waste Water Outlet Connection
G 1-1/2” BSP
Width (mm)
358
Height (mm)
191
Depth (mm)
395
Length (mm)
395
Finish
Brushed
Valve Type
Ball Valve
Mounting Type
Wall

BIM Files

Brochures

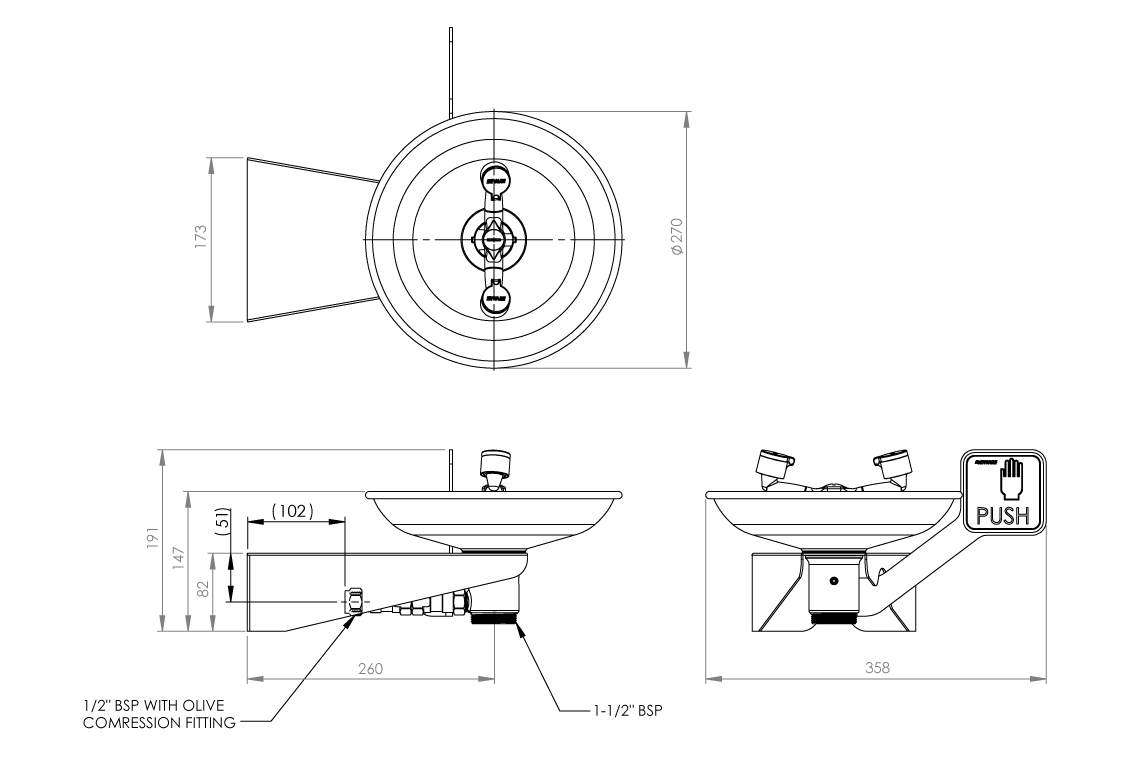

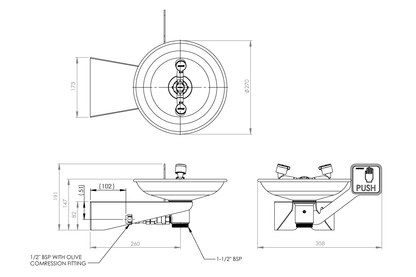

Dimensional Drawings

Product Information

View full details

Spare Parts
