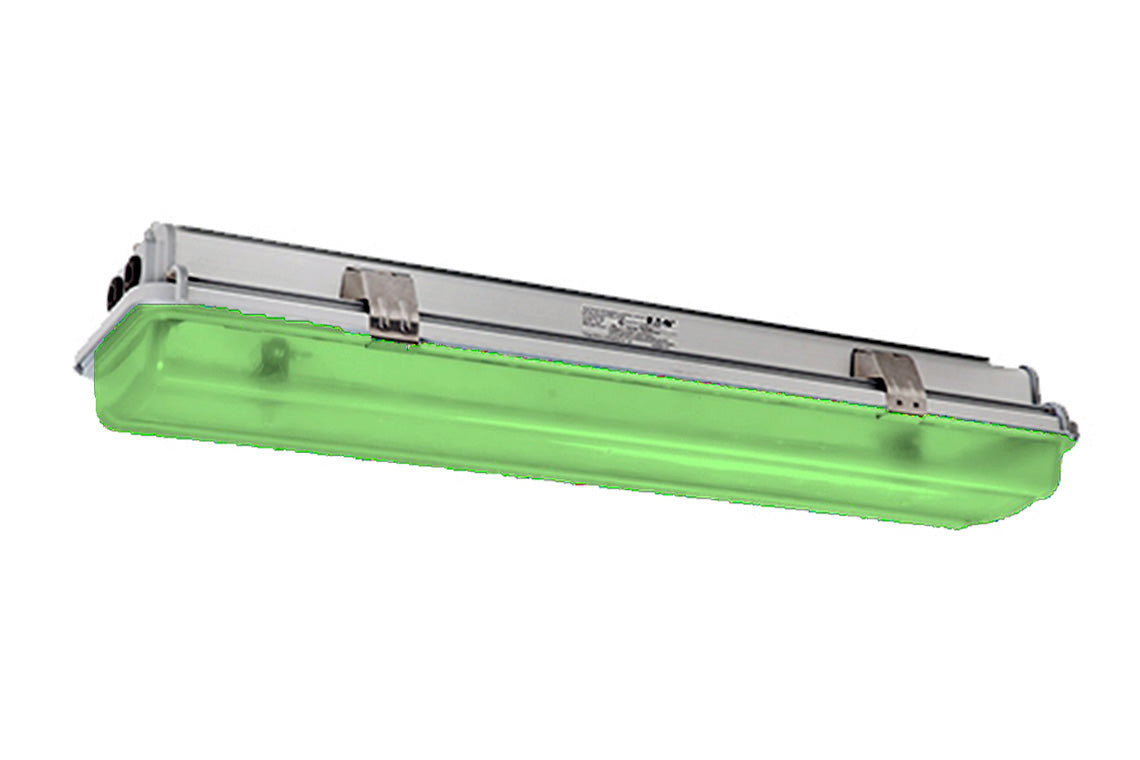

Emergency Light Hazardous Area LED Green
Emergency Light Hazardous Area LED Green
Product Code: EAA972LED
Couldn't load pickup availability
Product description

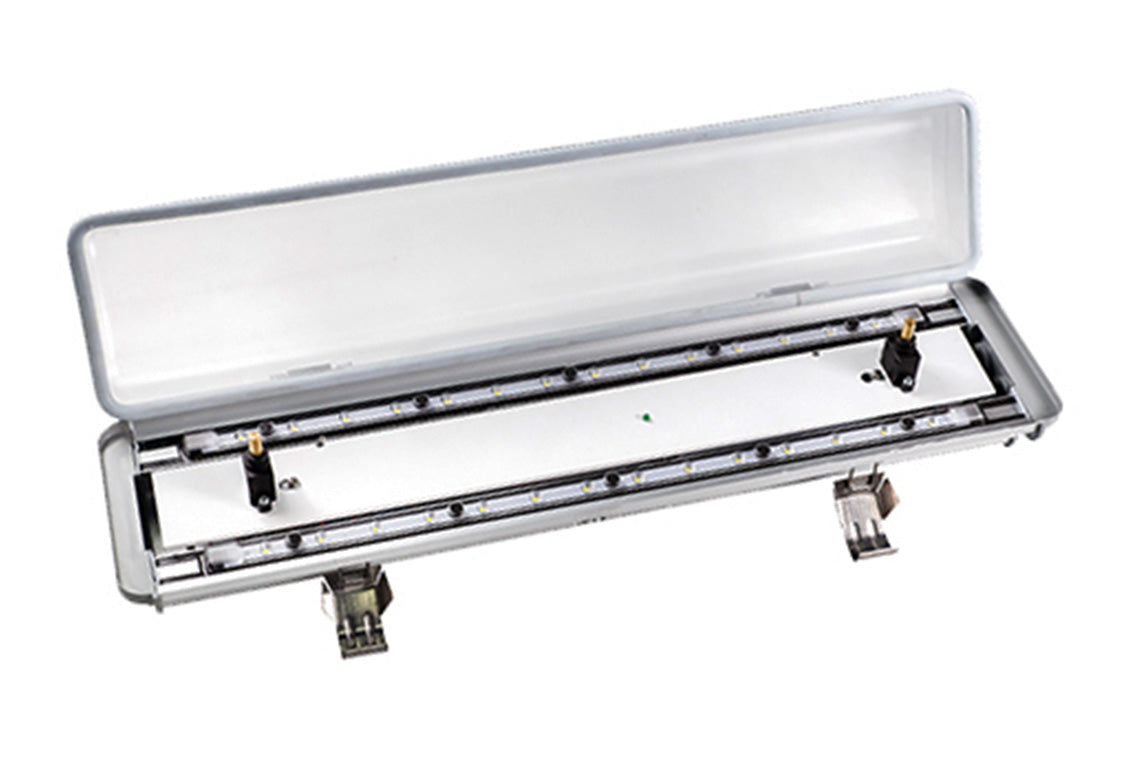

A robust solution for lighting applications in hazardous areas. EAA972LED, suitable for Zone 1/2 / 21/22 Hazardous Areas. LED light fitting is constructed with an aluminium housing and high-impact resistant polycarbonate cover. The extended temperature range of -40 °C to +55 °C allows these luminaires to be used in a wide range of ambient conditions where an explosive atmosphere is to be expected. Designed for use in outdoor and indoor hazardous areas where moisture or corrosion may be a problem. Areas such as offshore oil platforms, pharmaceutical and chemical plants, oil refineries, gas plants, laboratories, mining, distilleries, grain terminals, power stations and heavy industrial locations. Does not include mounting bracket. Mounting Bracket: EAA966
Key Selling Points
- Polycarbonate, 4J impact resistant lens
- Copper free aluminium housing for excellent corrosion resistance and heat transfer properties
- IP66 rating
- Suitable for Zone 1, 2, 21 and 22 hazardous areas
- Highest temperature class T6
- Ex-e technology for easy maintenance
- Ex marking: Ex d e ib mb IIC T6 Gb / Ex tb IIIC T80°C Db / Ex-e s/be Ex e
- IECEx-Certification: IECEx CQM 16.0030X
- Compliance (Emergency): AS/NZS2293.3:2018
- Weight: 6kg

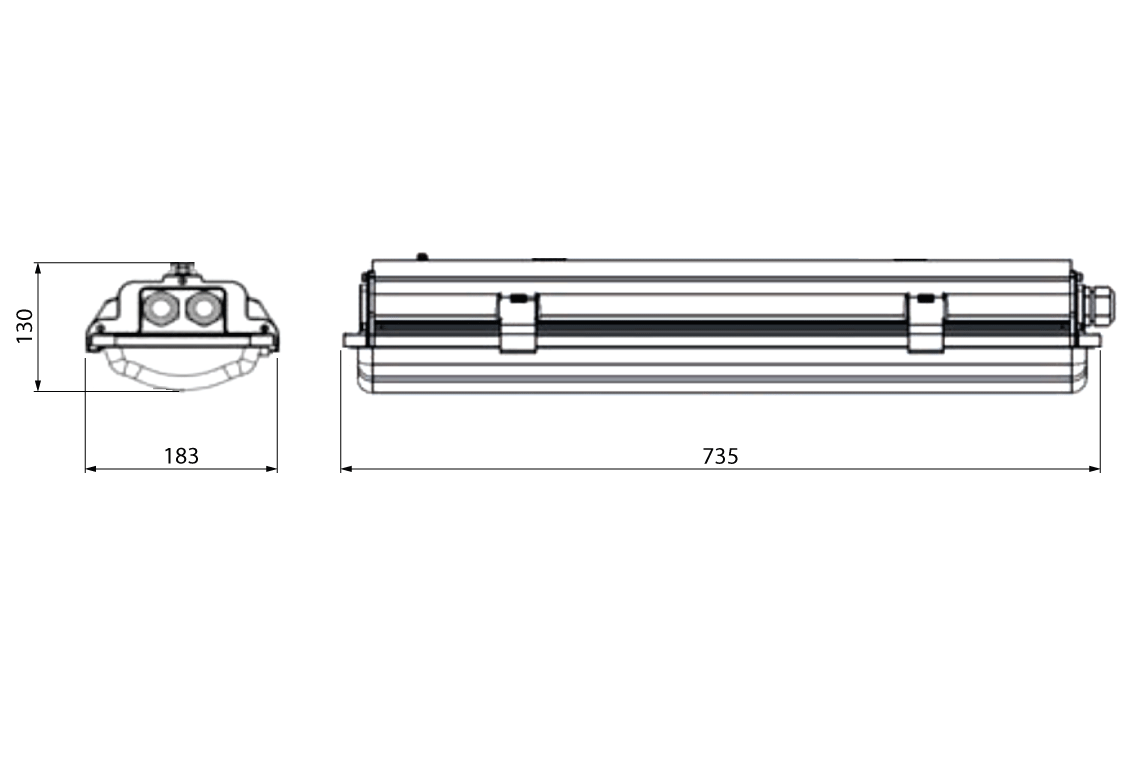

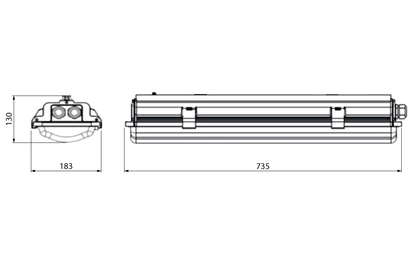

- Out line dimension : 735x180x130(mm)
- Emergency Backup duration: 3h, 25% output
- Ambient temp -40°C ~ 55°C (Normal) -25°C ~ 55°C (Emergency)
- Rated input volt: 100~240 VAC; 108~250 VDC
- Terminals: 6mm²
- Power factor: >0.9
- CRI: Cool white>70
- System watt: 28W
- Light Colour temp: 5700K
- Lumen output: 2800Lm (2 feet, cool colour)
- Life Expectancy: L70 = 110,000 h at ta=25°C
- Wire and Entry size type: 6mm² through wiring 2-2 x M20
- Material: Aluminium
- Coating: Epoxy Coating
- Replaceable LED Module
- Green Lens
