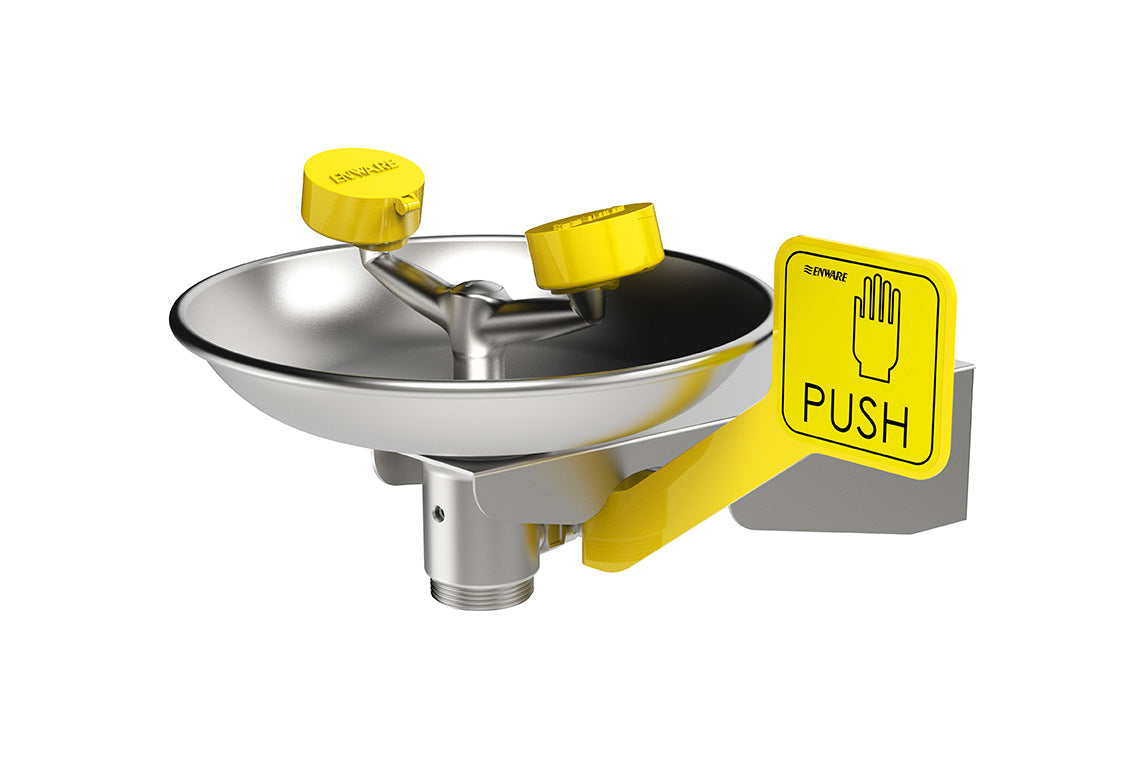

Emergency Eye/ Face Wash Wall Mounted Hand Operated

  • Push activated with dedicated eyewash and independently angled face wash streams for optimum coverage
  • Zero velocity apex point provides more comfort and control for effective cleansing of eyes and face
  • Stainless steel bowl, hand actuator and stay open ball valve
  • Self-draining design reduces bacteria risk, particularly in tepid water applications
  • High visibility yellow powder coated push handle
  • Designed and made in Australia

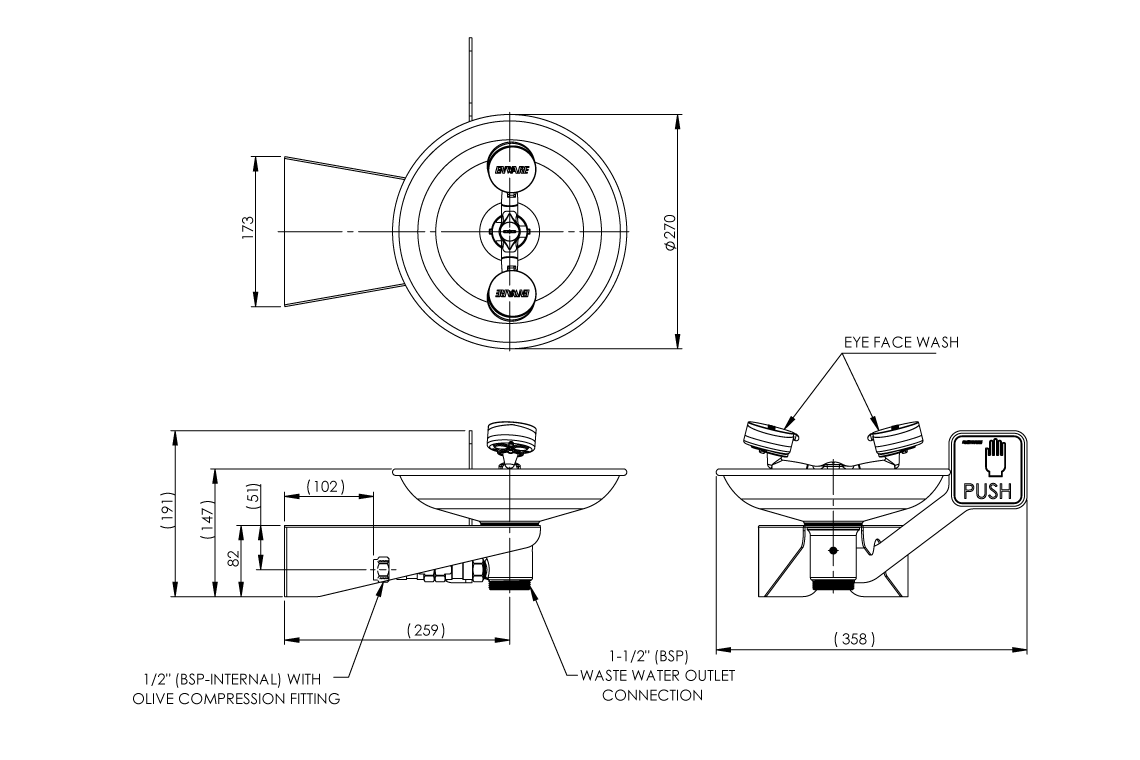

Inlet & Outlet

Inlet Connection 15mm (1/2" BSP)
Waste Water Outlet Size 38 mm (1-1/2") OD

Flow Rate

Minimum Performance Requirements – Min Flow Requirements 26 lpm (6.9 US gpm)
Minimum Performance Requirements – Min Working Pressure 210kPa

Mounting

Mounting Base Plate Size: 150 x 150 mm (5-9/10" x 5-9/10") with

Shipping

Shipping Weight: approx. 5 kg Dimensions: 460 x 360 x 320 mm

Water Supply

Water Supply Line Size Must be hydraulically sized to meet requirements
Product Code Description FINISH VALVE
EFE300 Emergency Eye/ Face Wash Wall Mounted Hand Operated – Brushed Stainless Finish Brushed Stainless Ball Valve Add to spec
EFE300GR Emergency Eye/ Face Wash Wall Mounted Hand Operated – Powder Coated Finish – GREEN Powder Coating Ball Valve Add to spec
EFE300OR Emergency Eye/ Face Wash Wall Mounted Hand Operated – Powder Coated Finish – ORANGE Powder Coating Ball Valve Add to spec
EFE300WH Emergency Eye/ Face Wash Wall Mounted Hand Operated – Powder Coated Finish – WHITE Powder Coating Ball Valve Add to spec
EFE300YE Emergency Eye/ Face Wash Wall Mounted Hand Operated – Powder Coated Finish – YELLOW Powder Coating Ball Valve Add to spec
