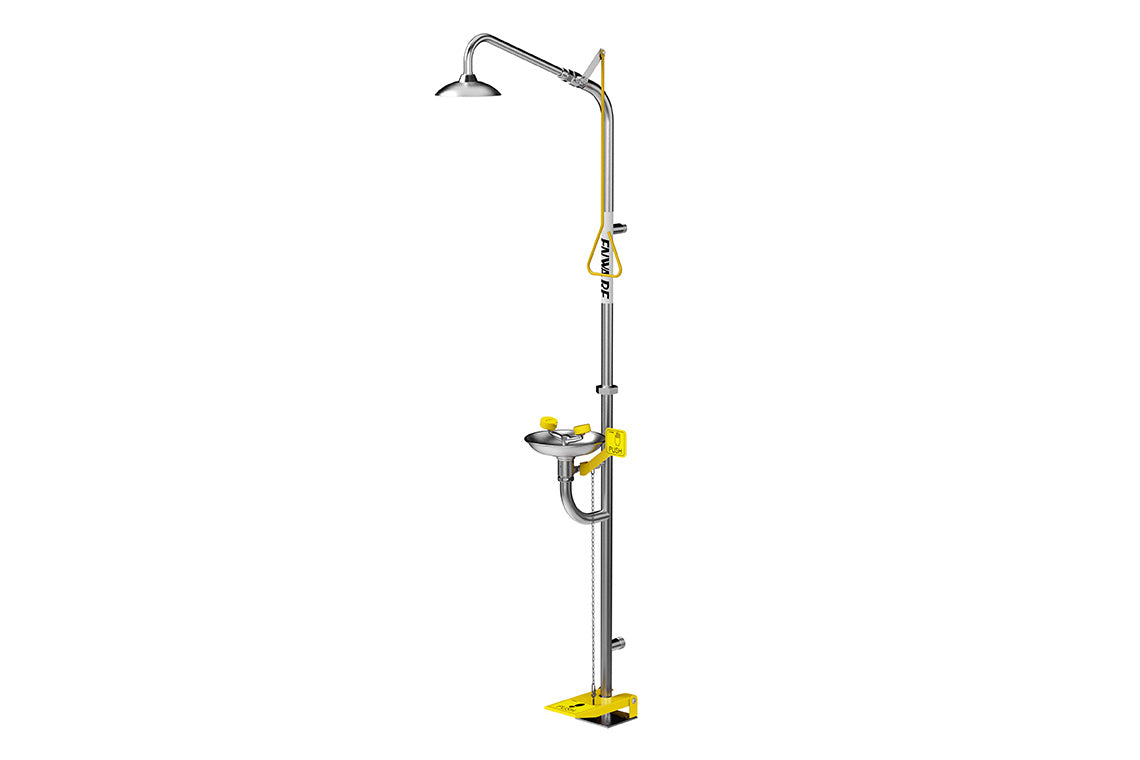

Emergency Stainless Steel Combination Shower with Hand/Foot Operated Eye/Face Wash
Emergency Stainless Steel Combination Shower with Hand/Foot Operated Eye/Face Wash
Product Code: ECE270
Couldn't load pickup availability
Product description
Enware's emergency safety showers assist in the rapid flushing of contaminants from the body with a deluge of flushing fluid and eye/face wash units help to flush contaminants and irritants from eyes and facial area. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Independently tested for compliance to ANSI Z358.1 and AS4775
- Freestanding for stand-alone operation
- 316 stainless steel pipe work and stay-open ball valve
- 316 Stainless steel 200mm (8") shower head assembly
- 316 Stainless steel handle with high visibility yellow powder coating
- Hand push and foot activated eye/face wash with integral auto-open dust covers
- Eye/face wash features Vertech Technology where dedicated eyewash and independently angled face wash streams deliver optimum coverage
- Zero velocity apex point provides more comfort & control of eyes for effective cleansing
- Solid stainless, low angle foot pedal for easy activation of eye/face wash
- High visibility yellow powder coated push handle and foot pedal
- Self-draining design reduces Legionella risk, particularly in tepid water applications
- Balanced simultaneous operation
- Certifications
- AS4775,ANSI Z358.1
- Minimum Performance Requirements Working Pressure (kPa)
- 210
- Pressure Notes
- Caution when pressure exceeds 550 kPa
- Minimum Eye/Facewash Flow Rate (L/min)
- 26
- Minimum Shower Flow Rate (L/min)
- 76
- Inlet Connection
- 25 mm (1” BSP)
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Waste Water Outlet Connection
- 32mm (1-1/4" BSP)
- Weight (kg)
- 12.7
- Finish
- Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Free Standing
- Mounting Base Length (mm)
- 150
- Mounting Base Width (mm)
- 150
- Mounting Base Bolt Hole Dia (mm)
- 11
- Mounting Base Bolt Holes
- 4
BIM Files
Brochures

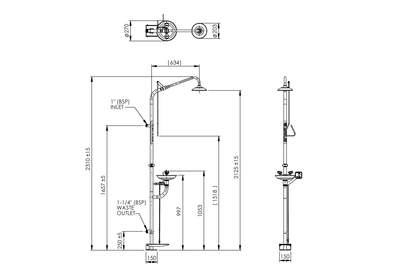

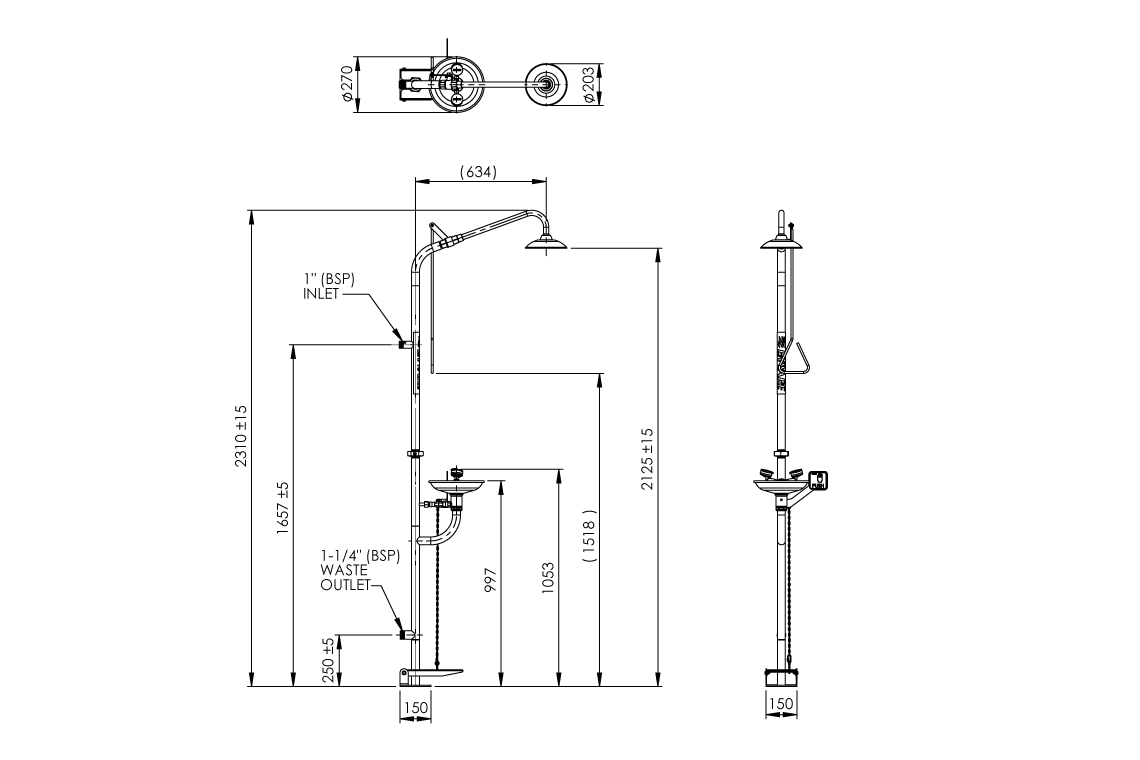

Dimensional Drawings
Product Information
