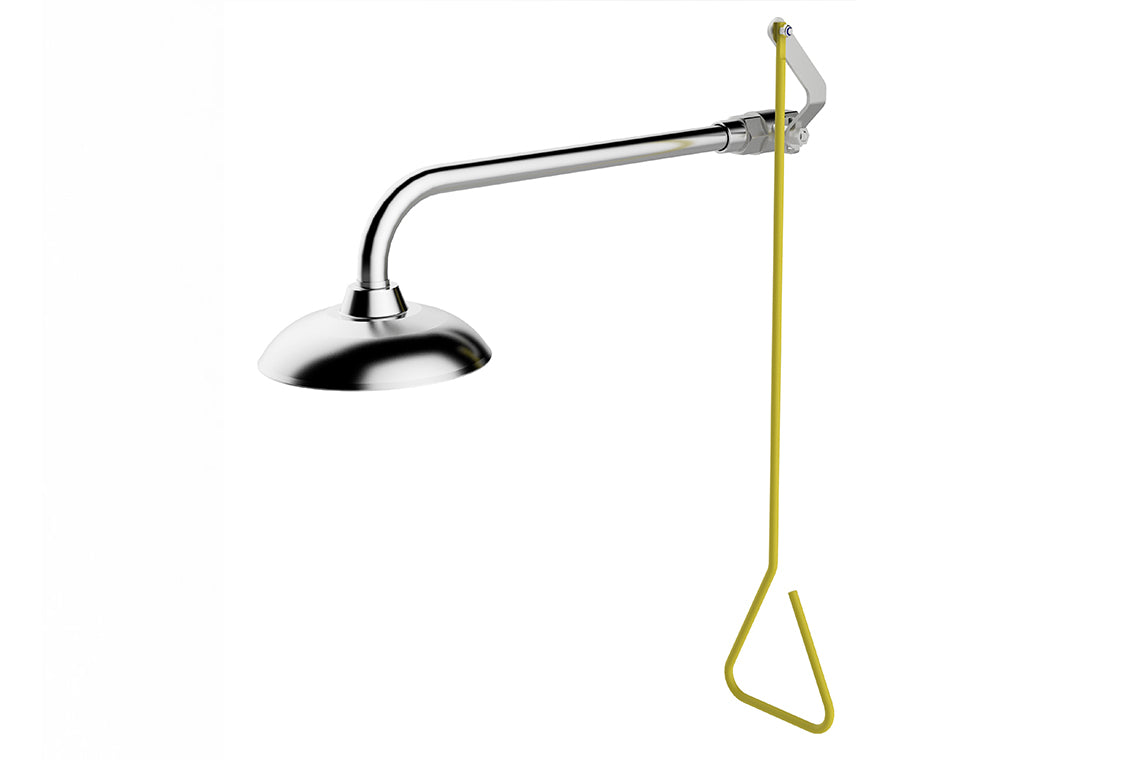

Emergency Wall Mounted Hand Operated Deluge Shower -
Emergency Wall Mounted Hand Operated Deluge Shower -
Product Code: EW1050
Couldn't load pickup availability
Product description
Enware's emergency safety showers assist in the rapid removal of contaminants from the body with a deluge of flushing fluid. Designed and manufactured in Australia. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Audio/Visual alarms for alerts
- Flow switch to activate alarms and lights
- Proximity switches an alternative to flow switches
- Thermal relief valve to remove built-up hot water in pipes
- Insulated pipe work to moderate water temperature build up
- Anti-freeze valve for cold weather climates helps prevent water freezing
- Pressure relief valve
- NPT Flange connectors
- Custom manufacturing & design
- Signage compliant to AS1319
- Certifications
- AS4775,ANSI Z358.1
- Maximum Recommended Pressure (kPa)
- 550
- Pressure Notes
- Caution should be taken when pressure exceeds 550 kPa (80 psi). Minimum Working Pressure: Safety showers are flow volume dependent, and the line size needs to be hydraulically calculated
- Minimum Flow Rate (L/min)
- 75.7
- Inlet Connection
- 25 mm (1”) BSP
- Water Supply Line Size
- DN25 mm (1") Nominal Size
- Waste Water Outlet Connection
- 38mm OD
- Finish
- Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Wall
BIM Files
Brochures

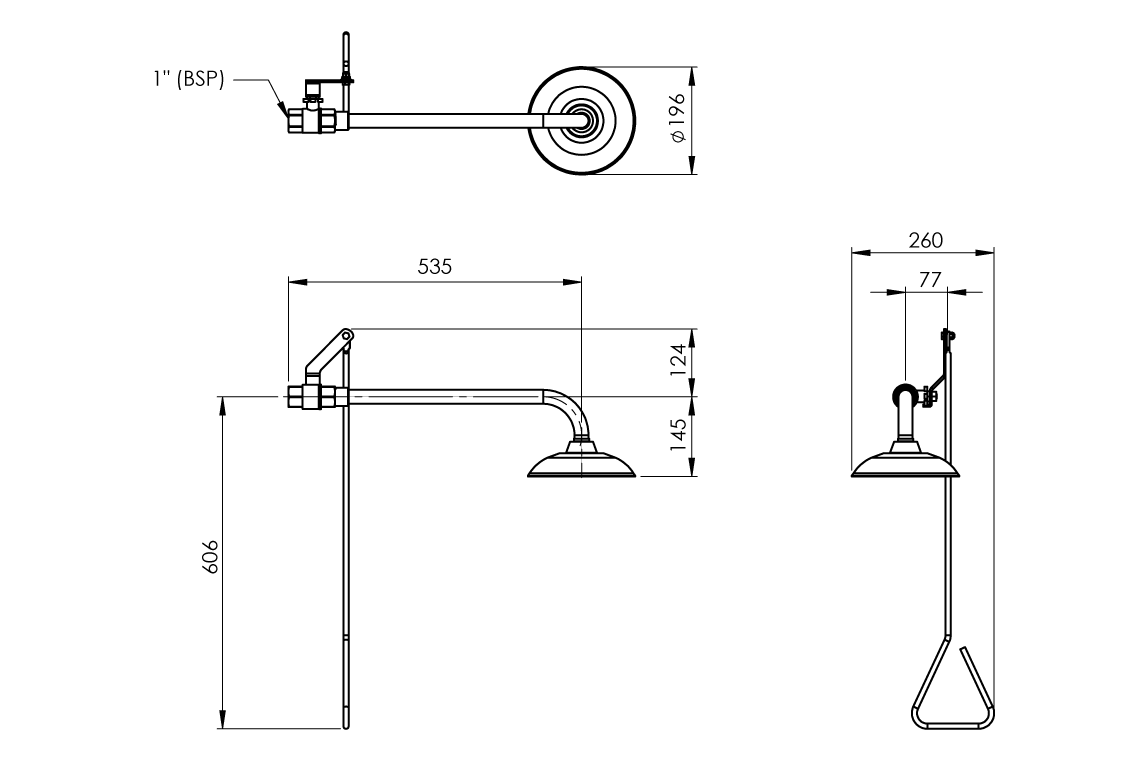

Dimensional Drawings
Product Information
