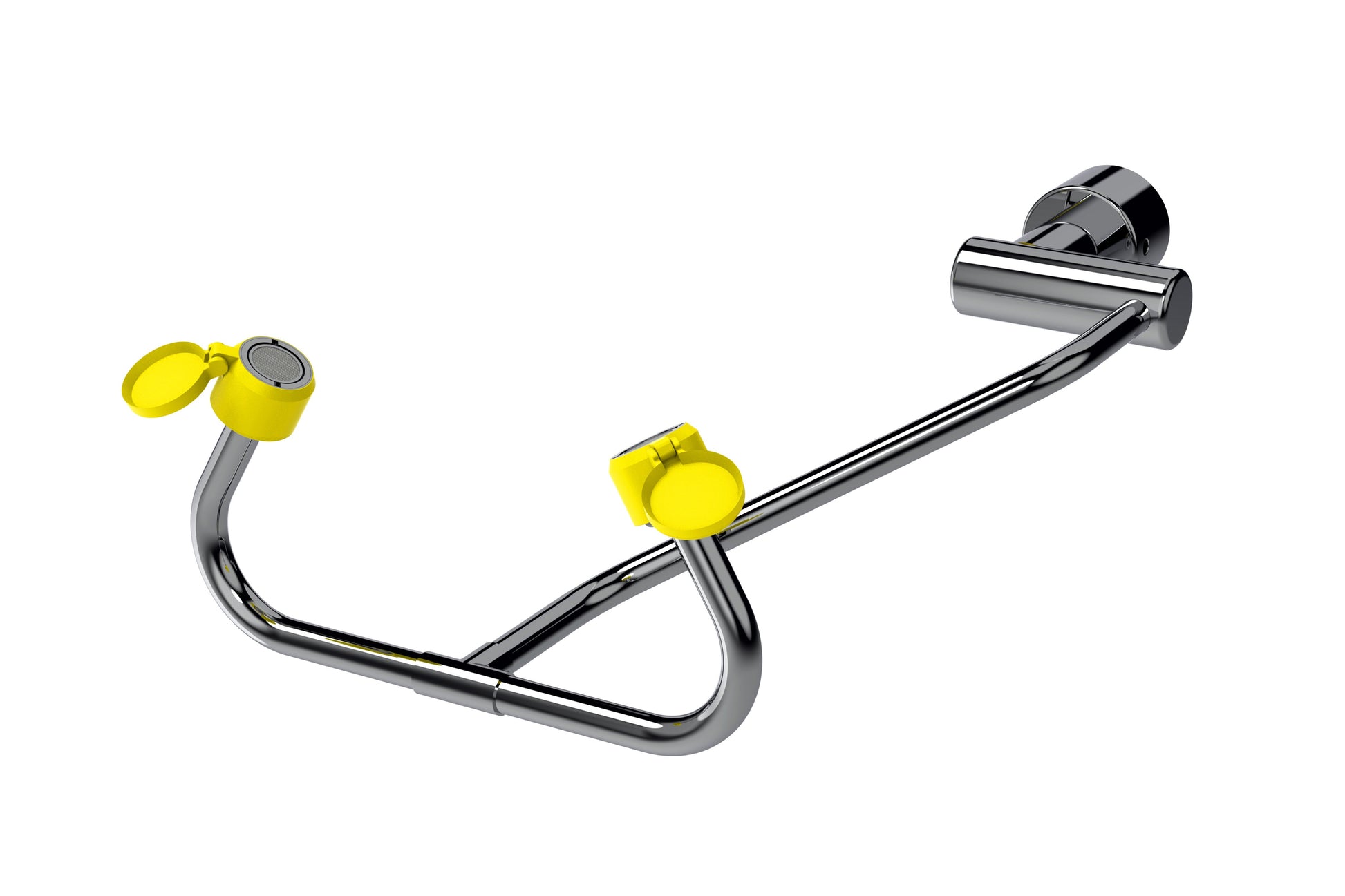

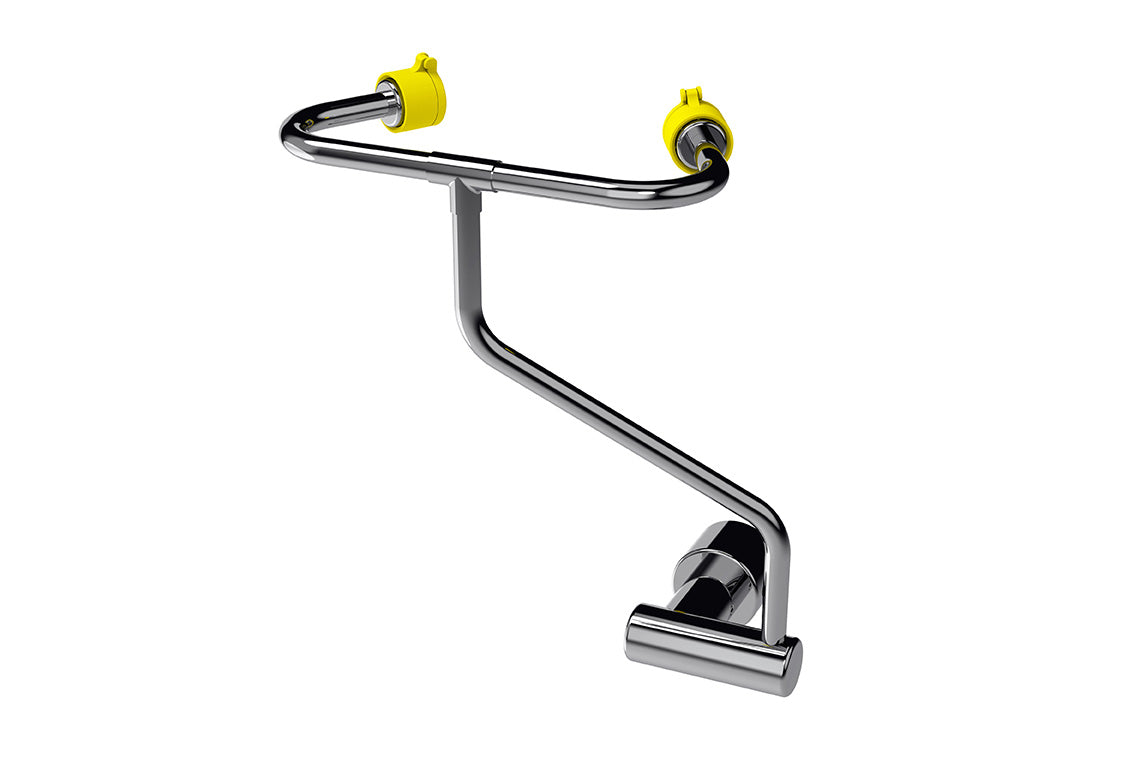

Eye Wash: Pull Down - Wall Mounted- Short Version
Eye Wash: Pull Down - Wall Mounted- Short Version
Product Code: EL487-S
Couldn't load pickup availability
Product description
The wall mounted eyewash is designed to comply with AS4775 and ANSI 358.1 (when installed to the correct specifications). The eyewash is intended for use as a first aid response to help flush contamination from the eyes and prepare the user for proper medical treatment. It is designed to be an aesthetically pleasing option suitable for use within laboratory or school environments whilst being durable enough to be suitable for use in many other safety situations. When positioned correctly, the eyewash can be activated by pulling it down directly over a sink to help capture the water. When not in use, the unit remains out of the way and will not interfere with the normal usage of the sink.
Key Selling Points
- Shortened Version(350mm reach) for mounting over basins
- Aerated outlets
- Chrome plated brass body
- Ball valve style operation
- Isolation valve included
- Includes sign (320 x 250mm - Pull Down Eyewash)
- Certifications
- AS4775
- Minimum Operating Temperature (Deg C)
- 15.6
- Maximum Operating Temperature (Deg C)
- 37.8
- Maximum Recommended Pressure (kPa)
- 500
- Minimum Pressure to achieve ANSI Z358.1 and AS4775 compliance (kPa)
- 210
- Maximum Flow Rate (L/min)
- 26
- Inlet Connection
- 15mm (1/2" BSP)
- Finish
- Chrome
- Valve Type
- Ball Valve
BIM Files
Brochures

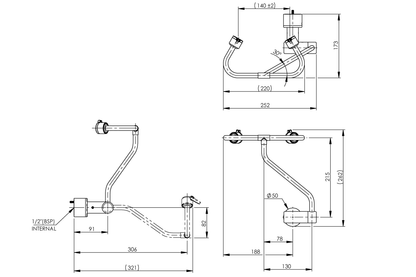

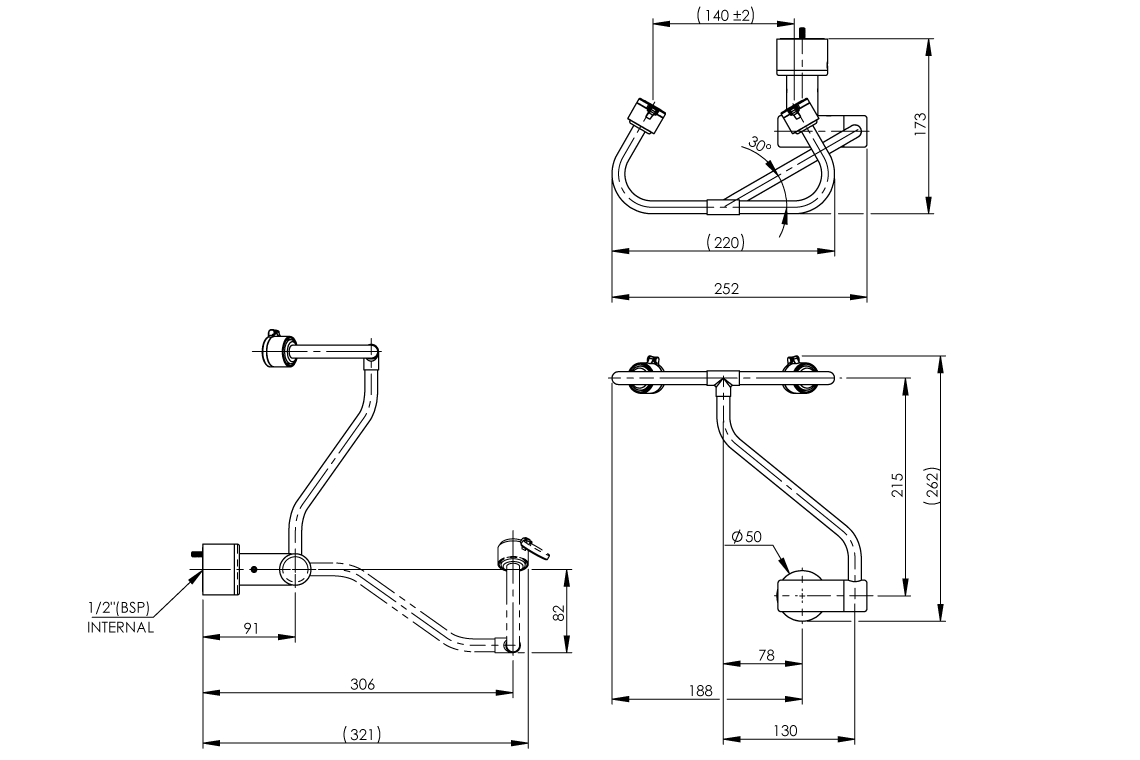

Dimensional Drawings
Product Information
