Food Service: Pot Filler and Pre-Rinse Assembly - Short
Food Service: Pot Filler and Pre-Rinse Assembly - Short
Product Code: FS065W
Couldn't load pickup availability
Product description
A heavy-duty pre-rinse spray assembly to meet most commercial and institutional kitchen requirements. Ultra-Rinse pre-rinse trigger spray cleans more efficiently, requiring less water per minute.
Key Selling Points
- WELS 6 Star (4 lpm) water efficiency rating
- Dual check valves for backflow protection
- Shortened height where space restrictions may exist
- Spring return allows the spray and hose to be pulled into the spraying position and to retract back from the washing area when released
- Quarter-turn 80mm lever handle
- Jumper Valve
- Clear identification on lever handle with blue, yellow, red or grey coloured indicator collar
- Pot filler with 230mm spout
- Attractive, solid brass chrome body
- Robust construction for superior performance
- (Requires wall or hob mount base)
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 4
- WELS Category
- Tapware
- Certifications
- WMKA1583,WELS-6 Star-4Lpm
- First Additional WELS (Stars)
- 5
- First Additional WELS Flow Rate (L/min)
- 6
- Maximum Recommended Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Pot Filler Flow Rate (L/min)
- 5
- Trigger Spray Flow Rate (L/min)
- 4
- Connection Notes
- designed for connection to base unit- wall or hob
- Finish
- Chrome
- Valve Type
- 1/4 Turn Jumper Valve
BIM Files
Brochures

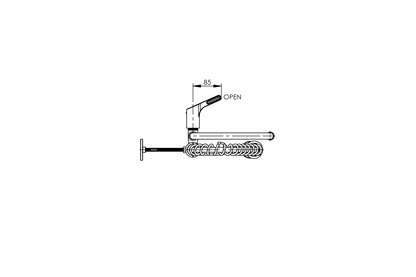

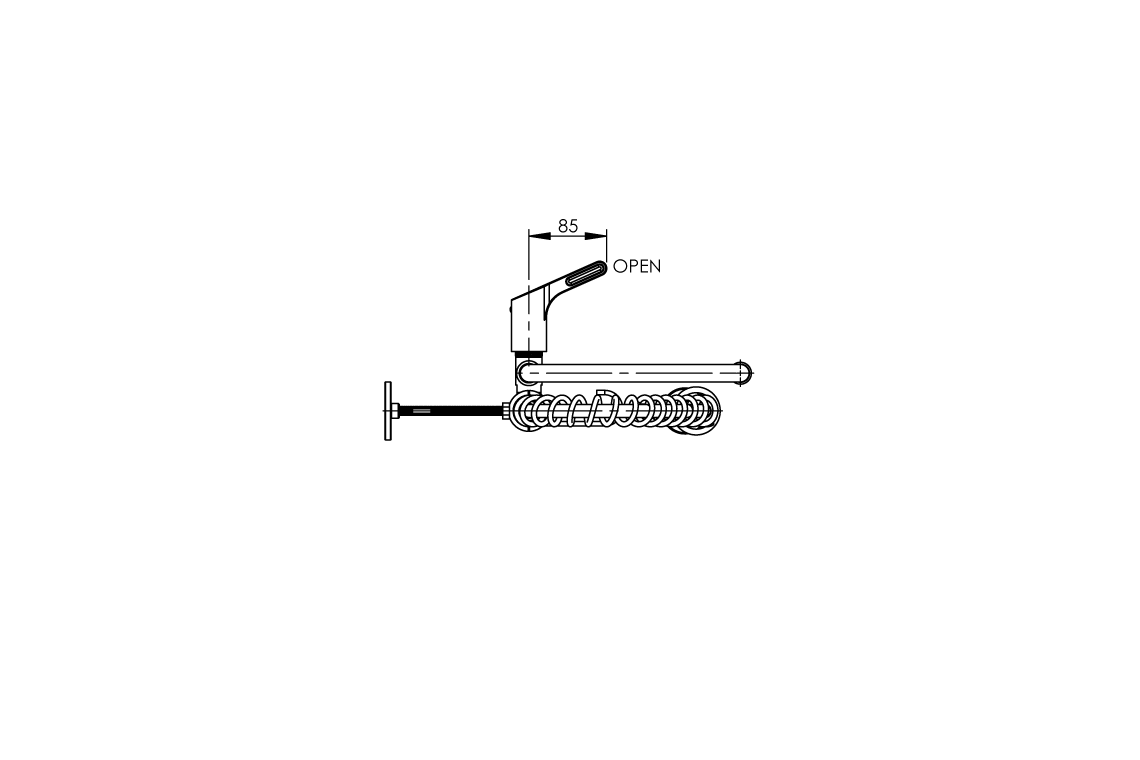

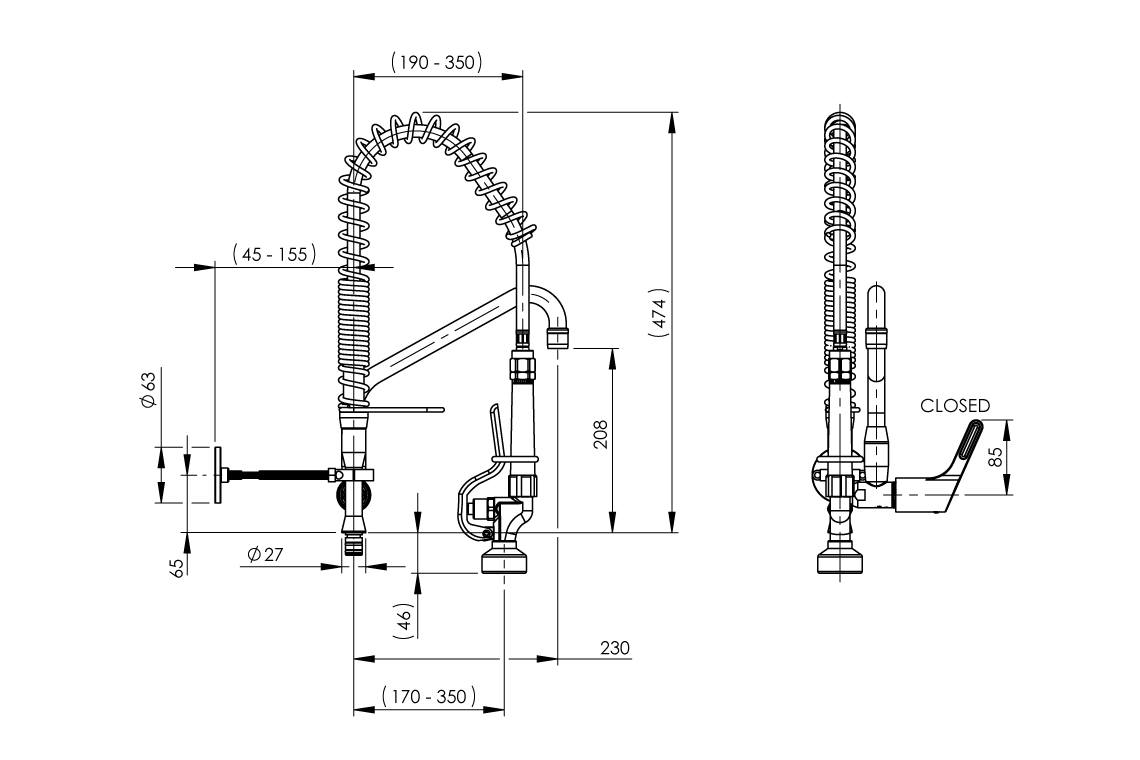

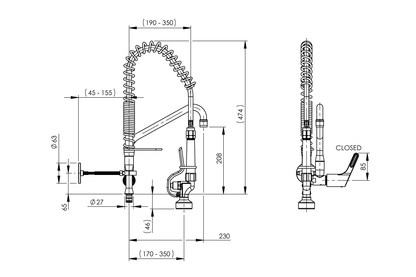

Dimensional Drawings
Product Information
