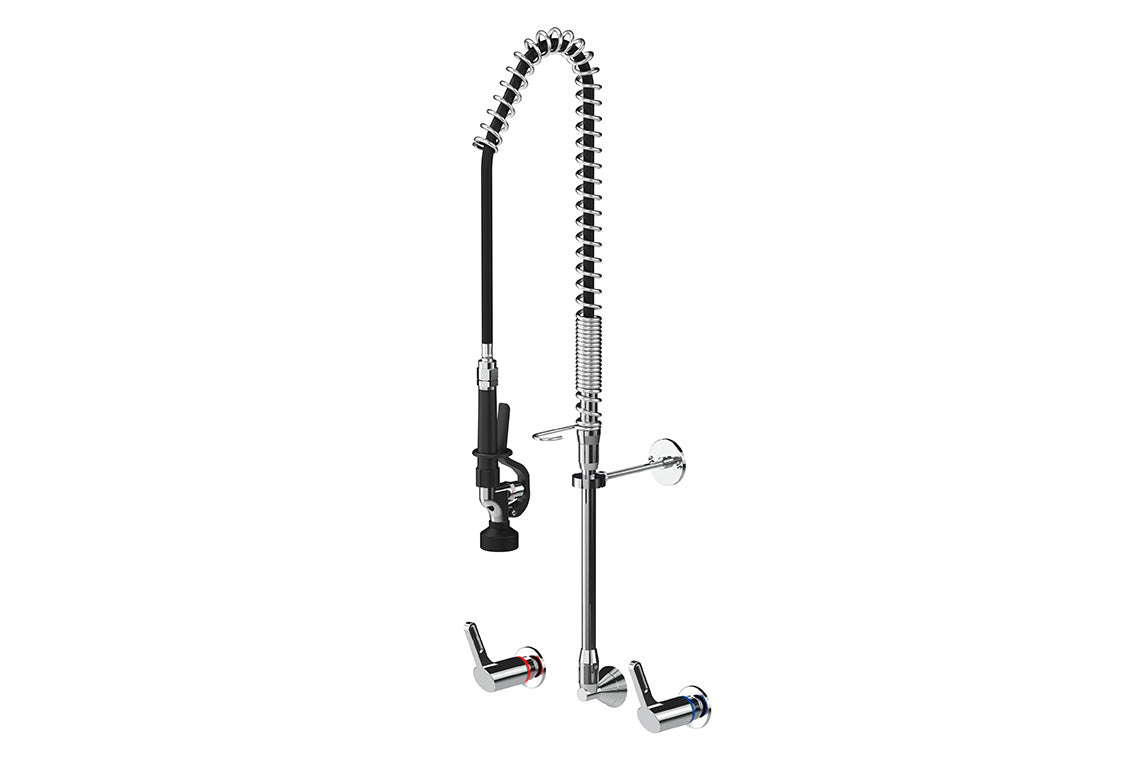

Food Service: Pre-Rinse Concealed Wall Mixer Assembly

Food Service: Pre-Rinse Concealed Wall Mixer Assembly

Product Code: FWS021

Product description

The Enware Ultra Rinse range of Food Service Pre-Rinse assemblies are designed for use in Commercial Kitchens and Food Preparation areas. A wide range of products to suit Wall and Bench mounting are available with mixers, pot fillers and various formats to suit different plumbing set-outs. Heavy duty fixings and chrome plated finishes with anti-vandal fittings ensure easy cleaning for improved hygiene, and long lasting service for critical areas in the kitchen. Adjustable sets for easy retro-fit and special shortened assemblies ensure there is a solution for all new and existing kitchens. Service parts such as hoses, trigger sprays, spindles and handles are available to ensure downtime does not interrupt the work flow of a busy kitchen.

Key Selling Points

  • Separate recessed hot and cold taps to provide either hot, cold water or mixed water
  • Note Extended Depth Spindles are no longer available- consider using Exposed Mixer Sets (FWS031/FWS131)
  • Dual check valves for backflow protection
  • Spring return allows the spray and hose to be pulled into the spraying position and to retract back from the washing area when released
  • Pex hose with smooth outer covering and braided inner has in-built swivels to ensure ease of use and to assist to prevent user fatigue
  • Quarter-turn, contra-rotating easy to clean 80mm lever handles
  • Heavy duty Jumper Valve 1/4 Turn spindles, can be serviced
  • Clear identification on all lever handles with blue, yellow, red or grey coloured indicator collars
  • Attractive, lead free brass chrome body
  • FS062 Pot Filler can be added

Standard WELS (Stars)
6
Standard WELS Flow Rate (L/min)
4
WELS Category
Tapware
Certifications
WMKA1583 - LF,WELS-6 Star-4Lpm,Lead Free
Maximum Recommended Temperature (Deg C)
70
Maximum Static Pressure (kPa)
800
Minimum Recommended Pressure (kPa)
100
Maximum Recommended Pressure (kPa)
500
Valve Type
1/4 Turn Jumper Valve

BIM Files

Brochures

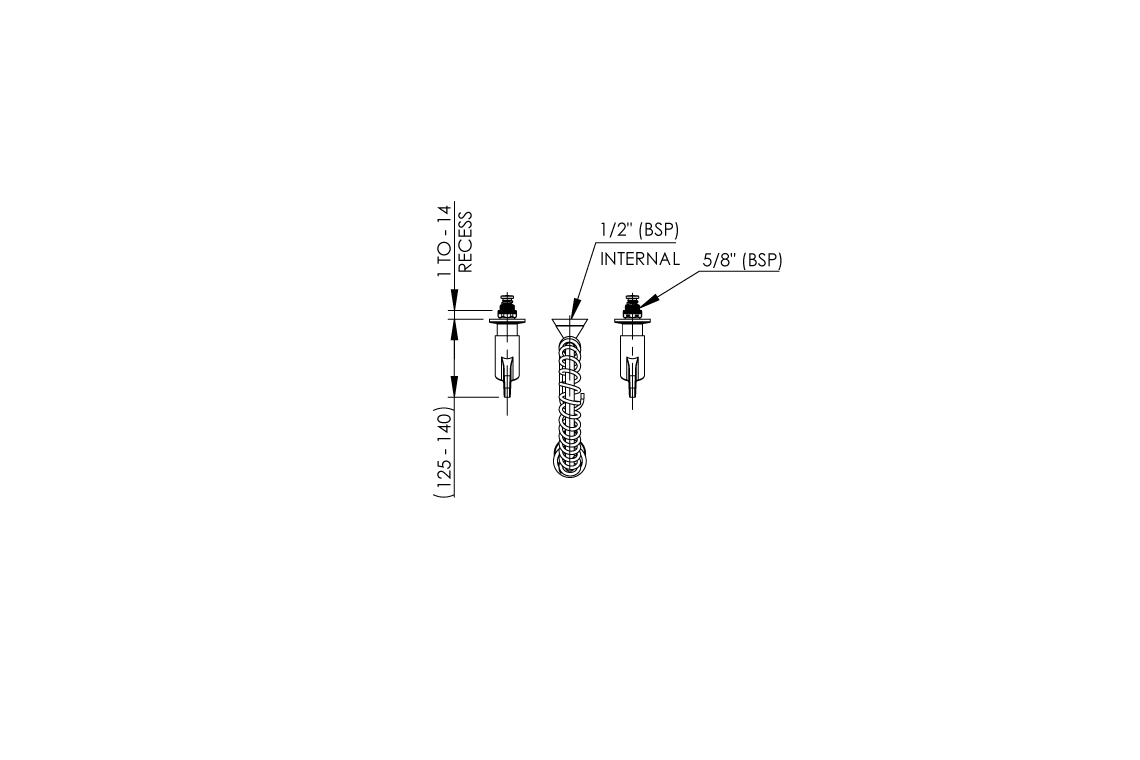

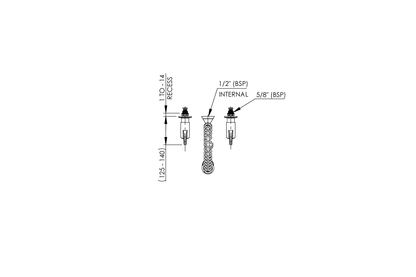

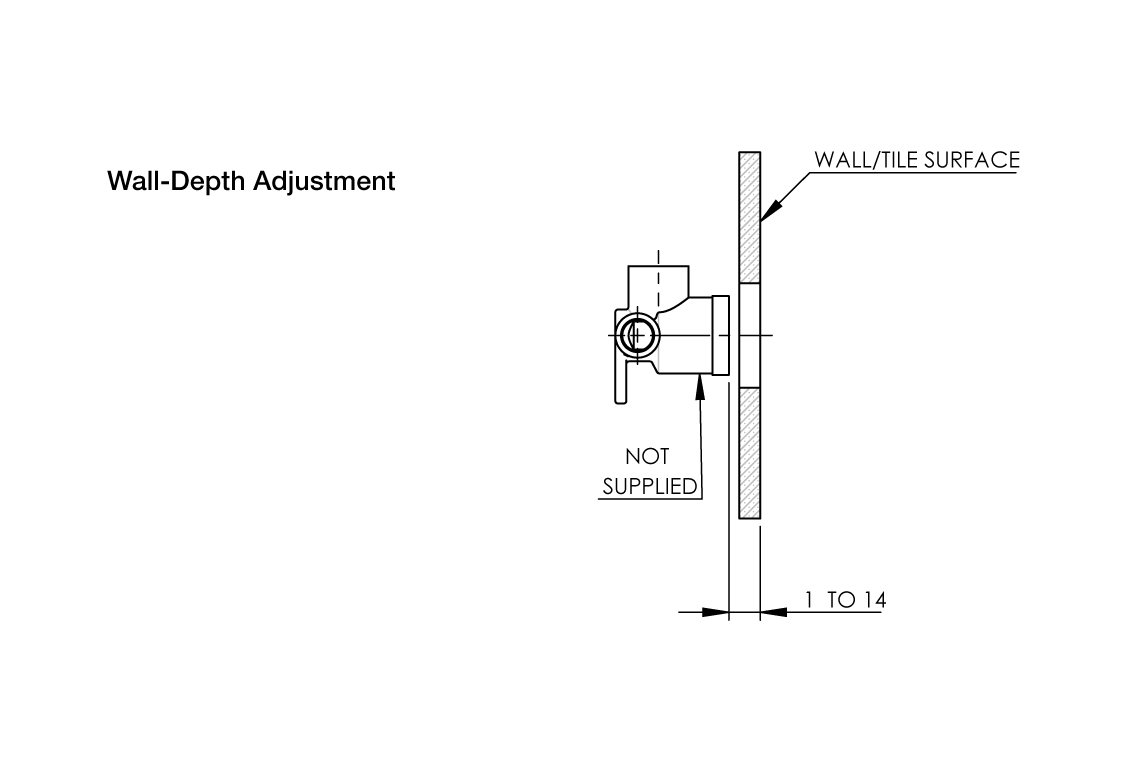

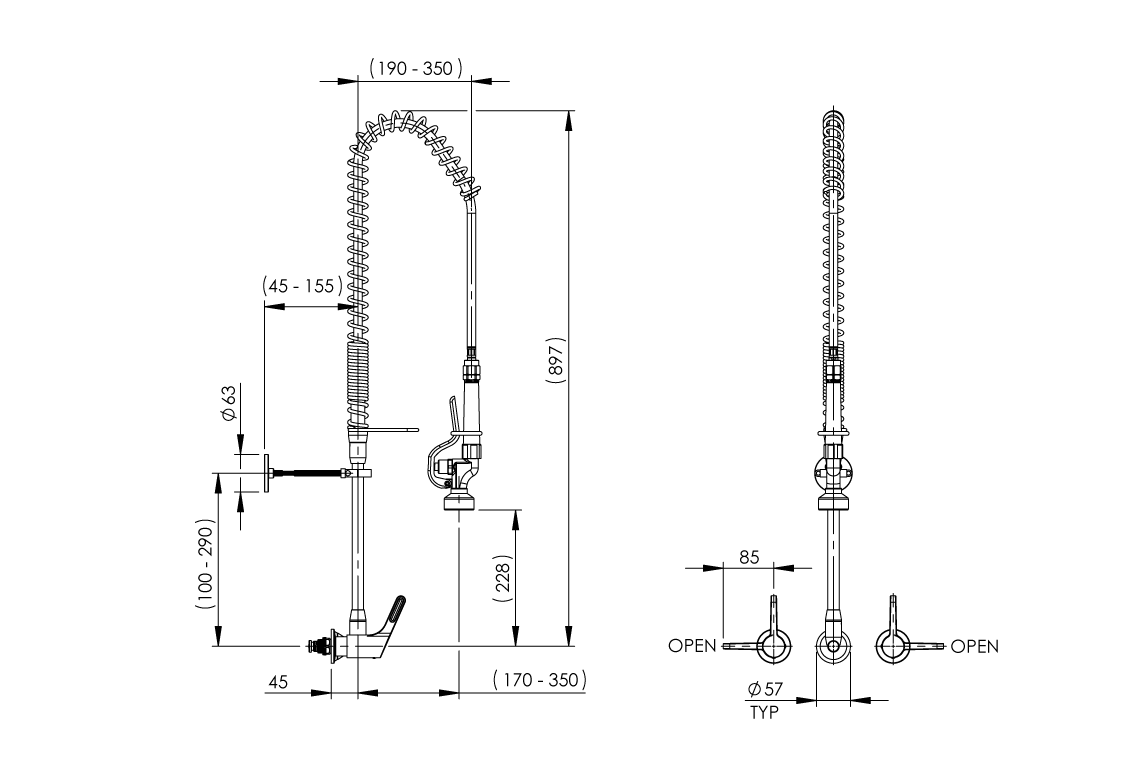

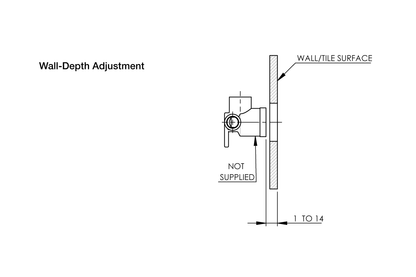

    Dimensional Drawings

    Product Information

    View full details

    Optional Accessories

      Spare Parts
