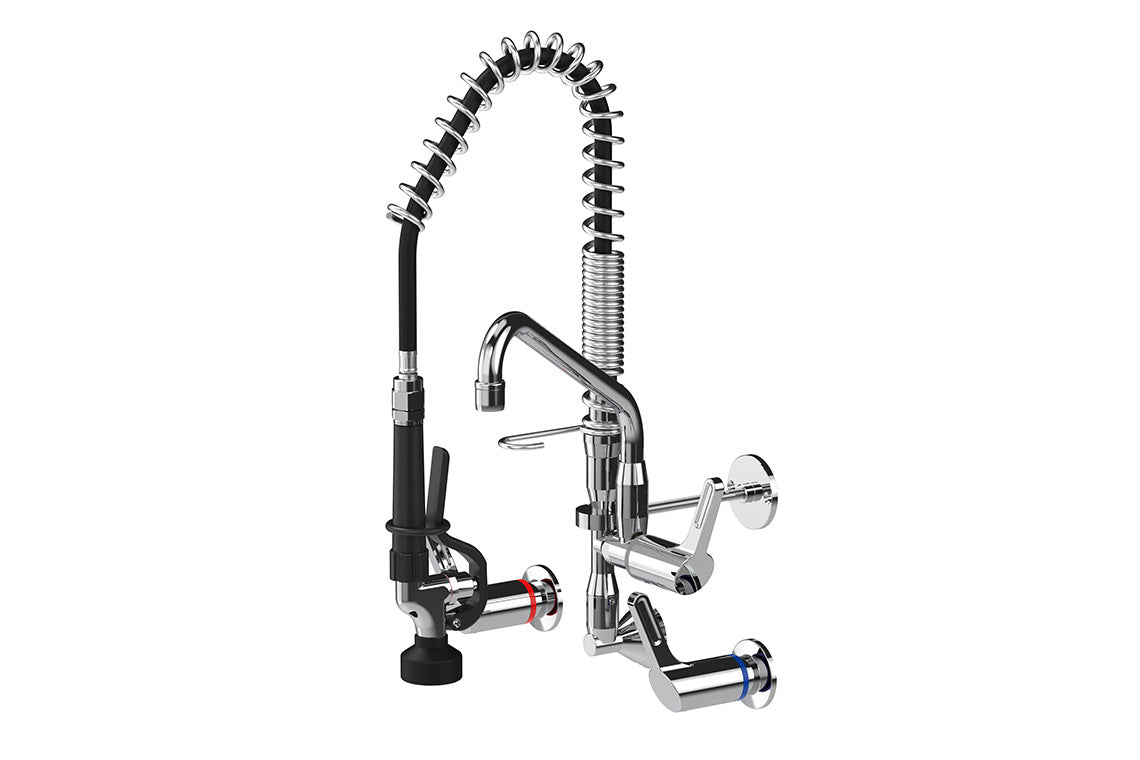

Food Service: Pre-Rinse Wall Assembly with Concealed Mixer Assembly – Compact Version with Pot Filler

Food Service: Pre-Rinse Wall Assembly with Concealed Mixer Assembly – Compact Version with Pot Filler

Product Code: FWS121W

Product description

A heavy-duty wall mounted pre-rinse spray and riser assembly to meet most commercial and institutional kitchen requirements. Ultra-Rinse pre-rinse trigger spray cleans more efficiently, requiring less water per minute.

Key Selling Points

  • Dual check valves for backflow protection
  • Mixing taps are supplied separately making this ideal for the conversion of an existing wall sink set to a pre-rinse outlet
  • Note Extended Depth Spindles are no longer available- consider using Exposed Mixer Sets (FWS031/FWS131)
  • Spring return allows the spray and hose to be pulled into the spraying position and to retract back from the washing area when released
  • Pot filler to maximise efficiency and workspace
  • WELS 6 Star (4 lpm) water efficiency rating
  • Quarter-turn, contra-rotating 80mm lever handles
  • Jumper Valve
  • Clear identification on all lever handles with blue, yellow or red coloured indicator collars
  • Attractive, solid brass chrome body
  • Robust construction for superior performance

Standard WELS (Stars)
6
Standard WELS Flow Rate (L/min)
4
WELS Category
Tapware
Certifications
WMKA1583 - LF,WELS-6 Star-4Lpm-Spray-Tap-5 Star,Lead Free
Maximum Recommended Temperature (Deg C)
70
Maximum Static Pressure (kPa)
800
Minimum Recommended Pressure (kPa)
100
Maximum Recommended Pressure (kPa)
500
Pot Filler Flow Rate (L/min)
5
Trigger Spray Flow Rate (L/min)
4
Valve Type
1/4 Turn Jumper Valve

BIM Files

Brochures

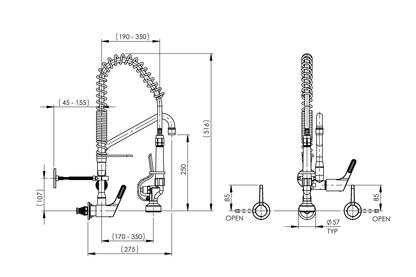

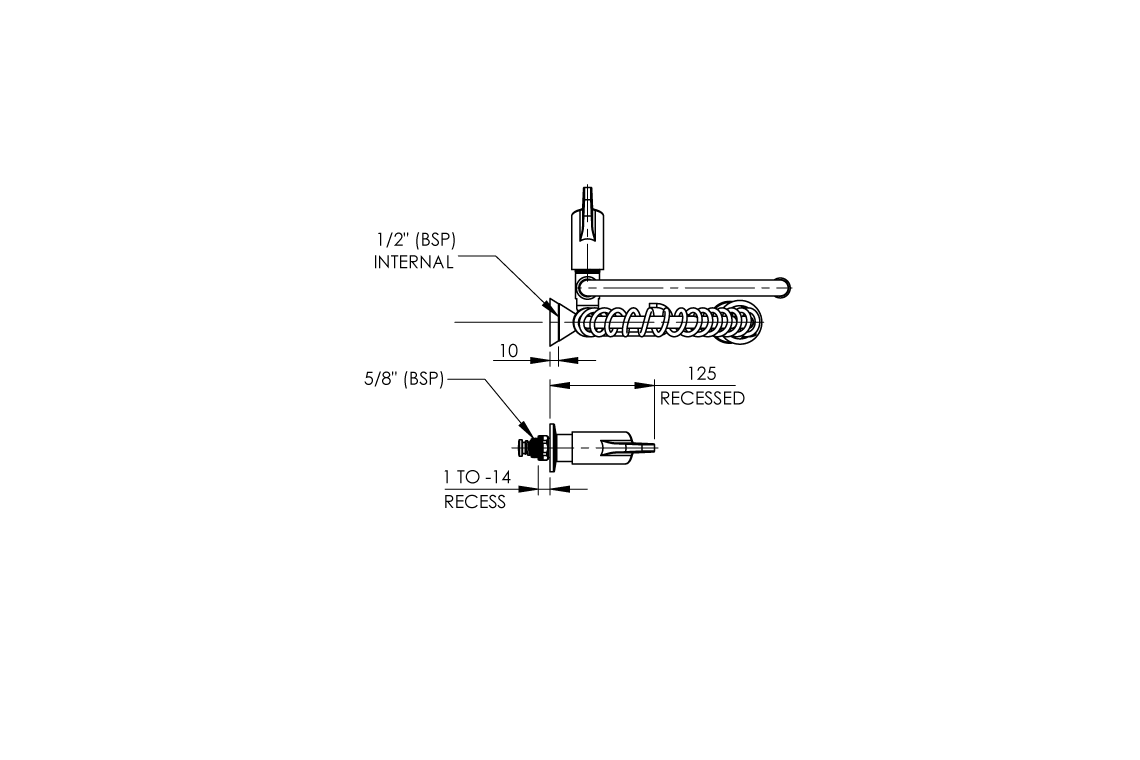

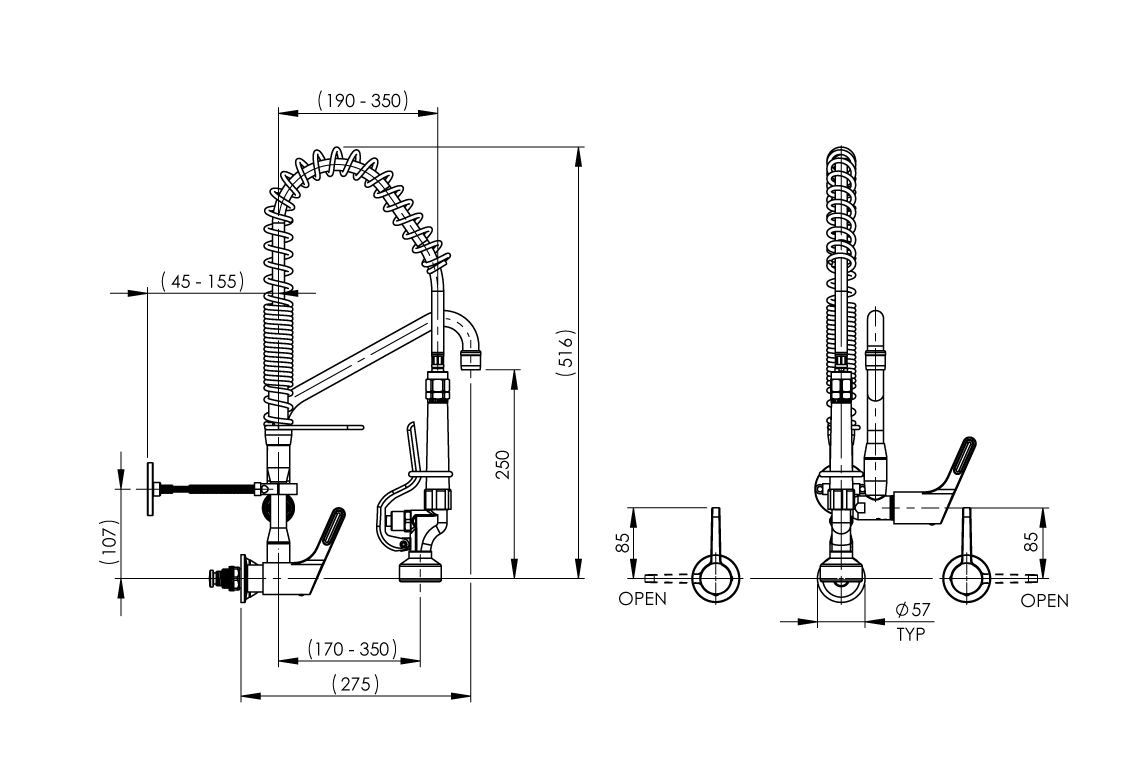

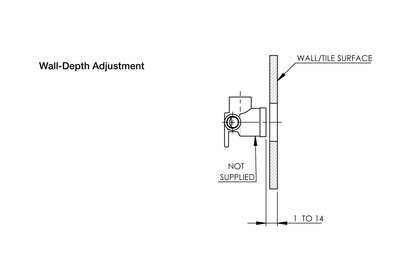

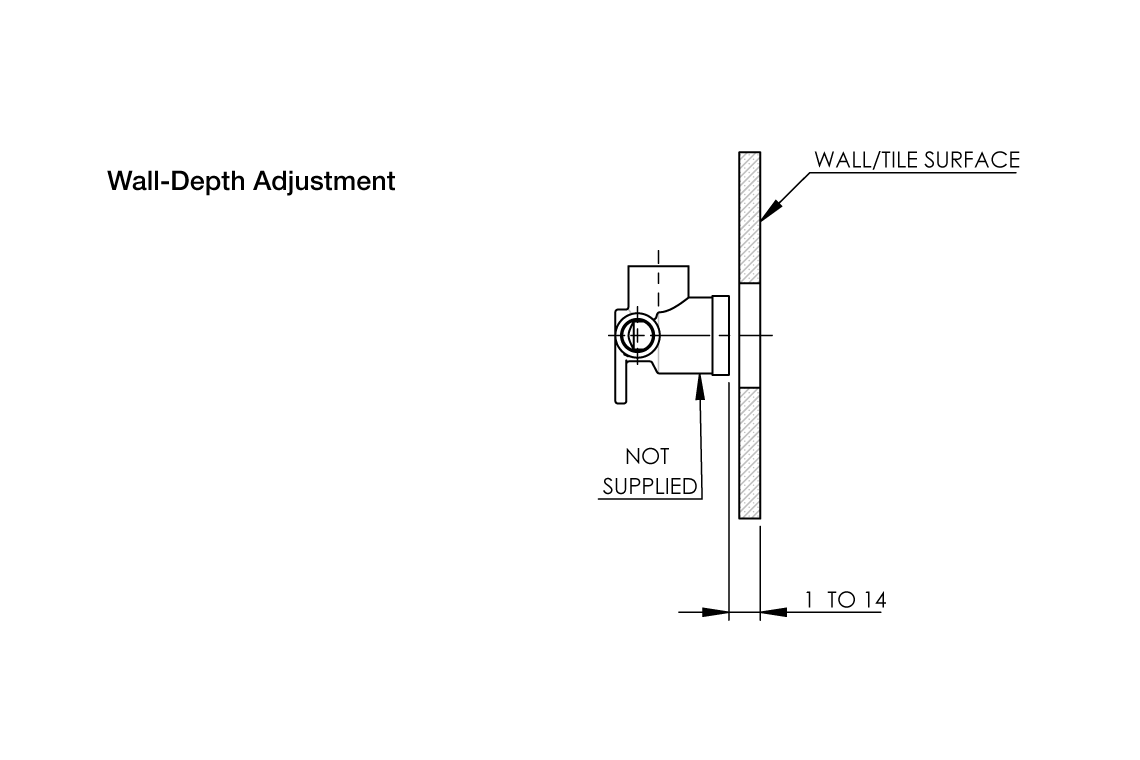

    Dimensional Drawings

    Product Information
