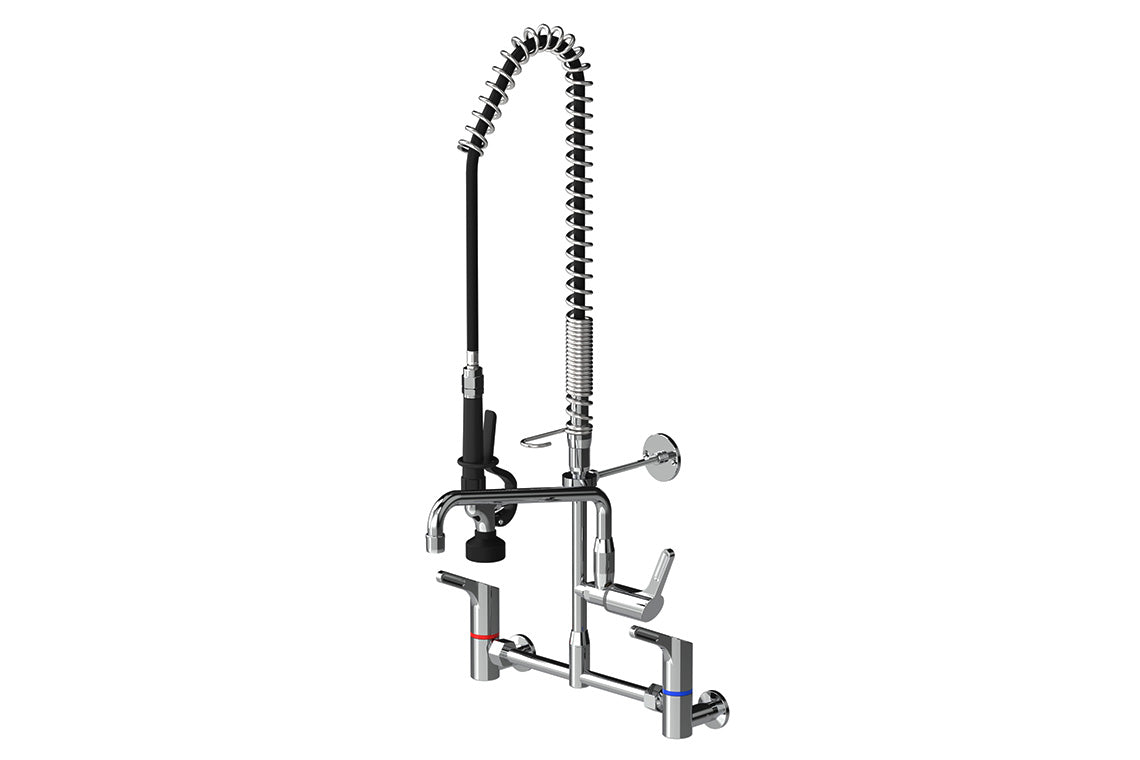

Food Service: Ultra Rinse Pre-Rinse Wall Adjustable Exposed Mixing Set with 300mm Pot Filler

Food Service: Ultra Rinse Pre-Rinse Wall Adjustable Exposed Mixing Set with 300mm Pot Filler

Product Code: FS704

Product description

Adjustable Centre Wall Mounted Jumper Valve Exposed Mixing Set with Pot Filler. A heavy-duty wall mounted pre-rinse spray and riser assembly to meet most commercial and institutional kitchen requirements. Ultra-Rinse pre-rinse trigger spray cleans more efficiently, requiring less water per minute.

Key Selling Points

  • Separate exposed hot and cold taps to provide either hot, cold water or mixed water
  • Dual check valves for backflow protection
  • Spring return allows the spray and hose to be pulled into the spraying position and to retract back from the washing area when released
  • Pex hose with smooth outer covering and braided inner has in-built swivels to ensure ease of use and to assist to prevent user fatigue
  • Quarter-turn, contra-rotating easy to clean 80mm lever handles
  • Heavy duty Jumper Valve 1/4 Turn spindles, can be serviced
  • Clear identification on all lever handles with blue, yellow, red or grey coloured indicator collars
  • Adjustable inlet centres for easy retro-fit
  • Includes Pot Filler
  • Attractive, lead free brass chrome body
  • Modular design allows tailoring for individual needs

Standard WELS (Stars)
6
Standard WELS Flow Rate (L/min)
4
WELS Category
Tapware
Certifications
WMKA1583 - LF,WELS-6 Star-4Lpm-Spray-Tap-5 Star,Lead Free
Maximum Working Temperature (Deg C)
70
Maximum Static Pressure (kPa)
800
Minimum Recommended Pressure (kPa)
100
Maximum Recommended Pressure (kPa)
500
Pot Filler Flow Rate (L/min)
5
Trigger Spray Flow Rate (L/min)
4
Inlet Connection
15mm (1/2" BSP)
Valve Type
1/4 Turn Jumper Valve

BIM Files

    Brochures

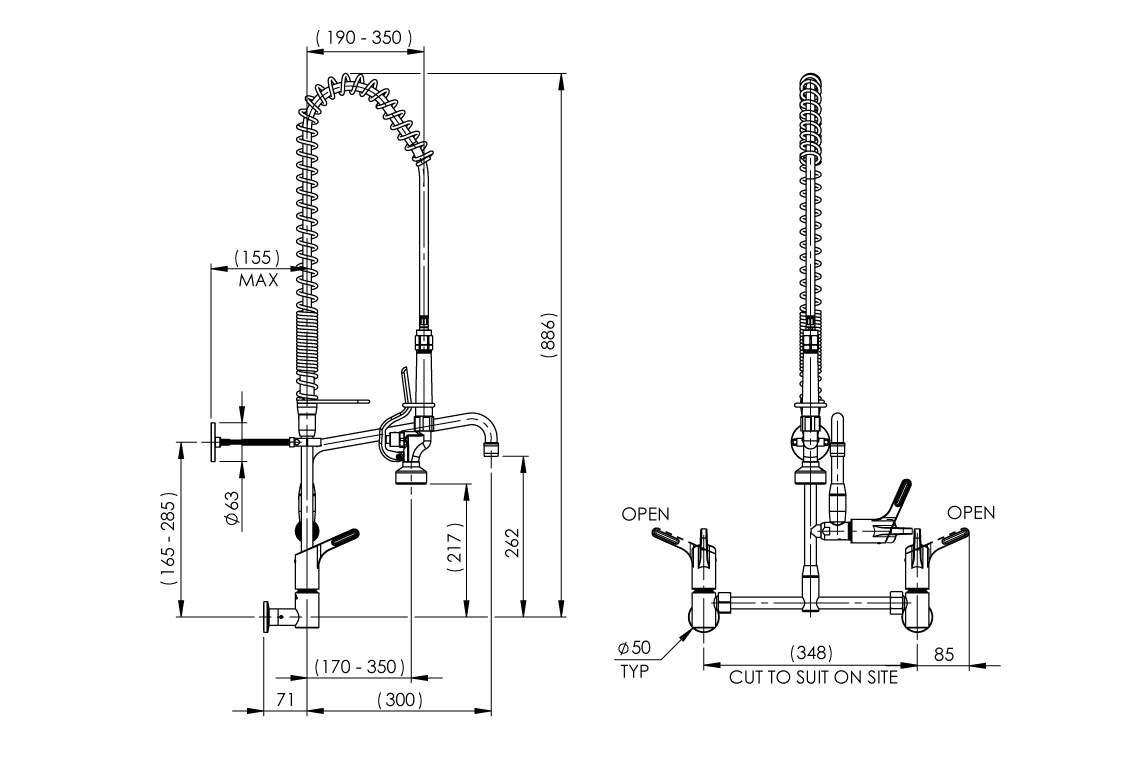

      Dimensional Drawings
