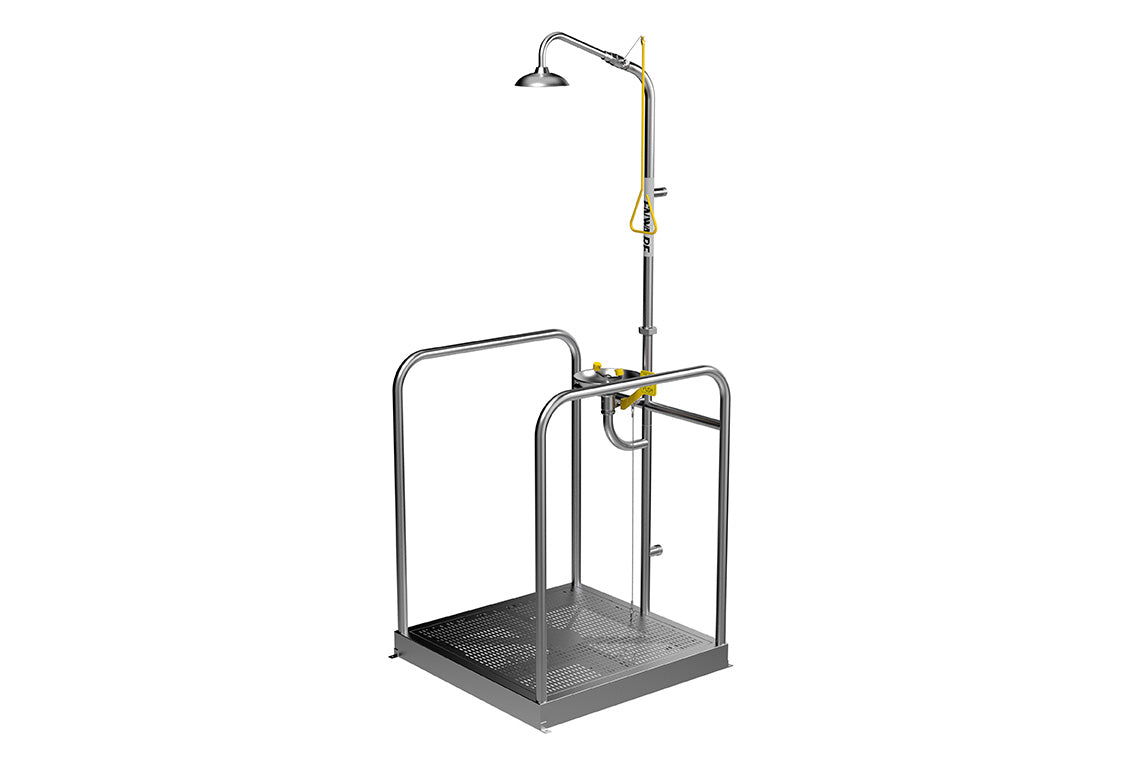

Free Standing Hand Operated Deluge Shower and Platform Operated Eye Wash
Free Standing Hand Operated Deluge Shower and Platform Operated Eye Wash
Product Code: EP1020
Couldn't load pickup availability
Product description
Enware's emergency safety showers assist in the rapid flushing of contaminants from the body with a deluge of flushing fluid and eye wash units help to flush contaminants and irritants from eyes and facial area. Stainless steel construction provides superior durability and reliability.
Key Selling Points
- Platform activated eye wash with integral auto-open dust covers. Stepping on platform activates eye wash.
- Pull down shower handle with high visibility yellow powder coating
- 316 stainless steel construction
- Independently tested for compliance to ANSI Z358.1 and AS4775
- Self-draining shower design reduces Legionella risk, particularly in tepid water applications
- Eye wash features Vertech Technology where dedicated eyewash streams deliver optimum coverage
- Zero velocity apex point provides comfort and control for effective cleansing of eyes
- Balanced simultaneous operation
- Certifications
- AS4775,ANSI Z358.1
- Minimum Performance Requirements Working Pressure (kPa)
- 210
- Pressure Notes
- Caution when pressure exceeds 550 kPa
- Minimum Eyewash Flow Rate (L/min)
- 17
- Minimum Shower Flow Rate (L/min)
- 76
- Inlet Connection
- 25mm (1” BSP)
- Water Supply Line Size
- Must be hydraulically sized to meet requirements.
- Waste Water Outlet Connection
- 32mm (1-1/4" BSP)
- Finish
- Brushed
- Valve Type
- Ball Valve
- Mounting Type
- Platform
BIM Files
Brochures

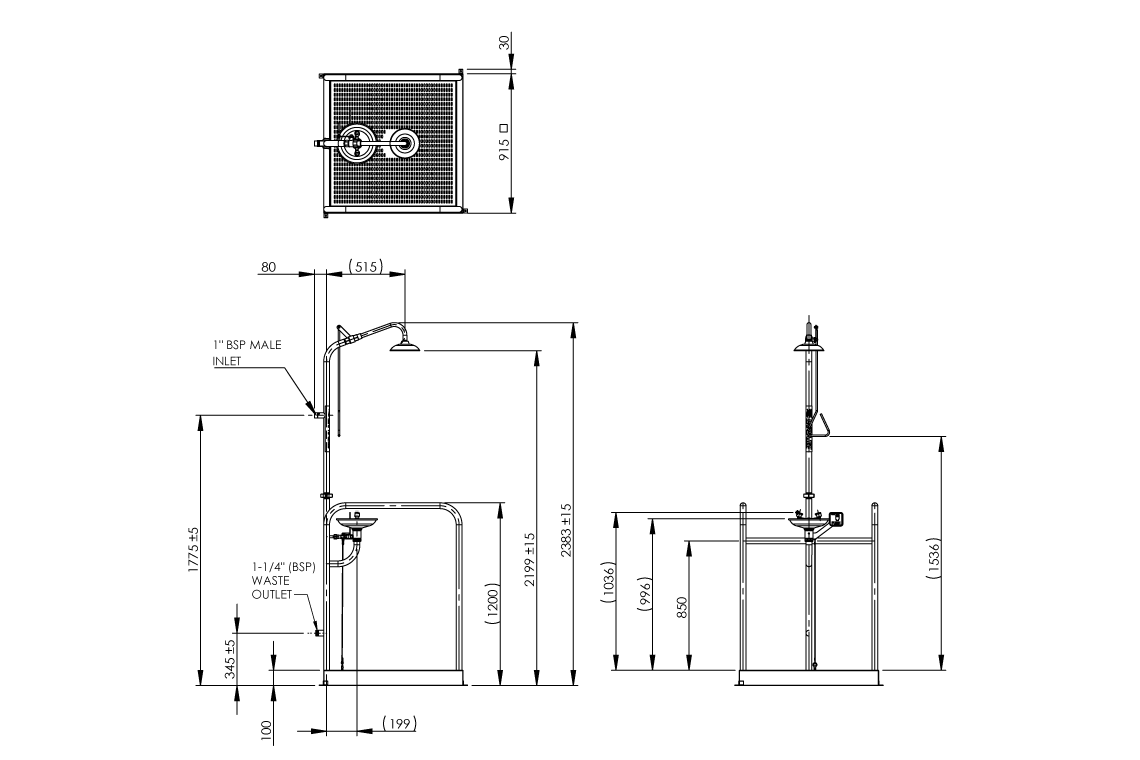

Dimensional Drawings
Product Information
