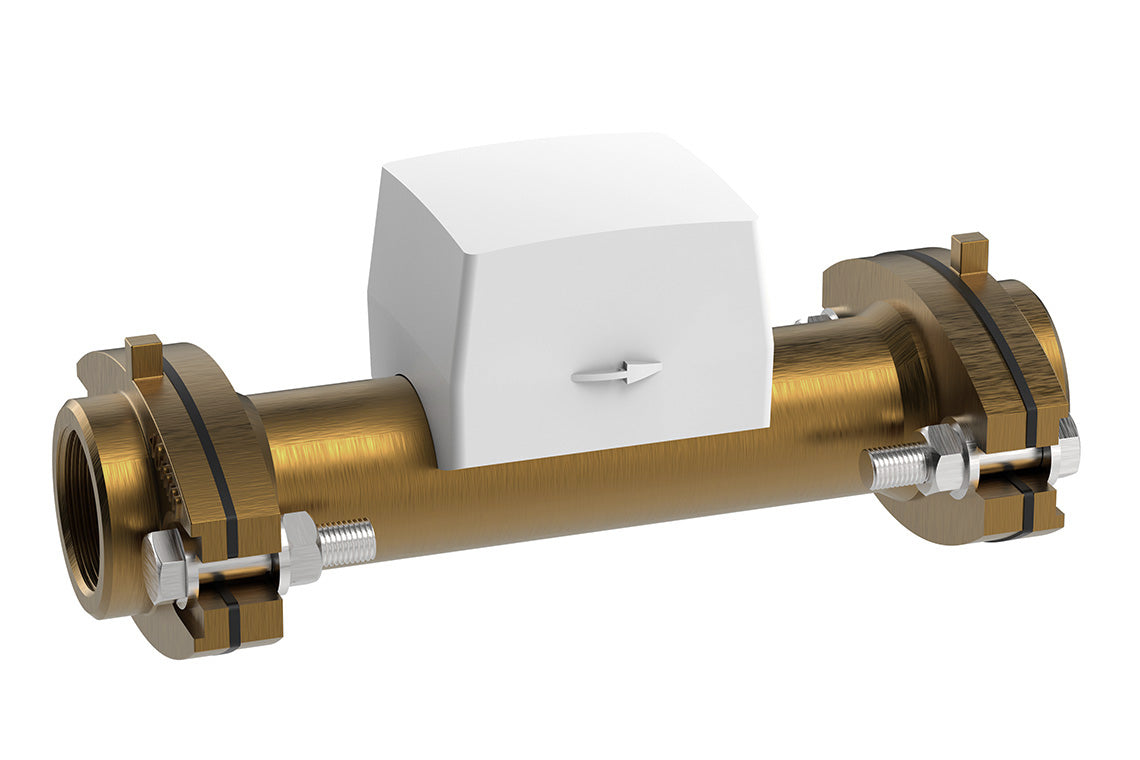

HYDRUS2 COLD DN40 RADIO

HYDRUS2 COLD DN40 RADIO

Product Code: EHM5040X2FR

Product description

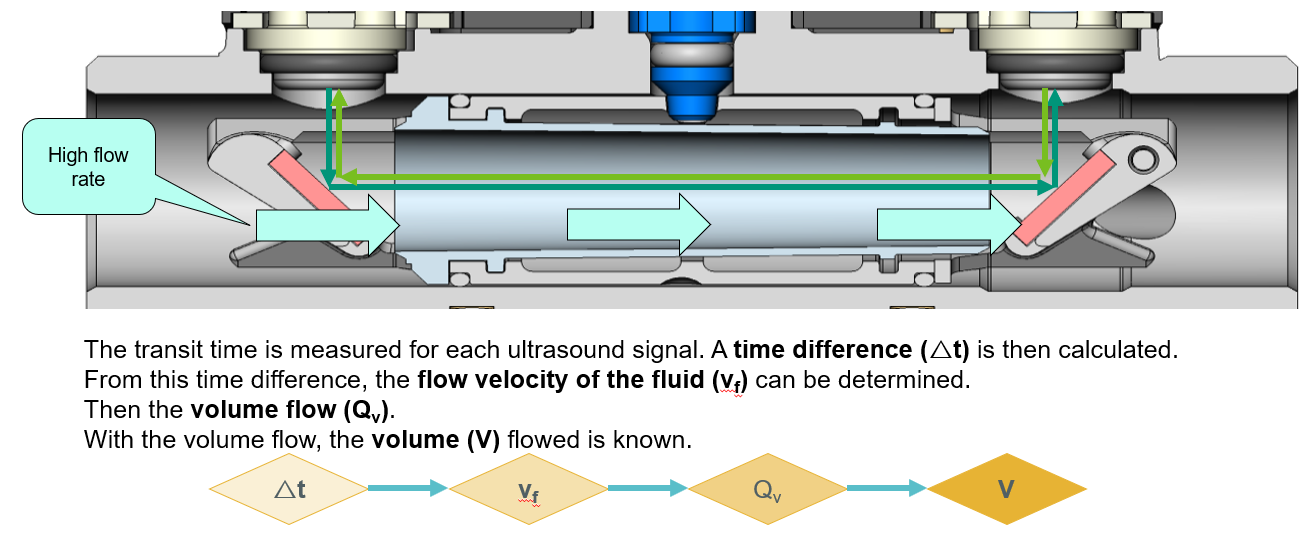

The HYDRUS2 Radio ultrasonic water meter provides accurate, maintenance free measurement with integrated wireless radio for easy deployment and reduced installation complexity while retaining advanced BMS integration via BACnet IP. Its advanced ultrasonic technology provides long term stability, no moving parts, and reliable performance even in demanding conditions. The meter supports high resolution data, leak detection, backflow alerts, and robust diagnostics to enhance system visibility. With IP68 protection it is suitable for both indoor and outdoor use, with its long battery life it will continue to function in a blackout, a wide dynamic range of up to R800 enables measurement of flow down to the level of drips, support for both horizontal and vertical installation and no need for calming sections. HYDRUS2 suits a broad range of commercial and industrial environments. The HYDRUS2 Radio is suited to large facilities, campuses, and sites seeking cable free advanced BMS integration for facilities needing detailed, automated water reporting.

Key Selling Points

  • WaterMark certified on all sizes
  • NMI approved on all sizes
  • Higher performance than class 2 requirements
  • Q1/Q3 (Dynamic range) up to R800
  • Ultrasonic design minimises sedimentation
  • Long-term stability under difficult conditions
  • Horizontal and vertical installation
  • IP68 permanent immersion (suitable for outdoor installation)
  • U0 / D0, no need for calming sections
  • No moving parts & no magnetic influence
  • No measurement of air
  • Integrated communications
  • Battery lifetime up to 16 years
  • Display with error and alarm codes including leakage detection
  • Available in T50 (Cold Water) DN 20, 25, 32, 40, 50, 80, 100, 150, 200
  • Available in T90 (Hot Water) DN 15, 20, 25, 32, 40

Certifications
WM 40207
Inlet Connection
Oval Flange 40mm
Outlet Connection
Oval Flange 40mm

BIM Files

Brochures

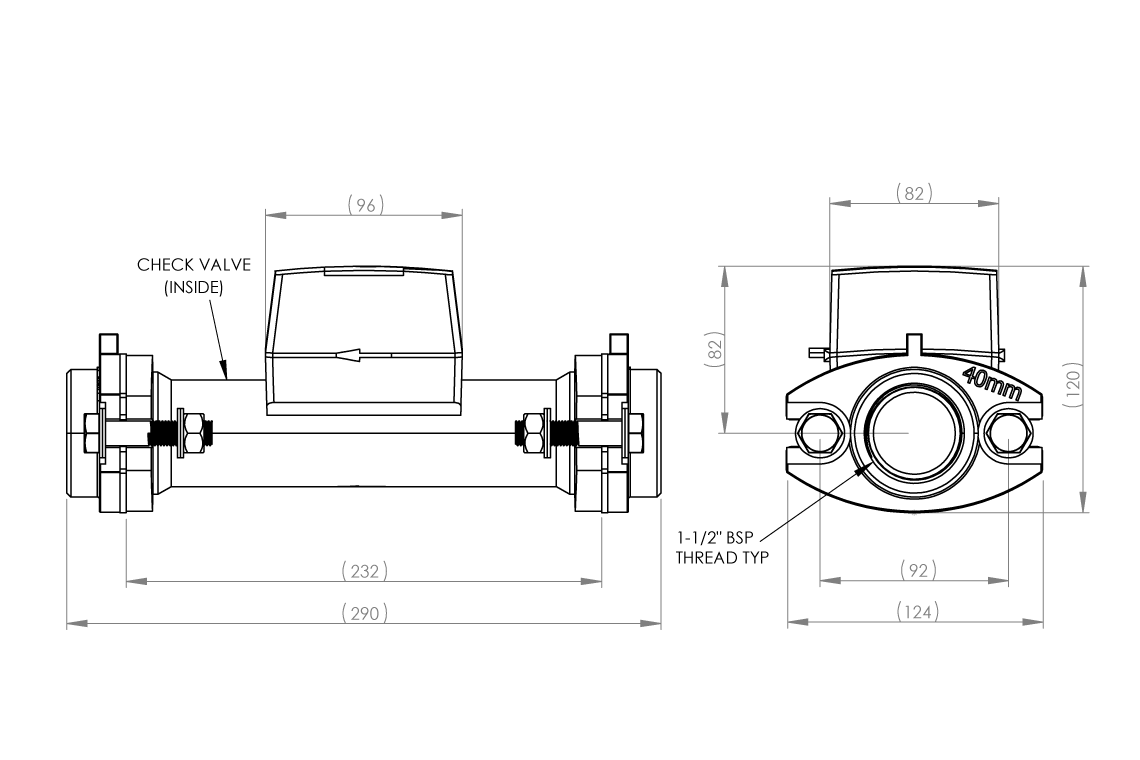

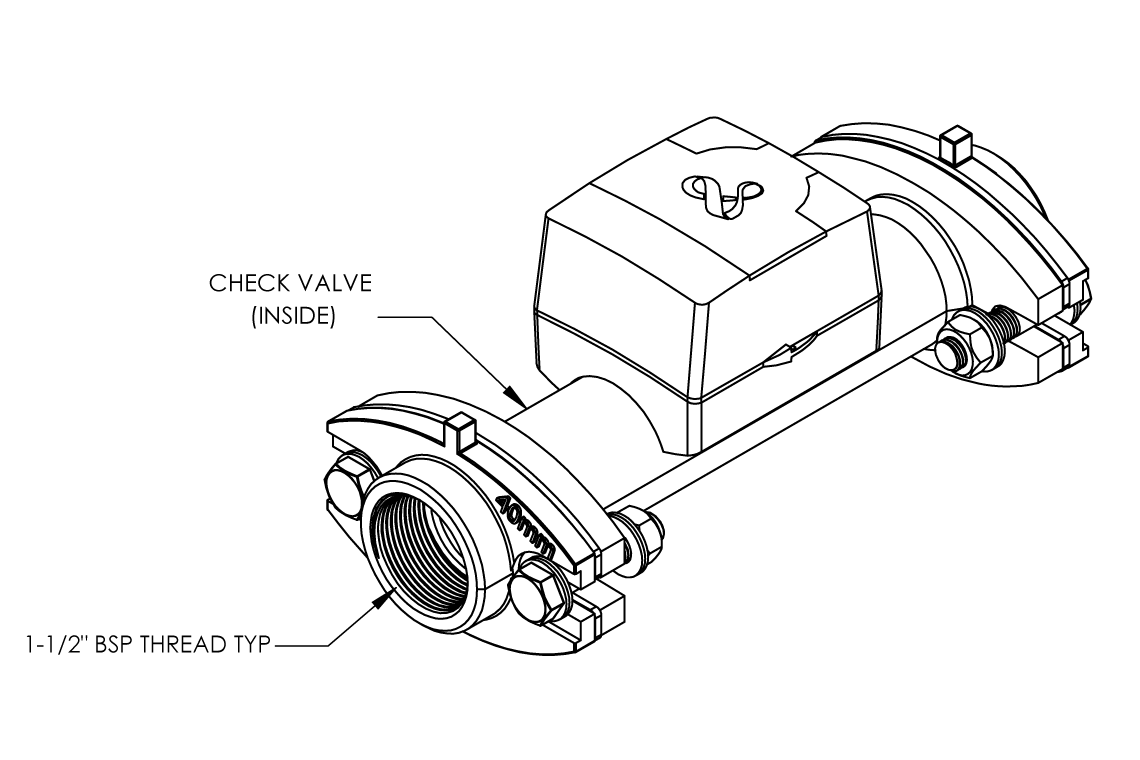

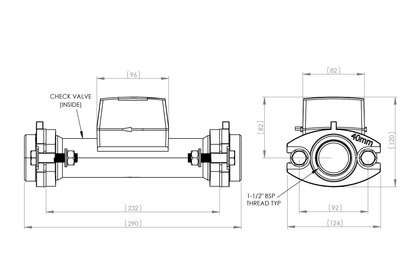

    Dimensional Drawings

      Product Information
