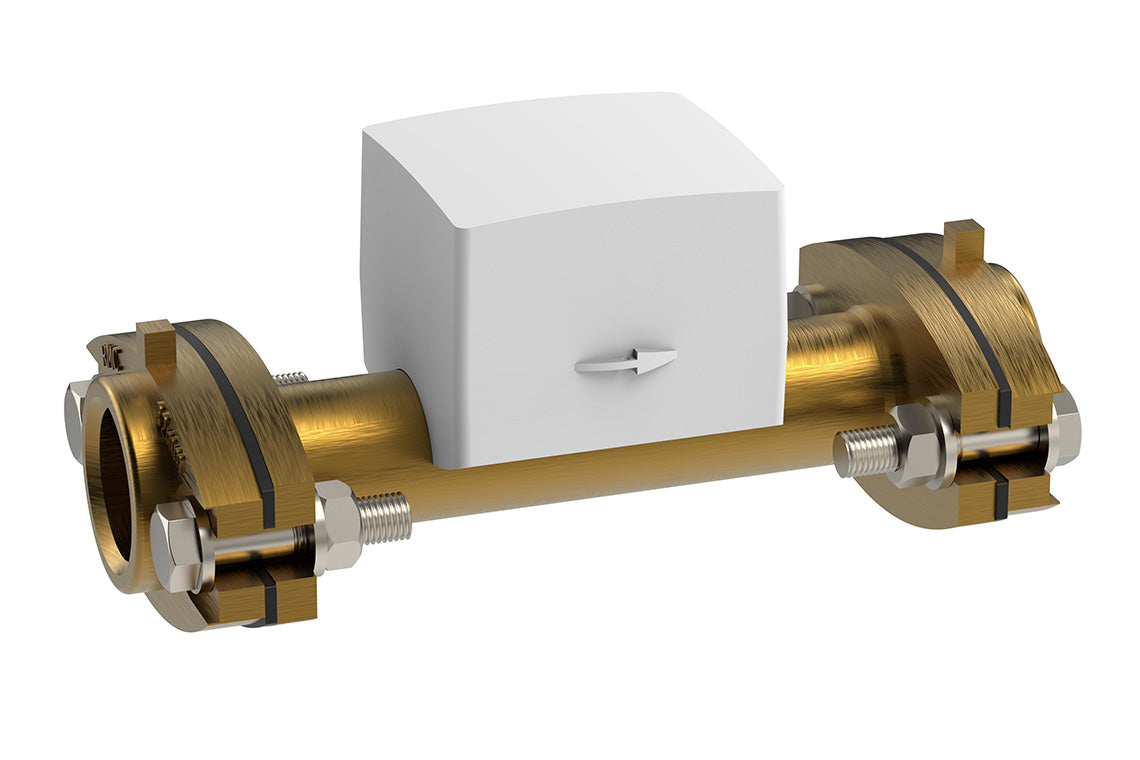

HYDRUS2 HOT DN32 MBUS
HYDRUS2 HOT DN32 MBUS
Product Code: EHM9032X1FM
Couldn't load pickup availability
Product description
Advanced Digital Communication
Wired M-BUS meters use the M-BUS protocol to deliver detailed consumption data and diagnostics directly to your BMS. This enables accurate reporting, smart building integration, and compliance with sustainability standards. This option including advanced features such as leakage, backflow and air in pipe alerts.
Green Star Compliance:
Green Star projects require automated, accurate water data. Wired M-BUS meets this requirement, making it the preferred choice for certified buildings.
Best for:
- Advanced BMS integration
- Detailed consumption reporting
- Green Star certified projects
Key Selling Points
- NMI approved and WaterMarked with dynamic range up to R800

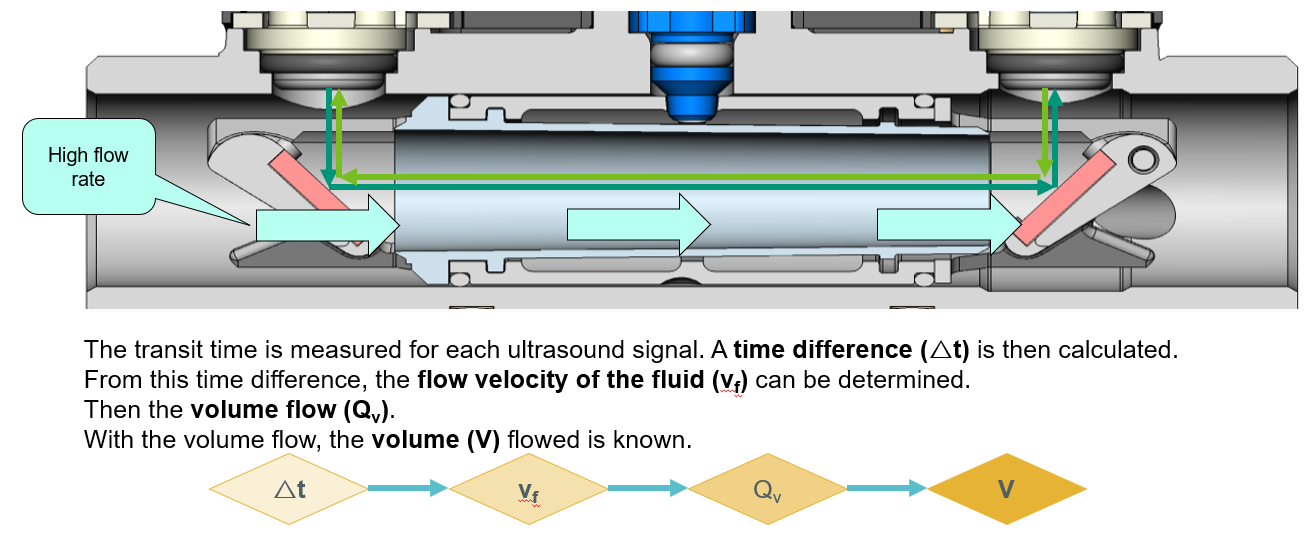

- Ultrasonic design minimises sedimentation
- Horizontal and vertical installation
- No magnetic influence
- U0 / D0, no need for calming sections
- Integrated radio communication based on Open Metering telegram (OMS Generation 3 or 4, Profile B)
- IP68 permanent immersion (suitable for outdoor installation)
- Higher performance than class 2 requirements
- Long-term stability under difficult conditions
- No measurement of air
- No over-run performance
- Display with error and alarm codes including leakage detection
- Battery lifetime up to 16 years
- Available in Cold Water DN 20, 25, 32, 40, 50, 80, 100, 150, 200
- Available in Hot Water DN 15, 20, 25, 32, 40
- Available in varients:
- EHM9032X1FR: Radio
- EHM9032X1FL: Radio + Wired Pulse
- EHM9032X1FM: Wired M-bus
- Certifications
- WM 40207
- Inlet Connection
- Oval Flange FL32
- Outlet Connection
- Oval Flange FL32
- Power Supply (AC/DC)
- 3.6VDC
BIM Files
Brochures

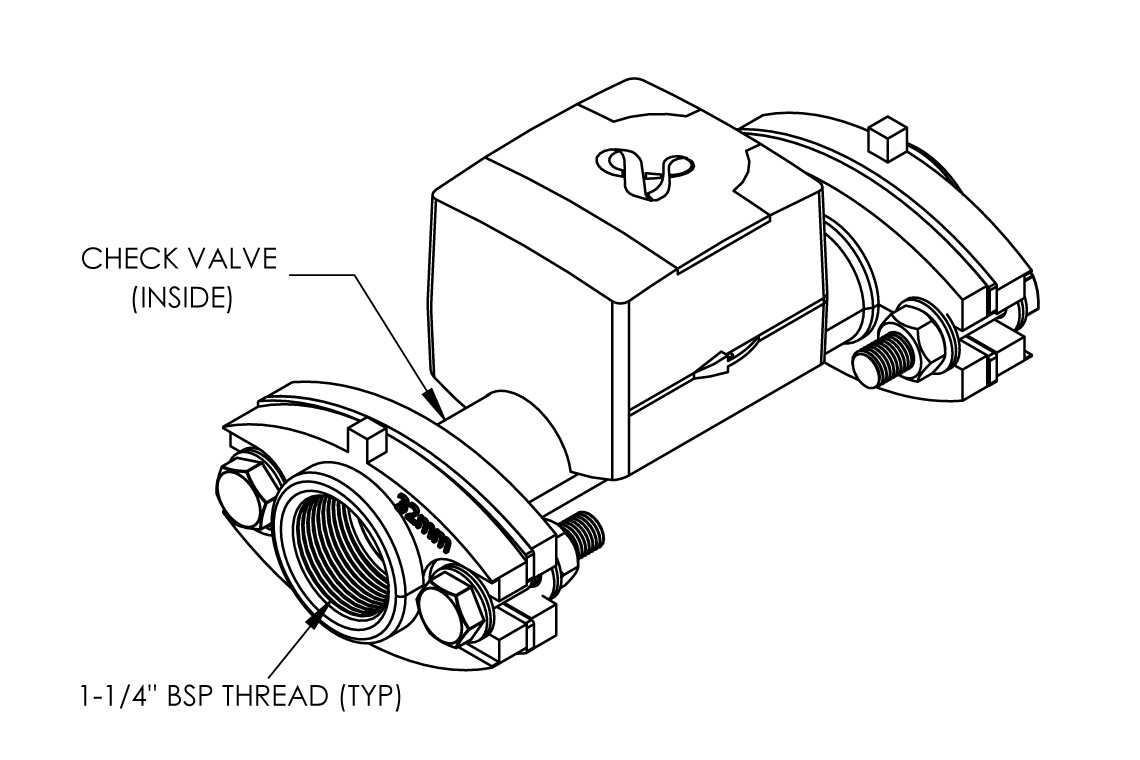

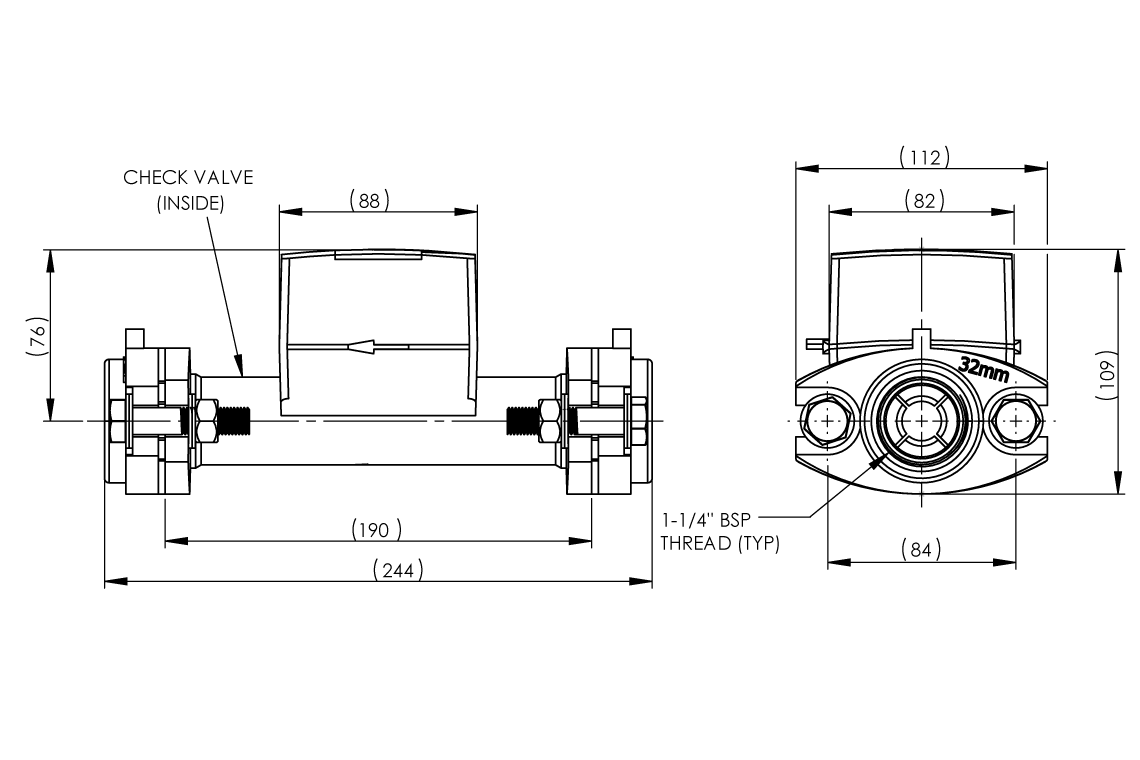

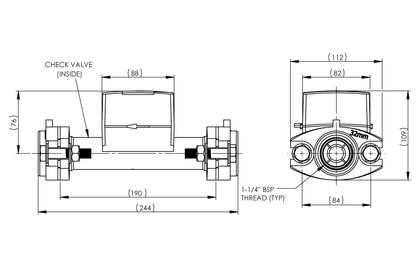

Dimensional Drawings
Product Information
