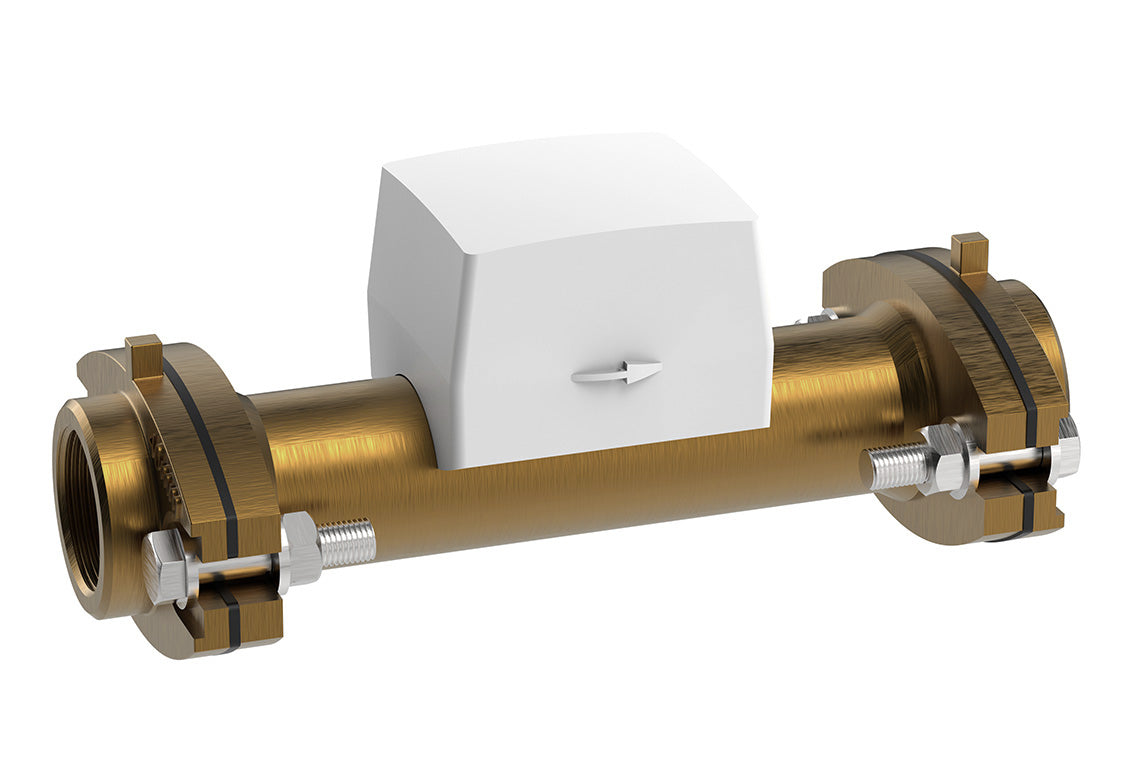

HYDRUS2 HOT DN40 RADIO

HYDRUS2 HOT DN40 RADIO

Product Code: EHM9040X2FR

Download data sheet Download install guide

Product description

This meter can be used in either of three applications:

On-Premises BMS (AMI)

Wireless Advanced Metering Infrastructure
Radio-enabled Hydrus 2.0 meters transmit data wirelessly to RDCs on the local network, the raw data is processed by and on-prem server hosting our Smart Flow Metering software that integrates with your BMS via BACnet over IP.
This eliminates the need for extensive cabling while providing close to real-time, high-resolution data including advanced features such as leakage, backflow and air in pipe alerts.

Green Star Compliance:
AMI solutions meet Green Star requirements for automated water monitoring and reporting, supporting sustainability goals.

Best for:
  • Large facilities
  • Minimal wiring installations
  • Green Star certified projects

Mobile Meter Reading (AMR)

Efficient Manual Data Collection
AMR uses radio-enabled meters for quick drive-by or walk-by readings via handheld devices.
Ideal for sites without a BMS and where remote monitoring isn’t required.

Best for:
  • Tenant billing
  • Facilities without BMS requirements
  • Quick manual reading
  • Reducing labor costs
  • Cost effective solutions

Key Selling Points

  • NMI approved and WaterMarked with dynamic range up to R800

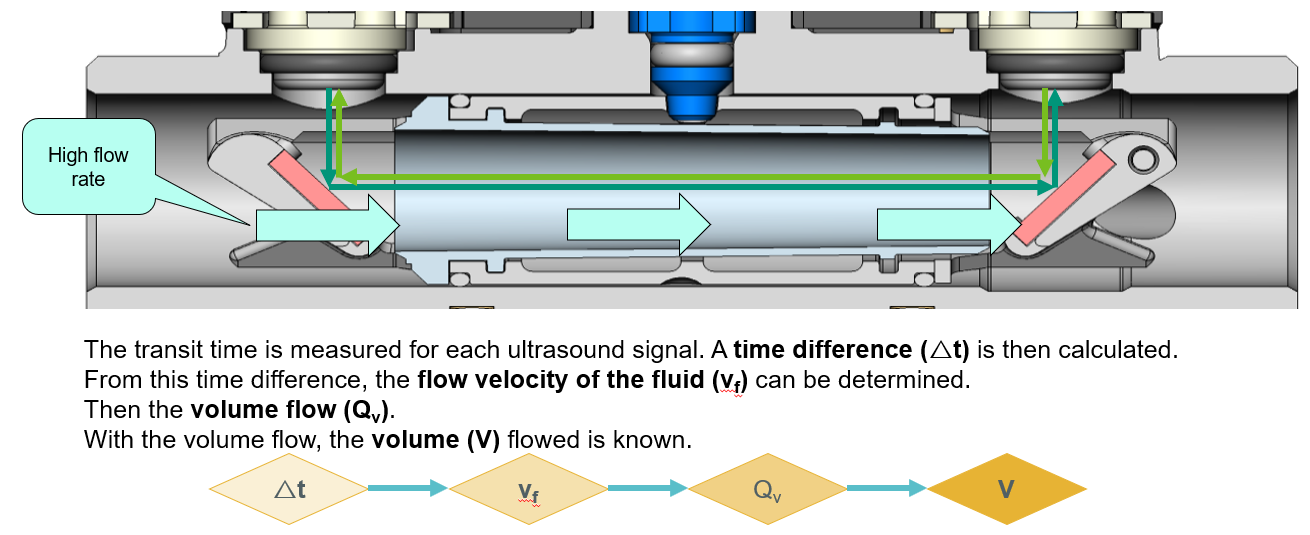

  • Ultrasonic design minimises sedimentation
  • Horizontal and vertical installation
  • No magnetic influence
  • U0 / D0, no need for calming sections
  • Integrated radio communication based on Open Metering telegram (OMS Generation 3 or 4, Profile B)
  • IP68 permanent immersion (suitable for outdoor installation)
  • Higher performance than class 2 requirements
  • Long-term stability under difficult conditions
  • No measurement of air
  • No over-run performance
  • Display with error and alarm codes including leakage detection
  • Battery lifetime up to 16 years
  • Available in Cold Water DN 20, 25, 32, 40, 50, 80, 100, 150, 200
  • Available in Hot Water DN 15, 20, 25, 32, 40
  • Available in varients:
    • EHM9040X2FR: Radio Only
    • EHM9040X2FL: Radio + Wired Pulse
    • EHM9040X2FM: Wired M-bus Only

Certifications
WM 40207
Inlet Connection
Oval Flange FL40
Outlet Connection
Oval Flange FL40
Power Supply (AC/DC)
3.6VDC

BIM Files

Brochures

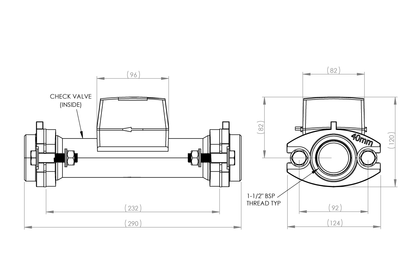

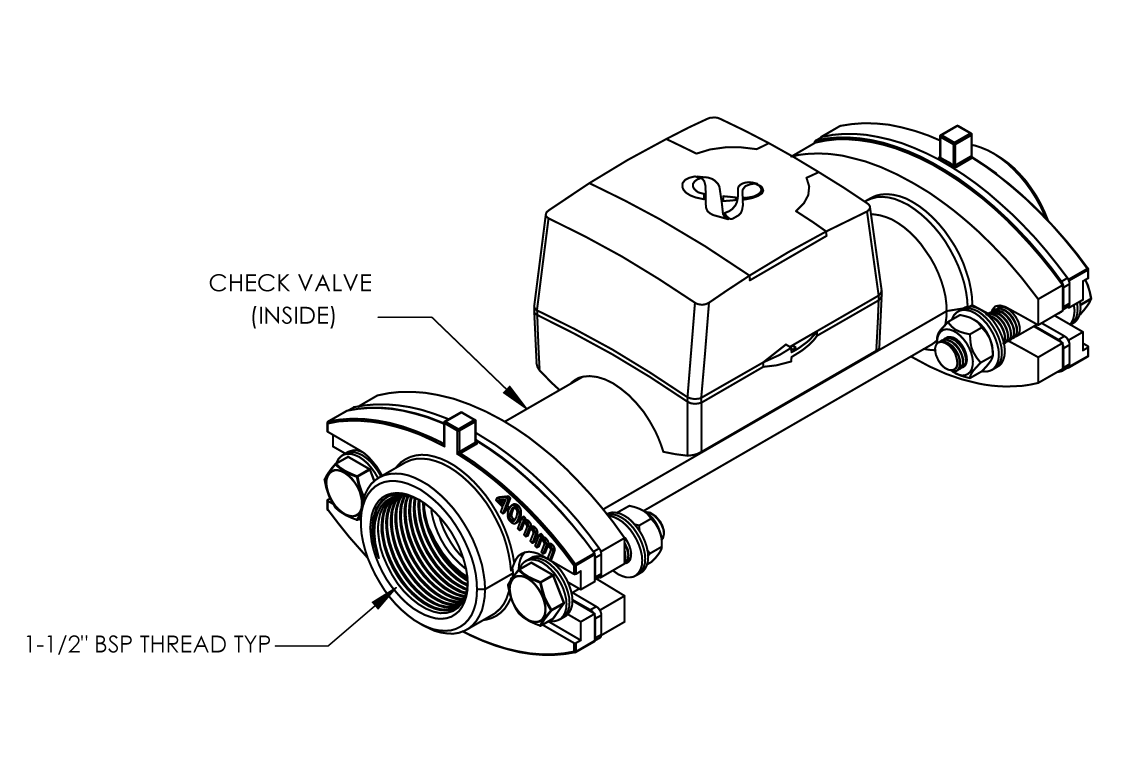

    Dimensional Drawings
