Izar Radio External For 3rd Party Pulse Meter
Izar Radio External For 3rd Party Pulse Meter
Order Code: EHM200
Couldn't load pickup availability
Product description

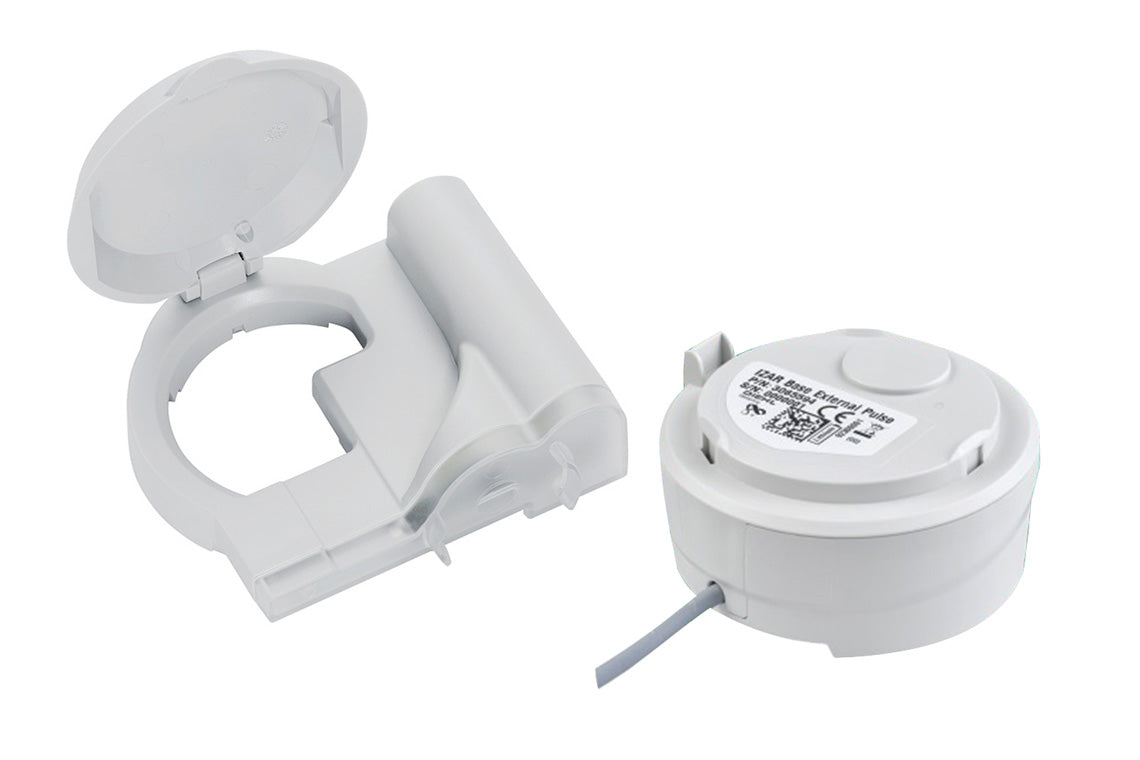

IZAR Base External PULSE and the IZAR RCI Radio Module IZAR BE PULSE receives information from a pulse meter, and it transmits meter consumption over WMBUS OMS radio to an RDC. This product is often used in combination with EHM002 (Reed Switch For 3rd Party Meter)
Key Selling Points
- Simple installation
- Transmission of meter data by radio to mobile or stationary receivers
- For all types of meters with pulse transmitter or open collector interface
- On-site-programming using IrDa interface
- Storage and transmission of up to three due date values
- Battery powered with a typical lifetime of 15 years
- Minimum Operating Temperature (Deg C)
- -15
- Maximum Operating Temperature (Deg C)
- 55
- IP Rating
- 68
BIM Files
Brochures

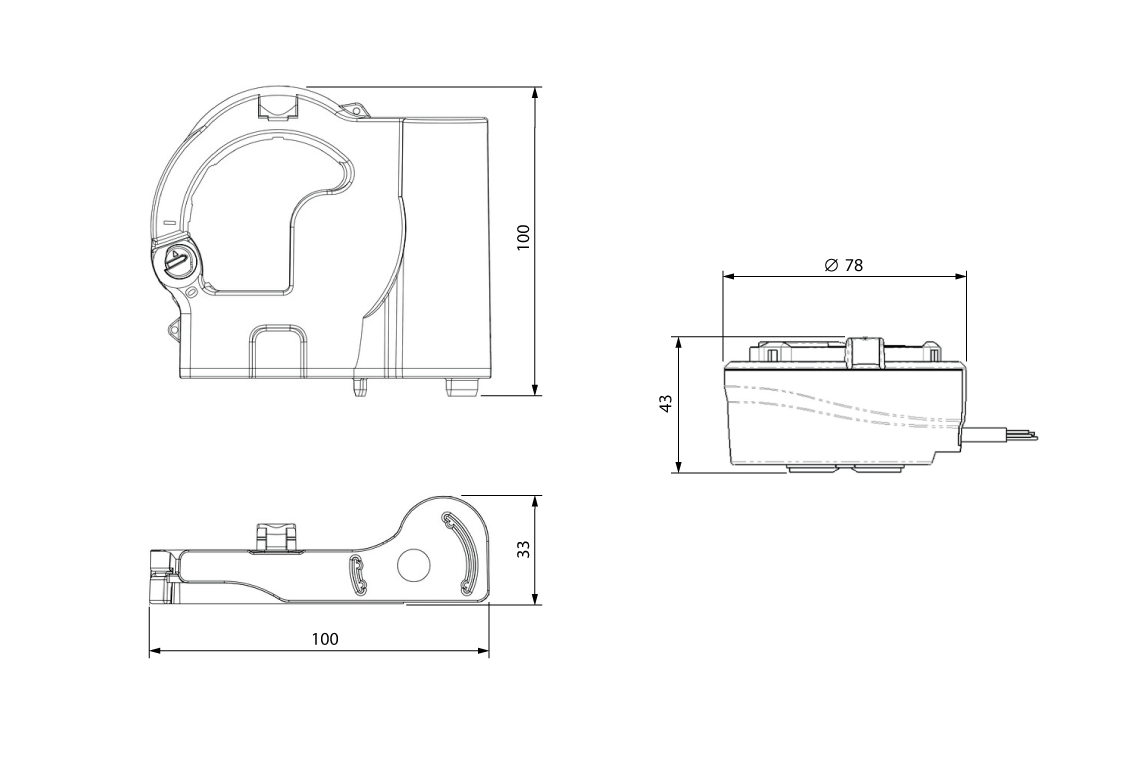

Dimensional Drawings
Product Information
