Concealed Spindle Washing Machine Tap - Jumper Valve
Concealed Spindle Washing Machine Tap - Jumper Valve
Product Code: CS313
Couldn't load pickup availability
Product description
Concealed spindle tapware series is robust and vandal resistant. The ergonomically designed handle features a dress skirt which conceals the anti-vandal handle fixing and spindle. Ideal for commercial, institutional and public amenity applications.
Key Selling Points
- High quality dezincification resistant (DR) brass construction
- Vandal-resistant internal locking ring secures the handle requires special key to release (key supplied)
- Serviceable with all wearing components replaceable, thus providing an even longer life
- Blue (Cold), Red (Hot) or Yellow (Warm) coloured indicator button. (3 colour indicator buttons included)
- Heavy duty bright chrome
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP (15mm)
- Outlet Connection
- 3/4" BSP (20mm)
- Finish
- Chrome
- Valve Type
- Jumper Valve
BIM Files
Brochures

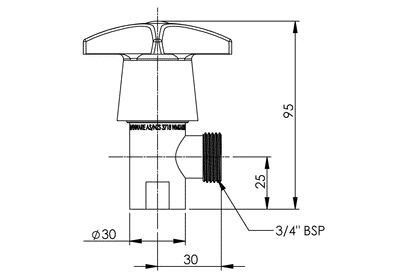

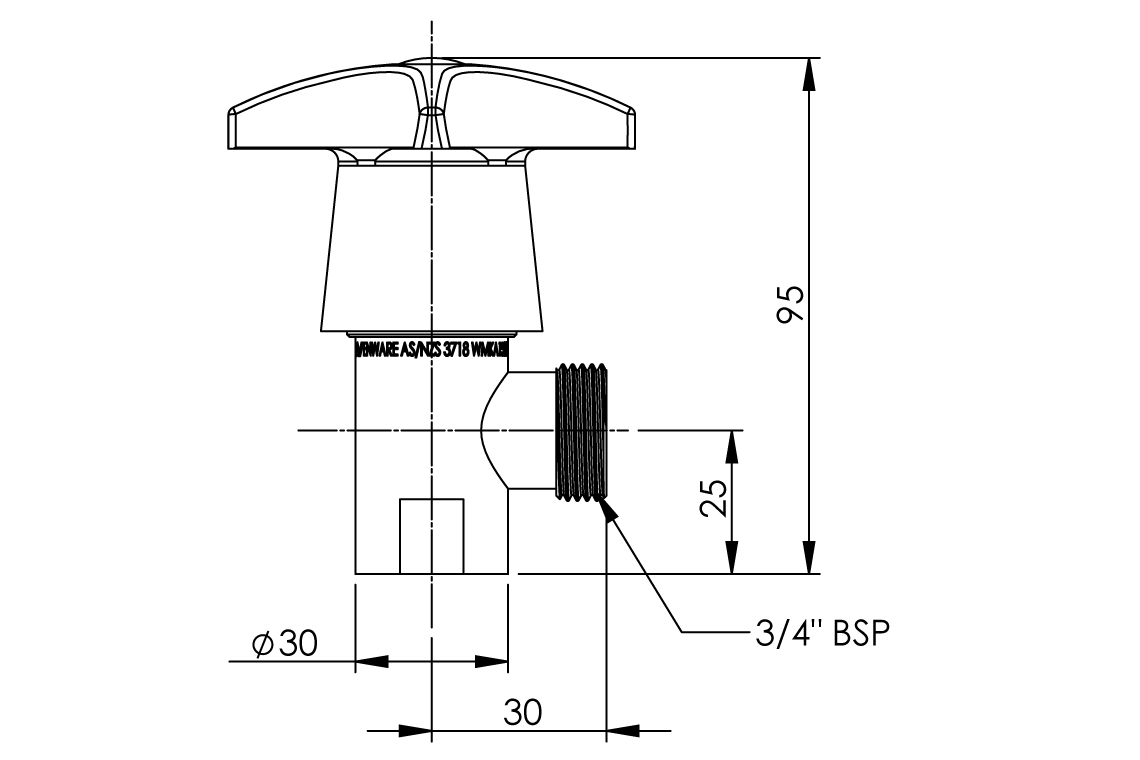

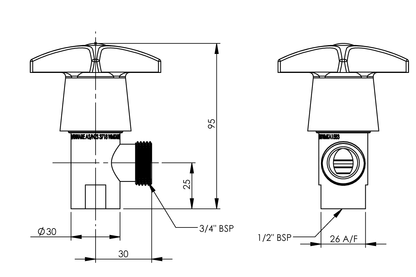

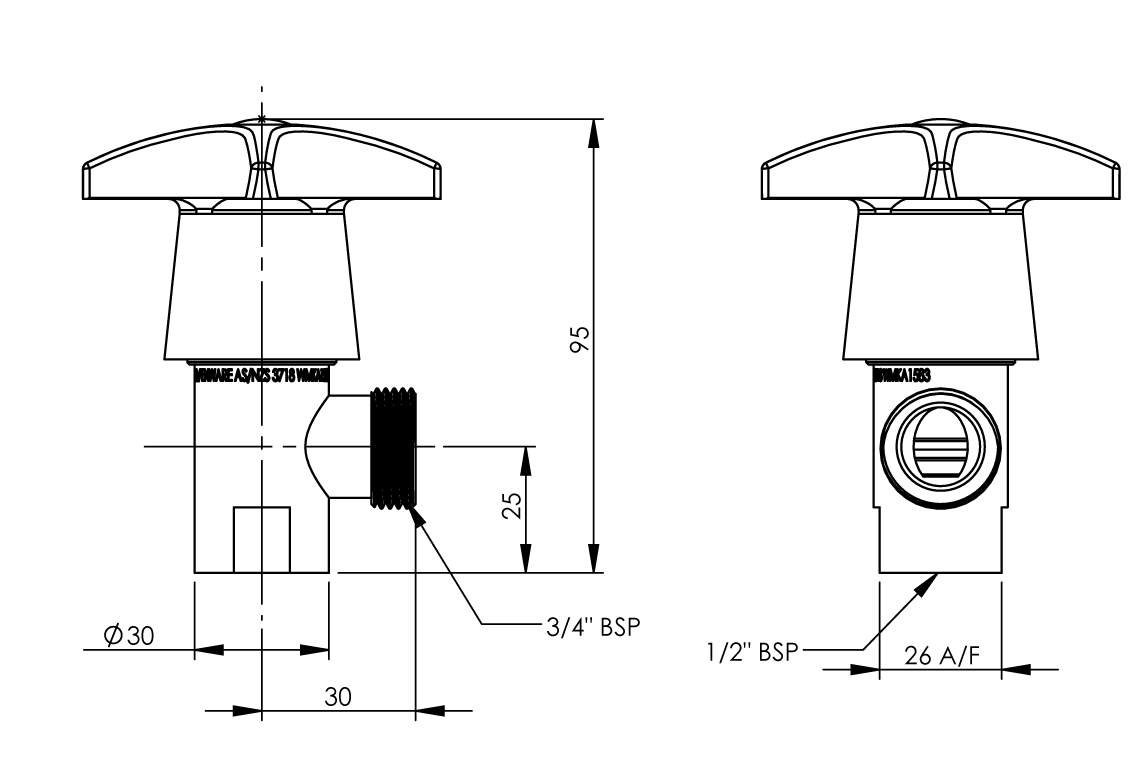

Dimensional Drawings
Product Information
