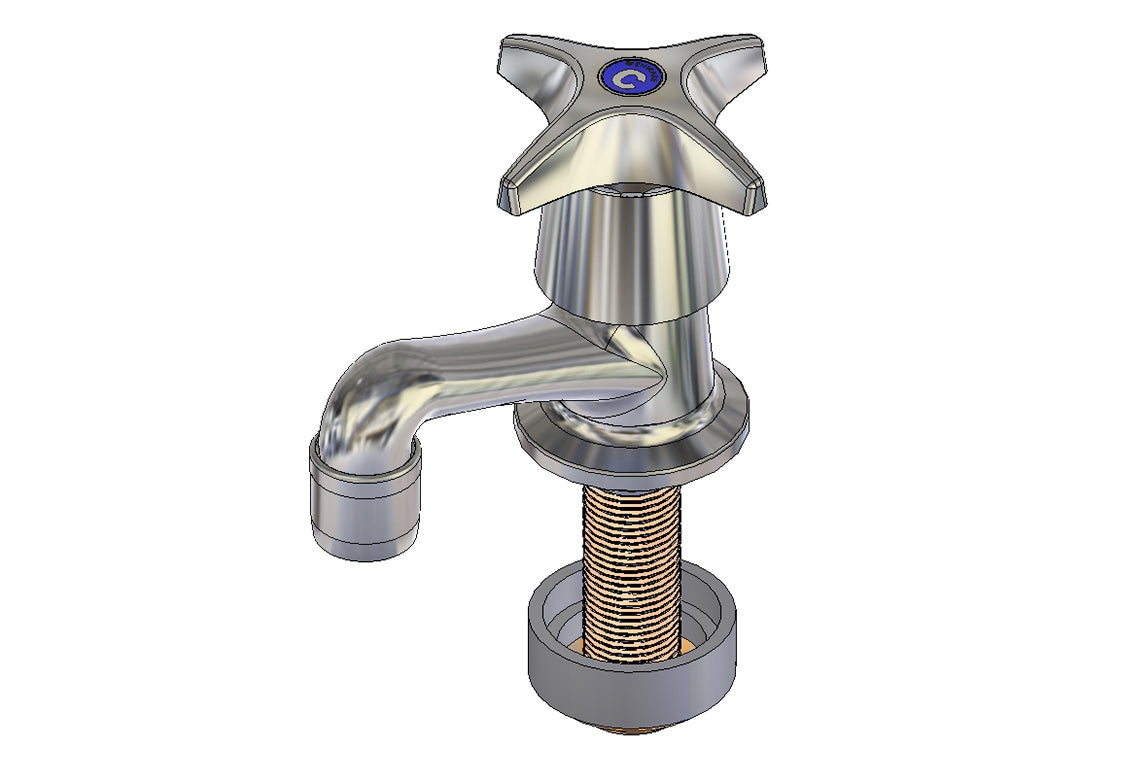

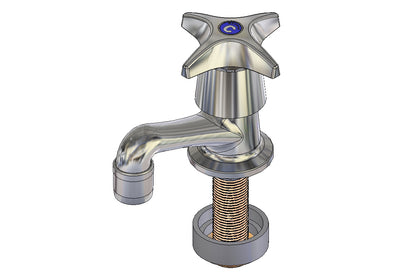

Concealed Spindle Pillar Tap Aerated Outlet - Jumper Valve
Concealed Spindle Pillar Tap Aerated Outlet - Jumper Valve
Product Code: CS327
Couldn't load pickup availability
Product description
Concealed spindle tapware series is robust and vandal resistant. The ergonomically designed handle features a dress skirt which conceals the anti-vandal handle fixing and spindle, for aesthetics and easier cleaning. Ideal for commercial, institutional and pubic amenity applications.
Key Selling Points
- High quality construction from dezincification resistant (DR) brass with durable chrome plated finish
- Vandal-resistant internal locking ring secures the handle and requires the supplied special key to release
- Serviceable with all wearing components replaceable, thus providing an even longer life
- Blue (Cold), Red (Hot) or Yellow (Warm) coloured indicator button. (3 colour indicator buttons included)
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-3 Star-8Lpm,Lead Free
- First Additional WELS (Stars)
- 3
- First Additional WELS Flow Rate (L/min)
- 8
- Maximum Recommended Temperature (Deg C)
- 70
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 8
- Inlet Connection
- 1/2" BSP (15mm)
- Finish
- Chrome
- Valve Type
- Jumper Valve
BIM Files
Brochures

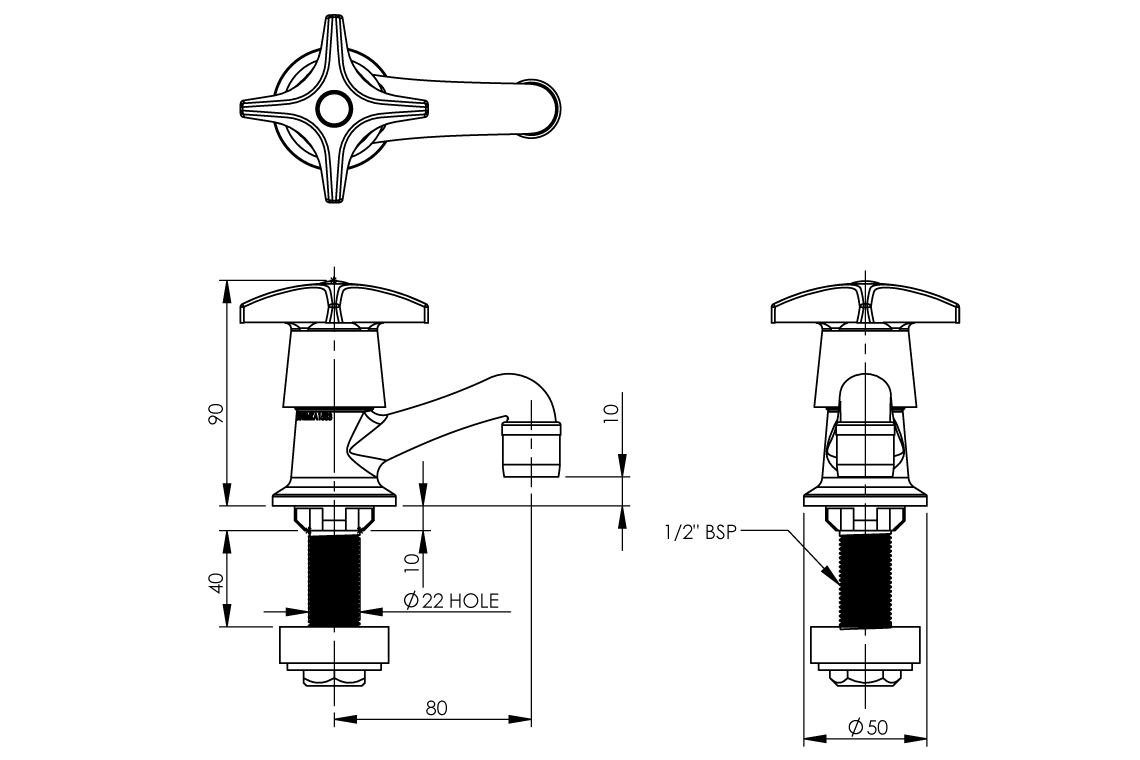

Dimensional Drawings
Product Information
